This is the Red variant of the MH-Z19C NDIR Infrared Carbon Dioxide Sensor Module in Gas and Dust Sensor. Available at ₹3,158.86 (₹2,677.00 + GST) with free shipping across India.

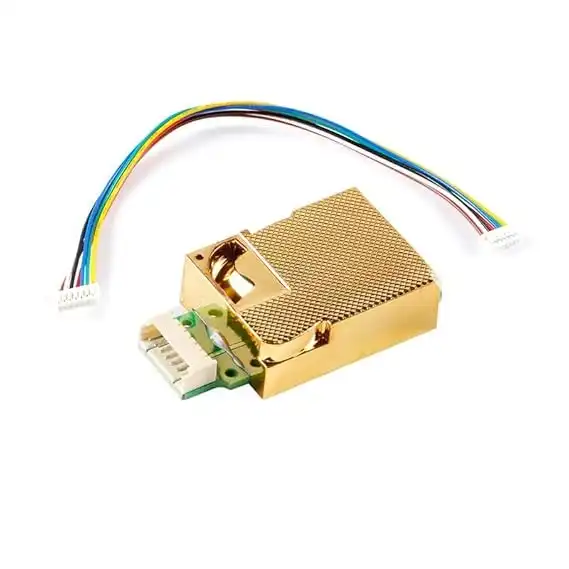

MH-Z19C NDIR Infrared Carbon Dioxide Sensor Module
This is the latest MH-Z19C high-precision infrared CO2 sensor. The effectively measuring range is from 400 to 5000ppm. It is a small size sensor and based on non-dispersive infrared (NDIR) technology and has good selectivity and oxygen-free dependency. Besides, its service life could up to 5 years! It integrates temperature compensation and has ADC on board. Most importantly, the product is easy to use; it is compatible with all types of microcontrollers such as Arduino, Raspberry Pi etc.
In addition, this Infrared CO2 Sensor For Arduino (400~5000 ppm) is a high-performance sensor that combines the technology of mature infrared absorption gas detection with precision optical circuit design as well as sophisticated circuit design. It has characteristics such as high sensitivity, high resolution, low power consumption, fast response, anti-water vapour interference, no poisoning, high stability and long life. The unique of this sensor is that it has onboard converters which give you serial outputs and also gives analog output ranging 0.4V-2VDC.
- Operating Voltage: 4.5-5.5VDC
- Working Current: <40mA Average
- Detection Range: 400-5000ppm
- Detection accuracy: ± 50ppm
- Preheat time: 1min
- Digital output: serial data output (9600, N, 8,1)
- Response time: ≤ 120S
-
The output signal:
- Working temperature: 0 ~ 50 ℃
- Working humidity: 0 ~ 90% RH
- Storage temperature: -20 ~ 60 ℃
- Size: 33mm x 20mm x 9mm
- Weight: 5g
- Interface Level: 3.3V(Compatible with 5V)
Package Includes(MH-Z19C NDIR Infrared Carbon Dioxide Sensor Module):
- 1 x MH-Z19 NDIR CO2 Sensor
- 1 x 7-pin JST Cable
IMU Sensor Guide: MPU6050, MPU9250, and BNO055 Compared
An IMU (Inertial Measurement Unit) sensor measures acceleration, rotation, and sometimes magnetic heading — the fundamental data needed...
Read More →
Strain Gauge Basics: Bridge Configuration and Signal Conditioning
Strain gauges are the invisible heart of almost every weighing and force measurement system in the world. From...
Read More →
Distance Sensor Comparison: Ultrasonic vs IR vs Laser Ranging
Distance measurement is one of the most common requirements in robotics, automation, IoT, and embedded electronics. Three fundamentally...
Read More →Technical Specifications
| Model | MH-Z19C |
|---|---|
| Color | Red |
| SKU | AI7084 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The MH-Z19C NDIR Infrared Carbon Dioxide Sensor Module is a versatile gas and dust sensor used across a wide range of applications including air quality monitoring, gas leak detection, industrial safety, HVAC systems, and environmental monitoring.
Common use cases:
- Building a gas leak alarm for LPG/methane
- Monitoring indoor air quality (CO2, VOC)
- Dust monitoring in a workshop
This product is ideal for environmental engineers, safety professionals, and IoT developers.
Technical Tip: MQ-series sensors need a warm-up period (24-48 hours for first use). Calibrate in clean air for accurate readings.
