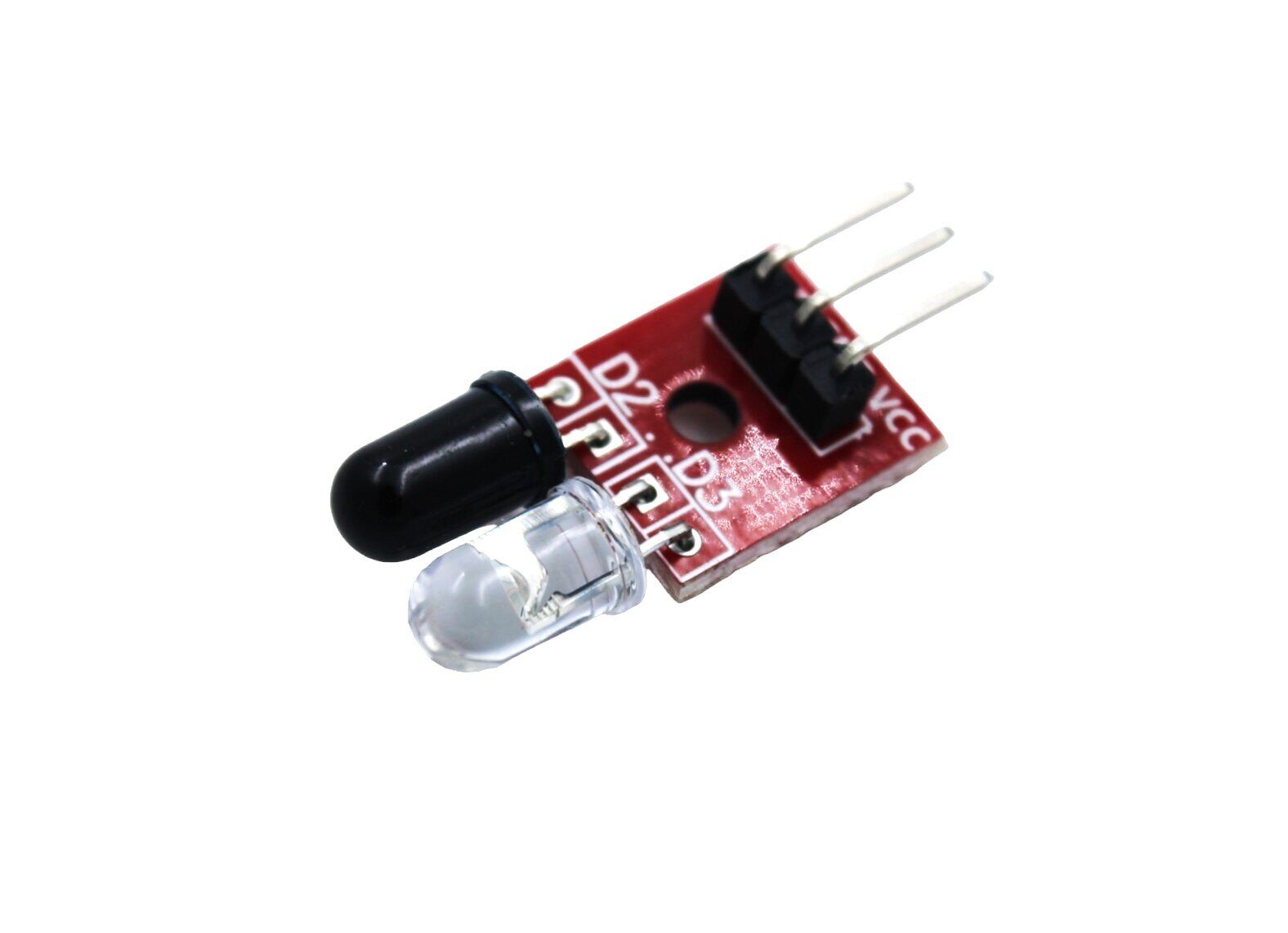

Infrared Inspection Module Obstacle Avoidance
The Infrared Obstacle Avoidance IR Sensor Module consists of a pair of infrared transmitting and receiving tubes. When the transmitted infrared light is reflected back by an obstacle, the receiver tube detects the reflected IR waves.
This module has a 3-wire interface, with Vcc, GND, and an OUTPUT pin. It operates within a voltage range of 3.3V to 5V. When an obstacle is detected or the IR light is reflected, the output pin generates a digital signal (low-level).
Features:
- Easy to assemble and use
- Onboard detection indication
- The effective distance range of 2cm to 80cm
- A preset knob to fine-tune distance range
- There is an obstacle, the green indicator light on the circuit board.
Specification:
| Main Chip | LM393 |
|---|---|
| Operating Voltage (VDC) | 3.6 ~ 5 |
| Average Current Consumption (mA) | 0.06 |
| Detection Angle | 35 ° |
| Distance Measuring Range (CM) | 2 ~ 30 |
| Dimensions (mm) LxWxH | 48 x 14 x 8 |
| Weight (gm) | 5 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 4 × 1 cm |
Package Includes :
1 x Infrared Inspection Module Obstacle Avoidance
