This is the Red variant of the Waveshare Infrared Reflective Sensor in PIR / IR and Optical Sensor. Available at ₹349.28 (₹296.00 + GST) with free shipping across India.

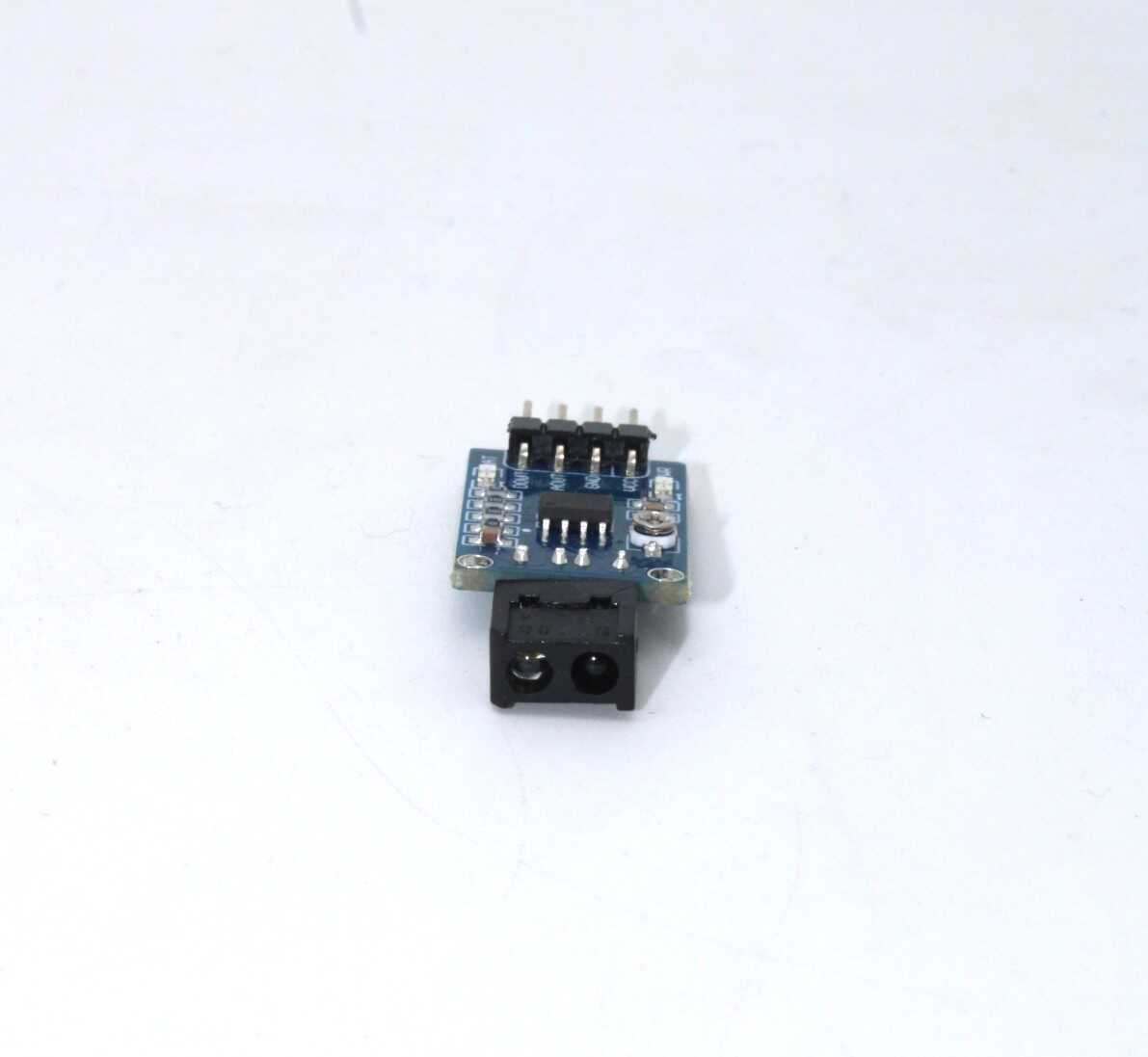

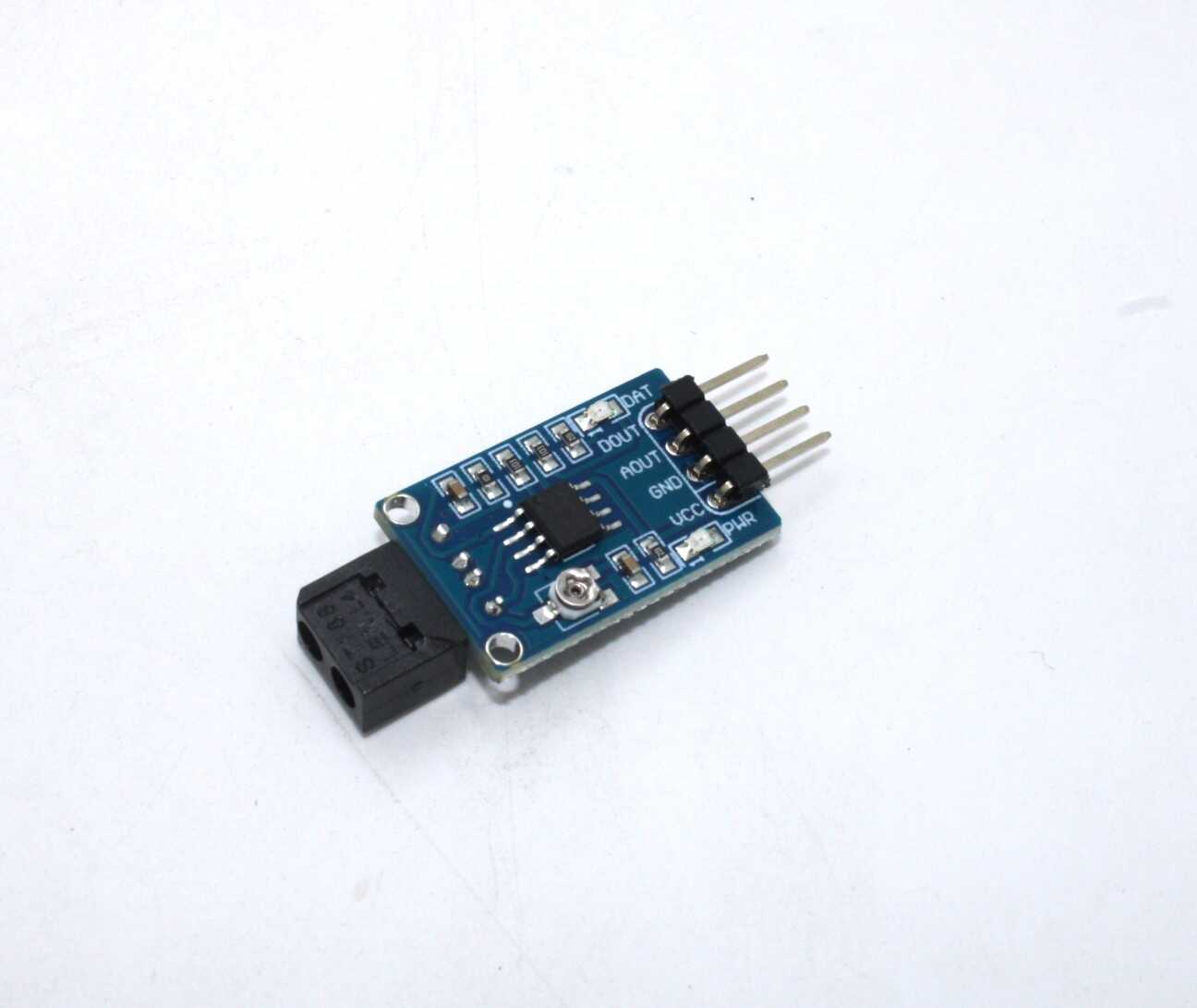

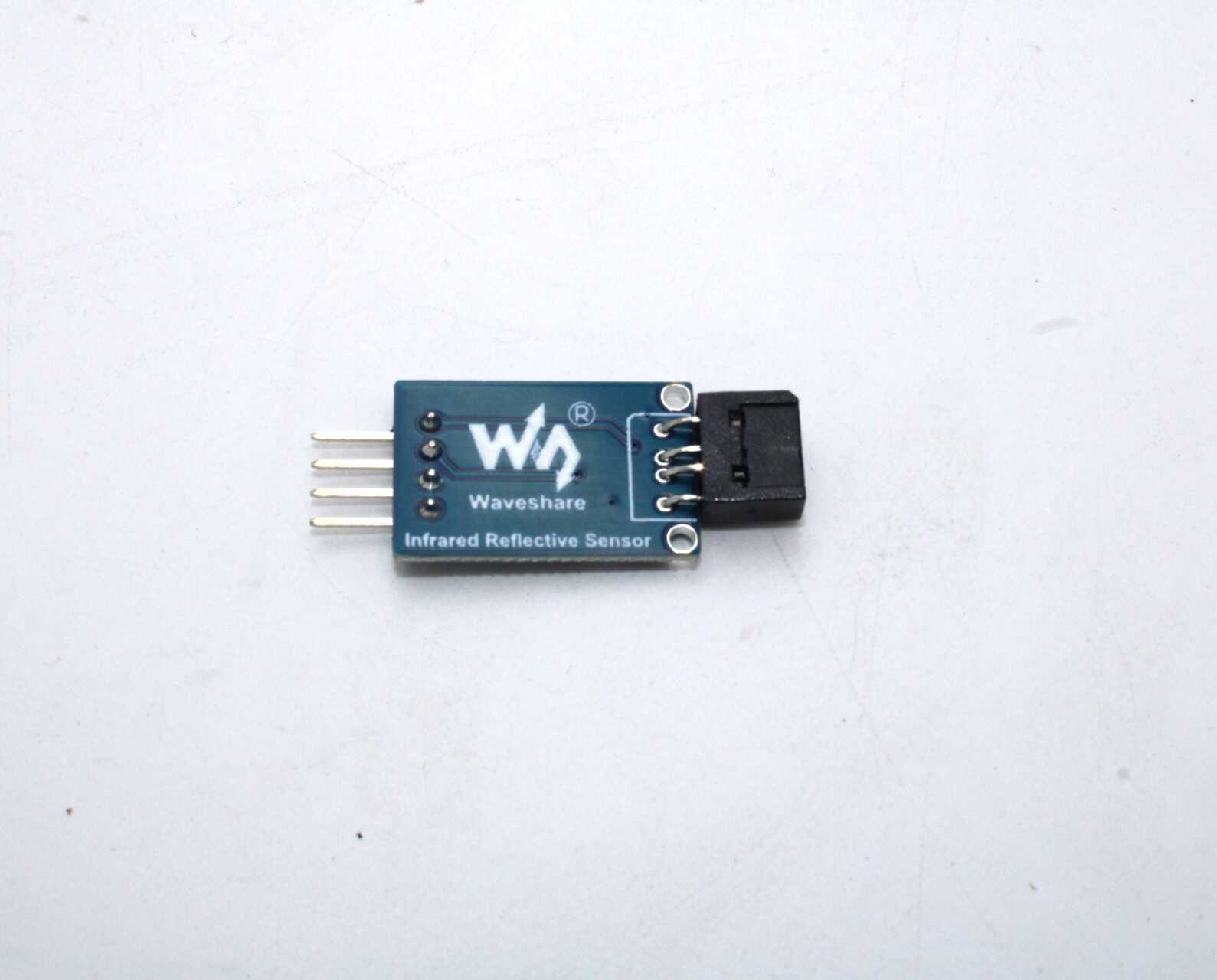

Waveshare Infrared Reflective Sensor
The reflective module with IR sensor is equipped with digital and analogue output. It works with a voltage from 3 V to 5.3 V. It enables the detection of obstacles in the range from 0 to 30 mm.
An infrared sensor contains two parts: an infrared transmitter and an infrared receiver, the infrared transmitter consists of an infrared LED array as a luminophore and a PN junction made of a special material with high infrared radiation efficiency, which usually is GaAs. When a current injected into the PN junction by forward bias voltage, it can excite a source of infrared light with a center wavelength range of 830nm-950nm. The power of the infrared light excited is proportional to the current injected. However, in the case that the injected current excesses the maximum rating, the power of the infrared light may decline as the current increases. The infrared receiver is a semiconductor device for translating the infrared light signal into the electrical signal. And the core component of it is a PN junction made of a special material. Its PN junction has a different structure from the general purpose diode, enabling more infrared light to be received. As the
intensity of the infrared light enhances, more current can be generated.
Applications:
- intellectual robot
- obstacle avoidance car
- counter device in the pipeline
- black and white lines tracking device
Features:
- Reflective Infrared Transceiver
- Features wide-range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
Specifications:
| Operating Voltage (V) | 3.3V ~ 5V |
|---|---|
| Detection range | 2cm ~ 30cm (depending on the obstacle’s color, farthest for white) |
| View angle | 35° |
| Recommended environment | In door, to avoid the sunshine effect |
| Interface | Aout, Dout, GND, VCC |
| Baud rate | 115200 |
| Mounting Holes Diameter (mm) | 3mm / 0.12 inch |
| Data bits | 8 |
| Dimensional Accuracy (mm): | 39mm × 15.5mm (include the IR LED) |
Package Includes:
1 x Waveshare Infrared Reflective Sensor
1 x 4-pin custom connector jumper wire
Load Cell and HX711 Advanced: Multi-Channel Weighing Systems
Building a precise multi-channel weighing system using load cells and the HX711 24-bit ADC amplifier is one of...
Read More →
Turbidity Sensor: Water Clarity Measurement for IoT System
Water quality monitoring has become a critical part of modern agriculture, aquaculture, industrial processes, and smart city infrastructure....
Read More →
Doppler Radar Sensor HB100: Detect Motion with Microwave for Arduino Projects
The HB100 microwave Doppler radar module is one of the most capable and least understood motion sensors available...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Color | Red |
| SKU | AI1073 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare Infrared Reflective Sensor is a versatile pir / ir and optical sensor used across a wide range of applications including motion detection, security systems, automatic lighting, people counting, and gesture recognition.
Common use cases:
- Building an automatic porch light
- Creating a people counter for a room
- Adding motion detection to a security system
This product is ideal for home automation builders and security system designers.
Technical Tip: PIR sensors detect heat-emitting movement. Adjust sensitivity and delay potentiometers for your environment. False triggers can be reduced with proper shielding.
