Description:

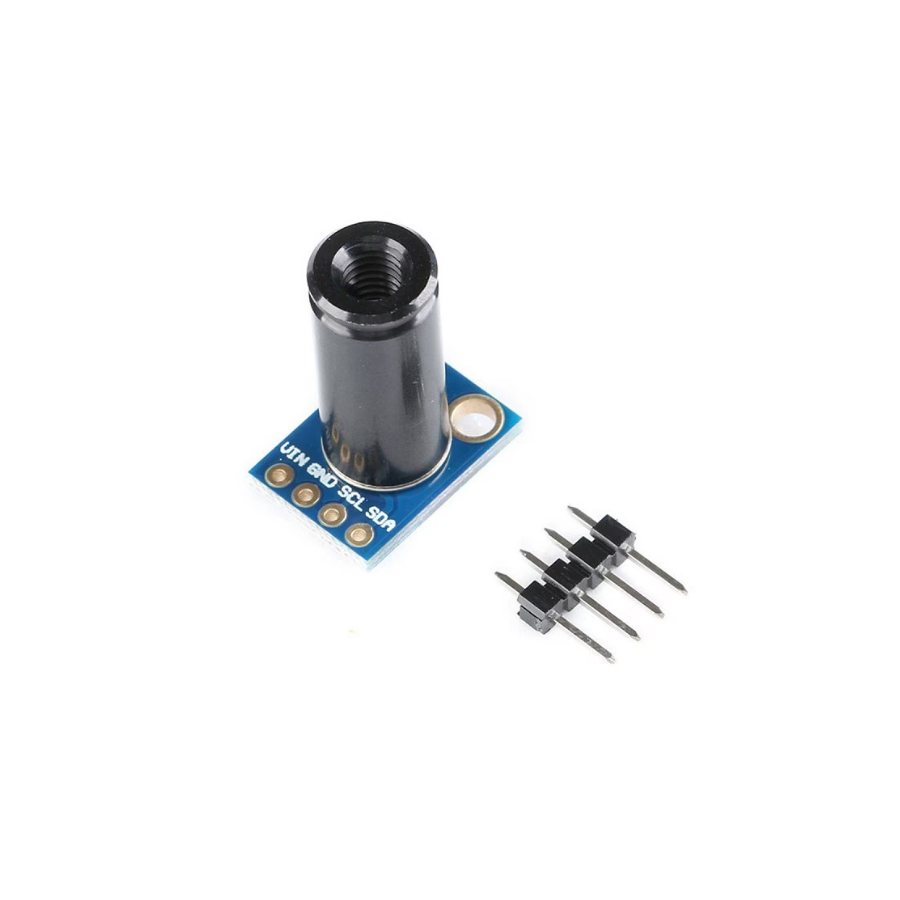

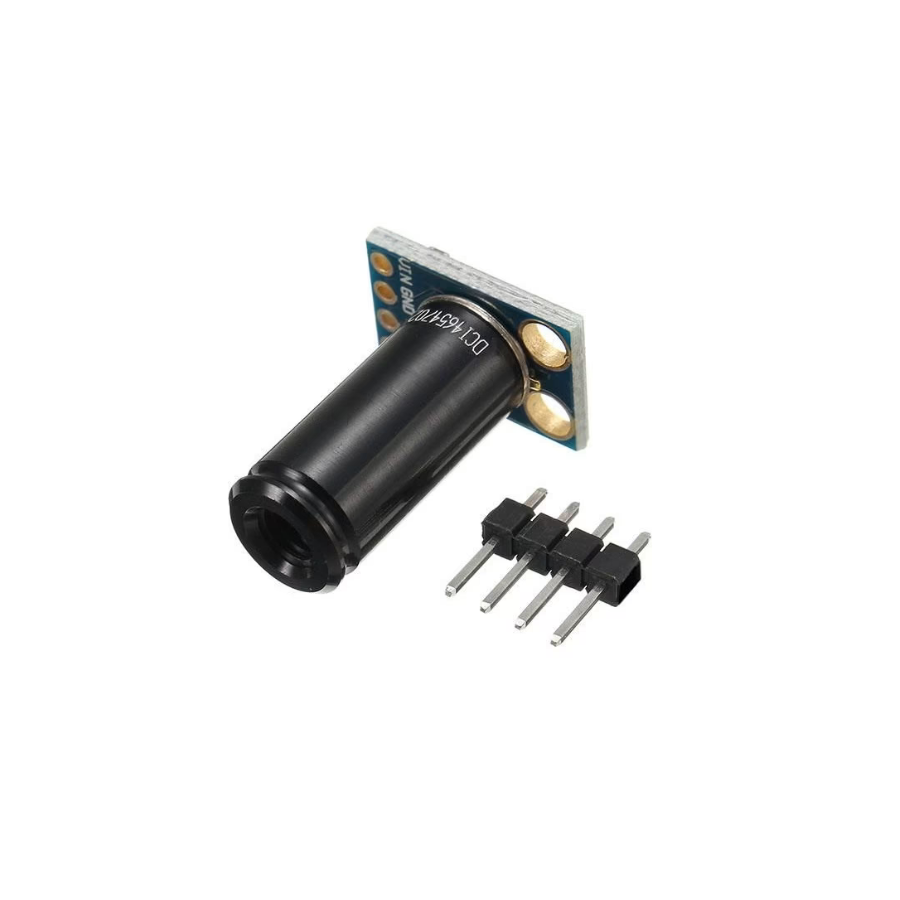

The GY-906 MLX90614ESF -BCC Contactless Temperature Sensor Module is a device that can measure the temperature of objects without touching them. It works with Arduino or any other microcontroller that supports I2C communication.
The device uses infrared radiation to detect the temperature of objects. It has a high accuracy and resolution thanks to its internal 17-bit ADC and a powerful DSP. It can be used for many purposes, such as measuring body temperature or detecting motion. The device has a 35-degree field of view and gives the average temperature of all the objects within that area.
Note: This sensor comes with a breakout board with all of the components needed for operation and two types of pins.
Code
Applications:
- High precision non-contact temperature measurements
- Thermal Comfort sensor for Mobile Air Conditioning control system
- The temperature sensing element for residential,
- commercial and industrial building air conditioning Windshield defogging
- Automotive blind angle detection
- Industrial temperature control of moving parts
- Temperature control in printers and copiers
- Home appliances with temperature control
- Livestock monitoring
- Movement detection
- Thermal relay/alert
- Body temperature measurement
- Data check
Features:
- Small size, low cost.
- Mounted on a breakout board with two types of pins.
- 10k Pull-up resistors for the I2C interface with optional solder jumpers.
- Easy to integrate
- Factory calibrated in a wide temperature range
- Single and dual-zone versions
- SMBus compatible digital interface
- Customizable PWM output for continuous reading
- High accuracy of /- 0.2°C over the wide temperature range
- Sleep mode for reduced power consumption
Specifications:
| Input Voltage (V) | 3.3 |
|---|---|
| Sensing Range | 4 CM -10 cm |
| Field of View | 35° |
| Sensor Temperature | -40 to +85°C |
| Length (mm): | 20 |
| Width (mm) | 20 |
| Height (mm) | 20 |
| Weight (g): | 5 |
Package Includes:
- 1 x GY-906 MLX90614ESF -BCC Sensor Module
MLX90614 IR Thermometer: Contactless Temperature Measurement with Arduino
The MLX90614 is a factory-calibrated infrared thermometer sensor that enables truly contactless temperature measurement with Arduino — no...
Read More →
Hall Effect Sensor Types: Linear, Rotary and Switch Compared for Arduino Projects
Hall effect sensors are one of the most versatile and widely used sensor families in electronics. From counting...
Read More →
Accelerometer Buying Guide India: ADXL345 vs MPU6050 vs LIS3DH
Accelerometers are fundamental sensors in modern electronics — they measure the rate of change of velocity (acceleration) in...
Read More →Technical Specifications
| Model | GY-906 |
|---|---|
| Package Quantity | 90614 pcs |
| SKU | AI2473 |
| Weight | 0.0117 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GY-906 MLX90614ESF -BCC Contactless Temperature Sensor Module is a versatile pir / ir and optical sensor used across a wide range of applications including motion detection, security systems, automatic lighting, people counting, and gesture recognition.
Common use cases:
- Building an automatic porch light
- Creating a people counter for a room
- Adding motion detection to a security system
This product is ideal for home automation builders and security system designers.
Technical Tip: PIR sensors detect heat-emitting movement. Adjust sensitivity and delay potentiometers for your environment. False triggers can be reduced with proper shielding.
