PIR Motion Sensor Detector Module HC-SR501 SMD

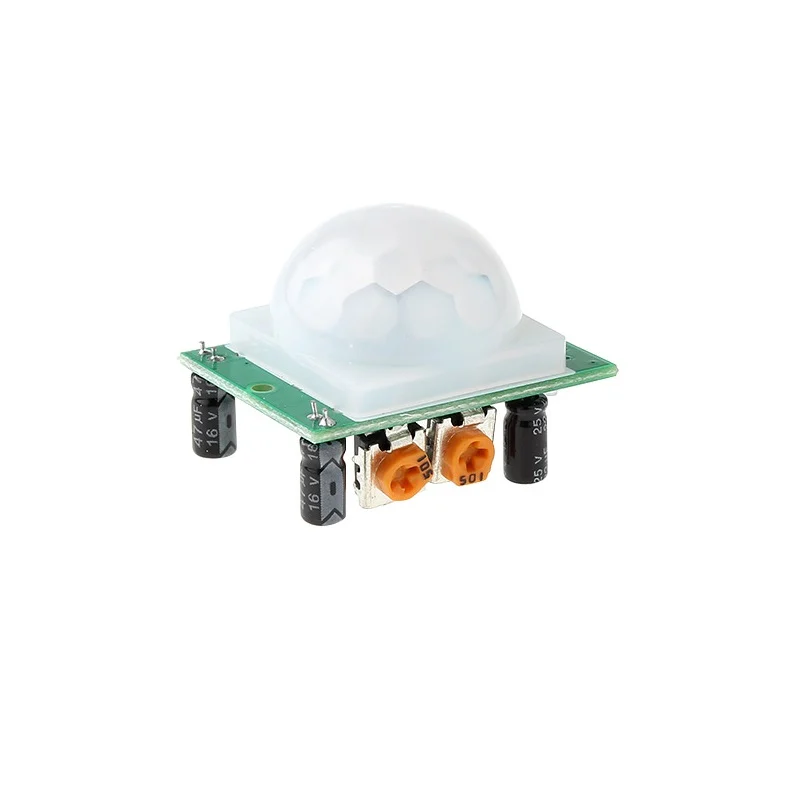

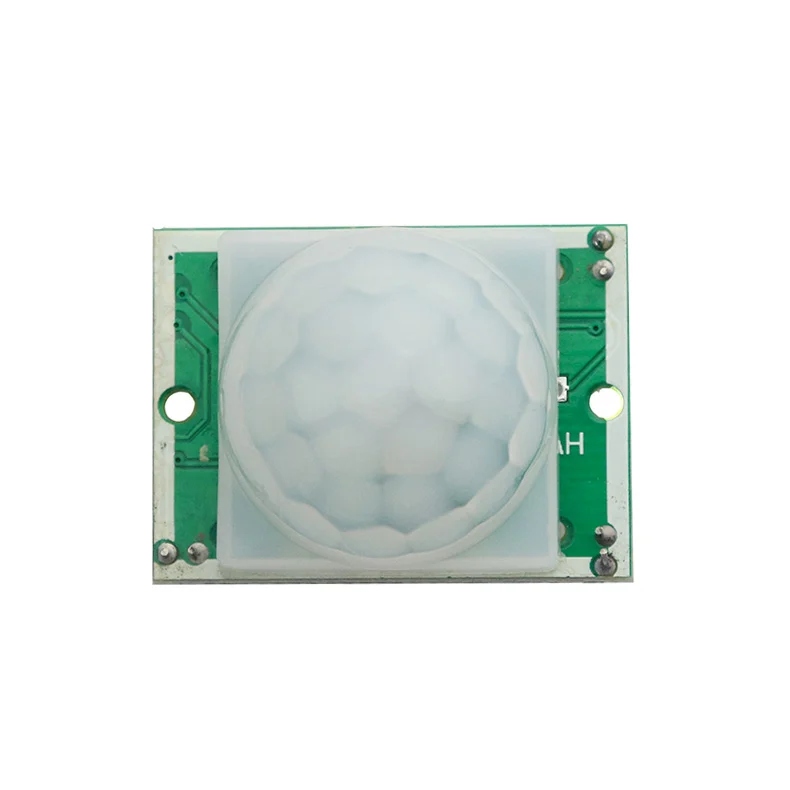

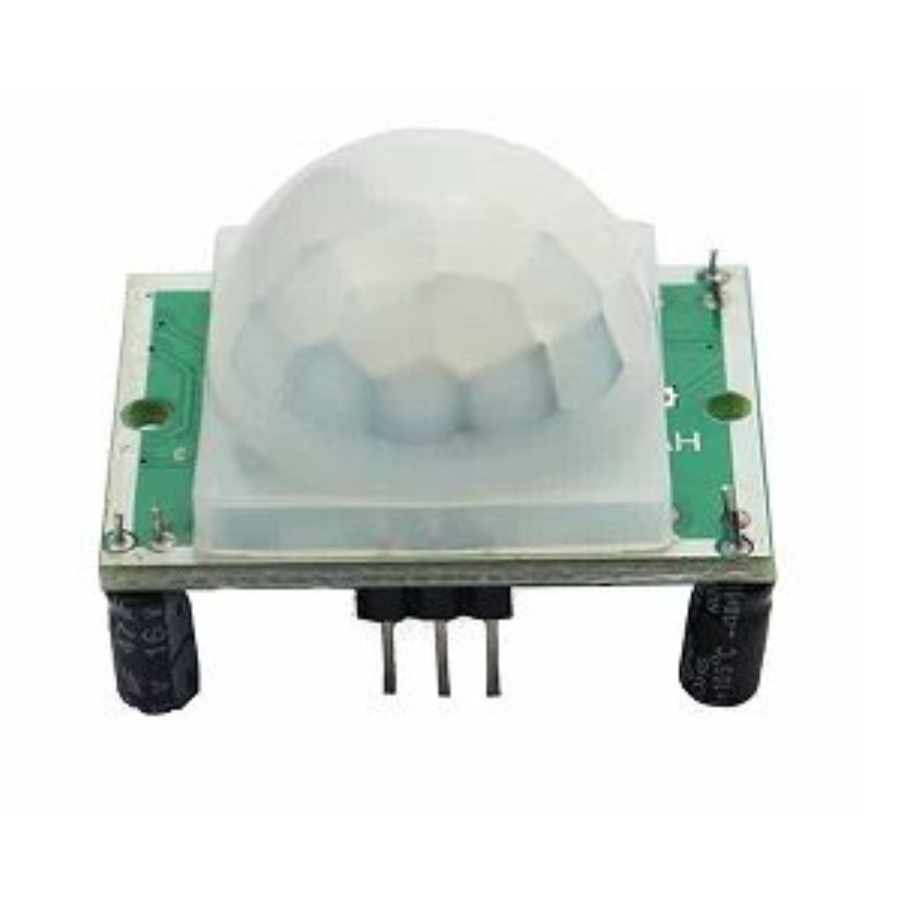

Discover the PIR Motion Sensor Detector Module HC-SR501 SMD: Your ultimate solution for motion sensing technology. This advanced module enables seamless detection of human motion within its operational range, making it an essential component for various applications. Renowned as a PIR (Passive Infrared) sensor, it incorporates a pyroelectric sensor, sophisticated conditioning circuitry, and a precisely engineered dome-shaped Fresnel lens to ensure optimal performance.

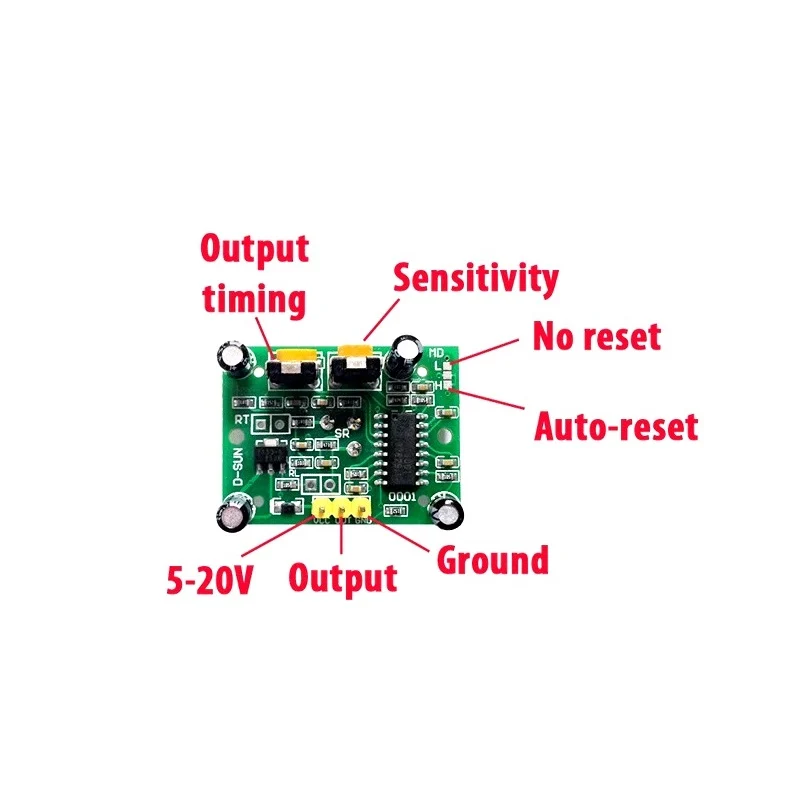

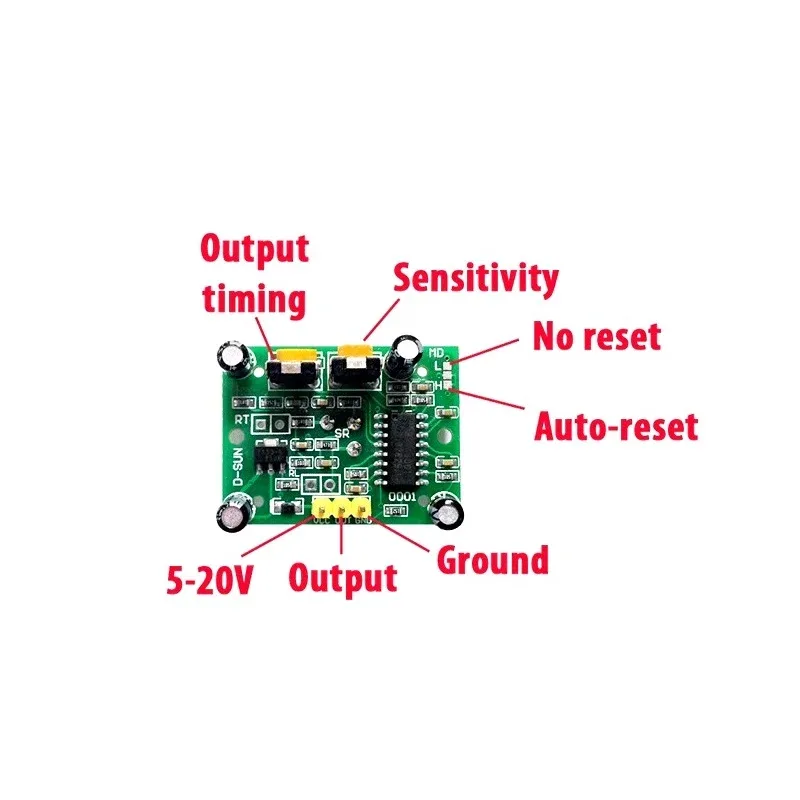

Featuring adjustable delay time and sensitivity via potentiometers, this module offers unparalleled flexibility to tailor its functionality according to your specific requirements. Whether you’re working with ARDUINO, RASPBERRY PI, AVR, PIC, 8051, or other platforms, compatibility is guaranteed, empowering you to integrate it effortlessly into your projects.
Note: The Product available in Two colours Blue and Green, therefore packing you may get any one of them.
Features :

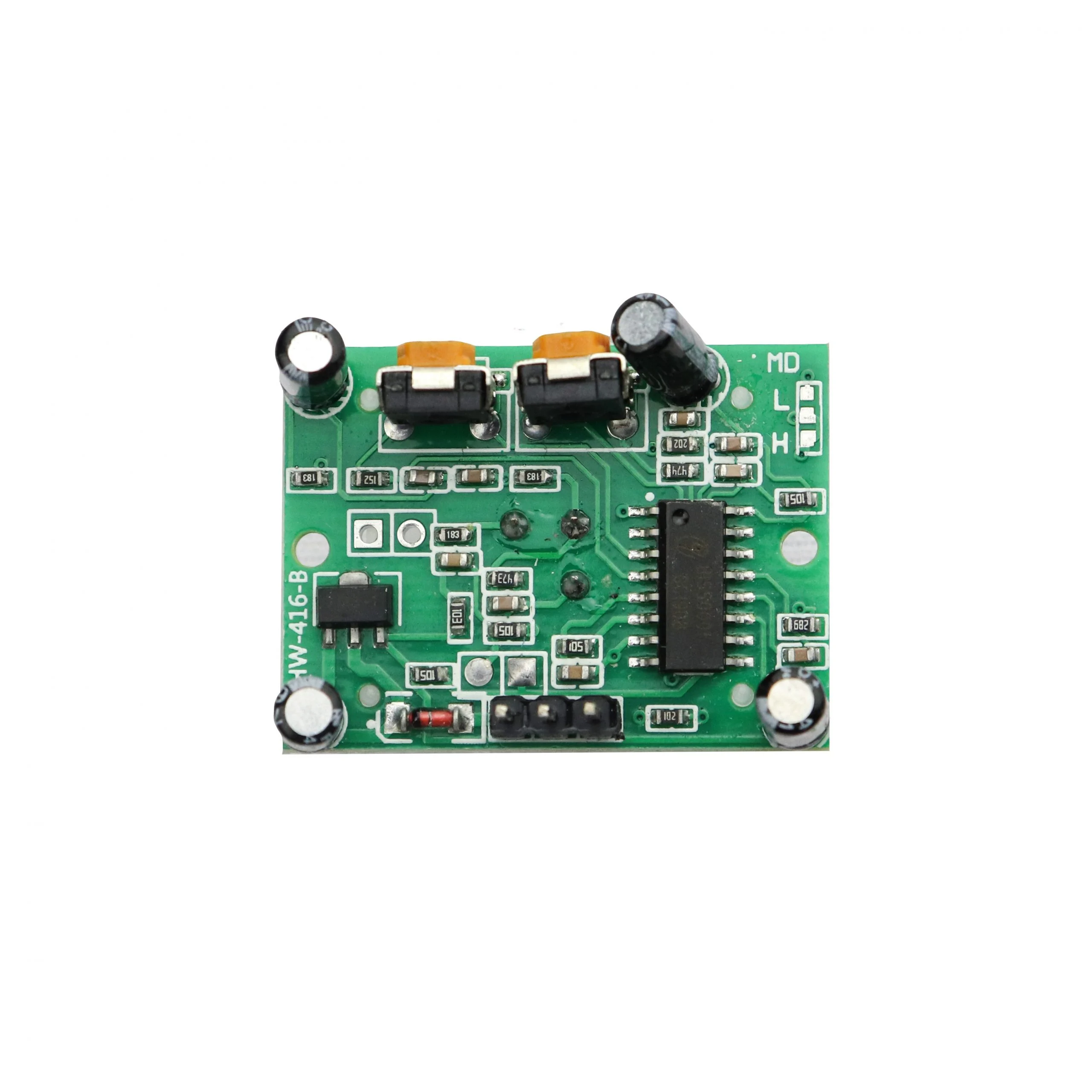

- Infrared Sensor with Control Circuit Board
- The Sensitivity and Holding Time is adjustable.
- Blockade time: 2.5s (Default)
- Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
- Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).
Specifications:
| Model | PIR HC-SR501 |
|---|---|
| Operating Voltage (VDC) | 4.5 ~ 20 |
| Average Current Consumption (mA) | 0.06 |
| Distance Measuring Range (CM) | 300 ~ 700 |
| Output Type | (High/ Low-level Signal) 3.3V TTL output |
| Dimensions (LxWxH) mm | 32 x 24 x 18 |
| Weight (g): | 10 |
| Operating Temperature (°C) | -20 to 80 |
| Detection Angle | <140° |
| Delay Time | 5 to 200s (Can be Adjusted, Default 5s +/- 3%) |
Package Includes :
- 1 x PIR Motion Sensor Detector Module HC SR501 SMD.
MEMS Microphone SPH0645: High Quality I2S Audio Capture with Arduino & Raspberry Pi
The SPH0645LM4H is a MEMS (Micro-Electro-Mechanical Systems) digital microphone module that outputs audio over the I2S (Inter-IC Sound)...
Read More →
Temperature RTD Sensor: PT100 vs PT1000 Interface Guide
Table of ContentsIntroduction to RTD SensorsHow RTD Sensors WorkPT100 vs PT1000: Key DifferencesAccuracy Classes and TolerancesInterface Circuits and...
Read More →
Sensor Power Management: Enable/Disable to Save Battery
Battery-powered IoT devices live or die by one metric: how long do they last between charges or battery...
Read More →Technical Specifications
| SKU | AI1520 |
|---|---|
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The PIR Motion Sensor Detector Module HC-SR501 SMD is a versatile pir / ir and optical sensor used across a wide range of applications including motion detection, security systems, automatic lighting, people counting, and gesture recognition.
Common use cases:
- Building an automatic porch light
- Creating a people counter for a room
- Adding motion detection to a security system
This product is ideal for home automation builders and security system designers.
Technical Tip: PIR sensors detect heat-emitting movement. Adjust sensitivity and delay potentiometers for your environment. False triggers can be reduced with proper shielding.
