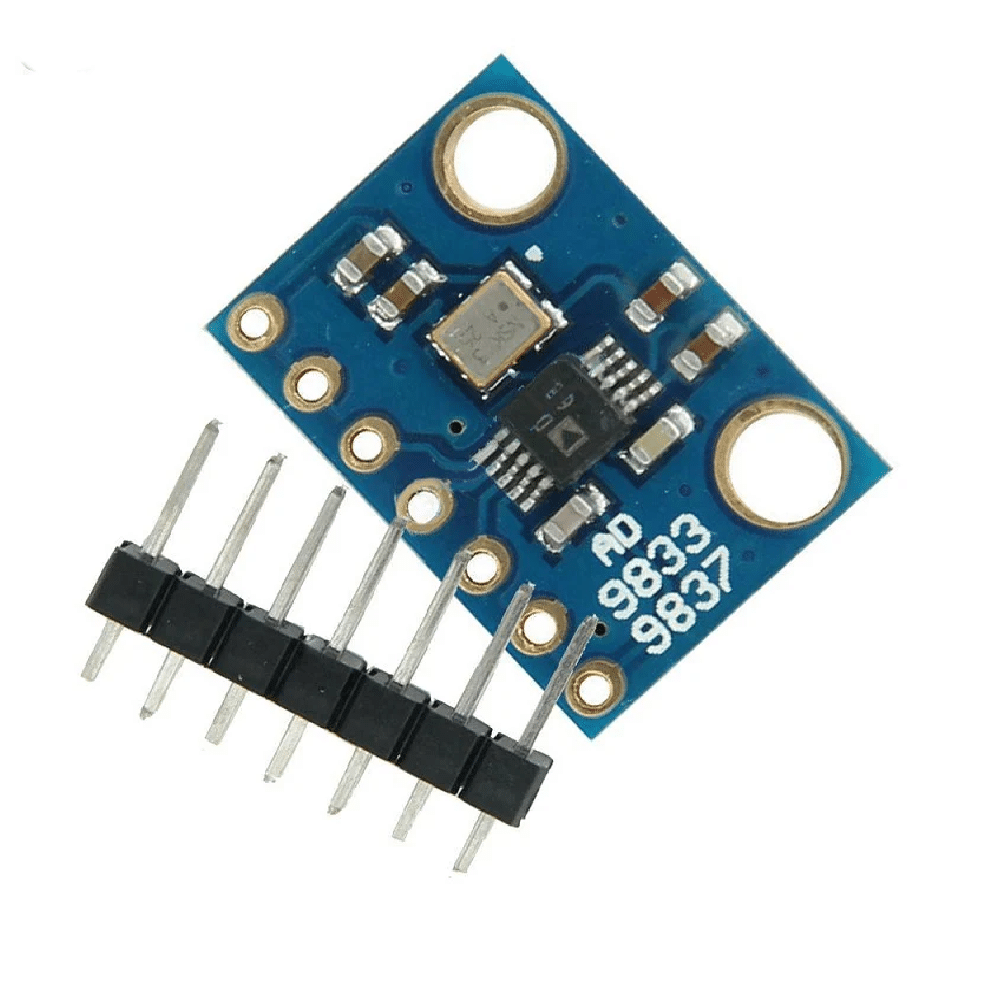

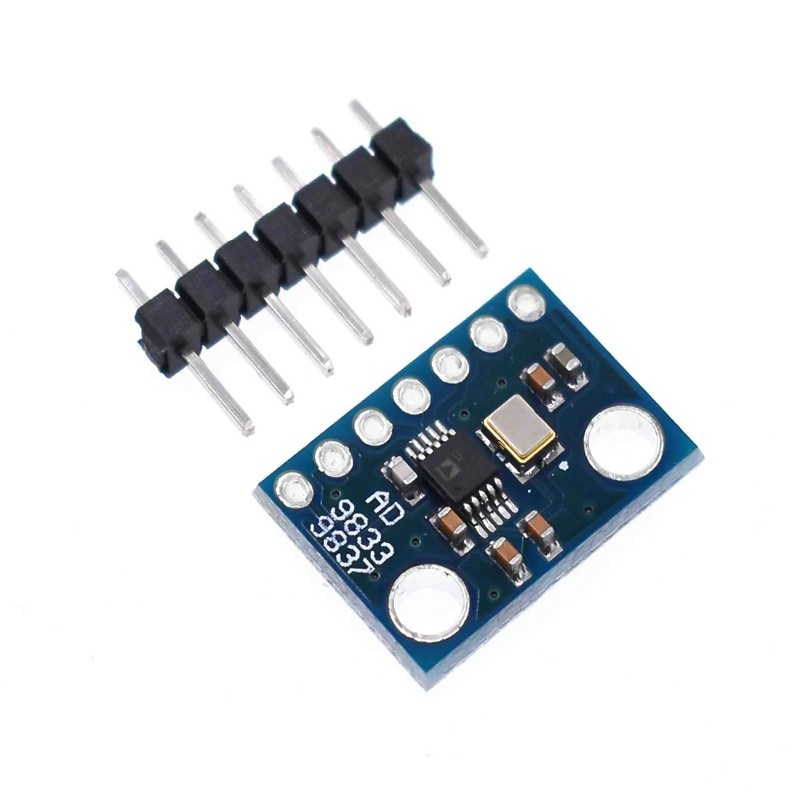

GY-9833 AD9833 Programmable Sine Square Wave DDS Signal Generator
The AD9833 is a low-power, programmable waveform generator that can produce sine, triangular, and square wave outputs. It is essential for various sensing, actuation, and time domain reflectometry (TDR) applications. Its output frequency and phase are software programmable for easy tuning, and it requires no external components.
The device features a standard serial interface, enabling direct connection with multiple microprocessors. It utilizes an external serial clock for writing data or control information.
The AD9833 operates through a 3-wire serial interface, compatible with up to 40 MHz clock rates and adheres to DSP and microcontroller standards. It functions with a power supply ranging from 2.3 V to 5.5 V.
Additionally, the AD9833 includes a power-down (SLEEP) function, allowing for the shutdown of inactive sections to reduce the part’s current consumption, such as powering down the DAC when generating a clock output.
Features:
Digitally programmable frequency and phase
12.65 mW power consumption at 3 V
0 MHz to 12.5 MHz output frequency range
28-bit resolution: 0.1 Hz at 25 MHz reference clock
Sinusoidal, triangular, and square wave outputs
2.3 V to 5.5 V power supply
No external components required
3-wire SPI interface
Specifications:
| Power Supply | 2.3 V to 5.5 V |
|---|---|
| Temperature Range | −40°C to +105°C |
| Input Current | 10µA |
| Input Capacitance | 3pF |
| Output Frequency Range | 0 MHz to 12.5 MHz |
| Length(mm) | 18 |
| Width(mm) | 13 |
| Height(mm) | 8 |
| Weight(g) | 1(approx) |
Package Includes:
1 x GY-9833 AD9833 Programmable Sine Square Wave DDS Signal Generator
GY-9833 AD9833 Programmable Sine Square Wave DDS Signal Overview
The GY-9833 AD9833 is a compact, low-power DDS (Direct Digital Synthesis) module that generates precise sine, triangular, and square wave outputs. Ideal for signal generation in embedded projects, it offers digitally programmable frequency and phase tuning over a 0–12.5 MHz range with 28-bit resolution.
Key Features of GY-9833 AD9833 Programmable Sine Square Wave DDS Signal
- Wide supply range: 3 V to 5.5 V for compatibility with 3.3 V and 5 V systems
- Output frequency from 0 MHz up to 12.5 MHz with 0.1 Hz resolution at 25 MHz reference
- Generates sinusoidal, triangular, and square waveforms without external components
- 28-bit frequency register and programmable phase control for precise tuning
- 3-wire SPI interface supporting clock rates up to 40 MHz for fast programming
- Low power consumption suitable for battery-powered and portable applications
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Function generator for testing analog filter response and amplifier linearity
- Sensor calibration and excitation in data acquisition systems
- Audio signal generation for tone synthesis and waveform analysis
- Time Domain Reflectometry (TDR) experiments in cable fault detection
- Educational labs and hobbyist projects demonstrating DDS principles
- Frequency sweep source for impedance and network analyzer testing
How to Use GY-9833 AD9833 Programmable Sine Square Wave DDS Signal

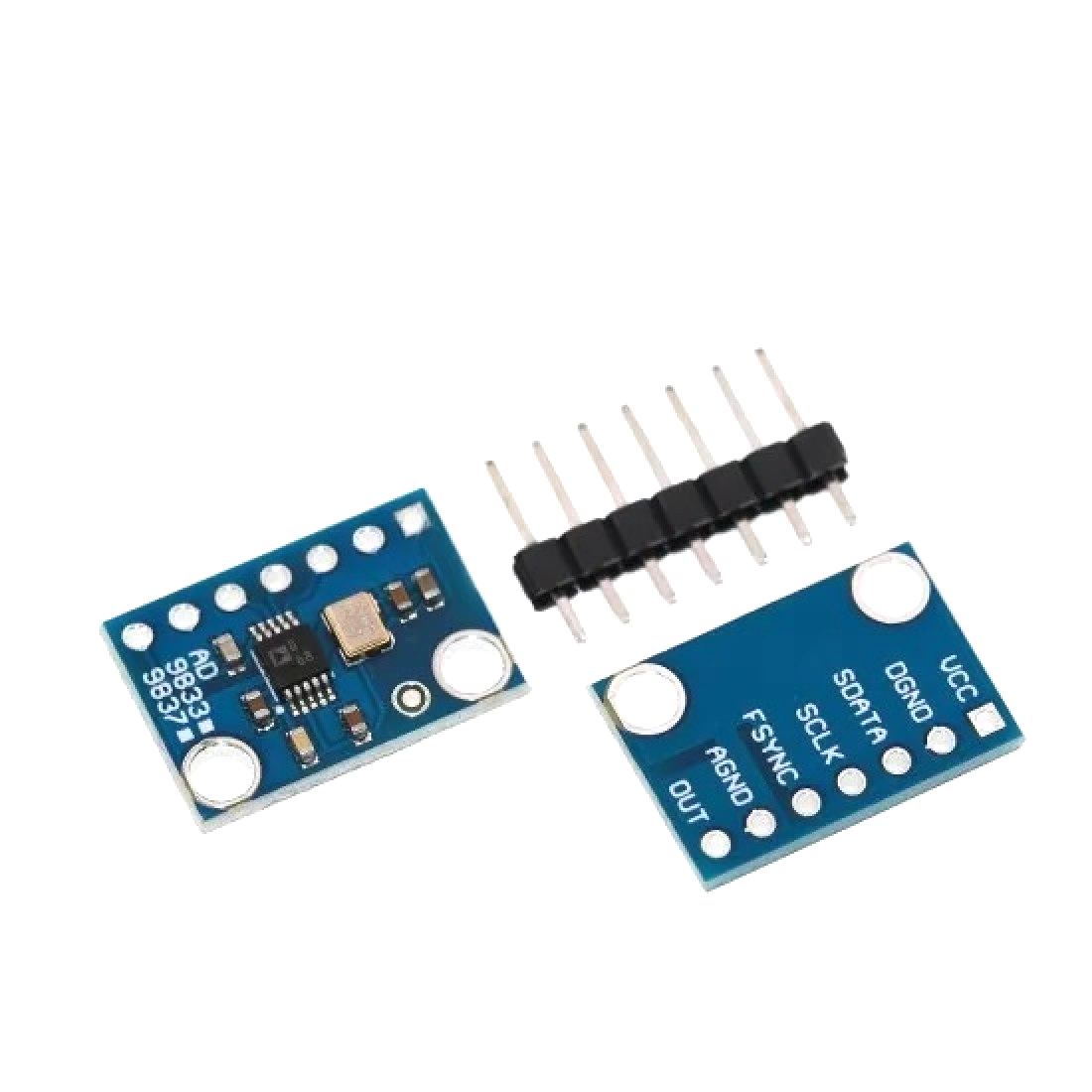

Connect the module’s VCC to a 3 V–5.5 V rail and GND to ground, then wire MOSI, SCLK, and FSYNC to your microcontroller’s SPI pins. Load the desired frequency and phase values into the 28-bit registers via SPI commands, select the output mode (sine/triangle/square) through control bits, and apply a simple RC filter if needed to clean the waveform before feeding it into the next stage.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum clock frequency for the SPI interface?
The AD9833 on the GY-9833 module accepts SPI clock rates up to 40 MHz, allowing rapid register updates and real-time waveform adjustments.
Can I power the module from a 3.3 V microcontroller supply?
Yes, the GY-9833 accepts 3 V to 5.5 V on its VCC pin, making it fully compatible with both 3.3 V and 5 V logic systems without level shifting.
Is an external filter required for clean waveform output?
While basic waveforms are available directly from the output pin, a simple RC or LC filter can be added to reduce high-frequency steps from the DDS and improve sine wave purity.
Technical Specifications
| Model | GY-9833 |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI0292 |
| Weight | 0.0026 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GY-9833 AD9833 Programmable Sine Square Wave DDS Signal Generator is a versatile signal generator module & oscilloscopes used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
