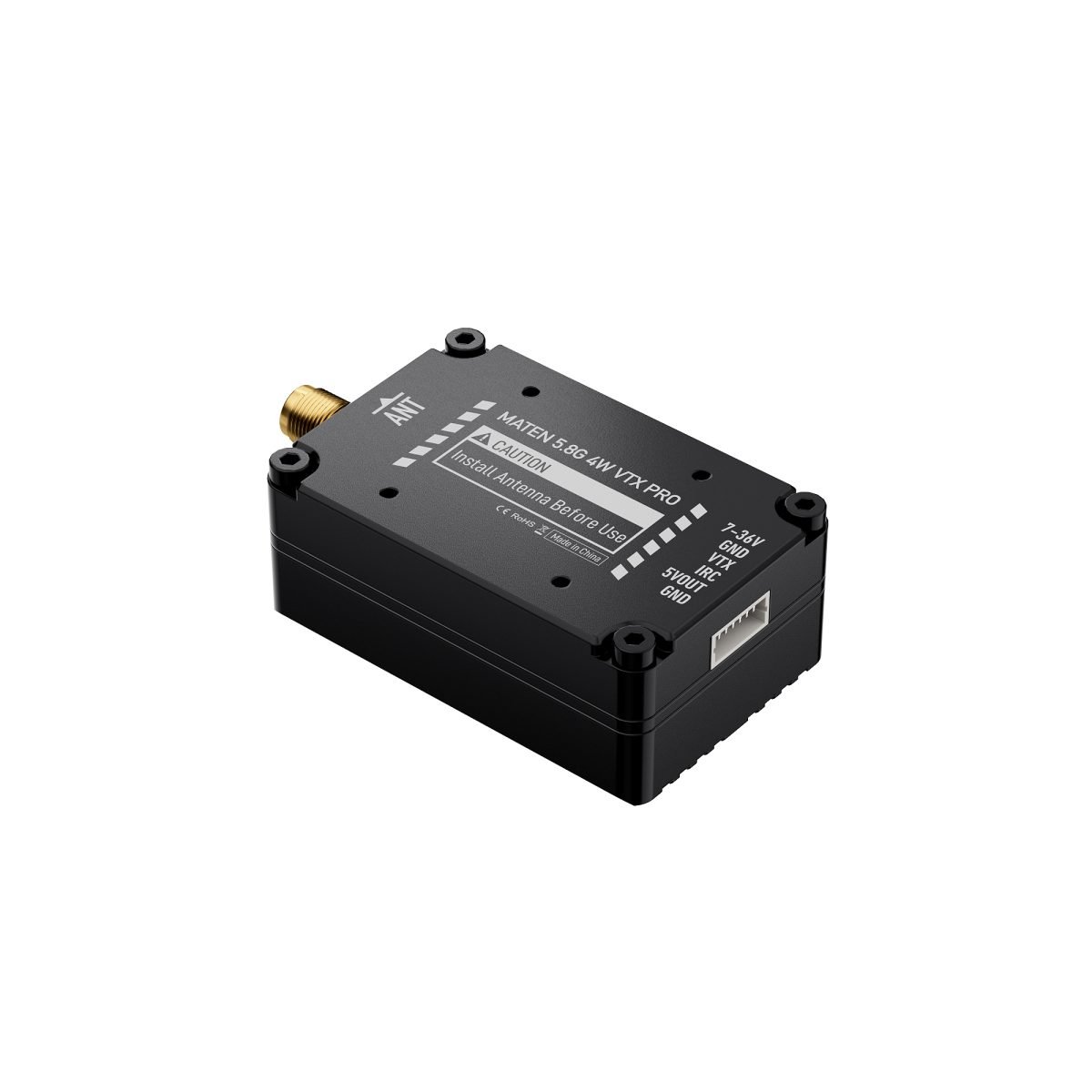

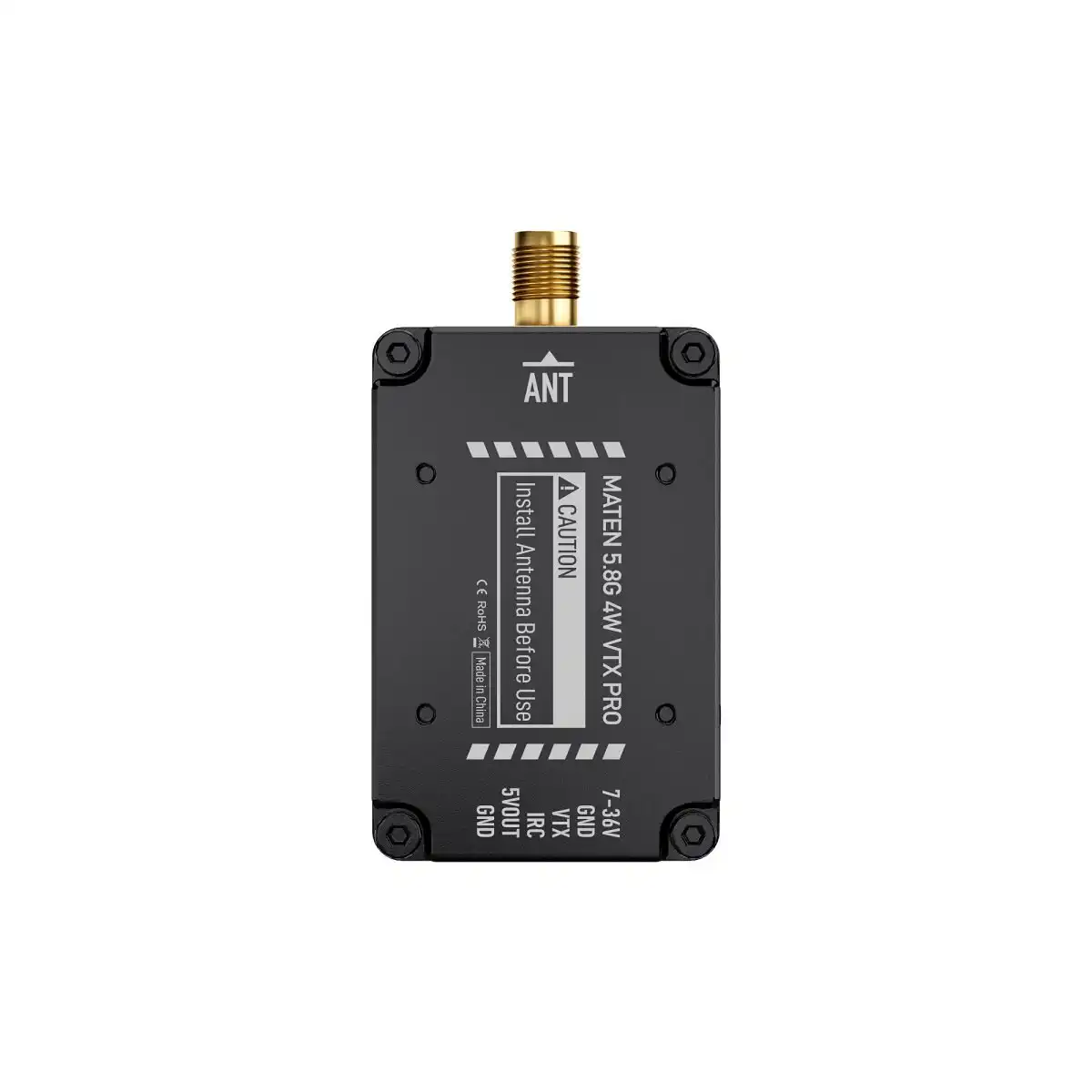

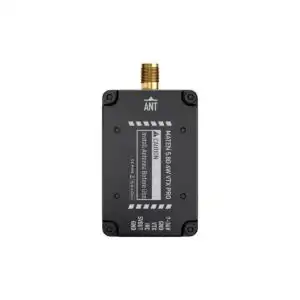

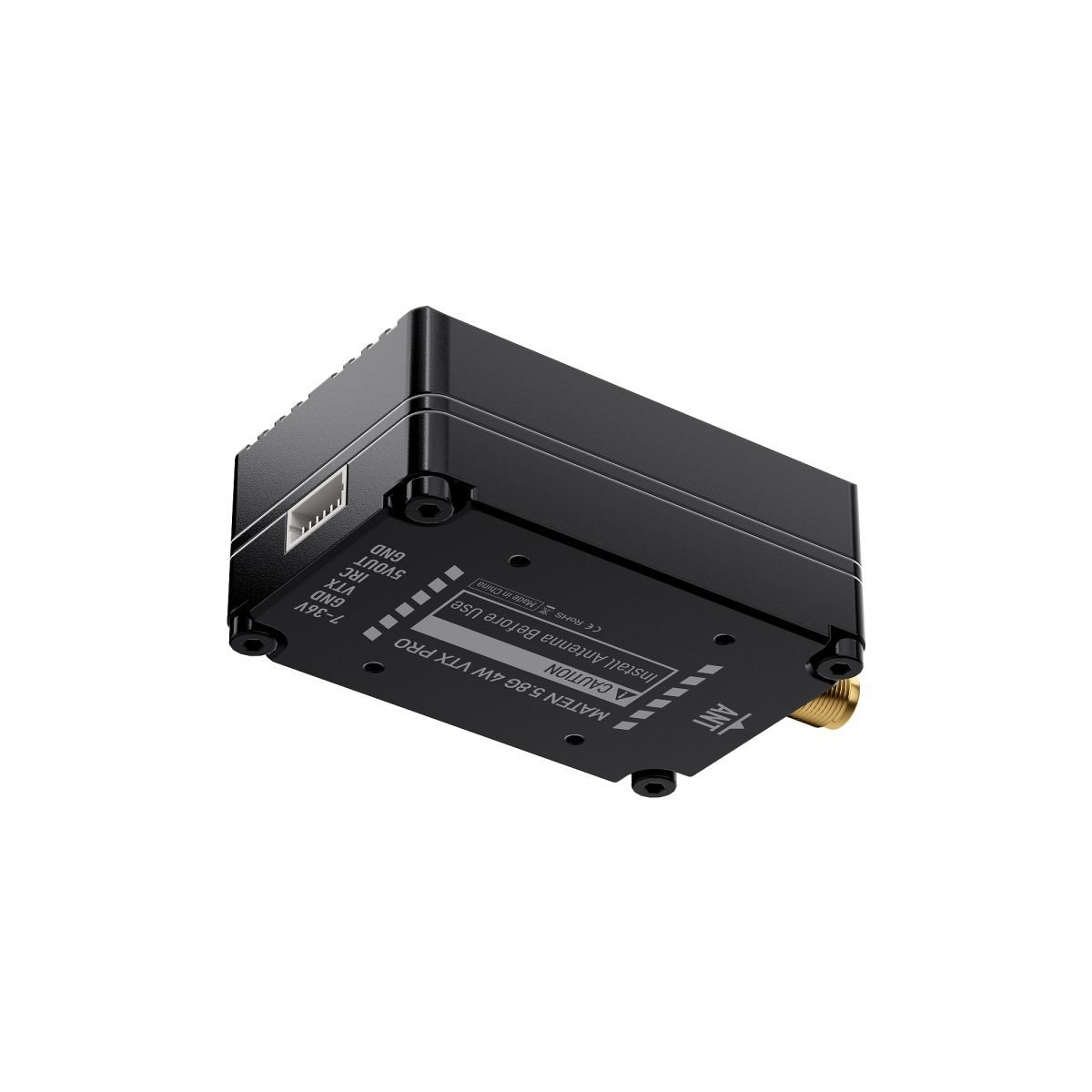

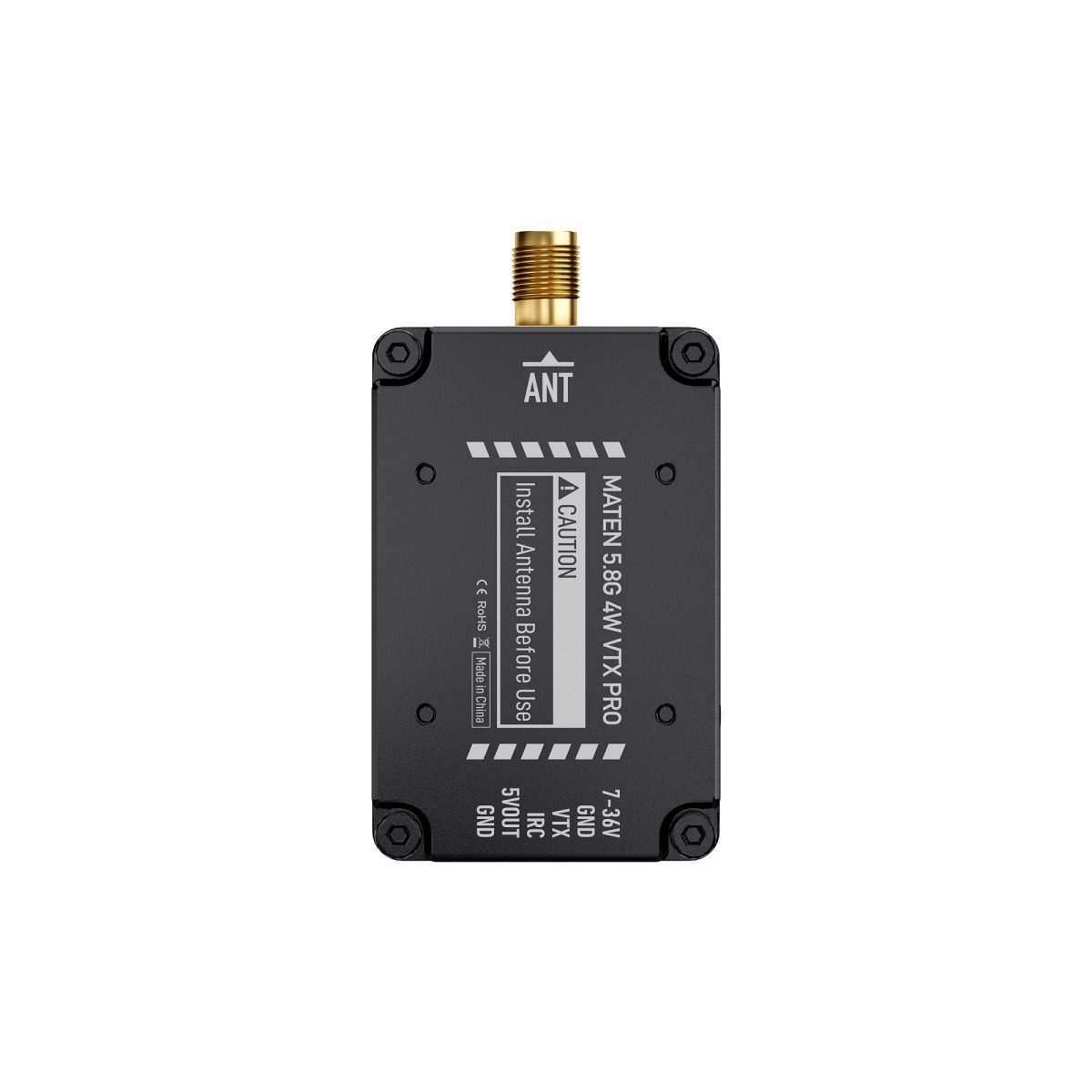

GEPRC MATEN 5.8G 4W VTX PRO

GEPRC MATEN 5.8G 4W VTX PRO

Description:

The GEPRC MATEN 5.8G 4W VTX PRO is a high-power 5.8GHz analog video transmitter designed for FPV drones and long-range video transmission applications. With adjustable transmission power up to 4W, it supports different flying environments and FPV configurations. Its compact design, configurable channels, and IRC Tramp control protocol make it suitable for compatible FPV systems. The transmitter also features a metal housing for heat dissipation.

---

Features:

• Four adjustable power levels, up to 4W, ideal for long-range flights
• High-strength CNC aluminum alloy housing for enhanced heat dissipation

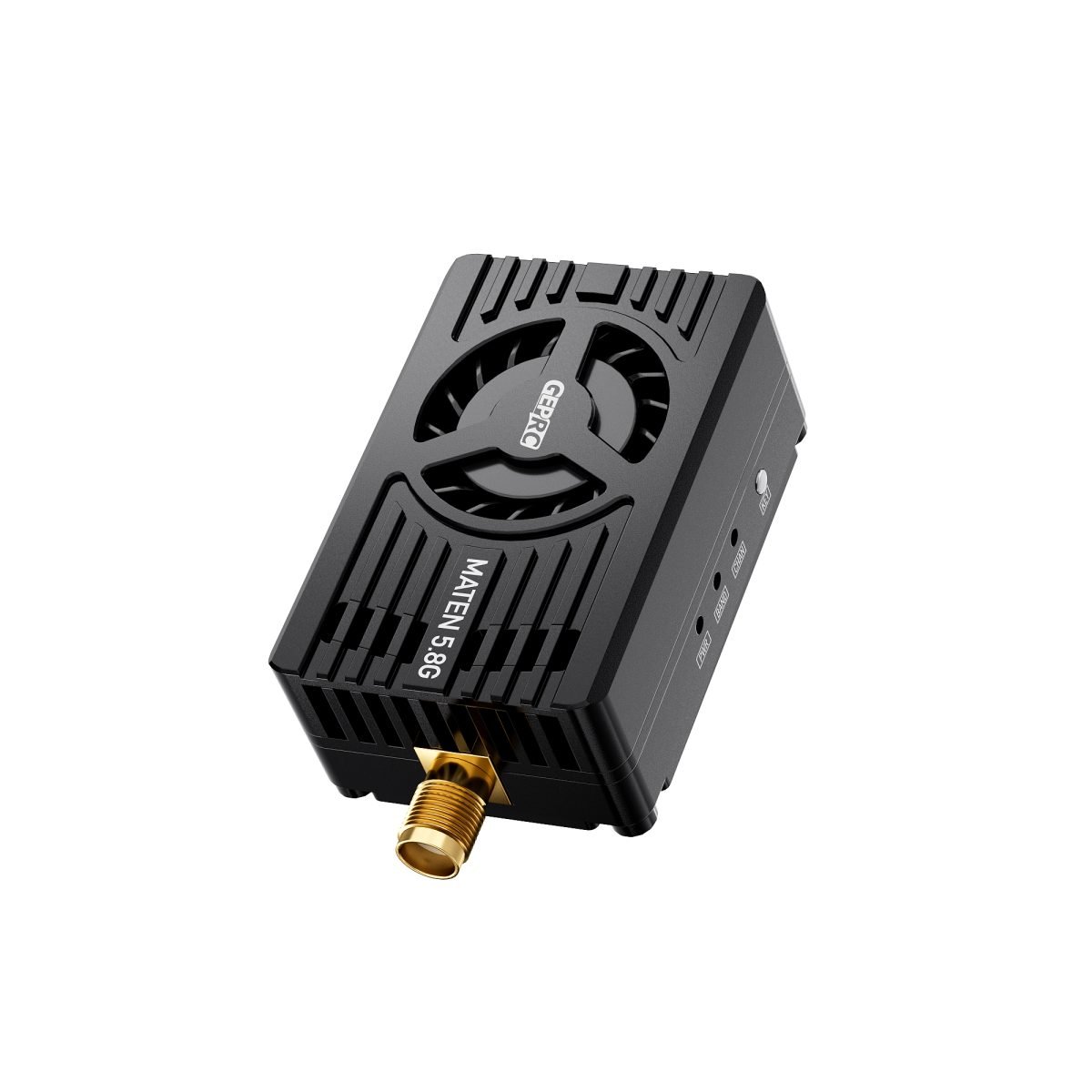

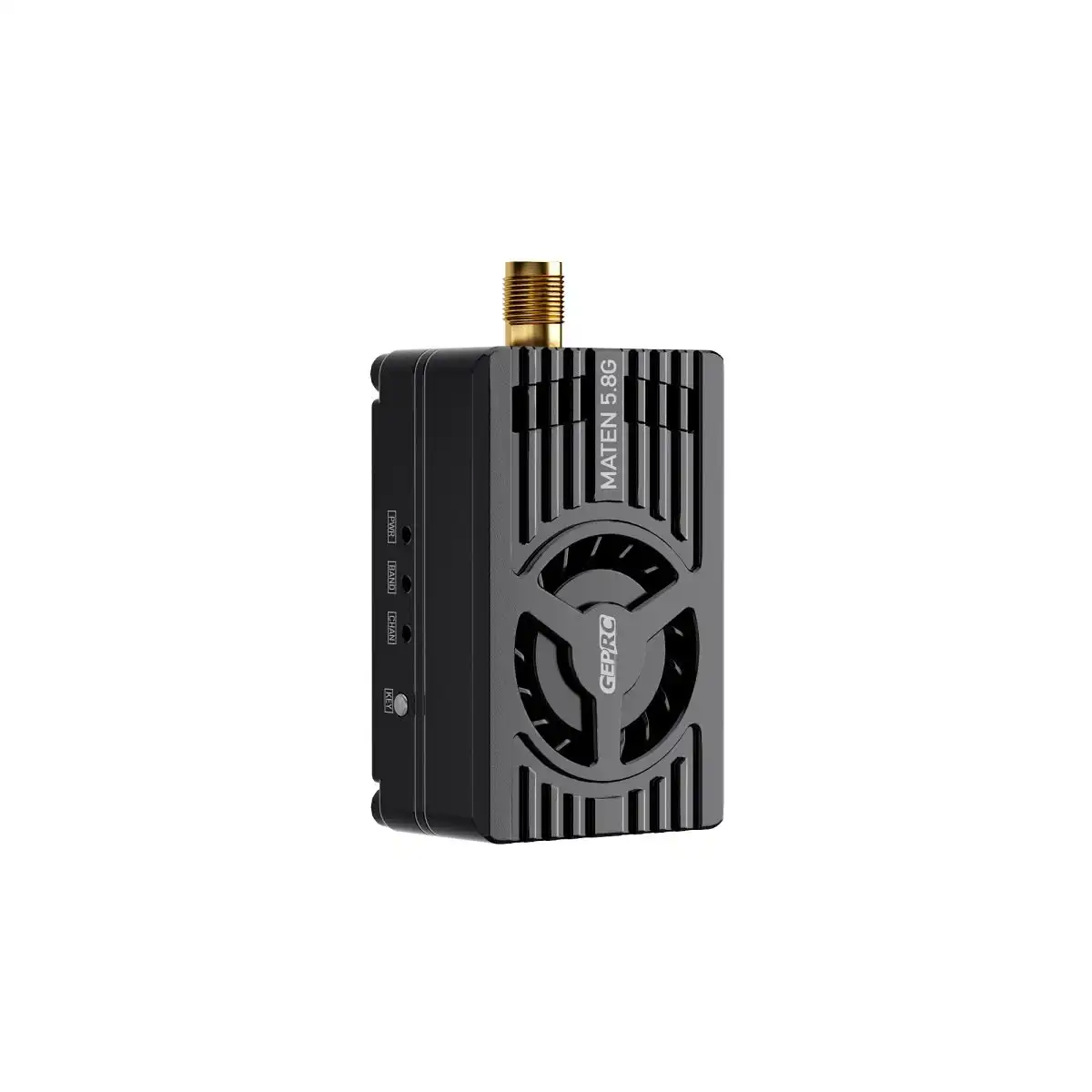

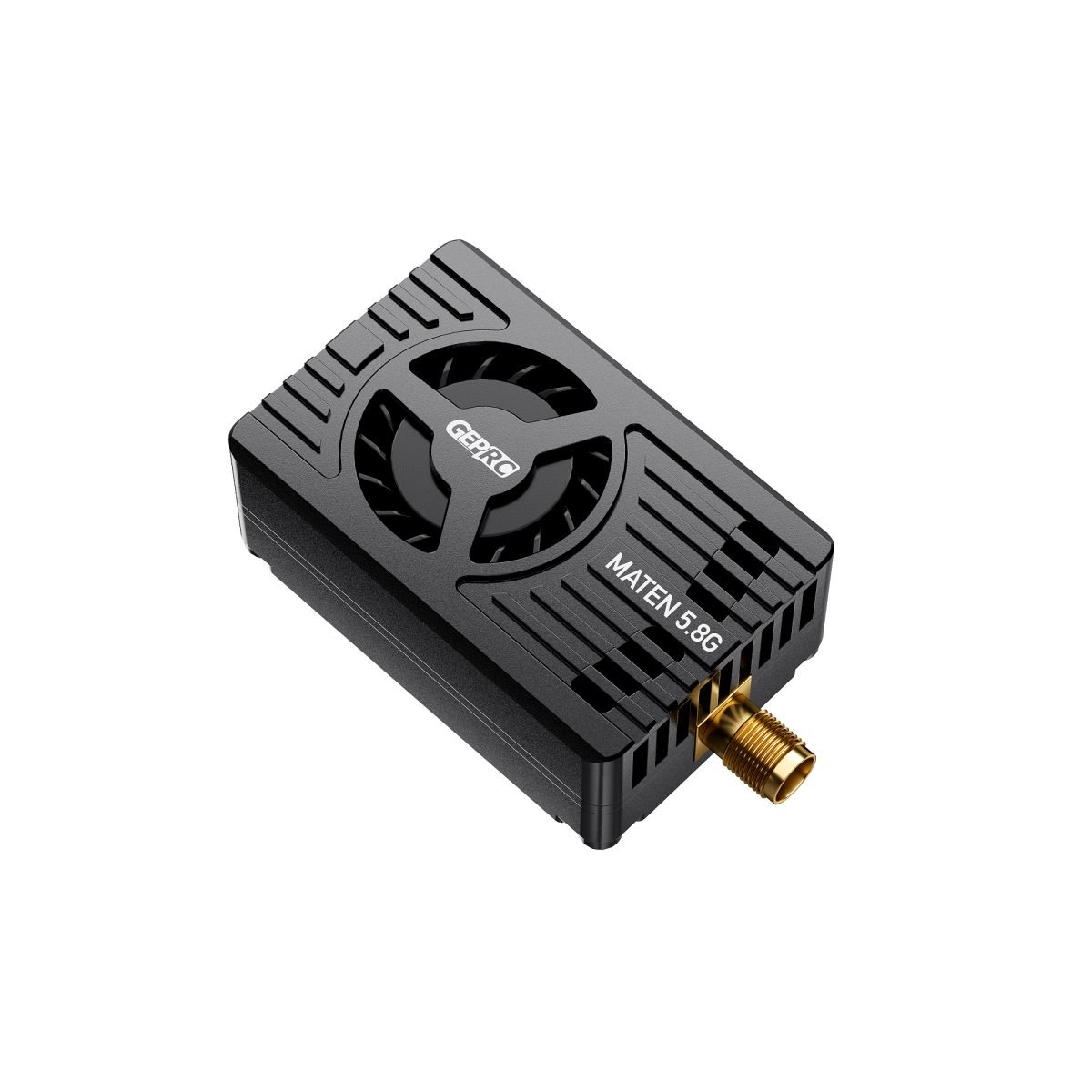

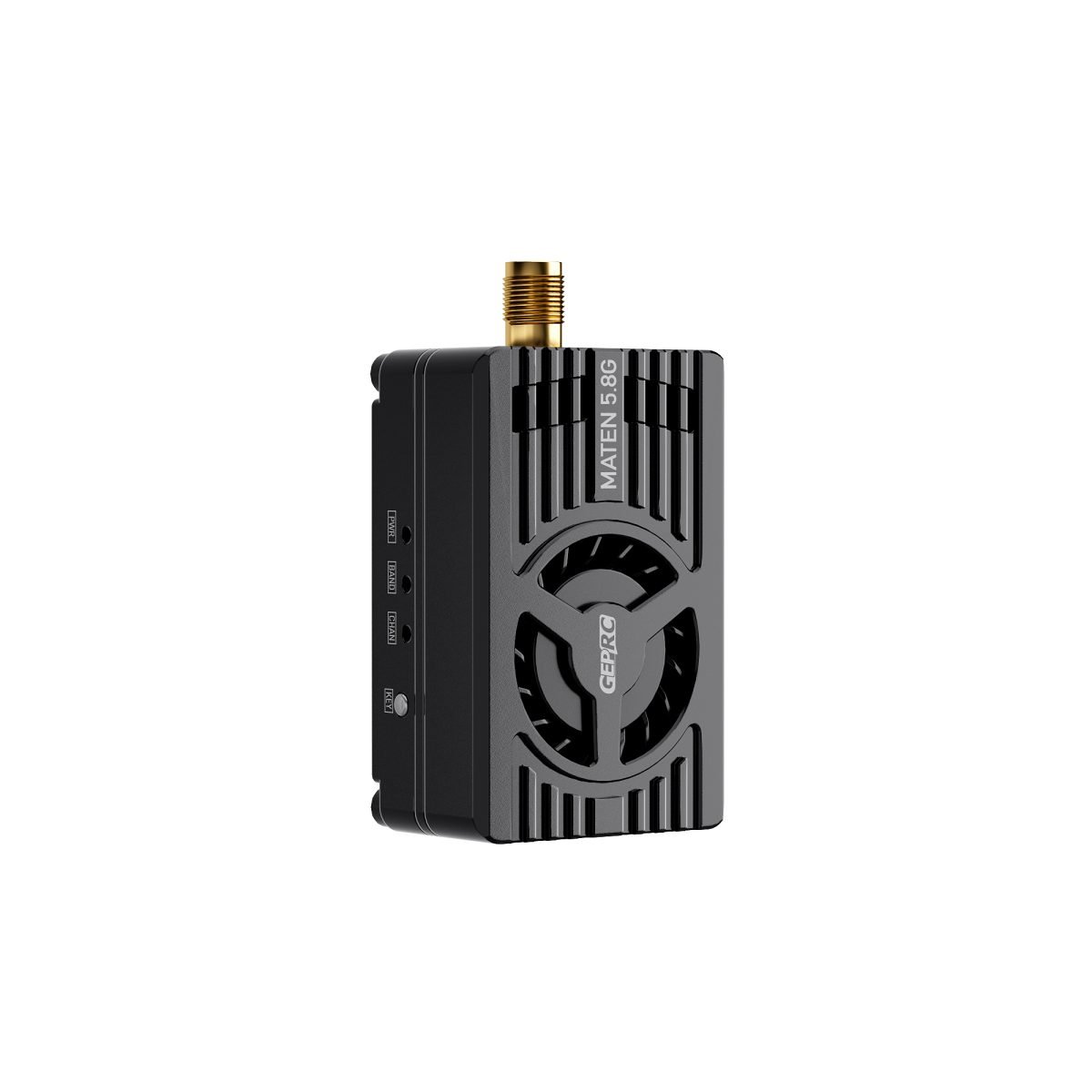

• Built-in micro turbine fan for active cooling
• Wide voltage input, supports 7–36V
• One function button + three indicator LEDs for quick and easy operation
• IRC Tramp protocol, supports OSD configuration
• Thermal protection to prevent damage from excessive heat
• Supports 104 channels
• Supports direct frequency input from ground stations
• Supports 20x20mm (M2) mounting holes

Specifications

• Model: GEPRC MATEN 5.8G 4W VTX PRO
• Dimension: 53.5x29x17.2mm
• Mounting Hole Size: 20x20mm(M2)
• Output Power: 25mW/200mW/1600mW/4000mW/Pit mode
• Frequency: 4800-6200MHz
• Channels: 104CH
• Enter Frequency Directly: Support
• Input Voltage: DC7-36V（2-8S Battery）
• Output Voltage: 5V@600mA
• Protocol: IRC Tramp
• Antenna Connector: SMA
• Cable Connector: sh1.0 6pin
• Weight: 28.8g (VTX only)

Noted

1. Install the antenna before powering on.
2. The VTX will activate thermal protection and automatically reduce output power if overheated. Ensure good airflow and cooling during use. If airflow is limited, consider adding an additional cooling fan.
3. The 5V output is for the camera only. Do NOT connect the main power input to the 5V output port, or the VTX will be damaged.

Package Includes :

1 x MATEN 5.8G 4W VTX PRO VTX

1 x sh1.0 6P connection cable

1 x User manual
