Description:

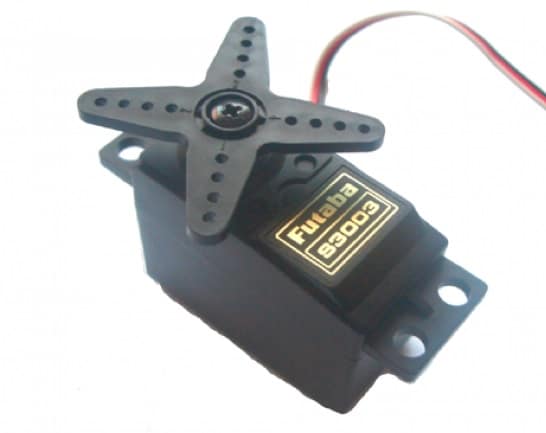

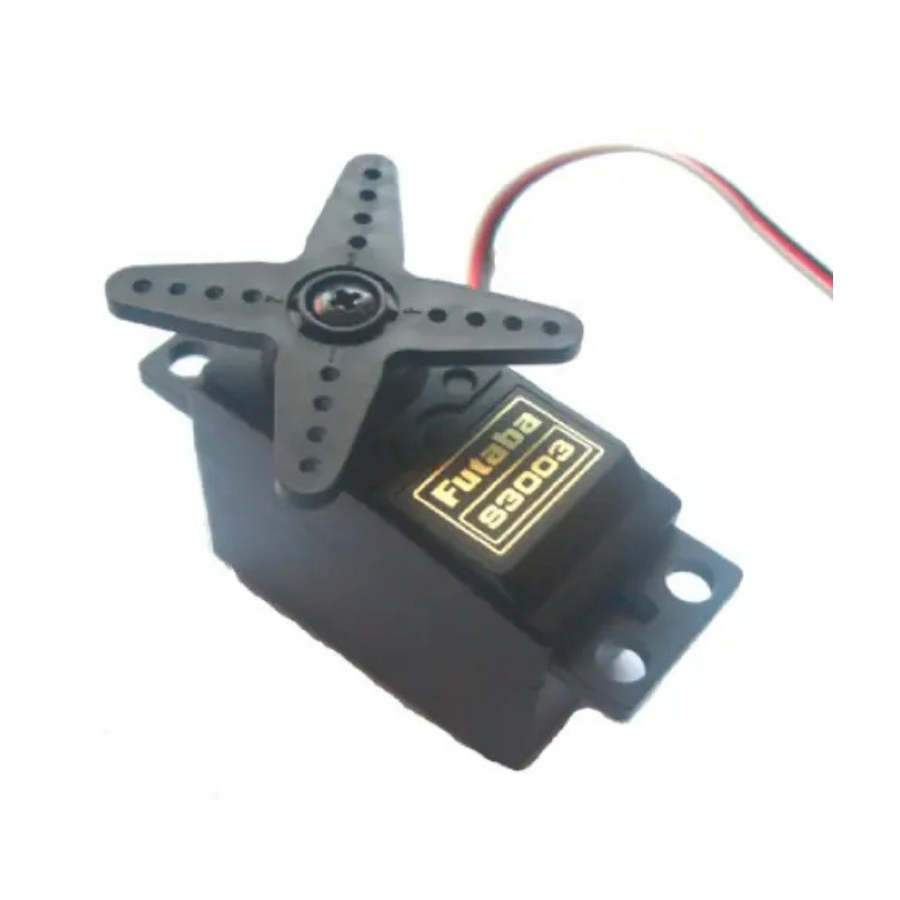

Futaba S3003 Standard 3.2Kgcm Torque Servo Motor
The Futaba S3003 Standard Servo Motor offers a reliable solution with a torque rating of 3.2 kg·cm making it ideal for a variety of applications. This versatile servo is not only suitable for standard tasks but can also be easily adapted for continuous rotation if needed.
The servo comes with a 30 cm wire and a 3-pin “S” type female header connector ensuring compatibility with most receivers. This makes it a great choice for RC models, robotics, and other hobby projects requiring precise and consistent motion control.
Features:
- Work great with 16 Channel Servo Driver and other Raspberry Pi Motor Controllers.
- Can rotate approximately 180 degrees (90 in each direction)
- Operating Angle: 45 Deg. One Side Pulse Traveling 400usec
- Continuous Rotation Modifiable: Yes
- Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
- Current Drain (4.8V): 7.2mA/idle
- Current Drain (6.0V): 8mA/idle
Specifications:
| Model | Futaba S3003 |
|---|---|
| Operating Voltage | 4.8–6.0 Volts |
| Operational Current | 100mA |
| Operating Speed (4.8V) | 0.23 sec/60° (no load) |
| Operating Speed (6.0V) | 0.19 sec/60° (no load) |
| Stall Torque (4.8V) | 3.2 kg·cm |
| Stall Torque (6.0V) | 4.1 kg·cm |
| Gear Type | Nylon Gears |
| Connector | “J” type |
| Dimensions | 40 x 20 x 36 mm |
| Weight | 37 g |
Wiring Guide: –
- Red: Battery Positive
- Black: Battery Negative
- White: Signal

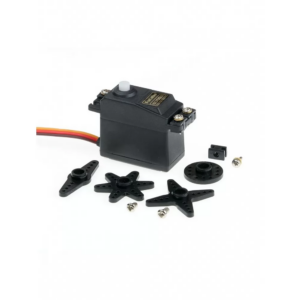

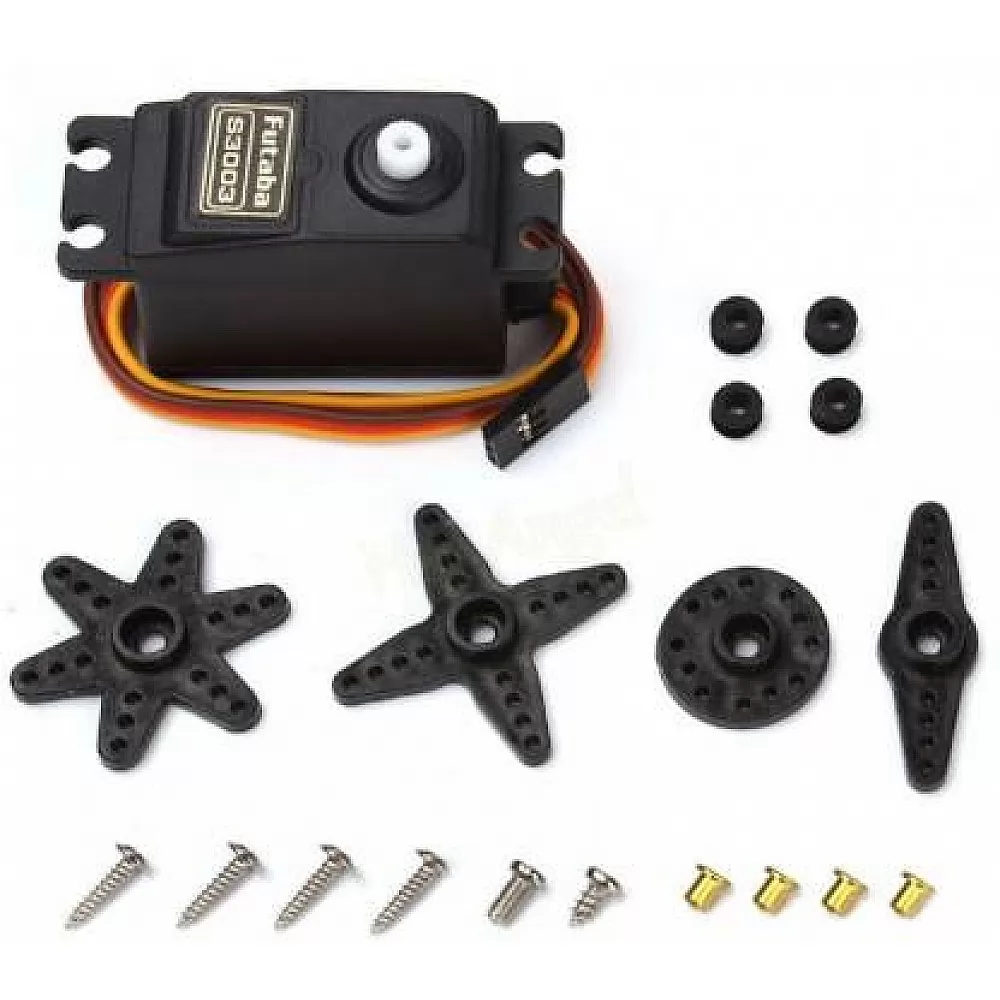

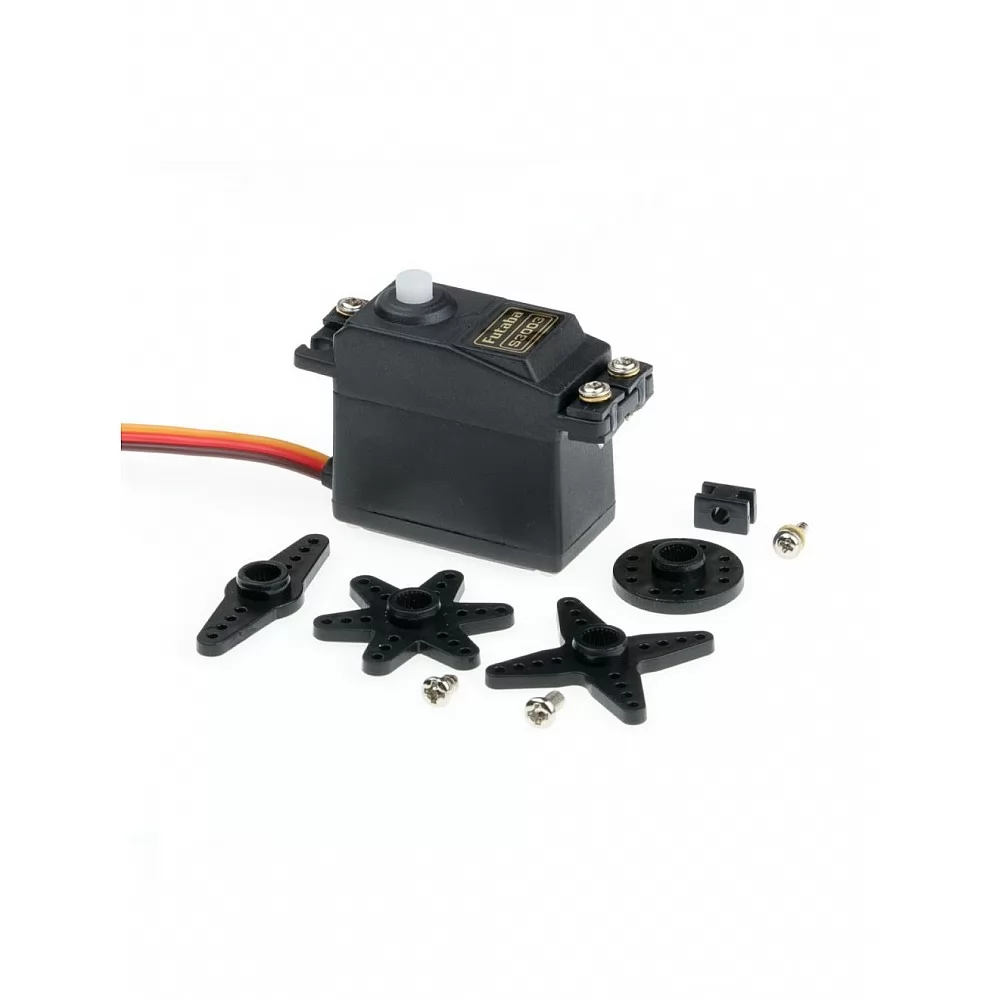

Package Includes:
- 1 x Futaba S3003 Standard 3.2Kgcm Torque Servo Motor
Stepper Motor Microstepping: 1/2, 1/4, 1/8, 1/16 Explained
Microstepping is one of the most misunderstood concepts in stepper motor control. Many makers set their drivers to...
Read More →
Motor Heat Sink: When and How to Add Cooling to Motor Drivers
One of the most common causes of failed motor driver boards is heat. The A4988 overheats and cuts...
Read More →
Stepper Motor Tutorial: NEMA 17, A4988, and AccelStepper Library
The stepper motor is the backbone of precision motion control in electronics projects. From 3D printers and CNC...
Read More →Technical Specifications
| Model | S3003 |
|---|---|
| SKU | AI0397 |
| Weight | 0.07 kg |
| Availability | In Stock |
Applications & Use Cases
The Futaba S3003 Standard 3.2Kgcm Torque Servo Motor is a versatile rc servo motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
