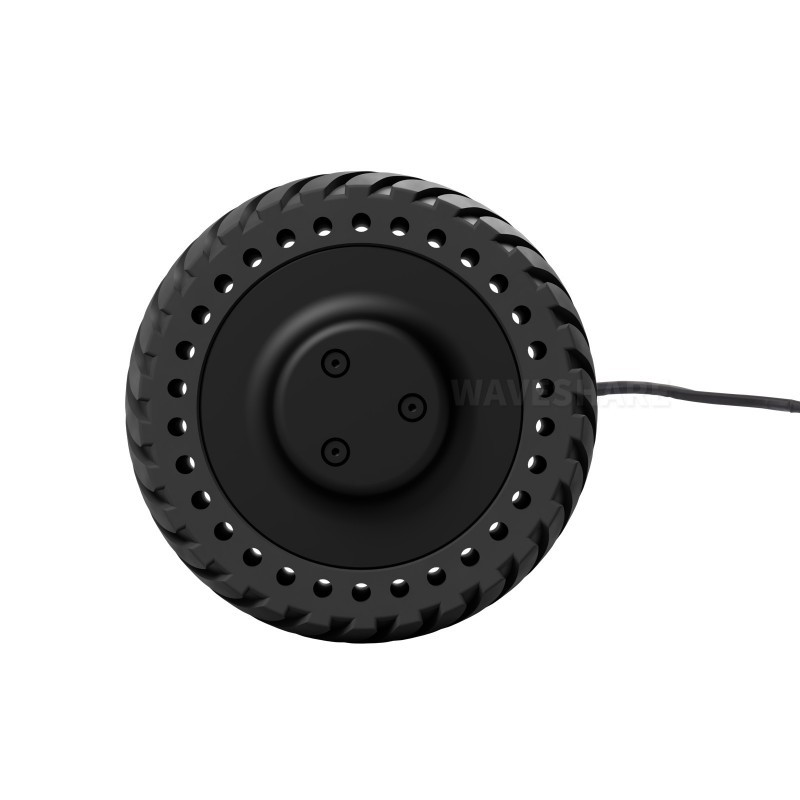

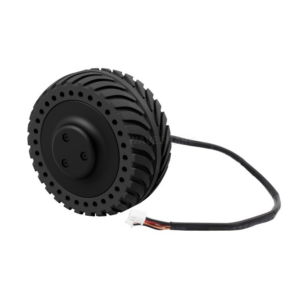

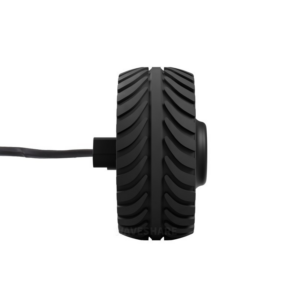

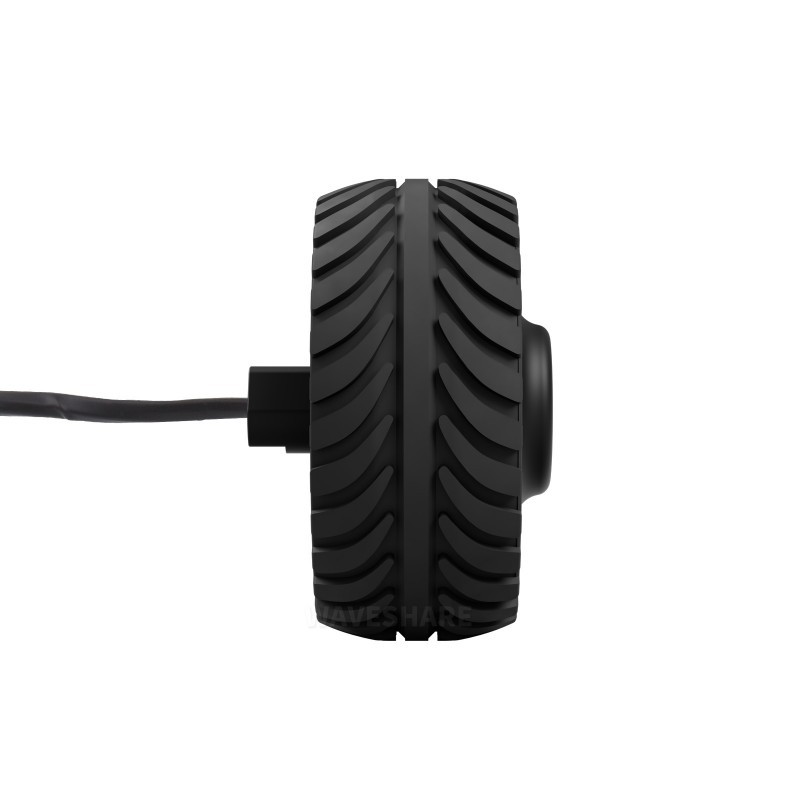

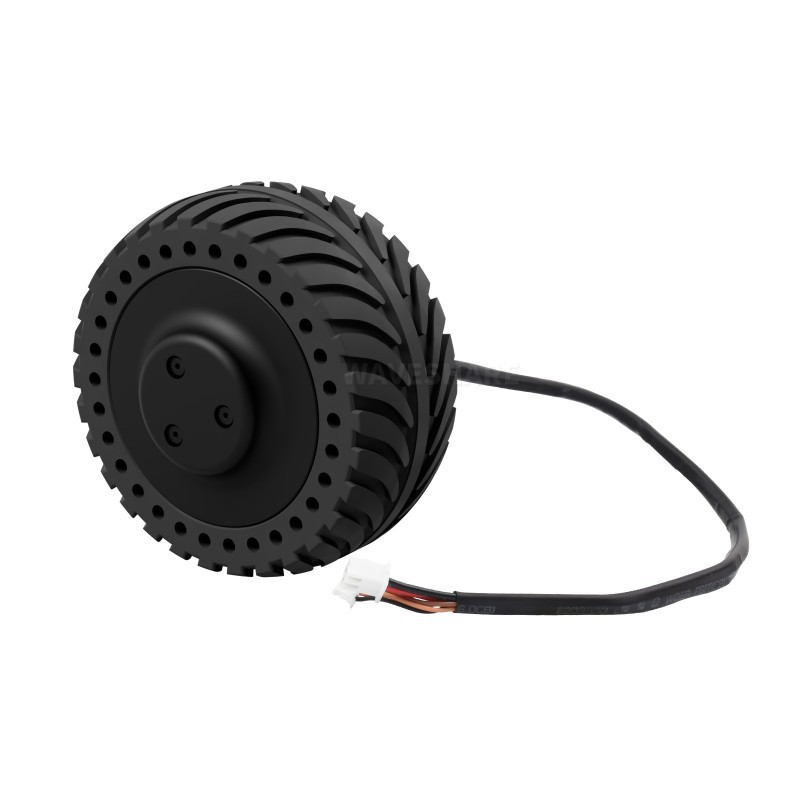

Waveshare DDSM115 Direct Drive Servo Motor Low Speed & High Torque, Low Noise, All-In-One Design. Based on the integrated development concept,
Based on the integrated development concept, DDSM115 is a high-reliability Permanent Magnet Synchronous Motor (PMSM) integrating an outer rotor brushless motor, encoder, and servo. With a compact structure, it is easy to install and can be operated stably. As it is small while with high torque, it can be applied for the following advanced robot projects such as robot joints, small AGV drive wheels, balance car drive wheels, and the development of vehicle platforms.
Features:
- Ultra-low noise
- High precision and zero-backlash
- Fast response, direct drive without delay
- Integrated motor and driver, compact structure and high integration
- Support RS485 communication mode
- Motor feedback information such as position, speed, current, error code, etc. can be obtained through communication.
- With Hall position detection, over-current protection, etc.
- Support electric brake
- No drive mechanical friction, drive efficiency close to 100%
Specification:
| Rated voltage | 18V DC (5S LiPo) |
|---|---|
| Rated torque | 0.96Nm |
| Rated speed | 115rpm |
| Number of pole pairs | 10 |
| Operating temperature | -20~45℃ |
| Noise level | ≦50dB |
| Mechanical time constant | 30ms |
Package Includes:
1 x Waveshare DDSM115 Direct Drive Servo MotorF
Waveshare DDSM115 Direct Drive Servo Motor, Low Speed & High Torque Overview
The Waveshare DDSM115 is a direct-drive permanent magnet synchronous servo motor designed for applications requiring low-speed rotation with high torque output and minimal noise. With an all-in-one design that integrates the brushless motor, encoder, and driver, it offers precise motion control via RS485 communication for advanced robotics and automation projects.
Key Features of Waveshare DDSM115 Direct Drive Servo Motor, Low Speed & High Torque
- Ultra-low noise operation thanks to high-reliability permanent magnet materials and brushless design
- High precision and zero-backlash performance via integrated high-resolution encoder
- Fast torque response with direct-drive architecture—no gears or belts needed
- Compact all-in-one structure combining motor, driver electronics, and encoder
- Supports RS485 communication for robust multi-axis control and easy integration
- Available from Zbotic with genuine Waveshare supply and fast shipping across India
Applications and Use Cases
- Robot joint actuators requiring smooth low-speed torque for humanoid or collaborative arms
- Drive wheels on small AGVs and logistics robots demanding precise speed control
- Balance car or self-balancing platform wheel drive for stable operation

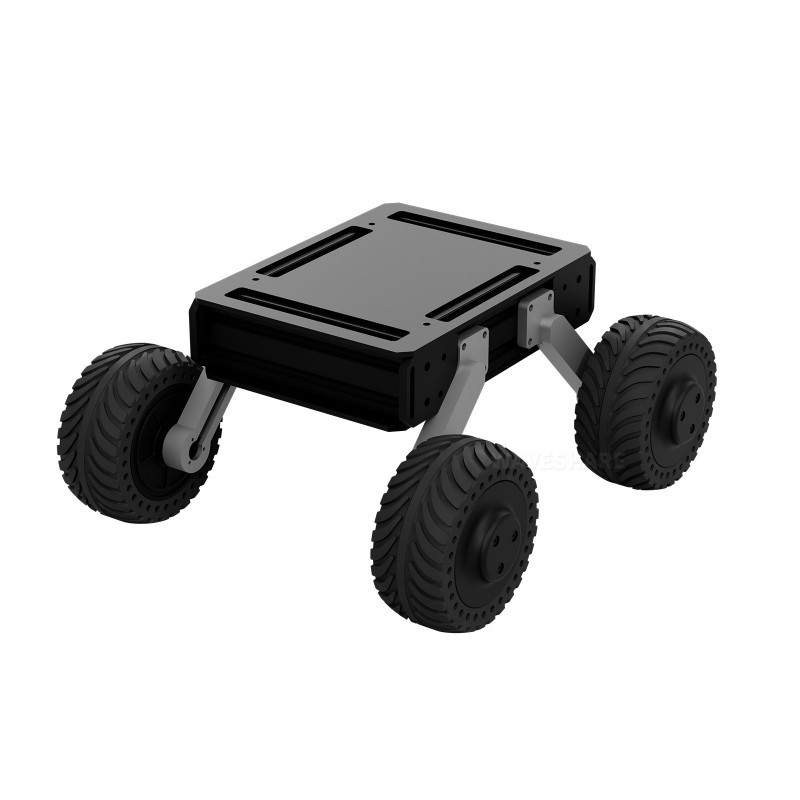

- Mobile vehicle platforms in research and prototyping environments
- Compact CNC turntables or rotary indexing tables where backlash-free motion is critical
How to Use Waveshare DDSM115 Direct Drive Servo Motor, Low Speed & High Torque
Mount the DDSM115 motor securely to your chassis, connect the power supply and RS485 interface to your motion controller, then configure communication parameters (baud rate, address) in the Waveshare configuration utility. After tuning motor parameters for your load, you can command position, speed, or torque profiles directly over RS485 for stable, backlash-free operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I daisy-chain multiple DDSM115 motors on one RS485 bus?
Yes. Each DDSM115 module supports RS485 addressing, allowing you to set unique IDs and control multiple motors over the same bus for synchronized multi-axis setups.
What is the maximum continuous torque output of the DDSM115?
The DDSM115 is optimized for high continuous torque at low speeds. Refer to the Waveshare datasheet for exact torque curves and thermal limits to match your application requirements.
Is there a software tool for tuning and monitoring motor performance?
Waveshare provides a configuration utility that connects via RS485 to adjust PID parameters, monitor status, and update firmware, ensuring precise tuning for your motion control system.
