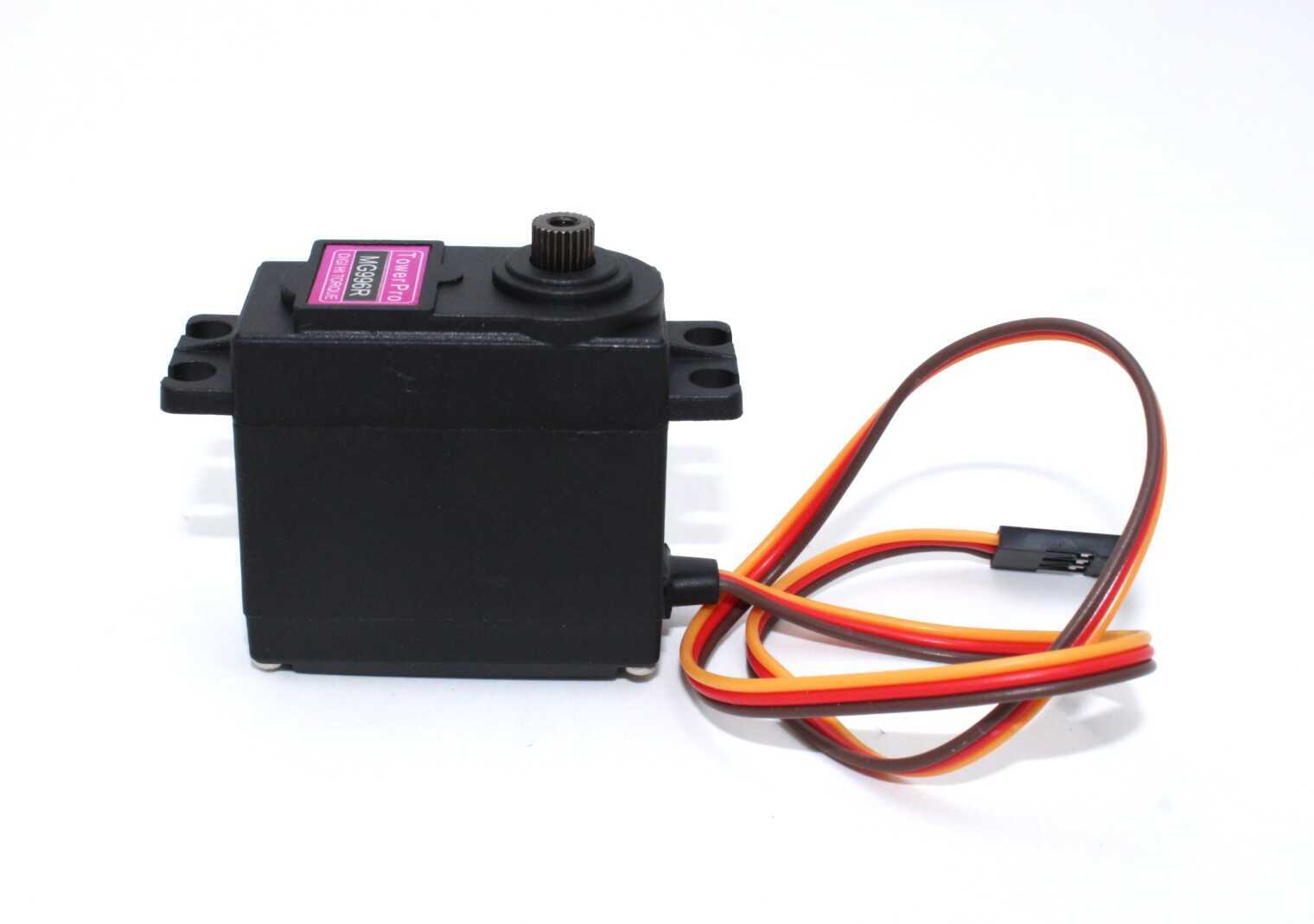

Tower Pro MG996R Digital Plastic Gear High Torque Servo Motor
The Tower Pro MG996R Digital Plastic Gear High Torque Servo Motor (180 Degree Rotation) has plastic gears that give it a very high 10kg stalling torque in a small size. It is an improved version of the popular MG995 servo, with better shock resistance and a new PCB and IC control system that make it more precise. The gear and motor have also been improved to reduce dead band width and improve centering. The servo comes with a 30cm wire and a 3 pin ‘S’ type female header connector that is compatible with most receivers, such as Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.
Wire Configuration of Tower Pro MG996R Digital Plastic Gear High Torque Servo Motor (180 Degree Rotation): –
- RED – Positive
- Brown – Negative
- Orange – Signal (PWM)
Specifications of Tower Pro MG996R Digital Plastic Gear High Torque Servo Motor (180 Degree Rotation):-
Weight: 55g
Dimension: 40.7×19.7×42.9mm
Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
Operating voltage: 4.8 ~ 6.6V
Gear Type: Plastic gear.
Dead band width: 1us
Wire length: 32cm

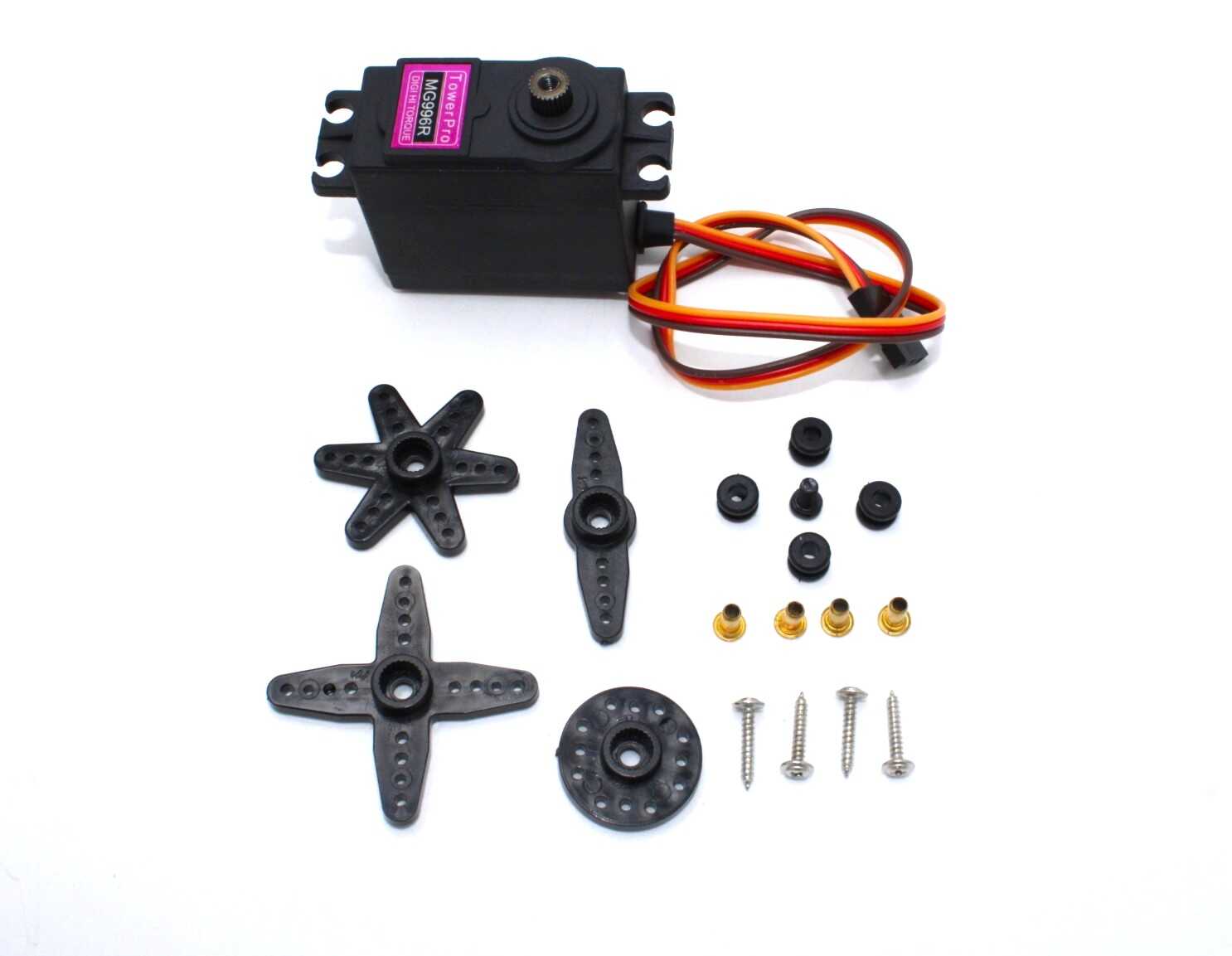

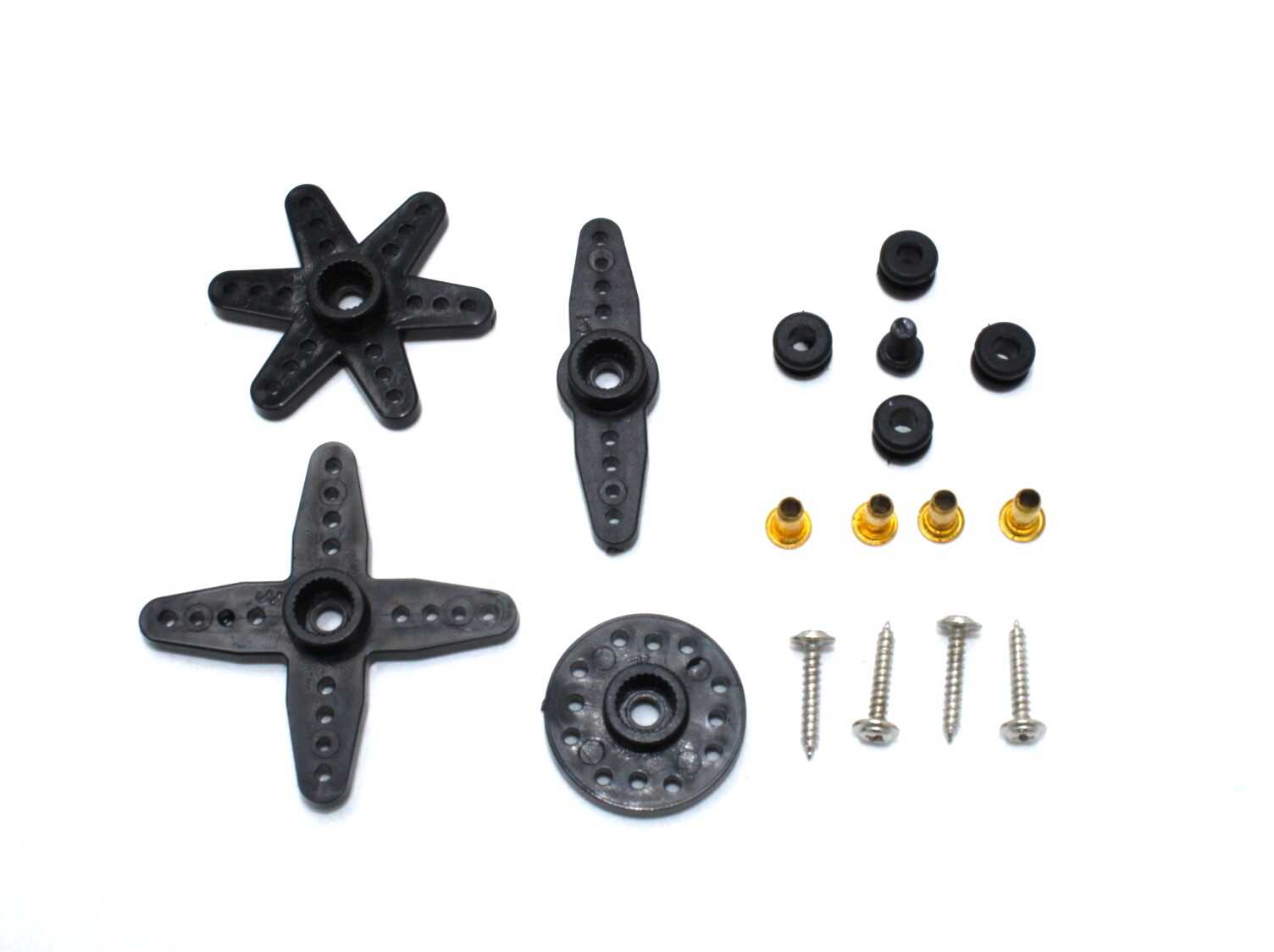

Package Includes:
1 x Tower Pro MG996R Digital Plastic Gear High Torque Servo Motor (180 Degree Rotation)
Servo Motor Calibration: Setting Min, Max & Center Position
Servo motors are among the most beginner-friendly actuators in robotics — but getting them to move to precisely...
Read More →
Stepper Motor vs Servo Motor: Choosing for CNC & 3D Printers
Every builder who graduates from a basic hobby kit eventually faces the same question: stepper motor or servo...
Read More →
Servo PWM Frequency: 50Hz vs 333Hz vs 1kHz — Trade-offs Explained
PWM frequency is one of the most frequently misunderstood aspects of servo motor control. Most beginners set their...
Read More →Technical Specifications
| Model | MG996R |
|---|---|
| Max Temperature | 180°C |
| SKU | AI6073 |
| Weight | 0.07 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Tower Pro MG996R Digital Plastic Gear High Torque Servo Motor (180 Degree Rotation) is a versatile towerpro and other servo motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
