This is the 20mm variant of the Flexible Coupling OD:20mm x L:24mm Bore: 5 x 10mm in Couplings. Available at ₹66.08 (₹56.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION

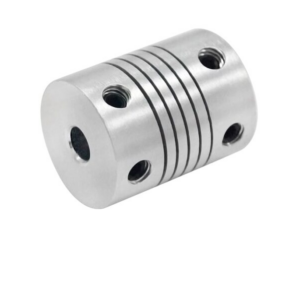

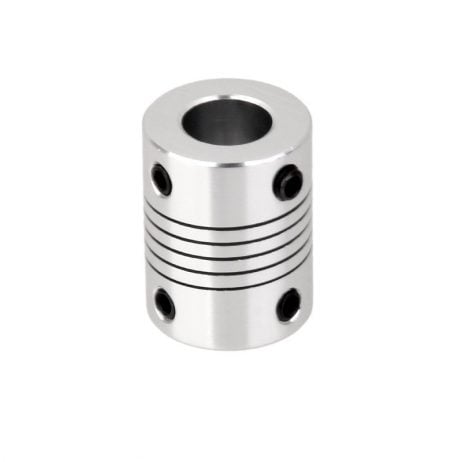

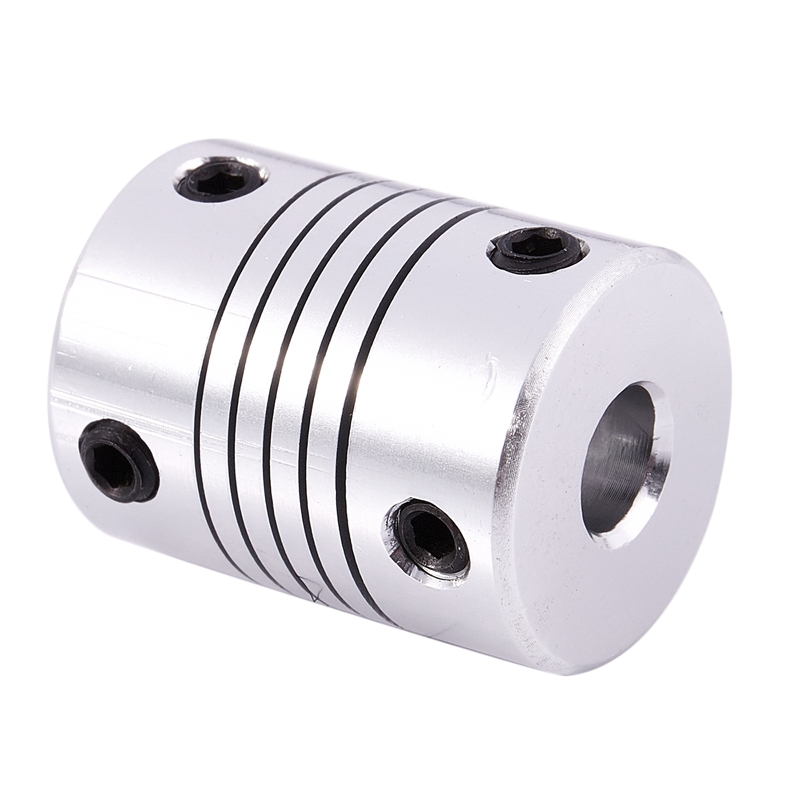

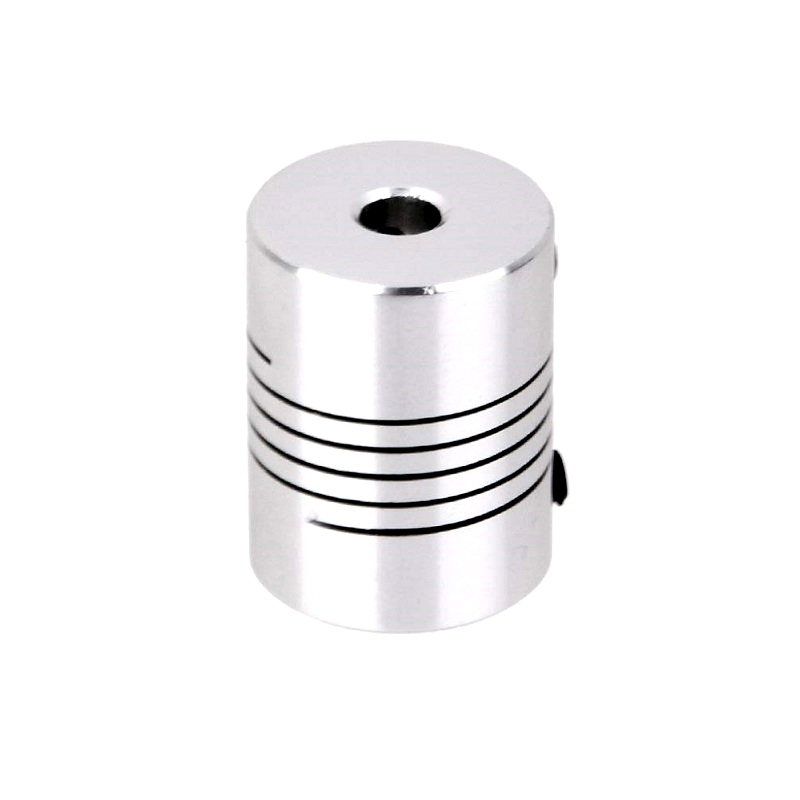

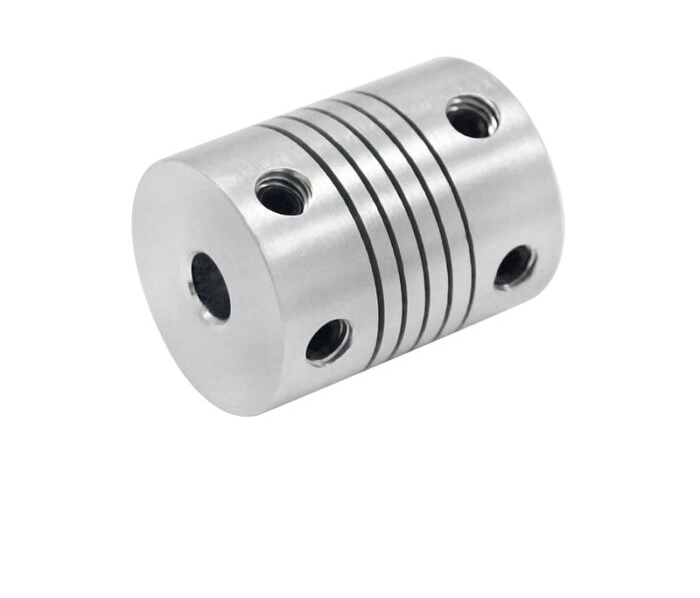

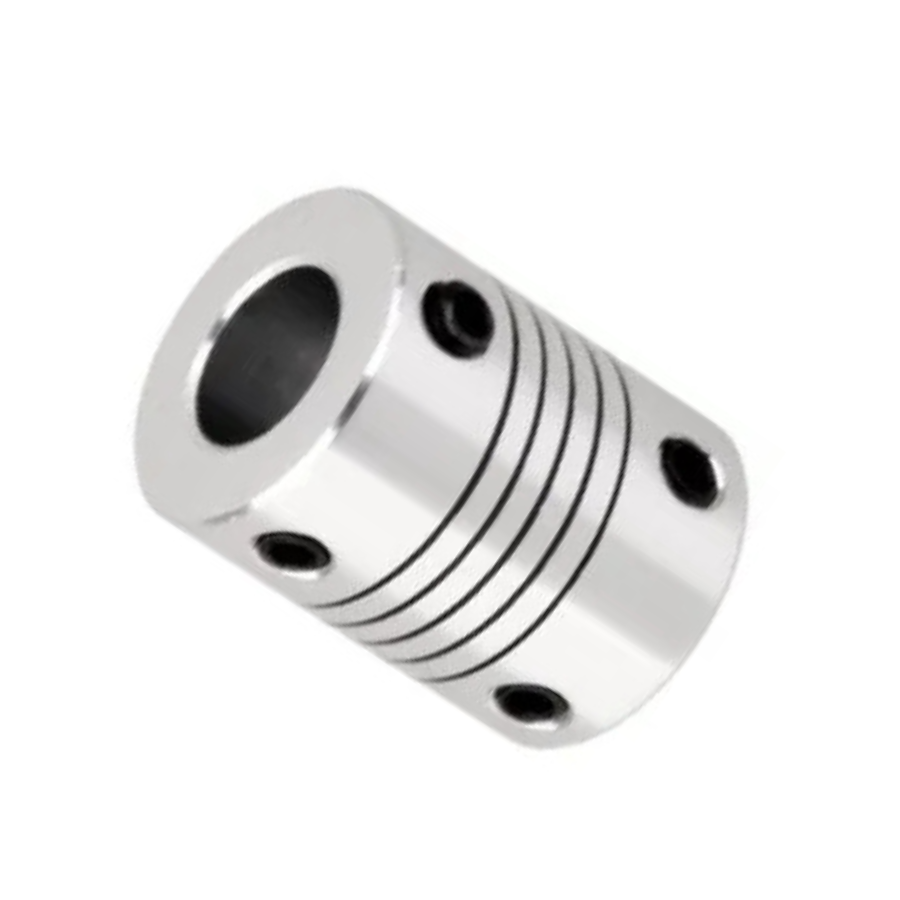

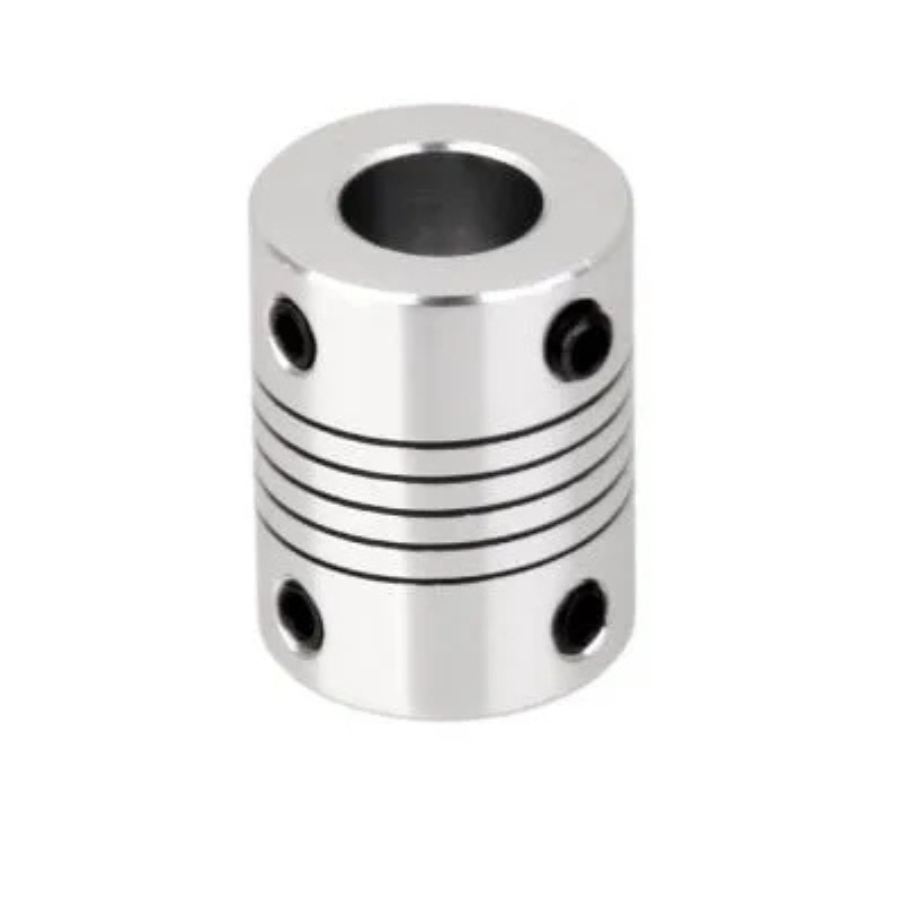

This is a flexible motor coupling that can connect a driving shaft to a driven shaft and efficiently eliminate any misalignment. It also has minimal backlash, which is an advantage of this flexible coupling OD:20mm x L:25mm Bore: 5x10mm.
This flexible coupling has an outer diameter of 20mm and a length of 25mm and is made of machined aluminium.
The screws that clamp the shafts should be tightened securely, but not excessively. These clamping couplings will not damage the shafts.
It has a spiral cut along its length that makes it flexible enough to fit two shafts that are not perfectly aligned and reduce binding effects. This type of coupling is also called a beam coupling, a helical coupling, or a flexible coupling.
Some of the important features of flexible shaft couplings are:
– The helical cut makes them act like springs in the X, Y, and Z linear axes, but not in the rotational axis. This means they do not increase backlash, so they are suitable for precision CNC work.
– A coupling is a device that transmits power and torque. Couplings usually do not allow shafts to disconnect during operation. However, some couplings can slip or disconnect when the torque exceeds a certain limit.
– By selecting, installing, and maintaining couplings carefully, you can save money by reducing maintenance costs and downtime.
– It can protect the driving and driven shafts from harmful effects caused by misalignment, shock loads, shaft expansion, or vibrations.
Features:
- Corrosion resistance and High Durability
- One-piece construction with long-lasting performance
- Torsional stiffness: Zero backlash
- Low moment of inertia offering constant velocity
Specification:
| Material | Aluminum |
|---|---|
| Maximum Speed(RPM) | 20000 |
| Rated Torque(N-m) | 1 |
| Bore Diameter [d1] (mm) | 5 |
| Bore Diameter [d2] (mm) | 10 |
| Screws | 4 x M3 |
| Outer Diameter (OD)(mm) | 20 |
| Length (mm): | 24 |
| Catch Shaft Type | Tighten |
| Weight(gm) | 15 |
| Shipping Weight | 0.018 kg |
| Shipping Dimensions | 3 × 2.5 × 2.5 cm |
Package Includes:
1 x Flexible Coupling OD:20mm x L:24mm Bore: 5 x 10mm
Flexible Coupling OD:20mm x L:24mm Bore: 5 x 10mm Overview
This Flexible Coupling OD:20mm x L:24mm Bore: 5 x 10mm is a lightweight aluminum beam coupling designed to join a 5 mm driving shaft to a 10 mm driven shaft with minimal backlash. Its helical (spiral) cut body absorbs angular and parallel misalignment in applications up to 20,000 RPM.
Key Features of Flexible Coupling OD:20mm x L:24mm Bore: 5 x 10mm
- Precision-machined aluminum body for strength and low inertia
- Spiral-cut design provides flexibility to accommodate misalignment
- Dual bore sizes (5 mm and 10 mm) with clamp-style screws—no shaft damage
- Rated torque of 1 N·m and top speed of 20,000 RPM
- Compact OD 20 mm × length 24 mm footprint for tight installations
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Coupling stepper motors to lead screws in 3D printers and CNC routers
- Connecting DC or brushless motors to precision encoders in robotics
- Drive shaft alignment in small-scale automation and pick-and-place machines
- Transmission of motion in linear actuators and positioning stages
- Retrofit upgrades on lab equipment requiring low-backlash torque transfer
How to Use Flexible Coupling OD:20mm x L:24mm Bore: 5 x 10mm
Slide the coupling onto the two shafts, ensuring each bore fully covers its respective shaft (5 mm and 10 mm). Align shafts within a few degrees or tenths of a millimeter, then tighten each clamp screw evenly until the coupling is snug—avoid over-torquing to prevent screw or shaft damage. Verify alignment under low-speed rotation before ramping up to operational RPM.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What maximum rotational speed can this coupling handle?
This helical coupling supports speeds up to 20,000 RPM, making it suitable for high-speed stepper and DC motor applications.
Can I use this coupling with a 5 mm motor shaft and 10 mm leadscrew?
Yes, the dual-bore design clamps securely onto a 5 mm driving shaft and a 10 mm driven shaft without additional adapters.
How tight should I fasten the clamp screws?
Tighten each screw evenly until the coupling grips the shaft firmly but do not exceed finger-tight plus a quarter-turn with a small hex key to avoid stripping or deforming the aluminum.
Technical Specifications
| Dimensions | 5x10mm |
|---|---|
| Interface / Protocol | BLE |
| Package Quantity | 10 pcs |
| SKU | AI2947 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Flexible Coupling OD:20mm x L:24mm Bore: 5 x 10mm is a versatile couplings used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
