This is the 5mm variant of the 5mm Hex coupling for Robot Smart Car Wheel 30mm Length(Without Allen Key) in Couplings. Available at ₹130.98 (₹111.00 + GST) with free shipping across India.

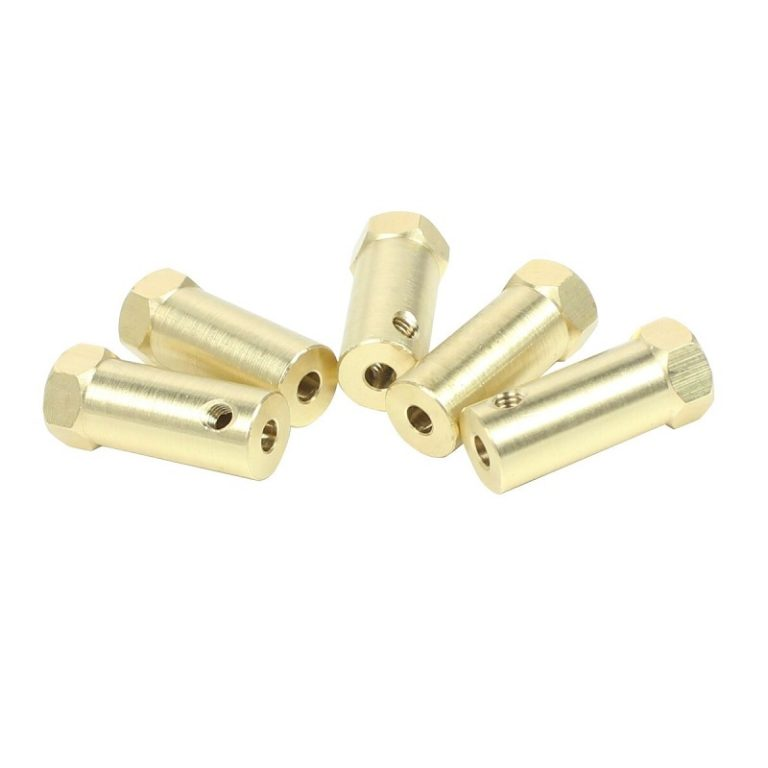

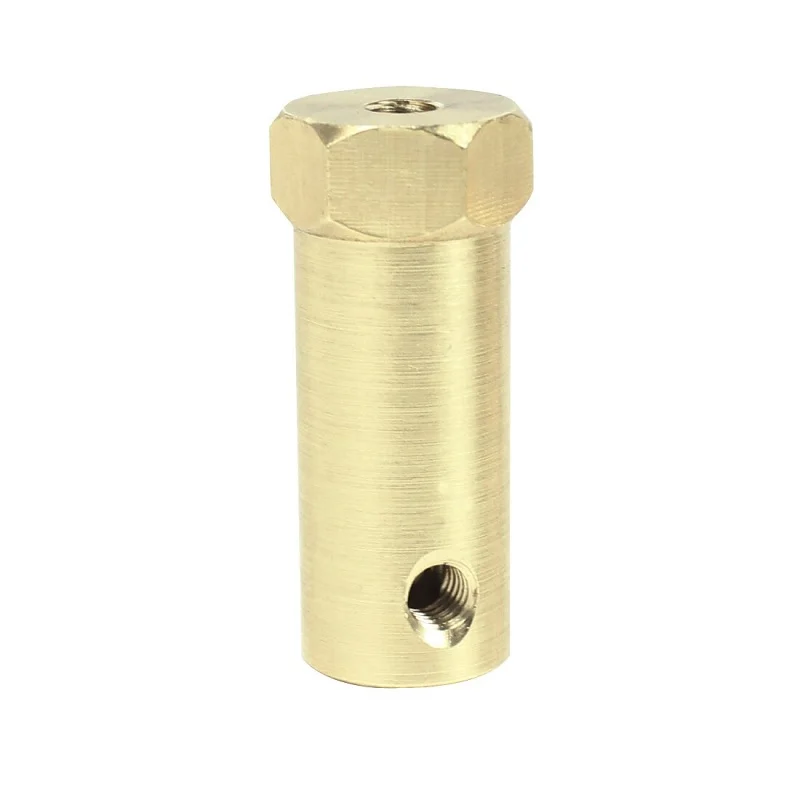

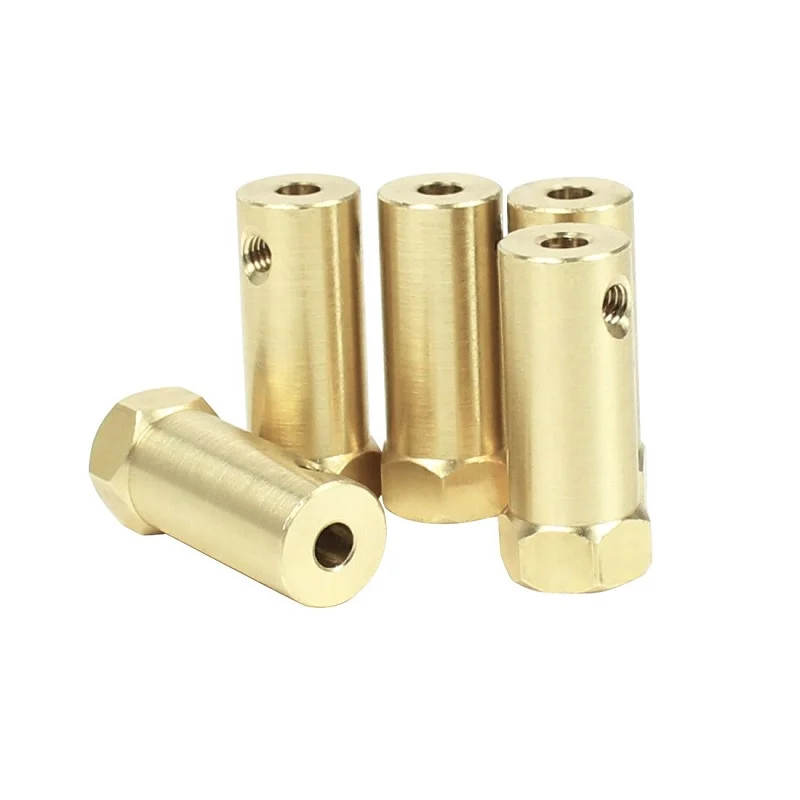

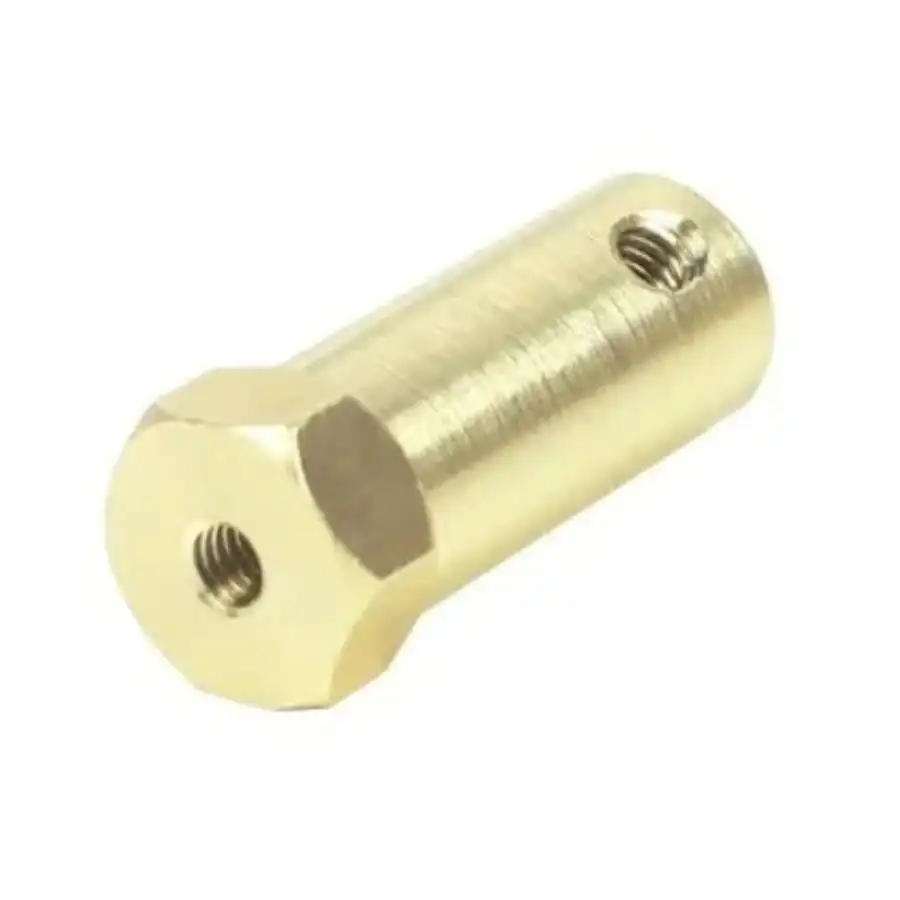

5mm Hex coupling for Robot Smart Car Wheel 30mm Length

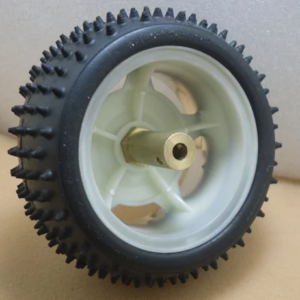

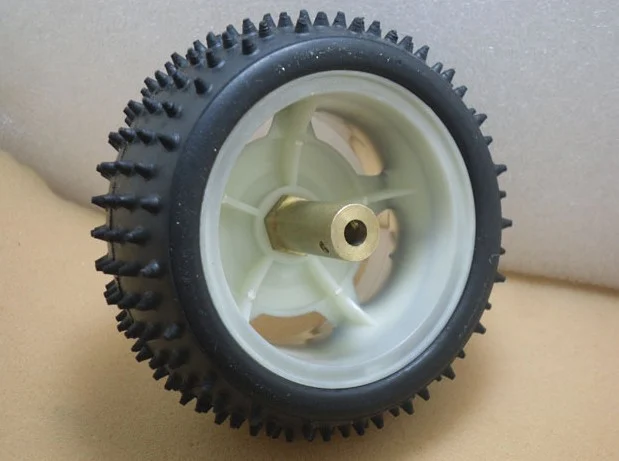

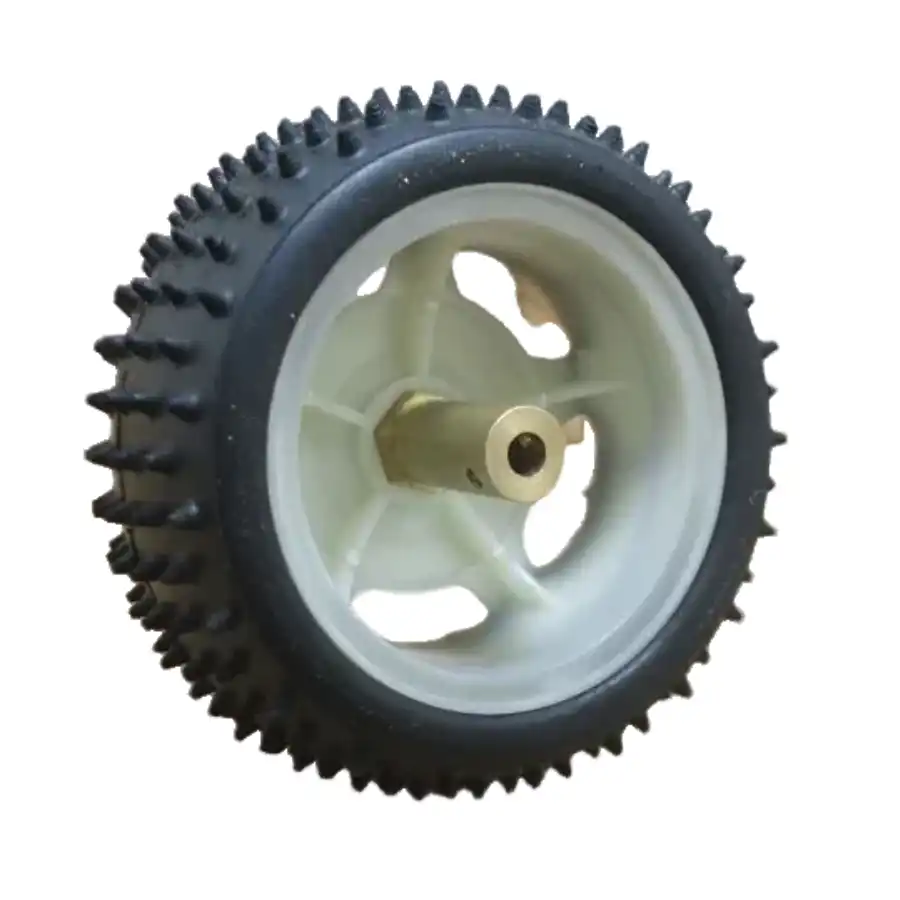

The 5mm coupling for Robot Smart Car Wheel 30mm Length is a compact coupling for joining your motor to the smart car wheel. They are mostly seen in smart cars, robotic vehicles or small robots.
5mm Coupling is made from high-quality brass which allows you to connect the shaft of the motor and hub of the wheel. It equips a hexagonal socket through which you can connect the hub of the wheel at one end of the coupling. The other hollow end of the coupling is connected to the motor shaft.
They have a very simple structure and installation also doesn’t require any special skills. It requires no maintenance except tightening the screws when needed.
Features:
- Manufactured using good quality materials.
- Very easy to install.
- Requires no special attention once installed correctly.
- The small size makes them fit in compact spaces.
- Provides value to your money.
Specification:
- Material: Brass
- Inner Diameter (ID) (mm): 5
- Outer Diameter (OD)(mm): 11
- Size of Hex Socket: 14mm (Diagonal)

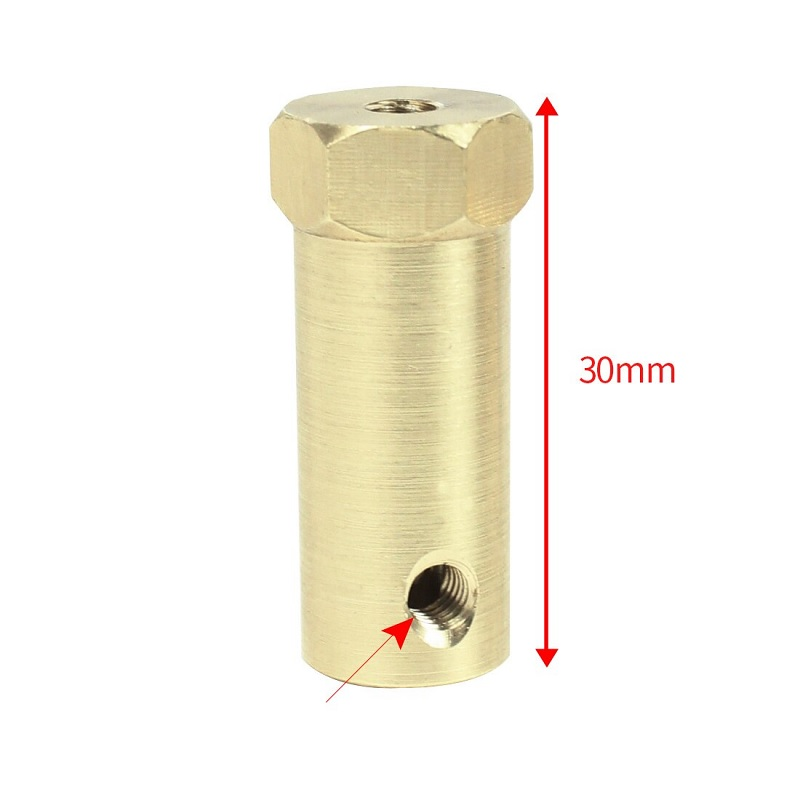

- Length (mm): 30
- Weight(gm): 50
- Shipment Weight: 0.055 kg
- Shipment Dimensions: 4 × 2.5 × 2.5 cm
Package Includes:
1 x 5mm Hex coupling for Robot Smart Car Wheel
Technical Specifications
| Size | 5mm |
|---|---|
| SKU | AI2521 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 5mm Hex coupling for Robot Smart Car Wheel 30mm Length(Without Allen Key) is a versatile couplings used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
