This is the 100V variant of the Dual Led 0.28 Display for DC0-100V 50A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red LED 50A Shunt in Digital Voltage, Current and Frequency Meter. Available at ₹302.08 (₹256.00 + GST) with free shipping across India.
Looking for Dc0-100v Display? Dual Led 0.28 Display for DC0-100V 50A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red LED 50A Shunt is available at Zbotic with fast shipping across India.

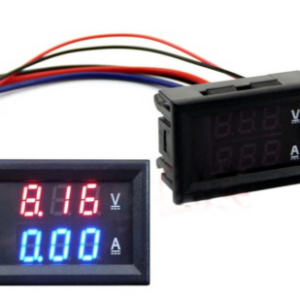

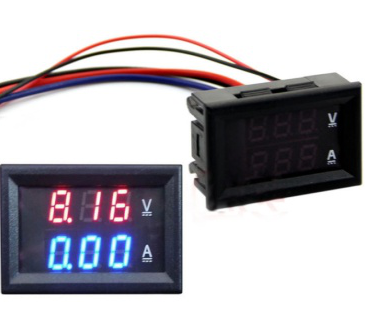

This is 0.28 inch Digital voltmeter Ammeter DC 100V 50A LED Amp Volt Meter With Shunt. This meter will measure up to 100 VDC with a 0.1-volt resolution.

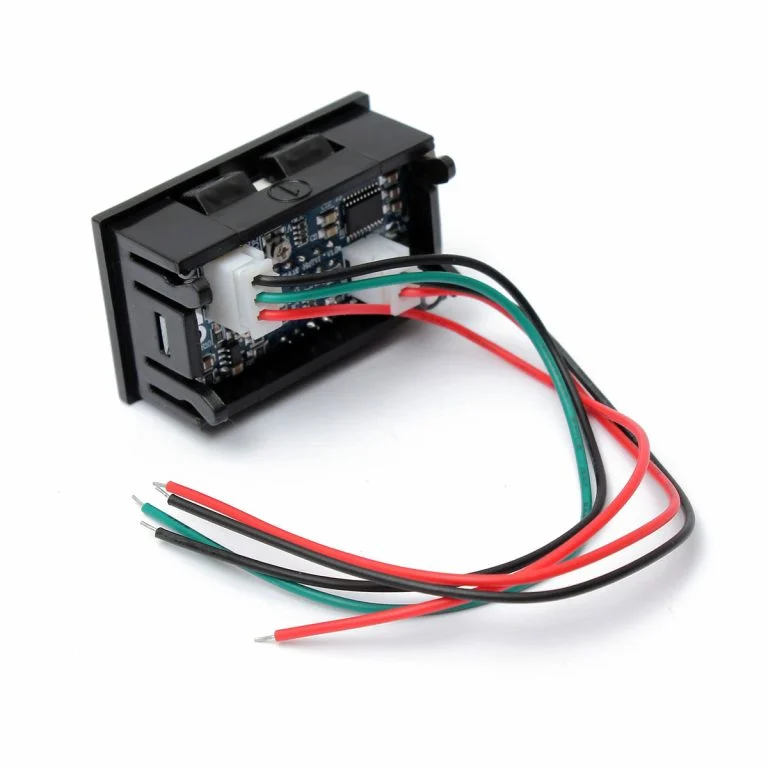

One thing to note is, this meter has 2 wiring harnesses. One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.
This can be supplied anywhere from 6 volts DC up to 30 VDC. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. The 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load.
Note:
There are different wiring variants with the same working functionality is available which will be shipped randomly.
If the input voltage is more than 5V then please use the buck converter.
Features :
- It measures up to 100V and 50A DC.
- Very handy and small in size.
- It requires a power supply of 5V.
- 100% Brand new and high quality.
specification-
| Accuracy | 1 |
|---|---|
| Color | Red and Blue |
| Operating Voltage (VDC) | 5 |
| Current Consumption (mA) | 60 |
| Testing Voltage (V) | 0 to 100 |
| Testing Current (A) | 1 to 100 |
| Refresh Speed (ms) | 500 (one time) |
| Operating Temperature (°C) | -10 to 60 |
| Height (mm) | 30 |
| Length (mm) | 20 |
| Width (mm) | 50 |
| Shunt Resistor Dimensions (mm) | 120x25x20 (LxWxH) |
| Weight (gm) | 14 |
| Shipping Weight | 0.018 kg |
| Shipping Dimensions | 13 × 5 × 4 cm |

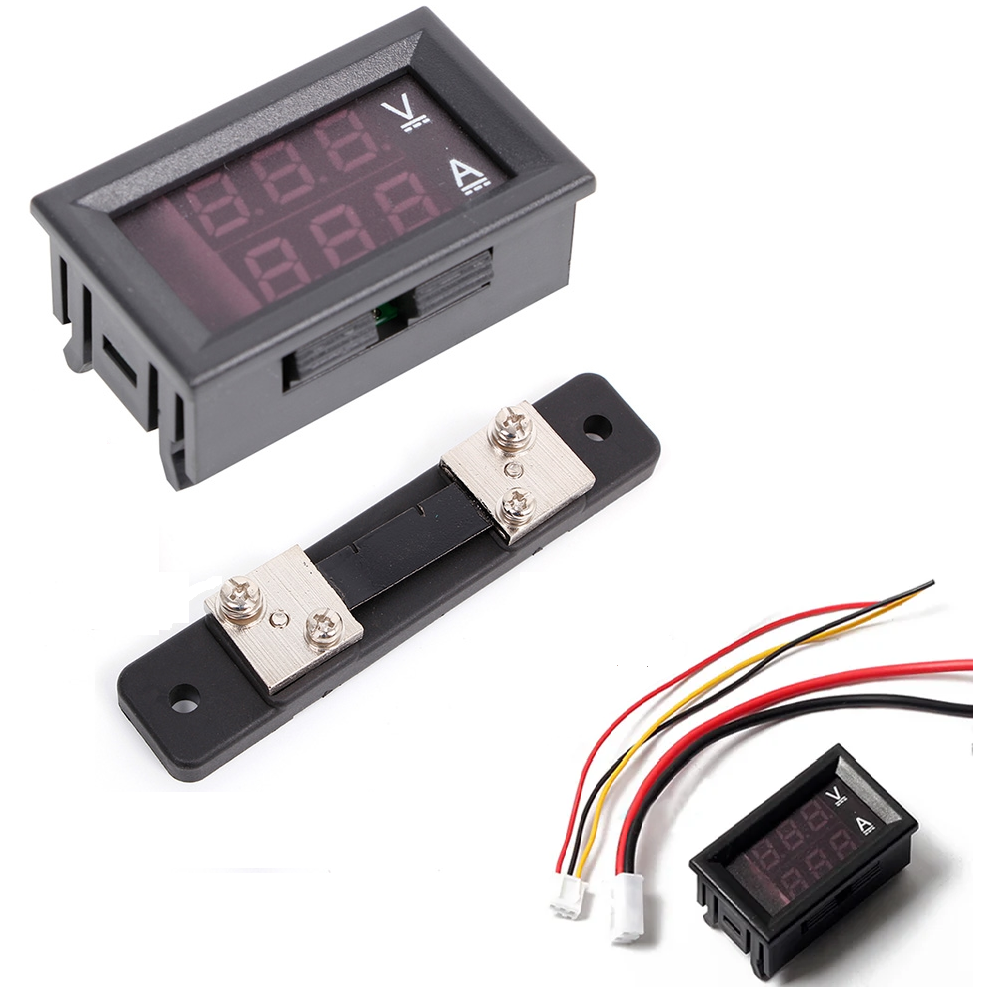

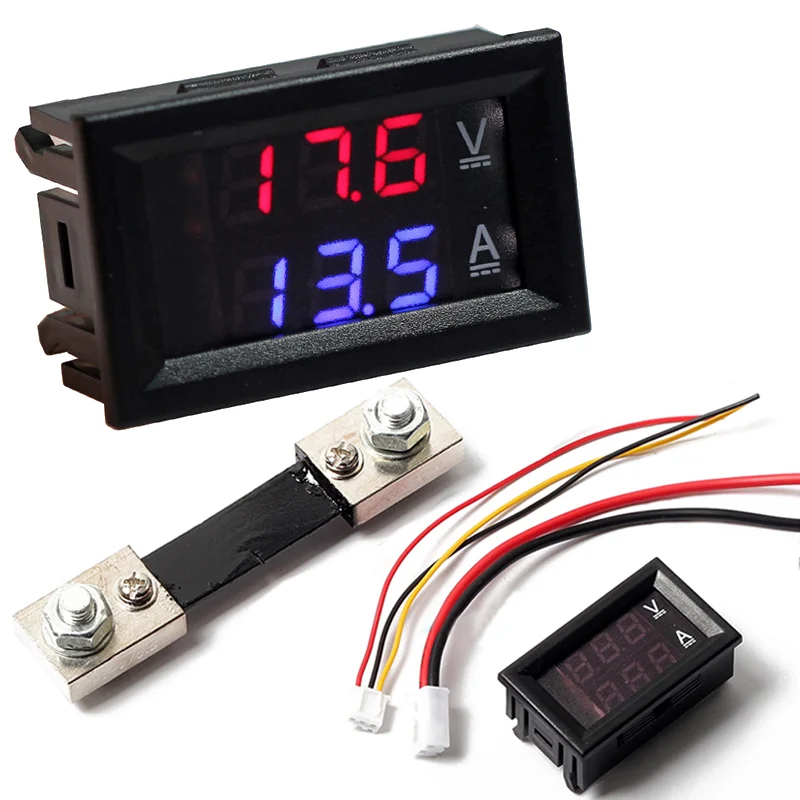

Package Includes:
1 x Dual LED Panel Ampere Voltage Meter.
1 x Current Shunt.
About Dc0-100v Display
Dual Led 0.28 Display for DC0-100V 50A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red LED 50A Shunt is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI4220
- Category: Uncategorized
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Dc0-100v Display and other products.
Applications
Dc0-100v Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Dc0-100v Display today and start building.
Dual Led 0.28 Display for DC0-100V 50A Voltage and Current Overview
The Dual Led 0.28 Display is a compact panel meter that simultaneously shows DC voltage (0–100 V) and current (1–50 A) on a red LED screen. With two separate wiring harnesses—one for power and one for measurement—it delivers clear real-time readings even in low-light environments.
Key Features of Dual Led 0.28 Display for DC0-100V 50A Voltage and Current
- 0.28″ dual red LED digits display voltage and current side by side
- Voltage measurement range: 0–100 VDC with 0.1 V resolution
- Current measurement range: 1–50 A via included 50 A shunt
- Separate power input (6–30 VDC) with <60 mA consumption for minimal load
- Bright LEDs ensure readability in dim light or at angles
- Compact panel design for easy installation in control boxes or dashboards
- Fast shipping from Zbotic across India
Applications and Use Cases
- Battery bank monitoring in solar power and UPS systems
- Voltage and current tracking in DC bench power supplies
- Performance testing of motors and controllers up to 50 A
- Electric vehicle battery pack diagnostics
- DIY electronics projects requiring real-time load data
- Lab equipment where precise voltage/current readings are needed
How to Use Dual Led 0.28 Display for DC0-100V 50A Voltage and Current
Connect the red and black leads of the power harness to a clean 6–30 VDC supply, then wire the measurement harness: voltage positive to the source’s + terminal, negative to – terminal, and insert the 50 A shunt in series with your load for current sensing. Power up the meter, and it will instantly display voltage and current values.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply does this meter require?
This panel meter needs a separate DC supply between 6 V and 30 V (≤60 mA) connected via its power harness. Do not use the measured circuit for powering the display.
How do I install the 50 A shunt?
Place the included shunt in series with the load’s negative or positive line. Connect the meter’s current-sensing wires across the shunt terminals to read up to 50 A accurately.
Can I calibrate the voltage or current readings?
This meter is factory-calibrated with 0.1 V resolution for voltage. Minor current offset adjustments can be made by adding a small series resistor or trim pot inline with the shunt leads when precise current scaling is required.
Technical Specifications
| Model | DC0-100V |
|---|---|
| Current Rating | 50A |
| Color | Red |
| SKU | AI4220 |
| Weight | 0.07931 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Dual Led 0.28 Display for DC0-100V 50A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red LED 50A Shunt is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
