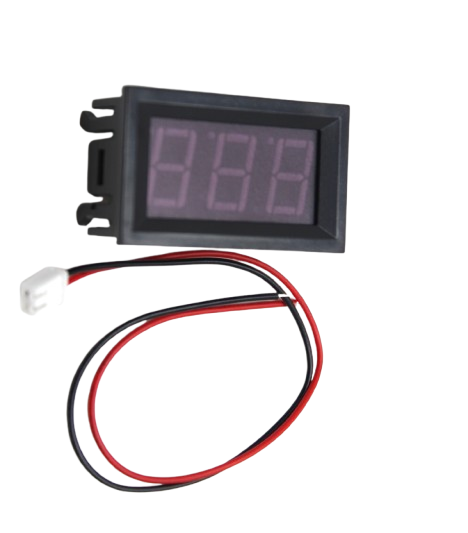

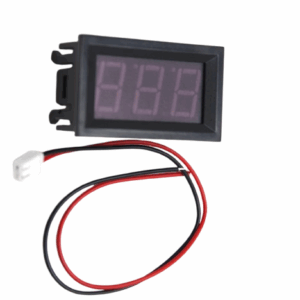

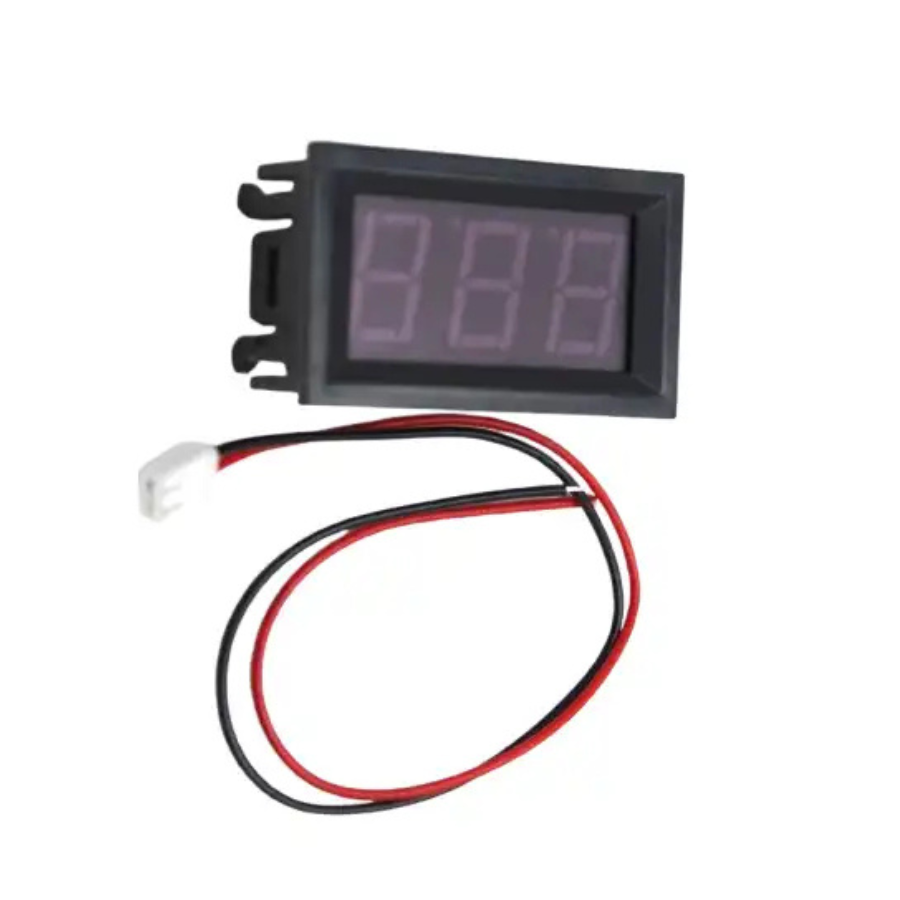

This is the Red variant of the Red 0.56inch AC220V Two Wire AC Voltmeter 70V ~ 500V in Digital Voltage, Current and Frequency Meter. Available at ₹194.70 (₹165.00 + GST) with free shipping across India.
Product Description

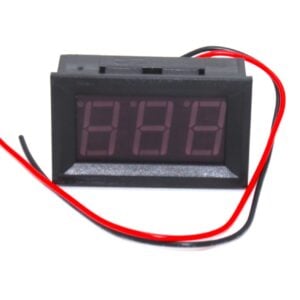

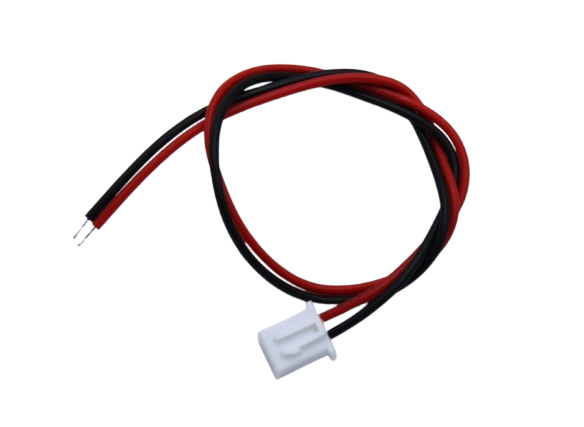

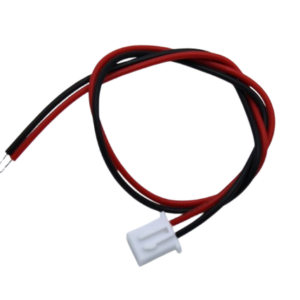

This voltmeter has a simple wiring process. You only need to connect two wires: the red one to the positive terminal and the black one to the negative terminal. The meter has reverse connection protection, so it will not burn if you connect the wires incorrectly.
This voltmeter does not need an external power source. It can work with the voltage that it measures, which can range from 70 to 500V.
To ensure the best accuracy, the voltmeter will adjust the position of the decimal point automatically based on the voltage difference.
You can use this voltmeter to monitor the battery voltage of motorcycles, cars, and other vehicles. It will help you keep track of the battery condition. You can also use it for other purposes that require voltage measurement.
Note:
- Consider 1V voltage drop at voltmeter itself, as we observed it at while testing this Voltmeter.

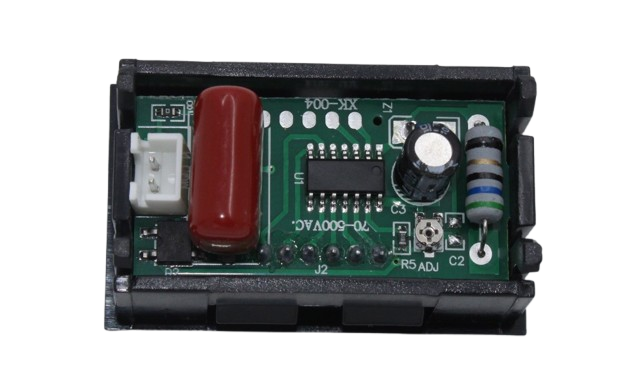

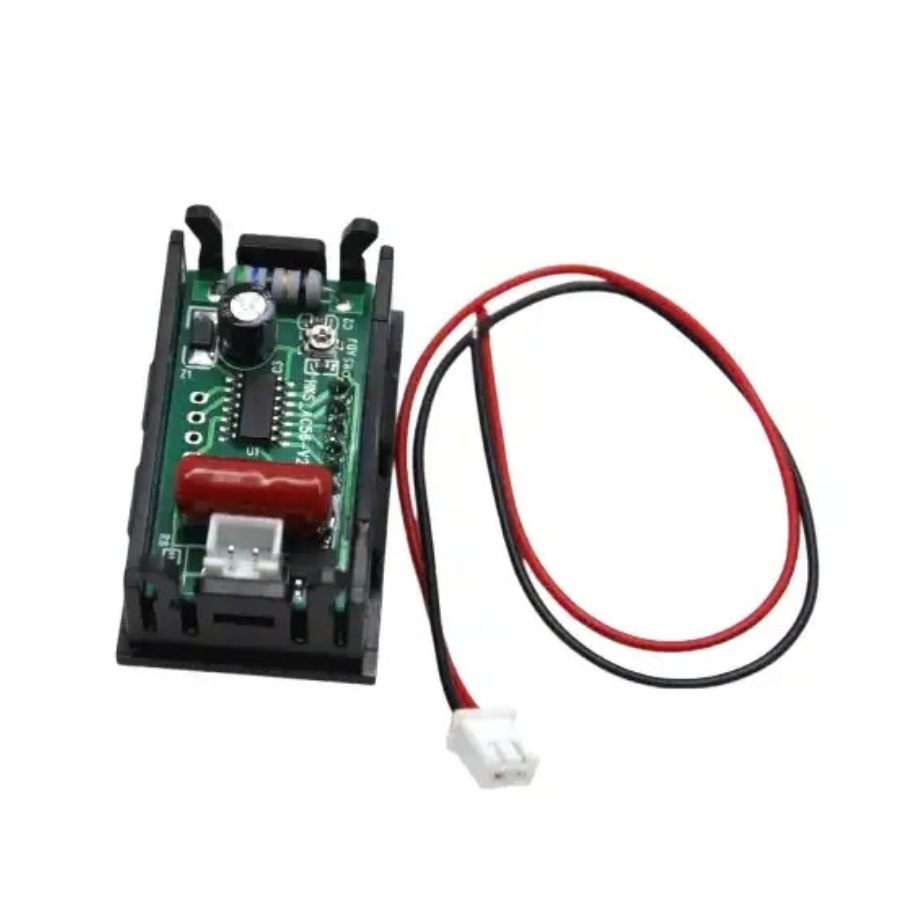

- Product Image may vary in terms of colour Wire and PCB or PCB layout as per the version update from the manufacturer
Features :
- Very small and lightweight voltmeter module.
- Very handy and easy to use.

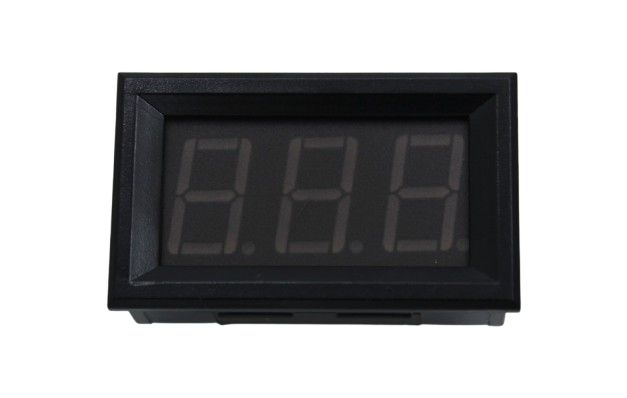

- RED LED display.
- Best operates in the working voltage range of 70V to 380V
- Matt finish Display glass makes display Digits more Lucid in the daytime.
- 100% Brand new and high quality.
specification-
| Product Type | AC Voltmeter |
|---|---|
| Operating Voltage (VDC) | 70-380 VDC |
| Average Current Consumption (mA) | Less than 20mA, generally 5-15mA |
| Full Refresh Time (s) | Approx 300mS/time. |
| Display color | Red |
| Accuracy | 0.1 V |
| Working Voltage | 70-500V |
| Product Color | black |
| Weight (g): | 20g |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 10 × 6 × 1 cm |
Package Includes :

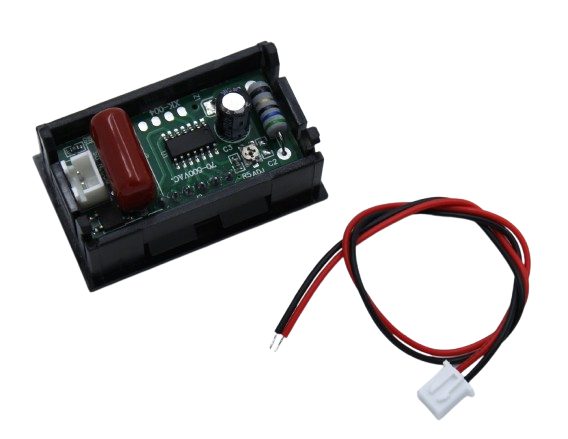

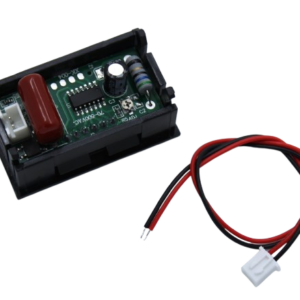

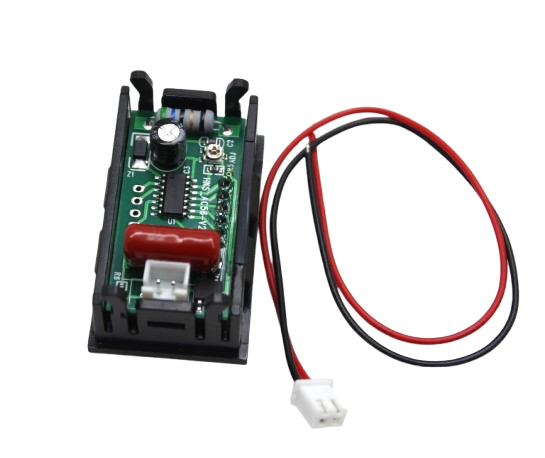

1 x 0.56inch Red AC220V Two Wire Voltmeter 70V ~ 500V
Technical Specifications
| Model | AC220V |
|---|---|
| Voltage Range | 70V - 500V |
| Display Size | 0.56" |
| Color | Red |
| SKU | AI2585 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Red 0.56inch AC220V Two Wire AC Voltmeter 70V ~ 500V is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
