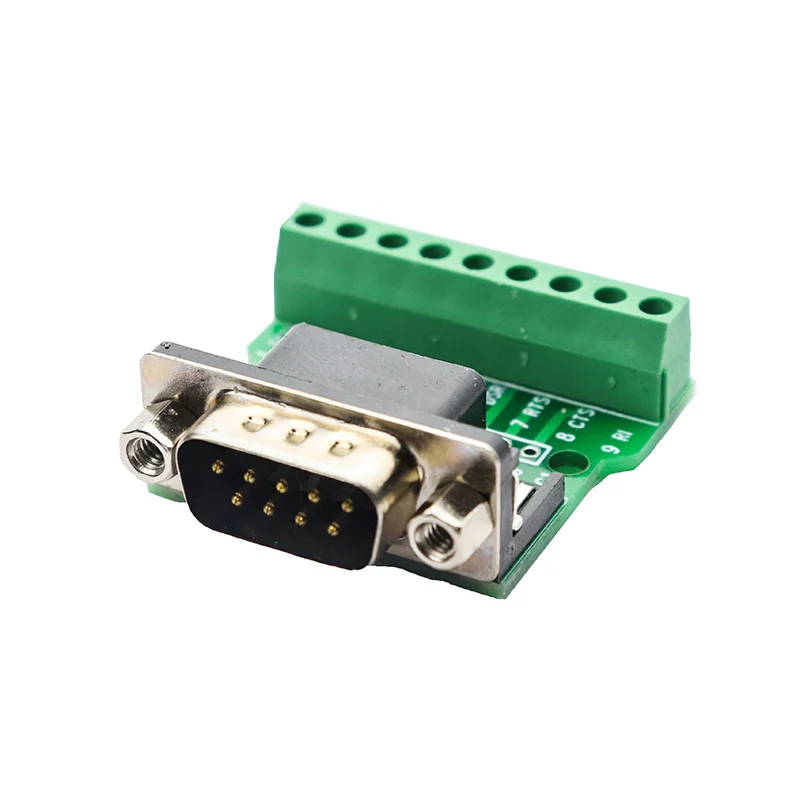

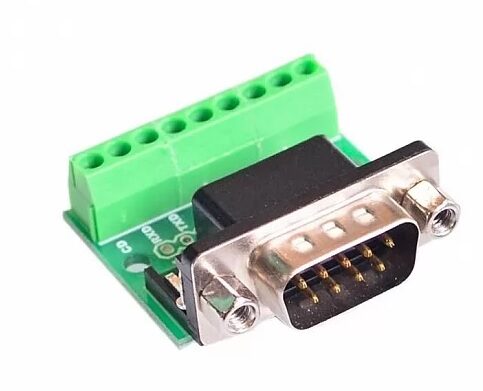

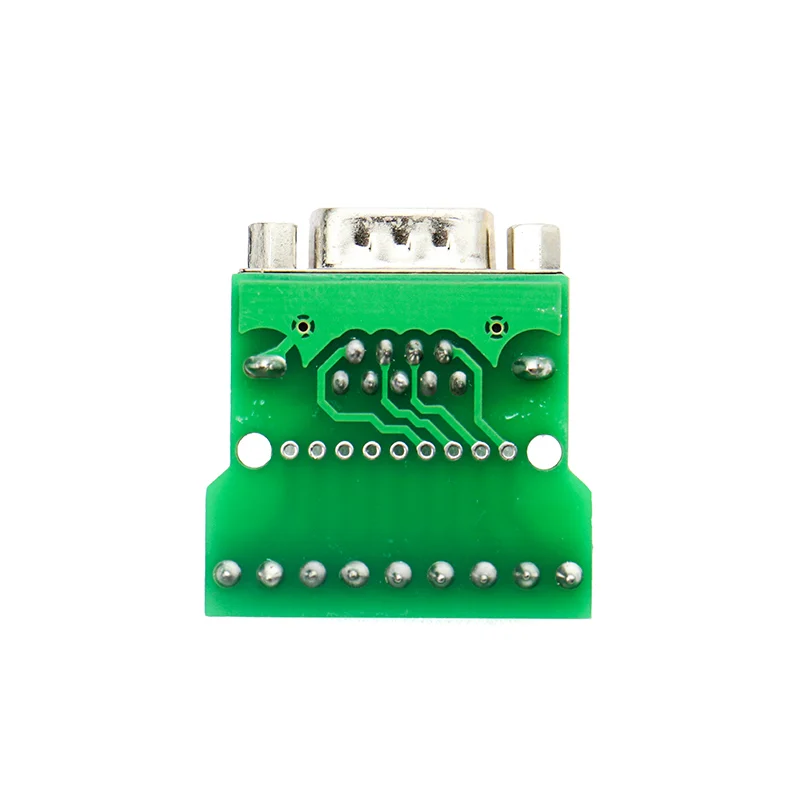

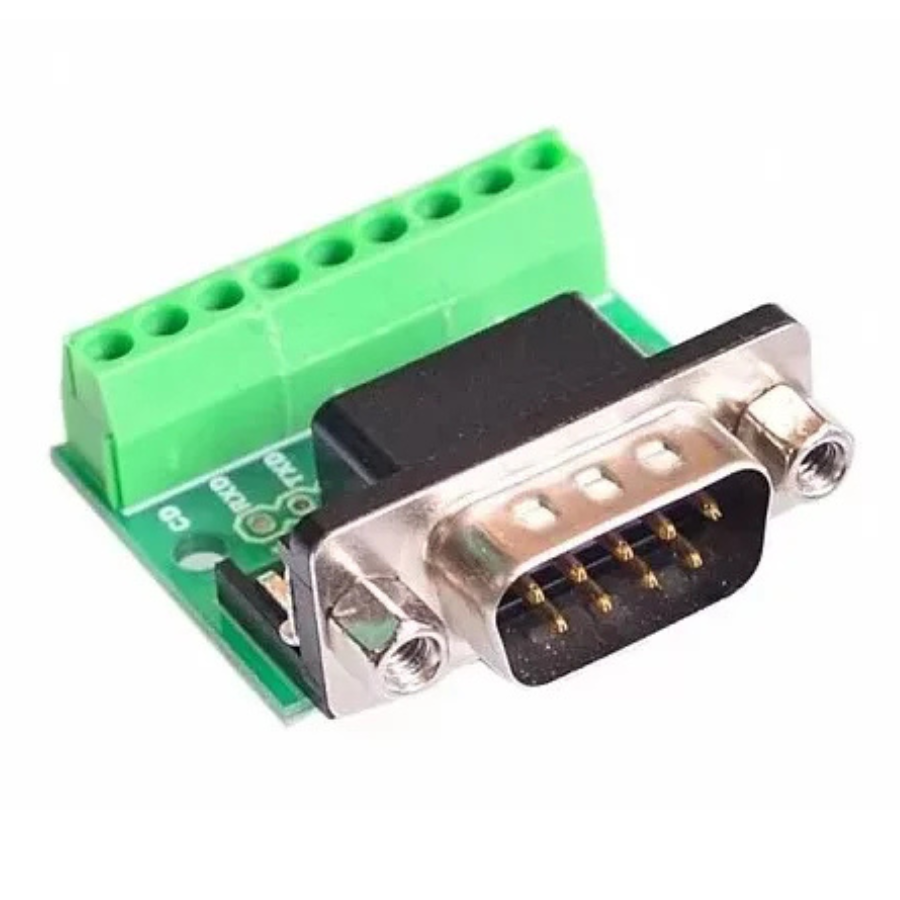

DB9 Male Screw Terminal to RS232 RS485 Conversion Board
This module is a conversion board that connects a DB9 male screw terminal to RS232 or RS485. It has a 9-pin DB9 serial connector and a 9-position screw terminal block. The DB9 adapter terminals make it easy to set up and test equipment for projects. The 9-position screw terminal block can accommodate wires with a size range of 22-14AWG. The DB9 socket is made of copper, which prevents oxidation and improves contact.
The pitch of the terminal is 3.96mm, and the diameter of the screw hole is 2mm. You need a 2mm slotted screwdriver to remove it. This is a signal module with a DB9 female adapter plate. The DB9 adapter terminals are useful for project development and on-site equipment commissioning.

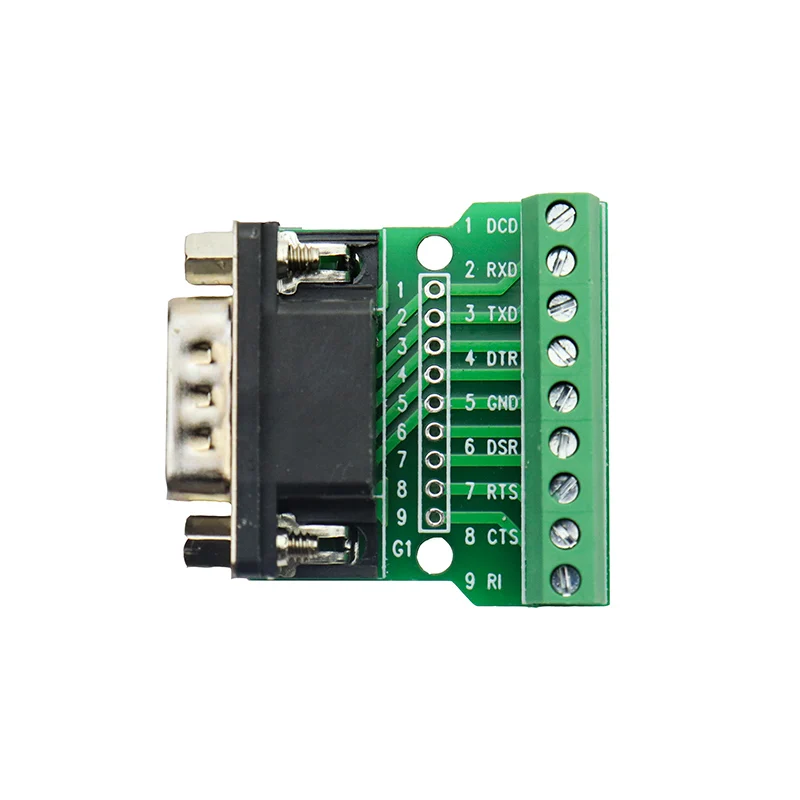

This conversion board also has a DB9 male head with an Allen screw on top, a terminal and a row of pins. The terminal and the pins are numbered accordingly. The terminal has a high-strength pressure pick-up terminal.
Features
- Perfect for experimentation and prototype work
- Brings all 9 pins of a DB9 connector to screw terminal blocks.
- Adapter used for communication debug.
- 9 pcs signal line was all lead out, name and number clearly labeled.
- All-copper DR9 seat, anti-oxidation, better contact.
- Military board, three anti-paint sprays an entire board, corrosion-resistant.
- Terminal spacing 3.96MM, screw hole diameter 2MM, need to use a width of 2MM screwdriver for assembly.
- Use of environmentally friendly copper terminals, through IS0-9001
Specifiations:
| Color: | Green |
|---|---|
| Screw Terminal | 9 |
| Mounting Hole(mm) | 3 mm |
| Length (mm): | 40 |
| Width (mm): | 37 |
| Height (mm): | 15 |
| Weight (g): | 16 |
Package Includes
- 1 x DB9 Male Screw Terminal To RS232 RS485 Conversion Board.
Technical Specifications
| Model | DB9 |
|---|---|
| Interface / Protocol | RS485, RS232 |
| SKU | AI0650 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DB9 Male Screw Terminal to RS232 RS485 Conversion Board is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
