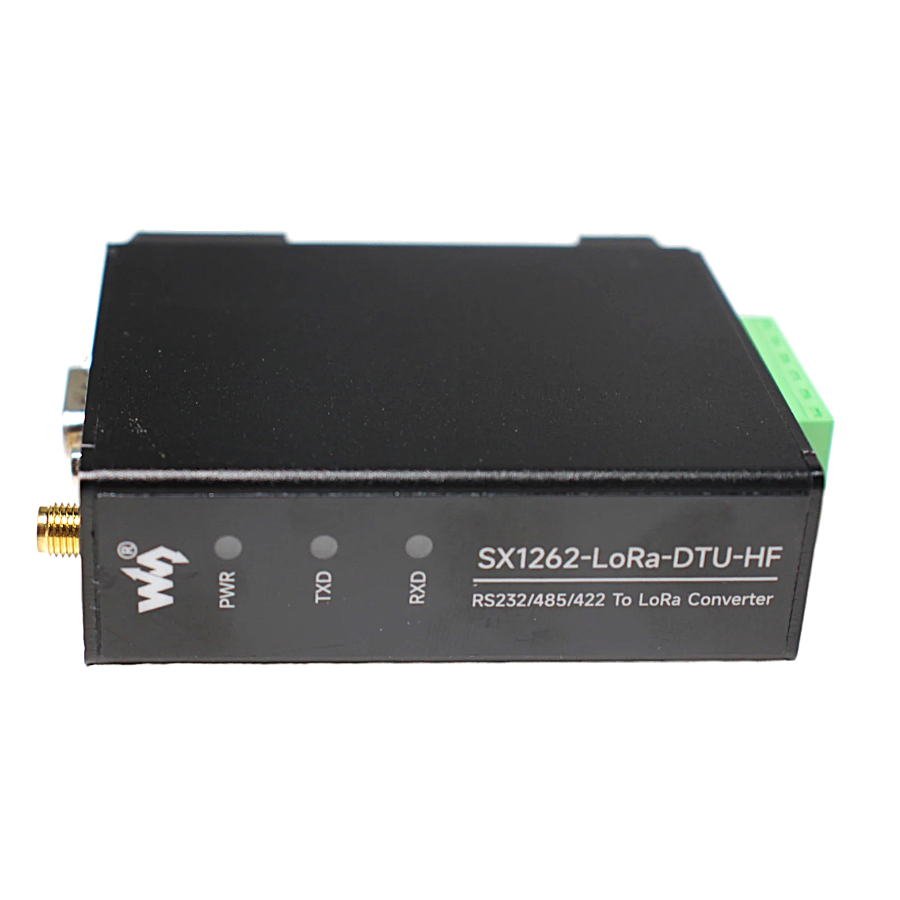

Waveshare Rail-mount SX1262 LoRa Data Transfer unit, RS232/RS485/RS422 to LoRa, Suitable for Sub-GHz band
Description:

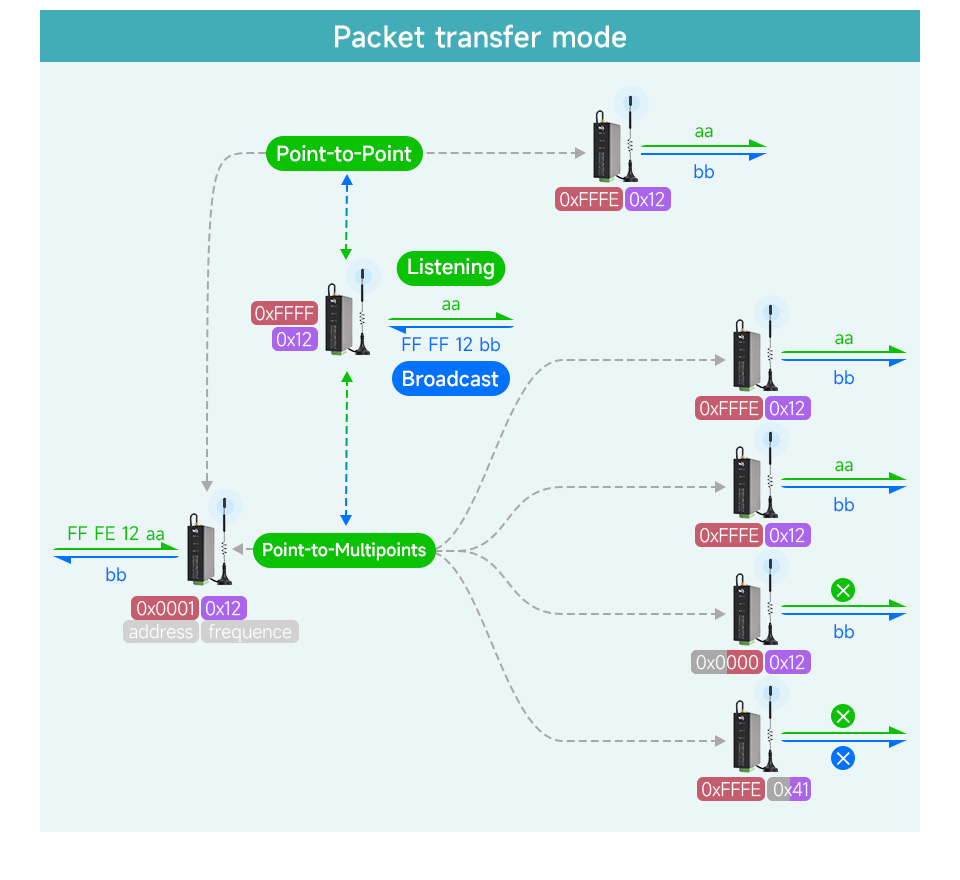

SX1262-LoRa-DTU is a wireless data transfer unit with RS232, RS485 and RS422 interfaces based on the SX1262 module. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 5KM). Supports point-to-point, point-to-multipoints, relay network, AES, etc. Compact size and easy to install, suitable for the wireless data transmission and device control of industrial standard or non-standard user protocol.
Primary Function

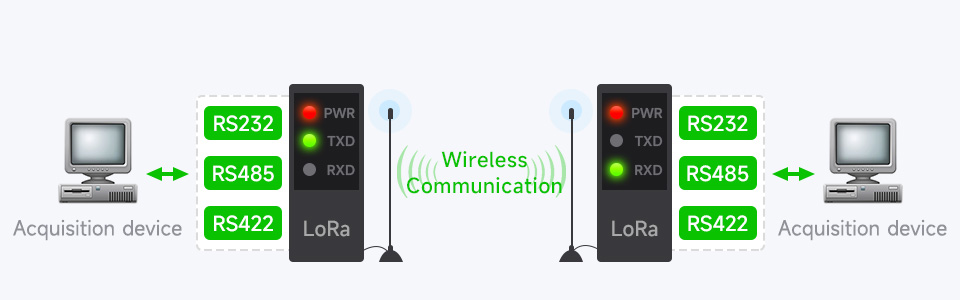

Support RS232 / RS485 / RS422 To LoRa
* Note: It does not support RS232, RS485, RS422 to LoRa at the same time, and RS232, RS485, RS422 cannot be converted to each other at the same DTU.

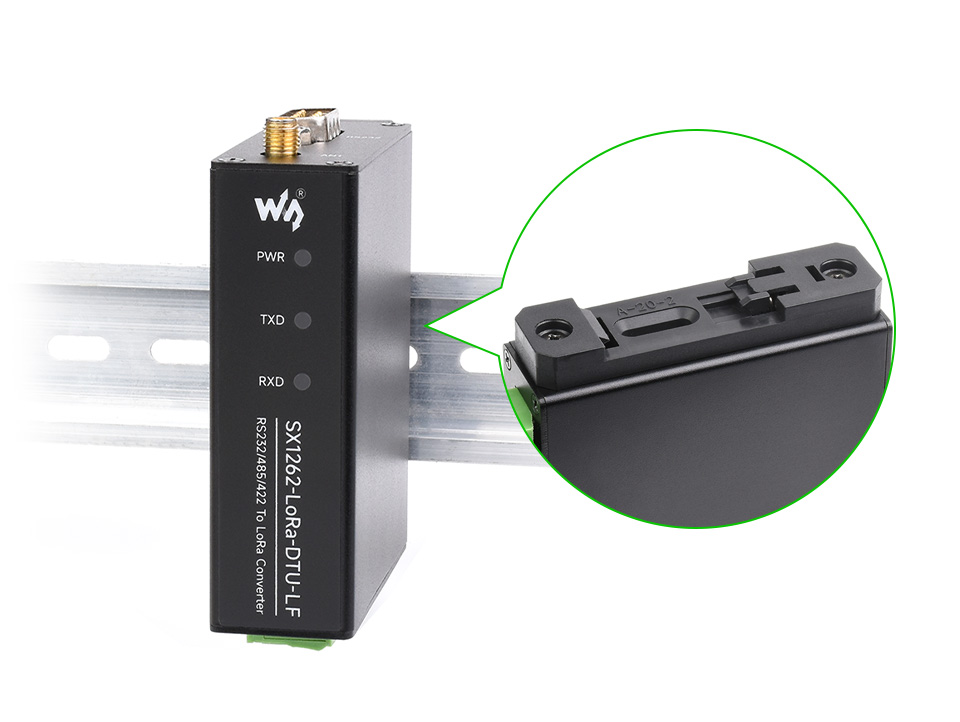

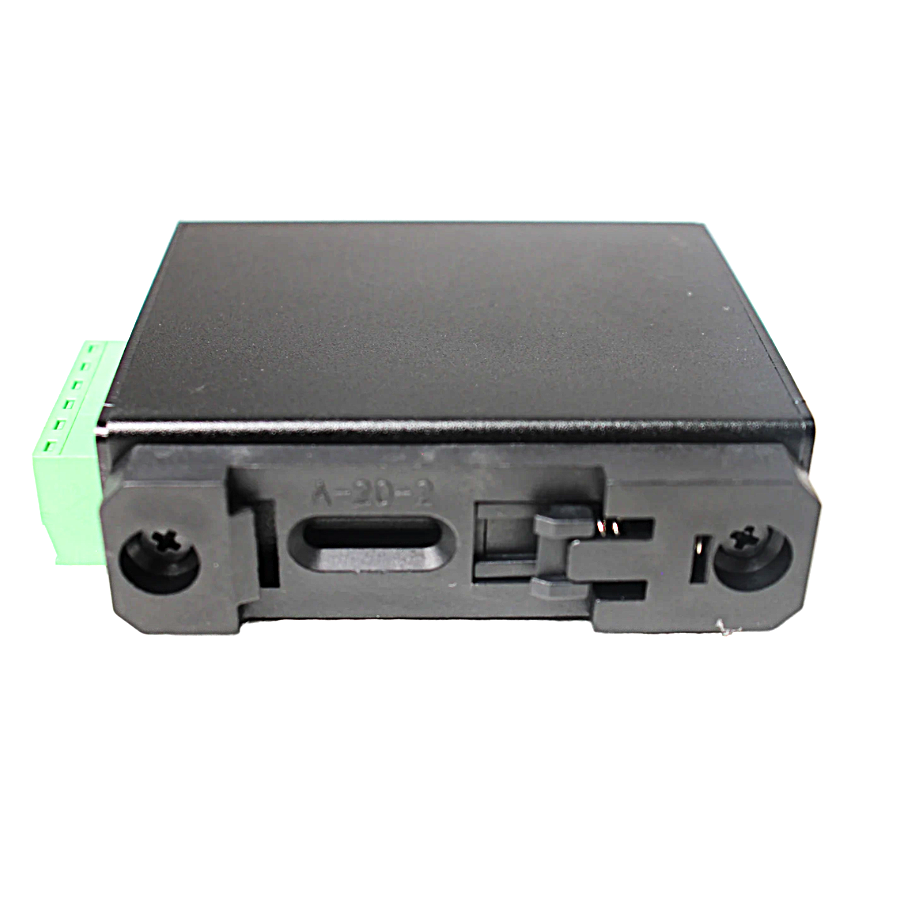

Industrial Rail-Mount Design, Small In Size, Easy To Install, And Cost-Effective

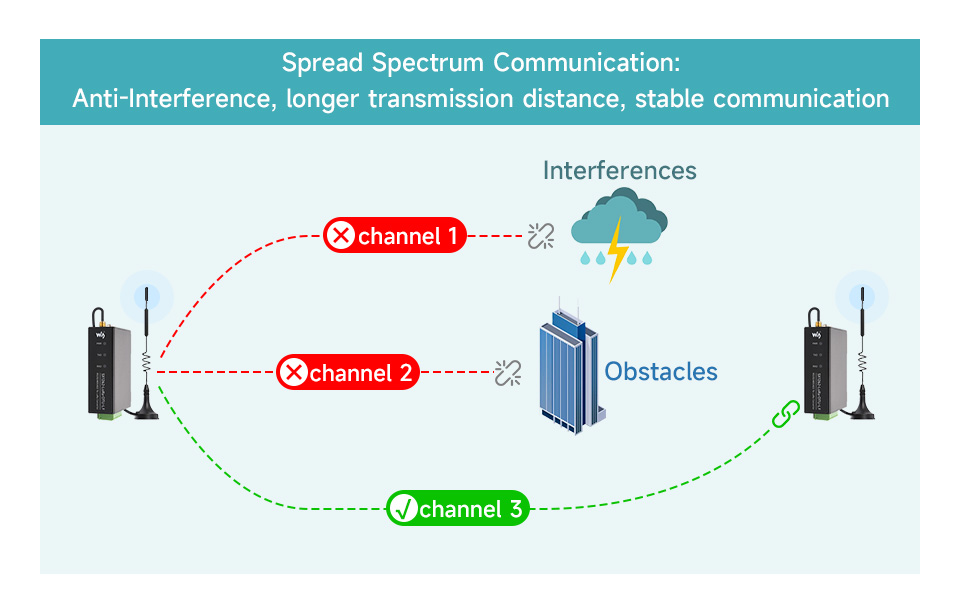

Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.

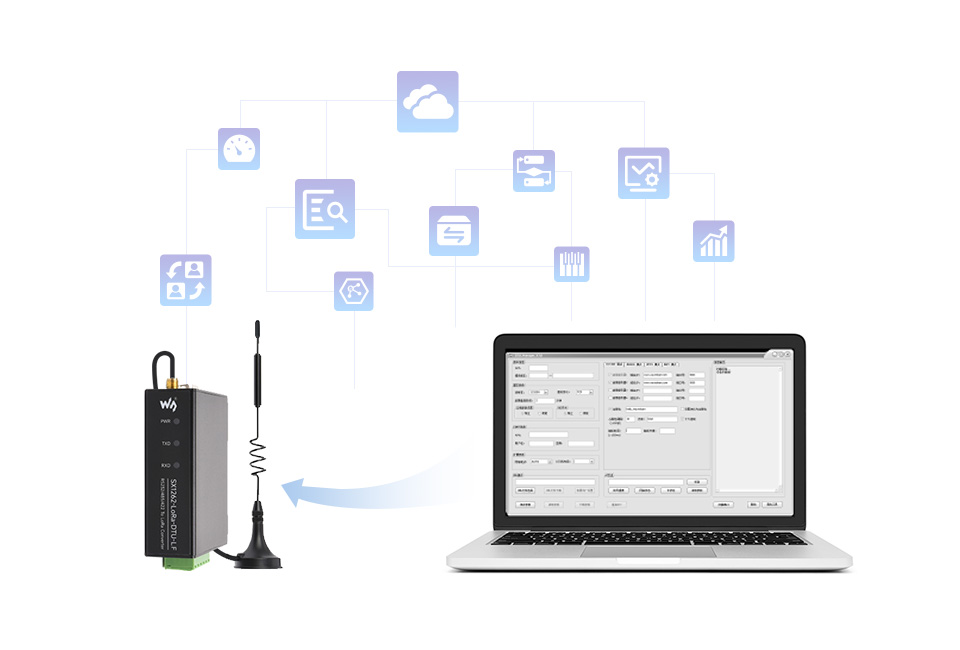

Can Be Set Via Software

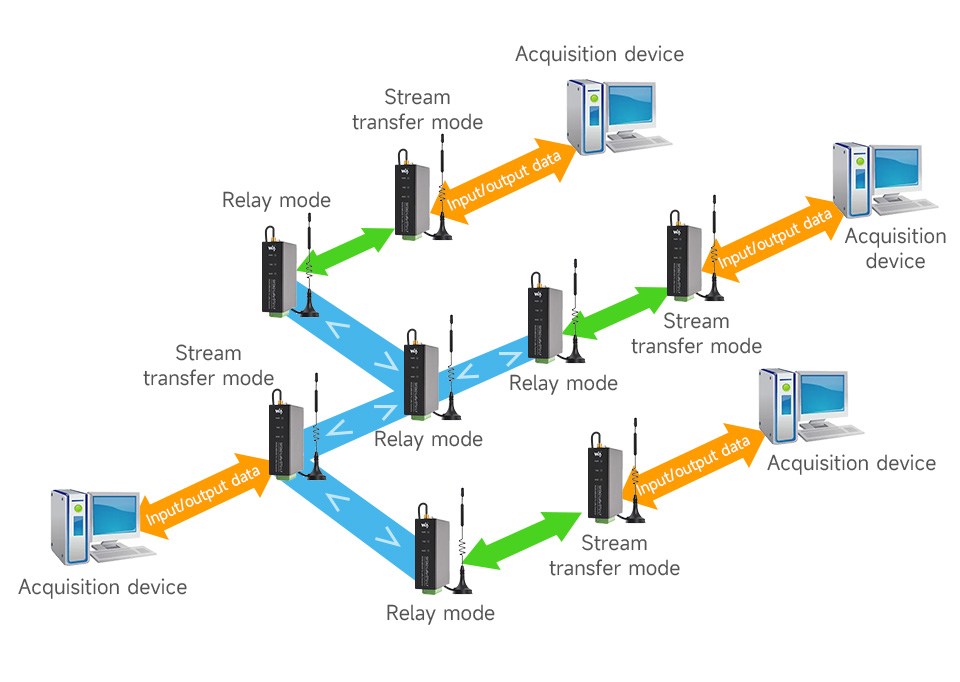

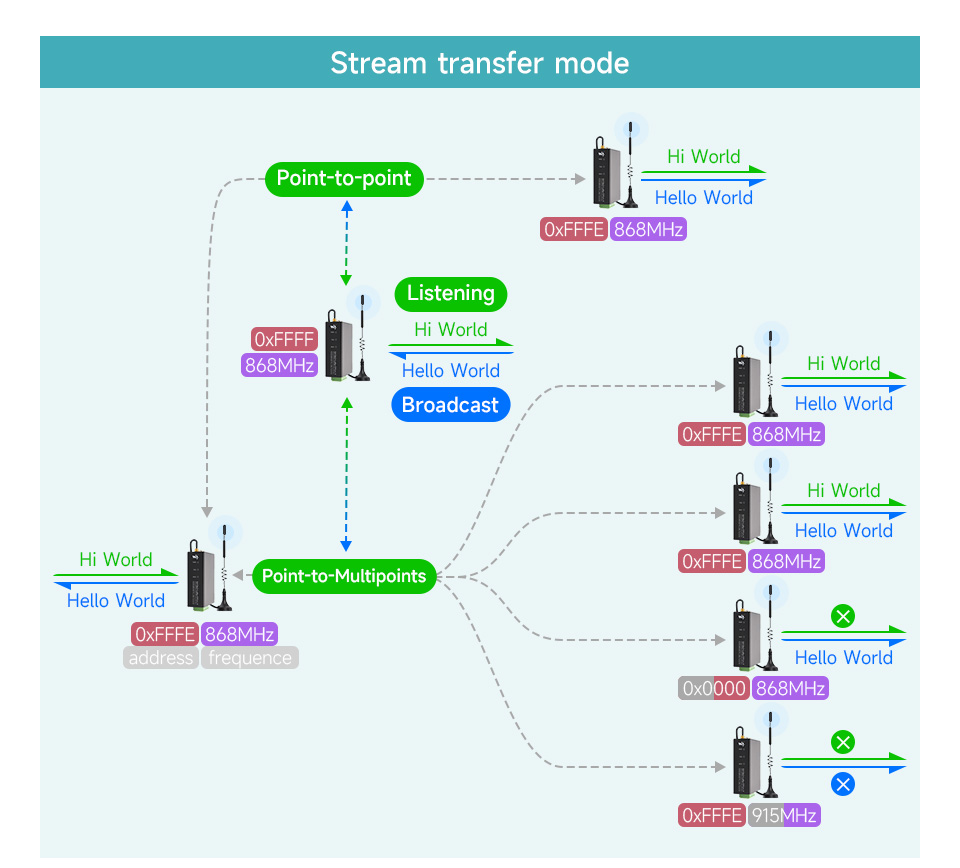

The Radio Station Can Realize Multi-Level Relay Networking, Suitable For Ultra Long-Range Distance Or Complex Environment Networking Communication, Allows Multi Networking On The Same Region
Users Can Query The Current Status Of The Module Or Set Parameters By Sending AT Commands

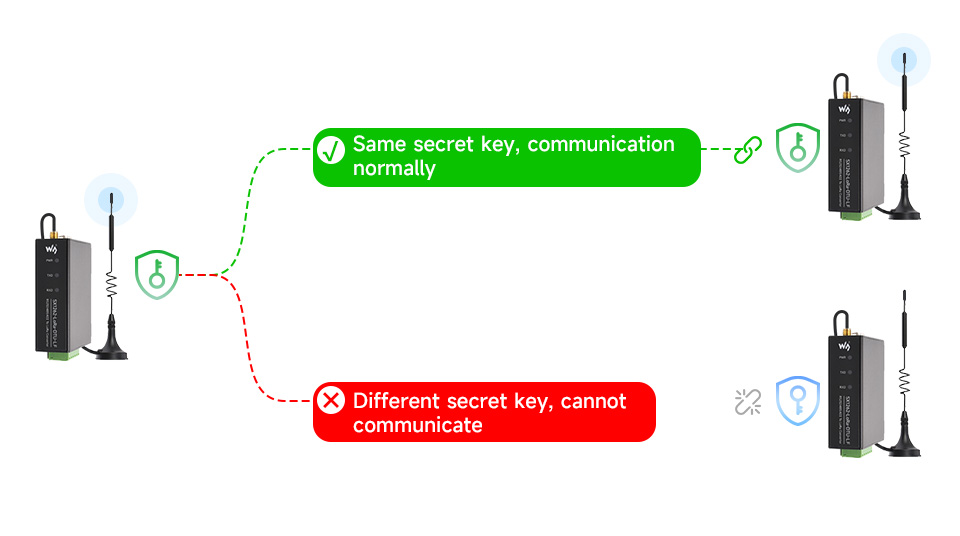

The Secret Key Is Writable But Unreadable, The Devices With The Encrypted Transmission Enabled And The Same Key Can Communicate With Each Other Normally For Greater Security

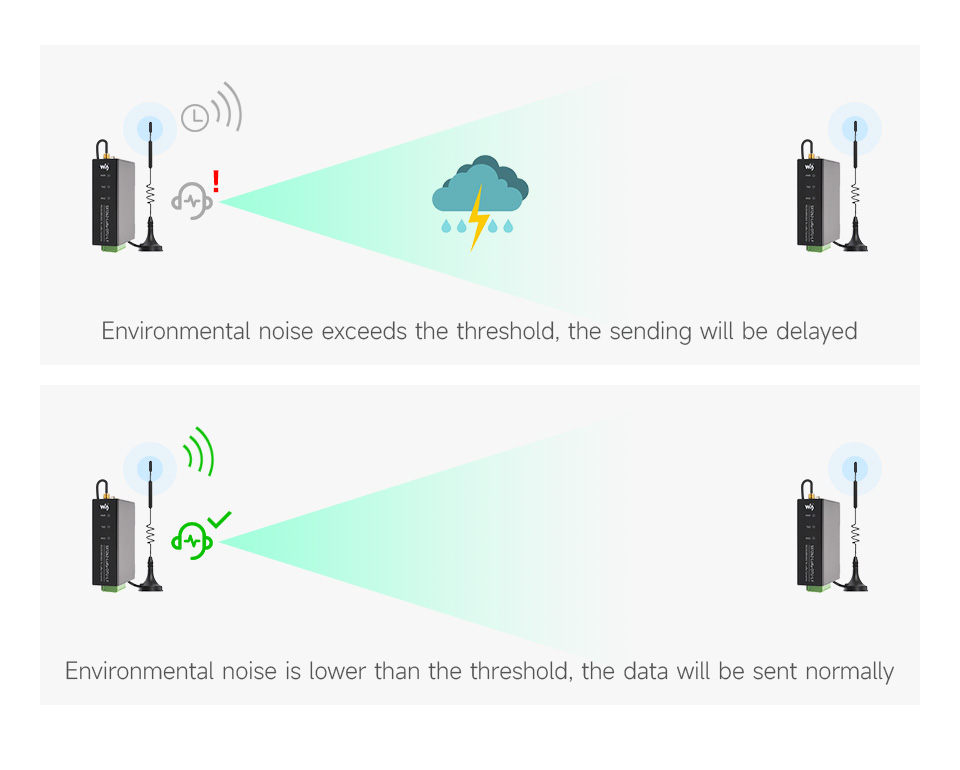

The module will actively monitor the environmental noise of the channel before sending. If the noise exceeds the threshold, the sending will be delayed. This function can improve the communication success rate of the module in harsh environments, suitable for networking transmission and anti-collision processing

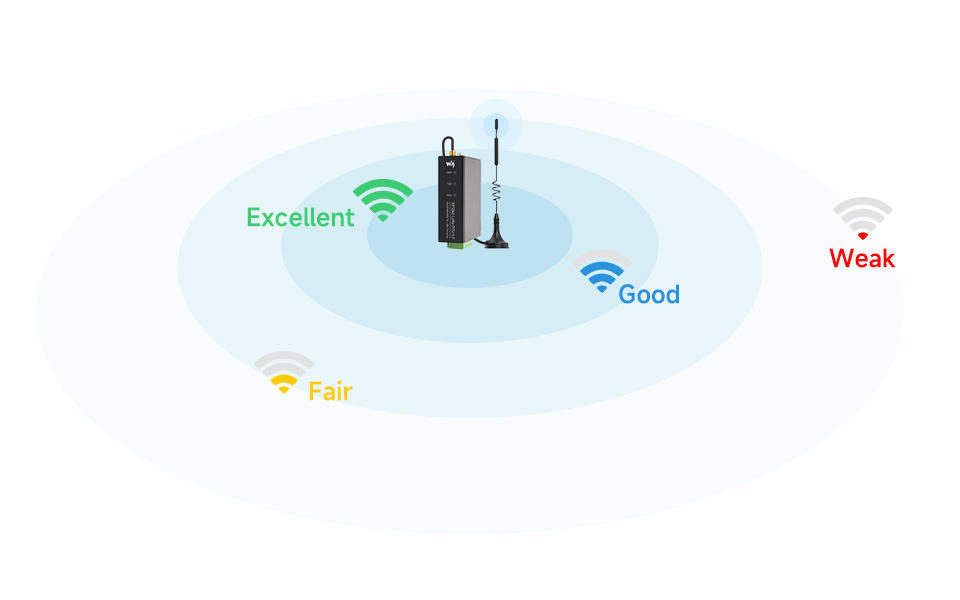

Supports serial port output of data packet signal strength, can be used to evaluate signal quality, improve communication network, and measure distance. Supports serial port output of environmental noise signal strength, can be used to manually realize LBT function.
Features:
- Adopts LoRa Modulate and Demodulate technology, anti-interference and long-distance communication.
- Adopts the original SX1262 chip, with -148dBm reception sensitivity and 22dBm emitt power.
- Supports preamble detection, with CRC, automatic packetization, 960 bytes cache functions.
- Supports LBT sending, RSSI output, AT command configuration.
- AES communication to ensure data transmission security.
- Supports multi-level relay networking to increase the wireless communication distance.
- Supports host configuration and firmware upgrade (support firmware customization for batch order)
- Adopts high-quality components such as TCXO to ensure stable operation under harsh working conditions.
- Comes with development resources and manual.
Specification:
| COMMUNICATION INTERFACE | |
|---|---|

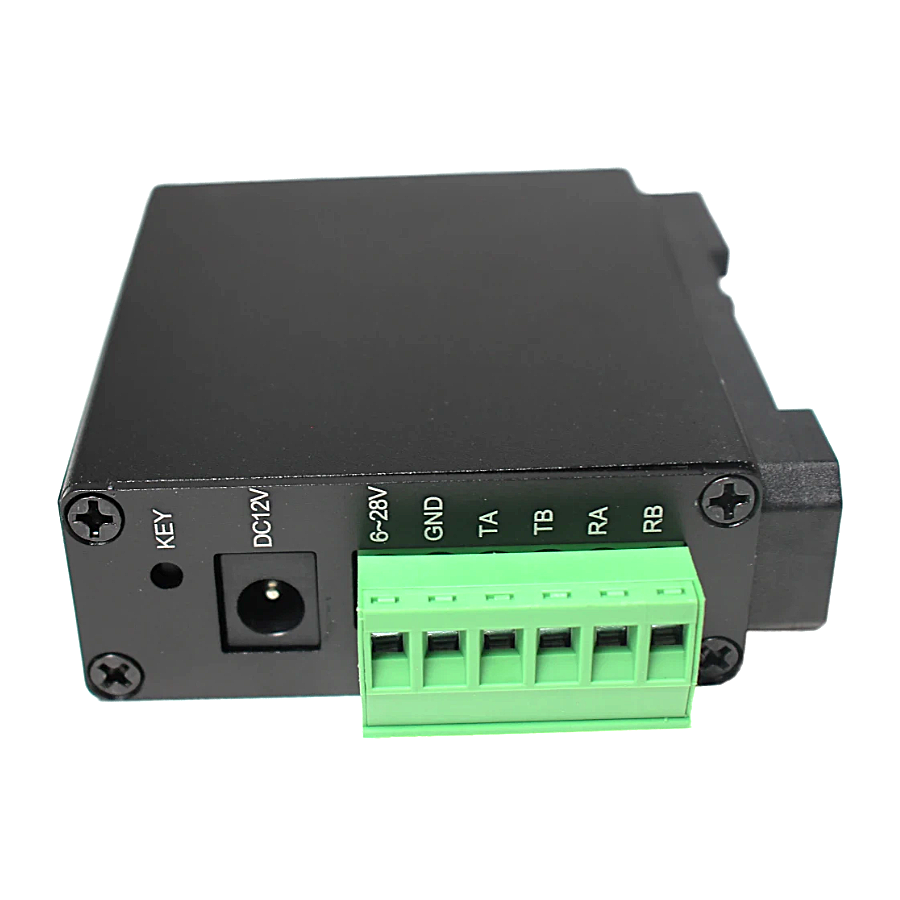

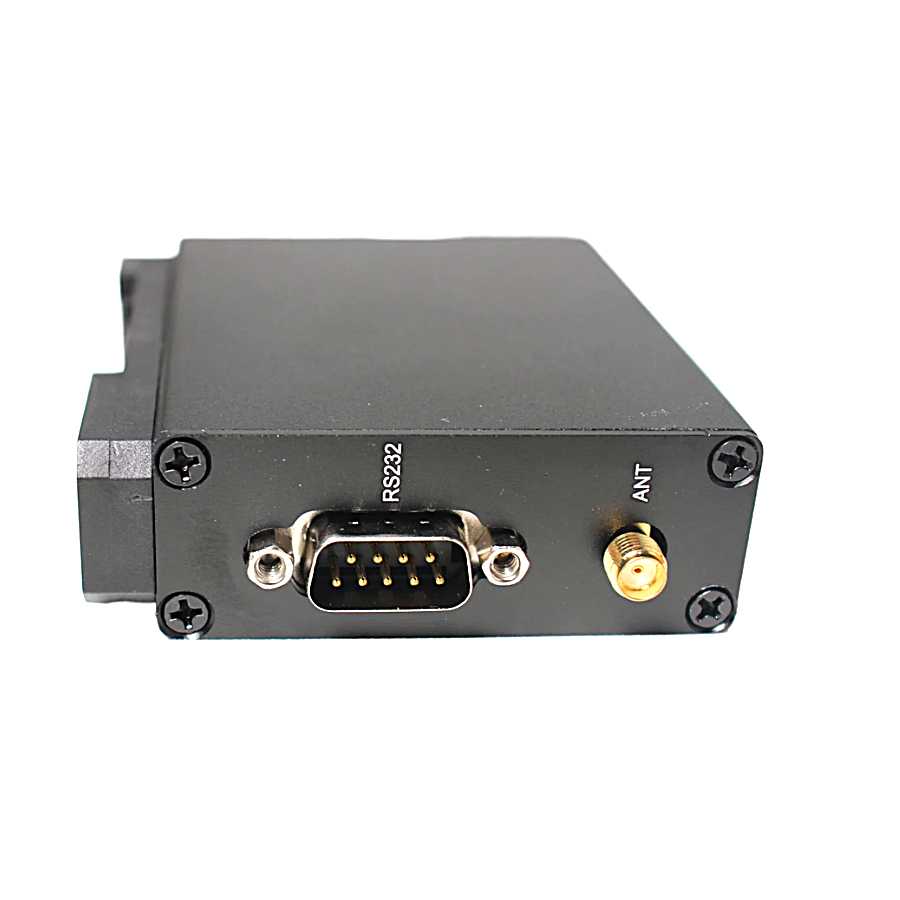

| Interface | Screw terminals: RS485 × 1, RS422 × 1 DB9 male connector: RS232 × 1 SMA-KE female connector: 6dBi omni-directional antenna × 1 |
| RS485 | 600W lightningproof, TVS diode protection, anti-surge, overcurrent protection (reserved 120R balanced resistor header) |
| RS232 | TVS diode, anti-surge and ESD protection |
| RS422 | Anti-surge, overcurrent protection (reserved 120R balanced resistor header) |
| WIRELESS PARAMETERS | |
| Frequency Band | Sub-GHz (850~930MHz, 850~930MHz) |
| Signal Modulation | LoRa |
| Encryption Type | AES |
| Emit Power | +22dBm Max |
| Reception Sensitivity | -148dBm |
| SERIAL PARAMETERS | |
| Baud Rate | 1200 ~ 115200bps |
| Parity Bit | None, Odd, Even |
| Data Bit | 8 ~ 9 bits |
| Flow Control | N/A |
| ENVIRONMENTAL REQUIREMENT | |
| Operating Temperature | 0 ~ 85℃ |
| Humidity Range | 5% ~ 95% relative humidity |
| OTHERS | |
| Power Supply | Screw terminals 6 ~ 28V or DC 12V, overcurrent, overvoltage and reverse-proof |
| Case | Aluminum alloy |
| Dimensions | 77.0 × 24.0 × 64.2mm |
Waveshare Rail-mount SX1262 LoRa Data Transfer unit, Overview
The Waveshare Rail-mount SX1262 LoRa Data Transfer Unit is a DIN-rail mountable gateway that converts one of three serial interfaces (RS232/RS485/RS422) into secure LoRa wireless links in the Sub-GHz band. Powered by the original SX1262 chip, it delivers long-range transmission up to 5 km with AES encryption, LBT, RSSI output and AT-command configuration.
Key Features of Waveshare Rail-mount SX1262 LoRa Data Transfer unit,
- Single-interface support (RS232 or RS485 or RS422) to LoRa transmission in Sub-GHz band
- Original SX1262 LoRa chip: –148 dBm sensitivity and 22 dBm max transmit power
- Robust LoRa modulation for up to 5 km line-of-sight range and strong anti-interference
- Preamble detection, CRC check, automatic packetization and 960 B data cache
- LBT send control, RSSI output monitoring and full AT-command configuration
- AES encryption and multi-level relay networking for secure, extended coverage
- Genuine Waveshare product, fast shipping from Zbotic
Applications and Use Cases
- Remote SCADA telemetry: link PLCs and RTUs over long distances
- Industrial sensor networks: collect data from RS485 sensors in factories
- Building automation: wireless control of HVAC, lighting and access systems
- Agricultural monitoring: soil moisture or weather station data over fields
- Utility metering: wireless readout of water, gas and electricity meters
- Warehouse logistics: serial barcode scanners or weigh scales to central server
How to Use Waveshare Rail-mount SX1262 LoRa Data Transfer unit,
Snap the unit onto a standard DIN rail, wire your chosen serial port (RS232/RS485/RS422) and supply 5–12 V DC. Use AT commands via serial to configure frequency, data rate, AES key and interface mode. Pair two or more units on matching LoRa settings to begin transparent data transfer.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Q: Can I use RS232, RS485 and RS422 simultaneously?
No. The unit supports only one serial interface at a time. You must select either RS232, RS485 or RS422 via the hardware mode setting before powering on.
Q: What range can I expect with this LoRa DTU?
In open line-of-sight conditions, the SX1262-based DTU can reach up to 5 km. Actual range depends on antenna choice, terrain and regional transmit power limits.
Q: How do I enable AES encryption?
Enter AT commands to activate AES, then set your 128-bit key. Both ends must share the same key and LoRa parameters to decrypt and communicate successfully.
Package Include:
1 x Waveshare Rail-mount SX1262 LoRa Data Transfer unit, RS232/RS485/RS422 to LoRa, Suitable for Sub-GHz band
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | SX1262 |
| Interface / Protocol | RS485, RS232, BLE |
| Package Quantity | 1262 pcs |
| SKU | AI5303 |
| Weight | 0.55 kg |
| Availability | In Stock |
