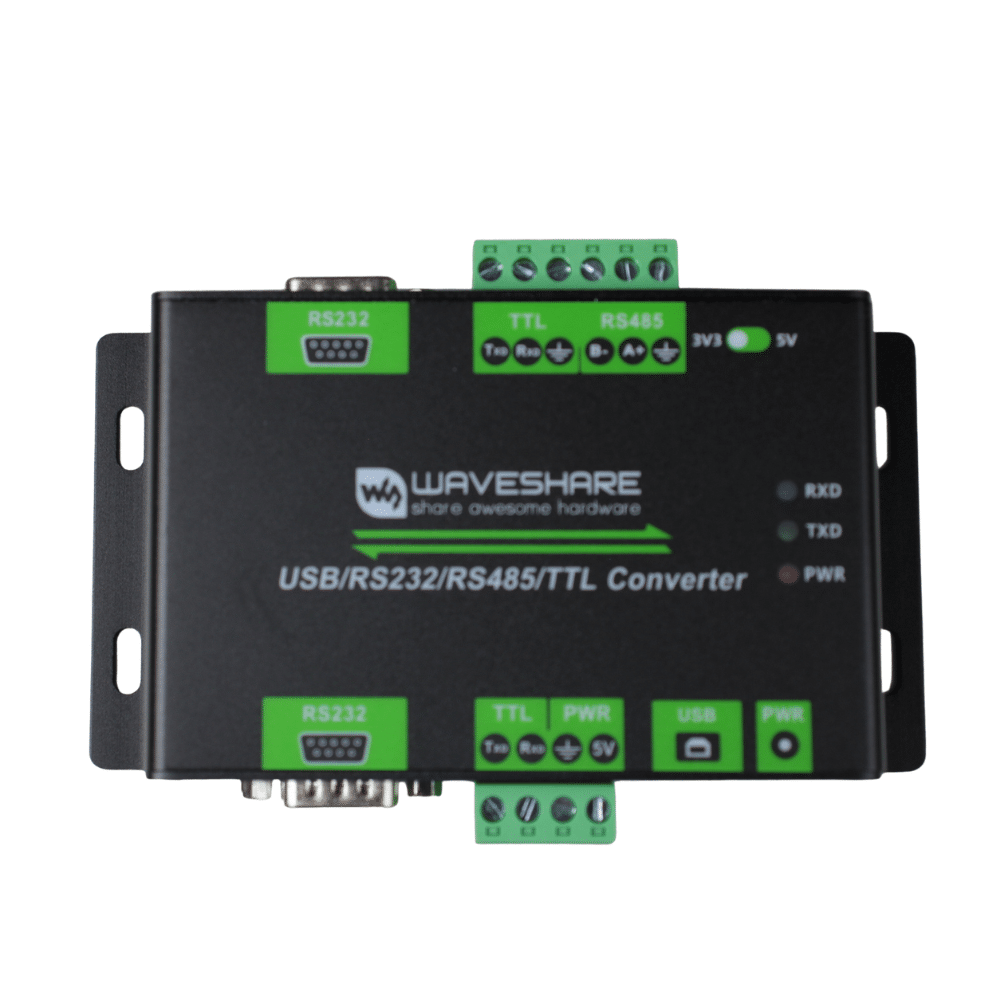

The Multibus Converter is an industrial grade isolated converter that supports USB / RS232 / TTL to RS232 / 485 / TTL, with built-in power supply isolation, digital isolation, and protection circuits like TVS diode. It is easy to use and suitable for industrial control equipments and/or applications with high communication requirement.
NOTE: only one pair of devices will be matched for a complete communication between the Group A and Group B terminals at the same time
Features:
- Adopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility
- Onboard over-voltage, over-current protection circuits (there’s no protection between the two power supplies of the host terminal)
- Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
- Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
- Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal

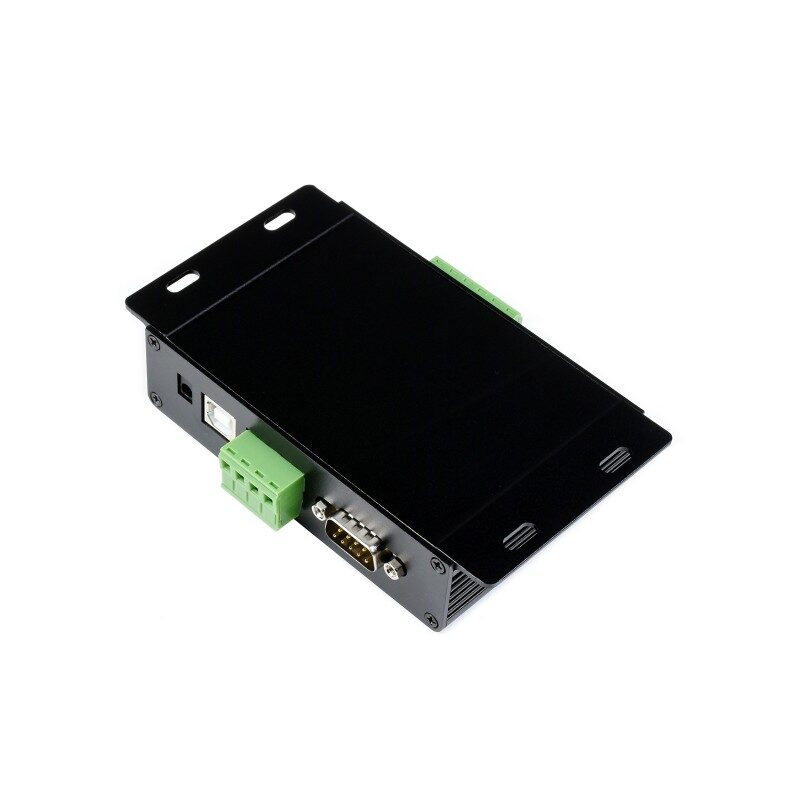

- Aluminum alloy enclosure with oxidation dull-polish surface, solid and durable
Packages Includes:

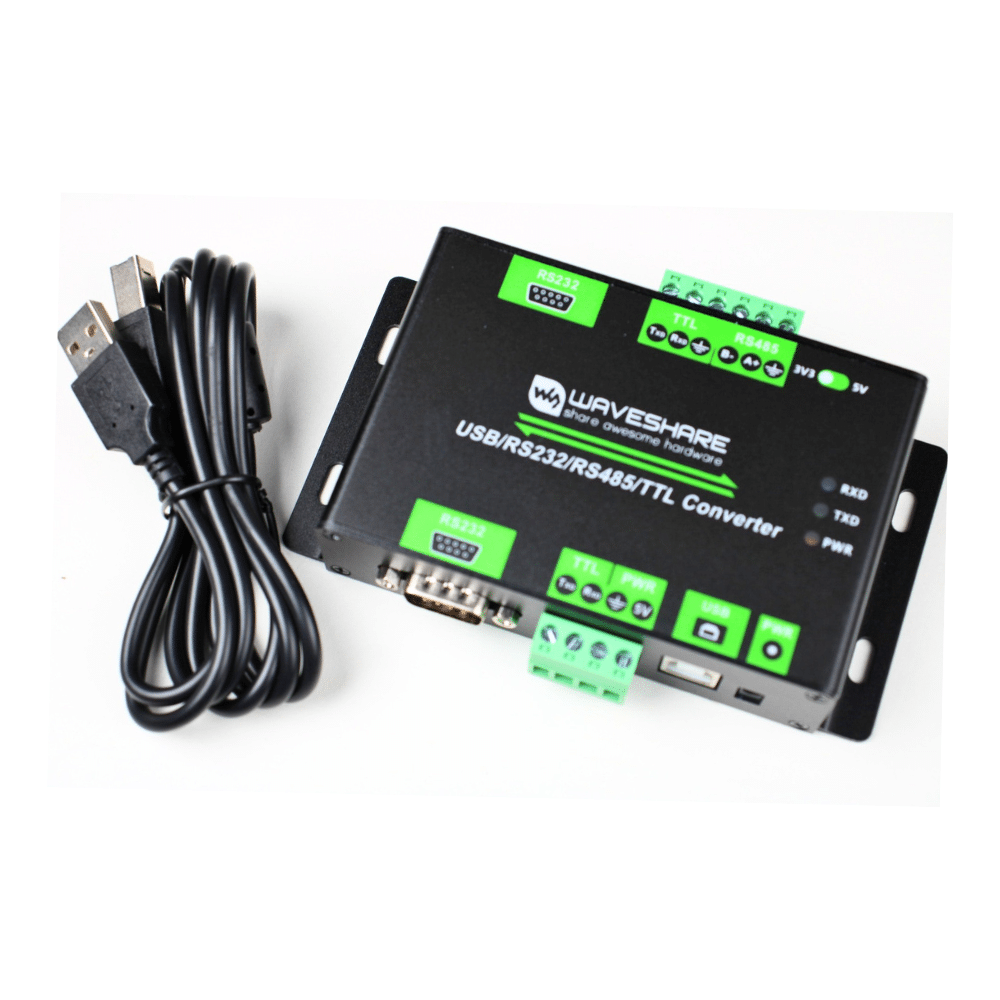

1 x Waveshare Industrial Isolated Multi-Bus Converter, USB / RS232 / RS485 / TTL Communication
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | RS485, RS232, USB |
| SKU | AI2046 |
| Weight | 0.3 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare Industrial Isolated Multi-Bus Converter, USB / RS232 / RS485 / TTL Communication is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
