Description:
AW9523B use I2C interface, allows using 4 expansion boards at the same time by modifying the i2c address, expand up to 64 I/O ports.

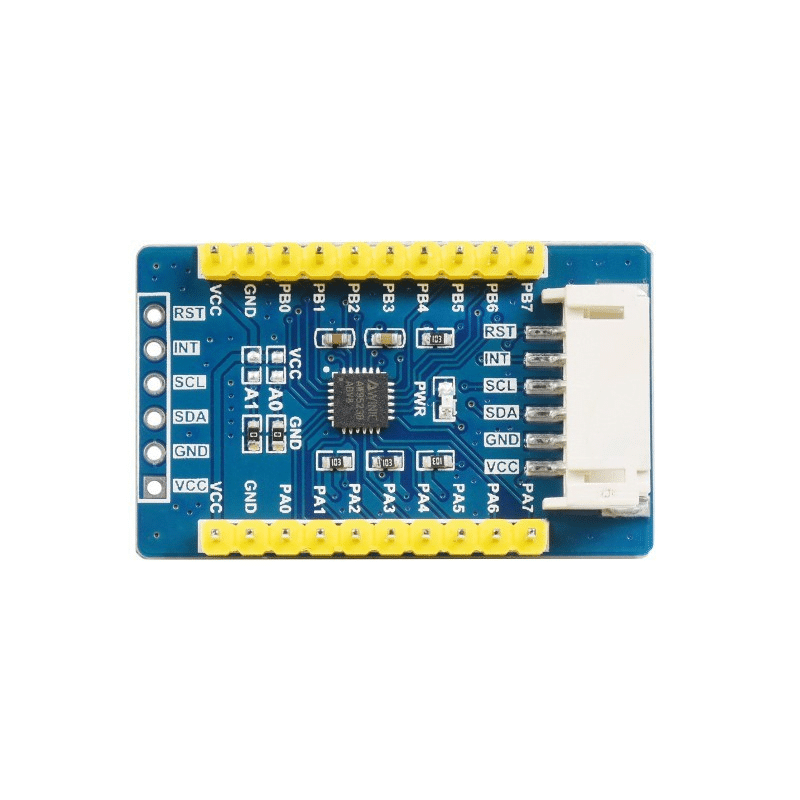

Pin configuration:
- VCC: Power input(3.3V/5V)
- GND: GND
- SDA: I2C Data input
- SCL: I2C Clock input
- INT: Interrupt output
- RST: Reset
Connect To STM32
Outline Dimensions:
Features:
- I2C bus, allows expanding 16 I/O ports by just using two wires
- Support driving 16-ch common anode constant current LED, 256-step linear dimming, current controllable
- Output interrupt (INT) signal when changing the state of an input port
- I2C address configurable by shorting the A0/A1 jumpers

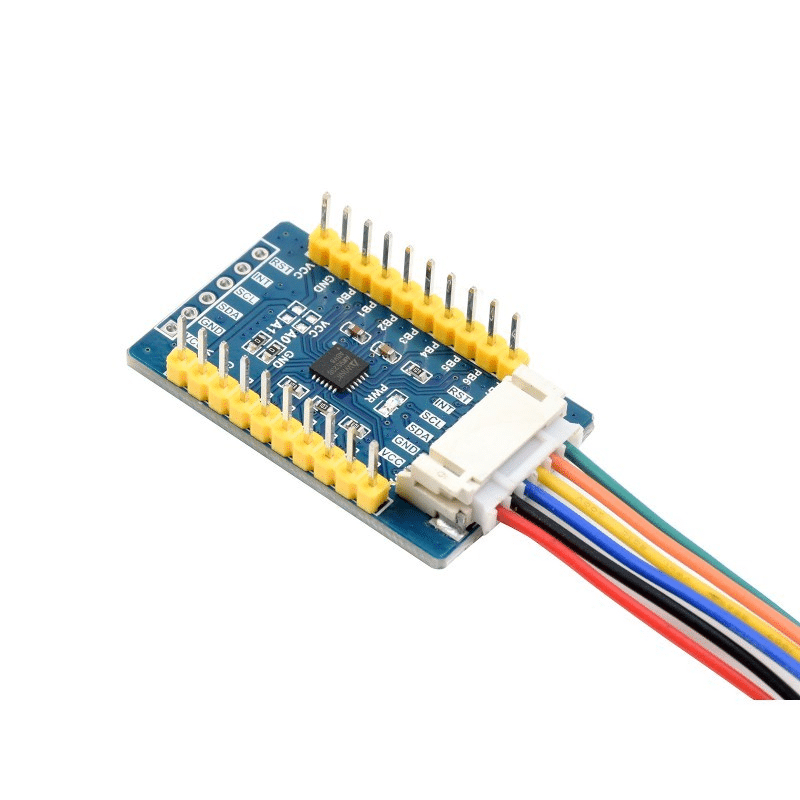

- Provides two connector options: PH2.0 header and/or solder pads, allows multi I2C modules to be stacked
- Onboard voltage translator, compatible with 3.3V/5V level
- Comes with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)
Specification:
| Model: | Expansion Board |
|---|---|
| Interface: | I2C |
| Operating Temperature (°C): | -40-85℃ |
| Current (A) | <0.1µA |
Useful link:
To do Hardware and Software setup, please follow this tutorial.
Packages Includes:
- 1 x Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins 447.00
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | AW9523B |
| Interface / Protocol | I2C |
| SKU | AI7634 |
| Weight | 0.02 kg |
| Availability | In Stock |
