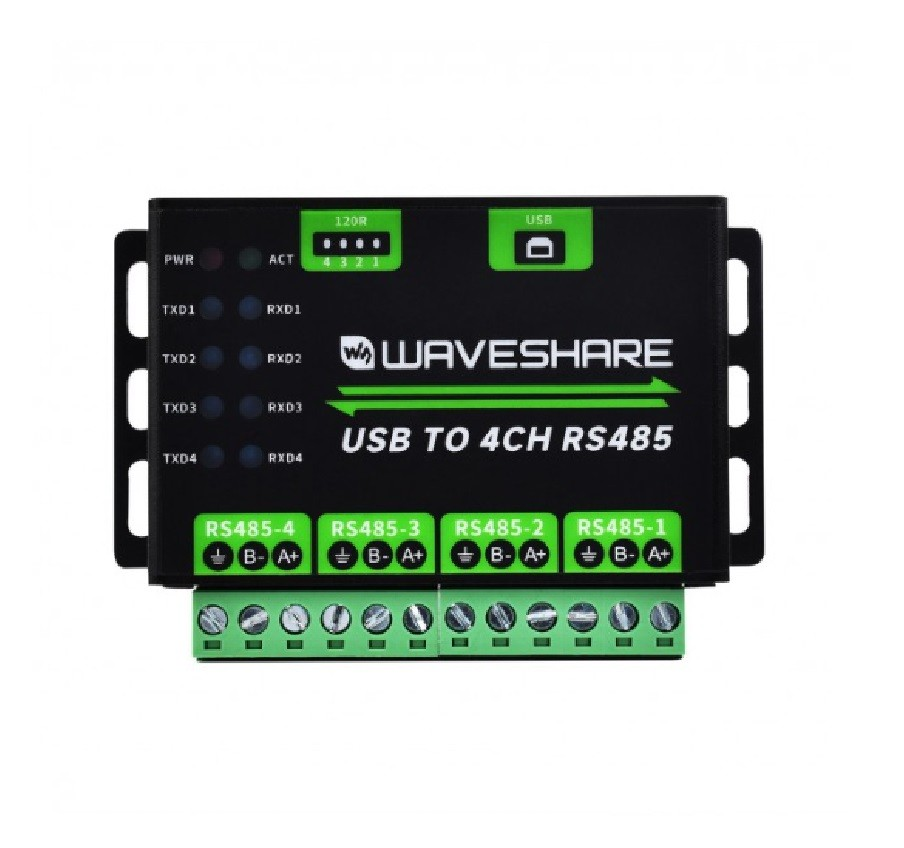

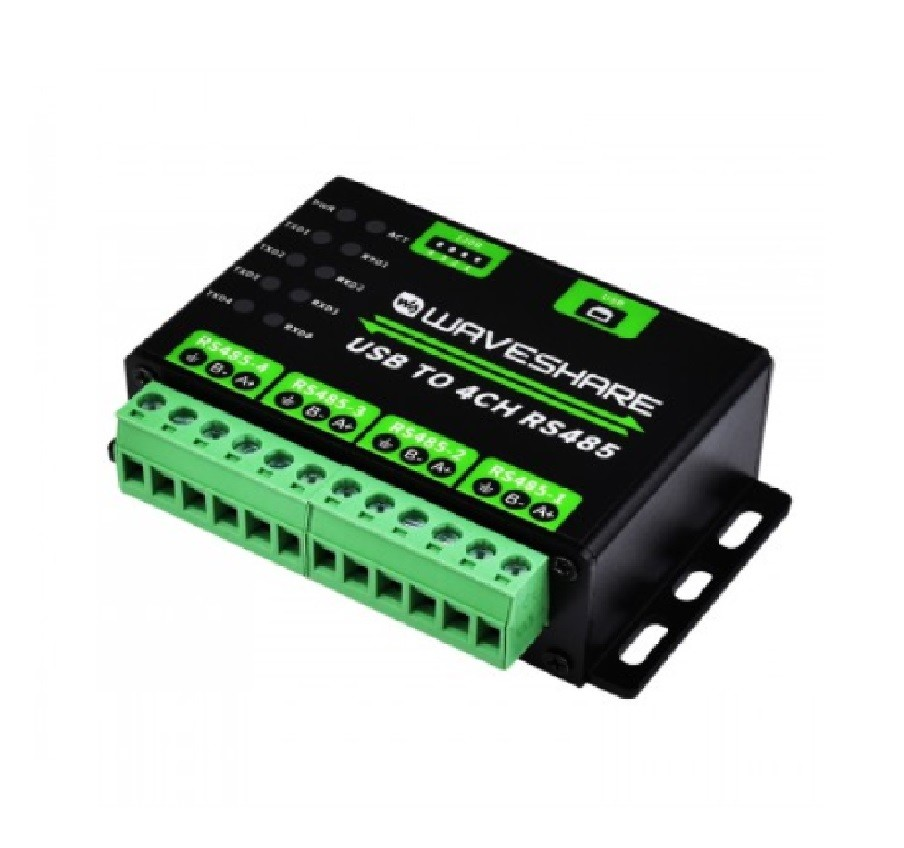

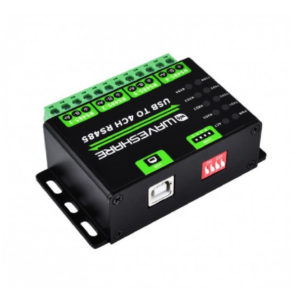

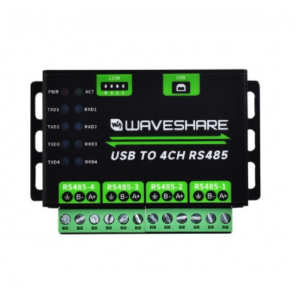

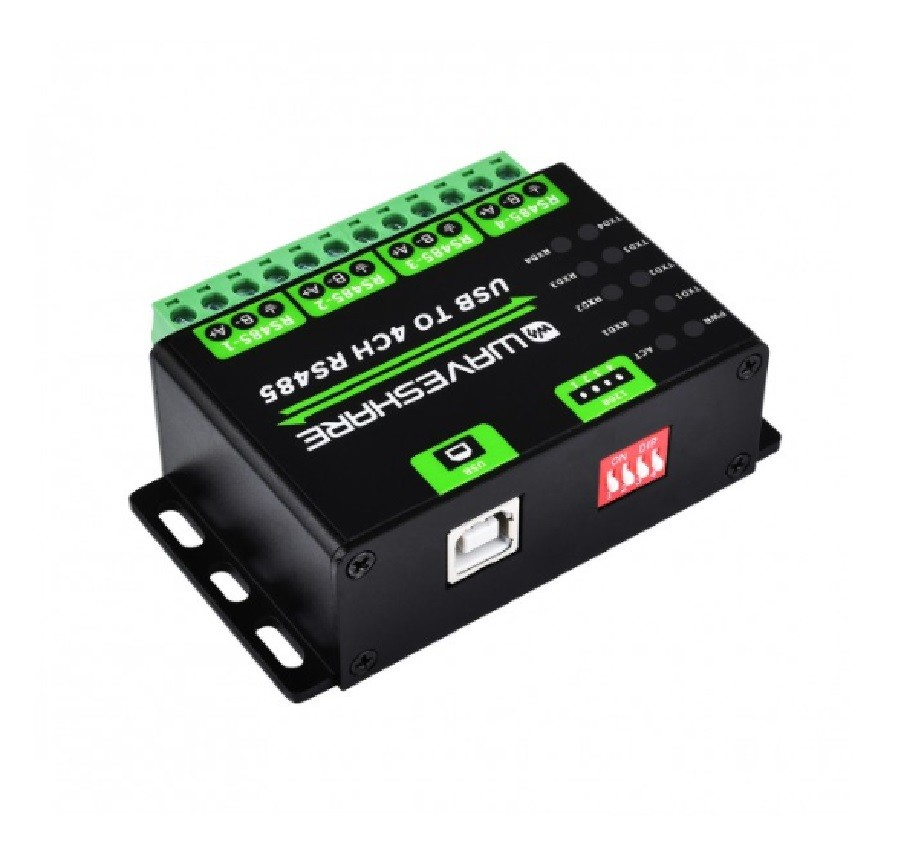

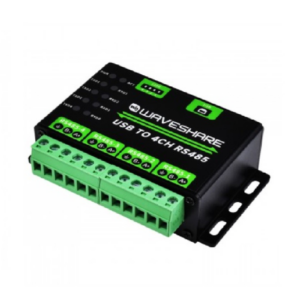

Industrial USB TO 4Ch RS485 Converter, Multi-Protection Circuits, Multi Systems Support, Aluminium Alloy Case, Wall-Mount & Rail-Mount Support
Features:
- Extending USB to 4CH RS485 allows concurrent and independent communication for each channel
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
- Onboard RS485 output terminal 120R resistors, enabled/disabled via DIP switch
- Aluminum alloy case with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
Specification:
| Model Type: | Converter |
|---|---|
| Operating Voltage (V): | 5 |
| Baud Rate (bps) | 1200bps to 460800bps |
| Operating Temperature (°C) | -40 to 85℃ |
| Humidity Range | 5%RH to 95%RH |
| OS | Win7/8/8.1/10/11, Mac, Linux, Android |
| Host Port | USB |
| Device Port | RS485 |
| Length (mm): | 85 |
| Width (mm): | 59 |
| Weight (g): | 107 |
Package Includes:
1 x USB TO 4CH RS485
1 x USB type A to type B cable ~1.2m
Waveshare Industrial USB TO 4Ch RS485 Converter, Multi Overview
The Waveshare Industrial USB TO 4Ch RS485 Converter, Multi is a rugged interface module that expands a single USB port into four independent RS485 channels. Built with industrial-grade protection circuits and an aluminum alloy housing, it’s ideal for reliable data communication in harsh environments.
Key Features of Waveshare Industrial USB TO 4Ch RS485 Converter, Multi
- Four independent RS485 ports via one USB host connection for concurrent data streams
- Onboard TVS diodes for surge and transient voltage suppression, plus resettable fuse and protection diodes
- 120 Ω termination resistors on each RS485 channel, selectable via DIP switches
- Aluminum alloy case with oxidation dull-polish finish and CNC-machined openings for durability
- Supports baud rates from 1 200 bps up to 460 800 bps at 5 V operating voltage
- Wall-mount and DIN-rail mounting options for flexible installation
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Connecting multiple PLCs and industrial controllers to a PC for programming or monitoring
- Building automation networks integrating temperature sensors, HVAC controllers and access systems
- SCADA data acquisition where robust surge protection is required
- Factory floor equipment communication in noisy electrical environments
- Multi-drop RS485 sensor arrays for energy monitoring and data logging
How to Use Waveshare Industrial USB TO 4Ch RS485 Converter, Multi
Simply mount the converter on a DIN-rail or wall bracket, connect the USB cable to your host computer, install the provided driver if needed, set termination resistors via DIP switches, and wire each RS485 channel’s A/B terminals to your devices. Power is supplied over USB.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Do I need a driver for this converter?
The converter uses standard USB-to-serial chipset drivers supported on Windows, Linux and macOS. Windows may auto-install; Linux/macOS often recognize it as a COM/tty device without additional software.
How do I enable or disable line termination?

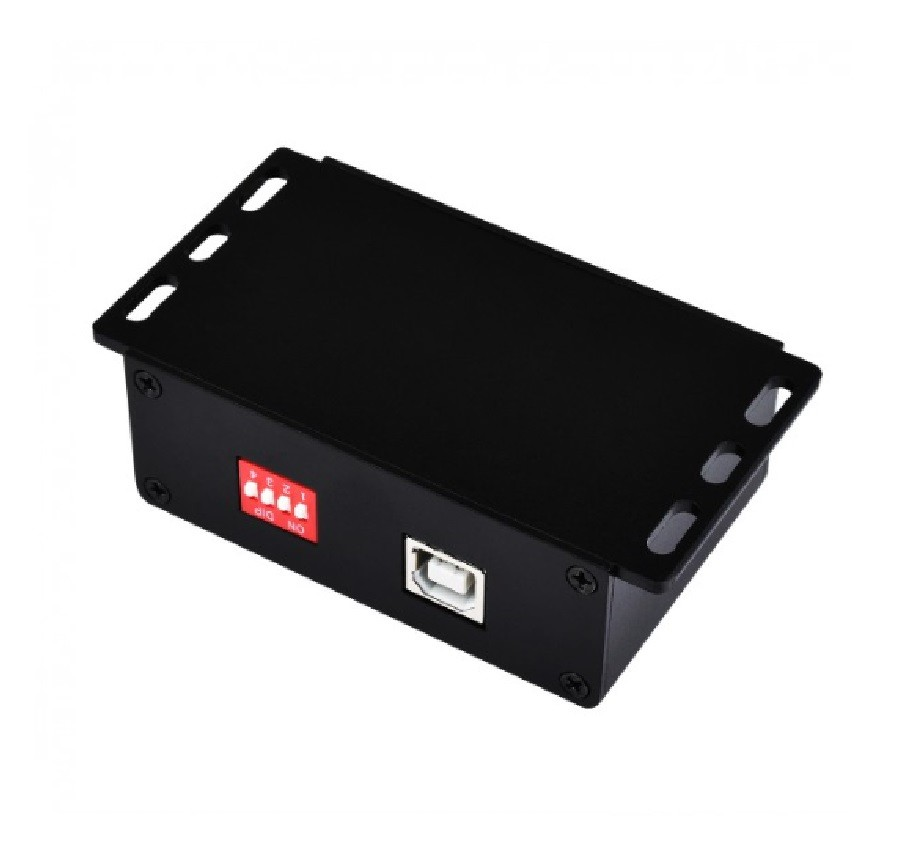

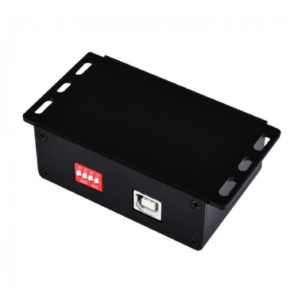

Each RS485 channel has a DIP switch to toggle its built-in 120 Ω terminator. Slide the switch to “ON” to enable termination when the converter is at the end of a bus segment.
How does the surge protection work?
Onboard TVS diodes clamp high-voltage spikes, while resettable fuses and protection diodes guard against over-current and reverse-polarity events, ensuring stable RS485 signal integrity.
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Channels | 4-channel |
| Interface / Protocol | RS485, USB |
| SKU | AI6669 |
| Weight | 0.23 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare Industrial USB TO 4Ch RS485 Converter, Multi Protection Circuits, Multi Systems Support, Aluminium Alloy Case is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
