Description:

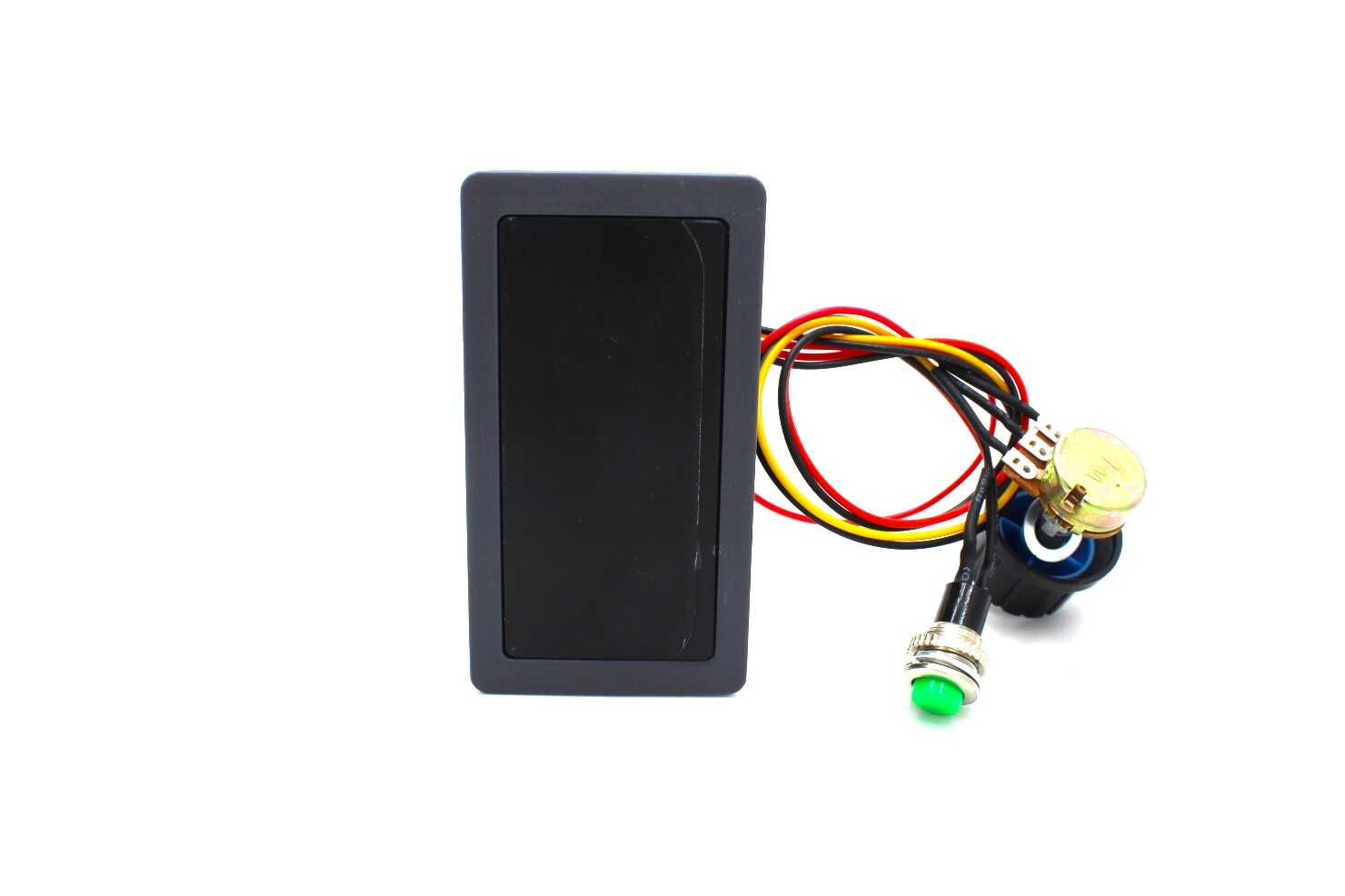

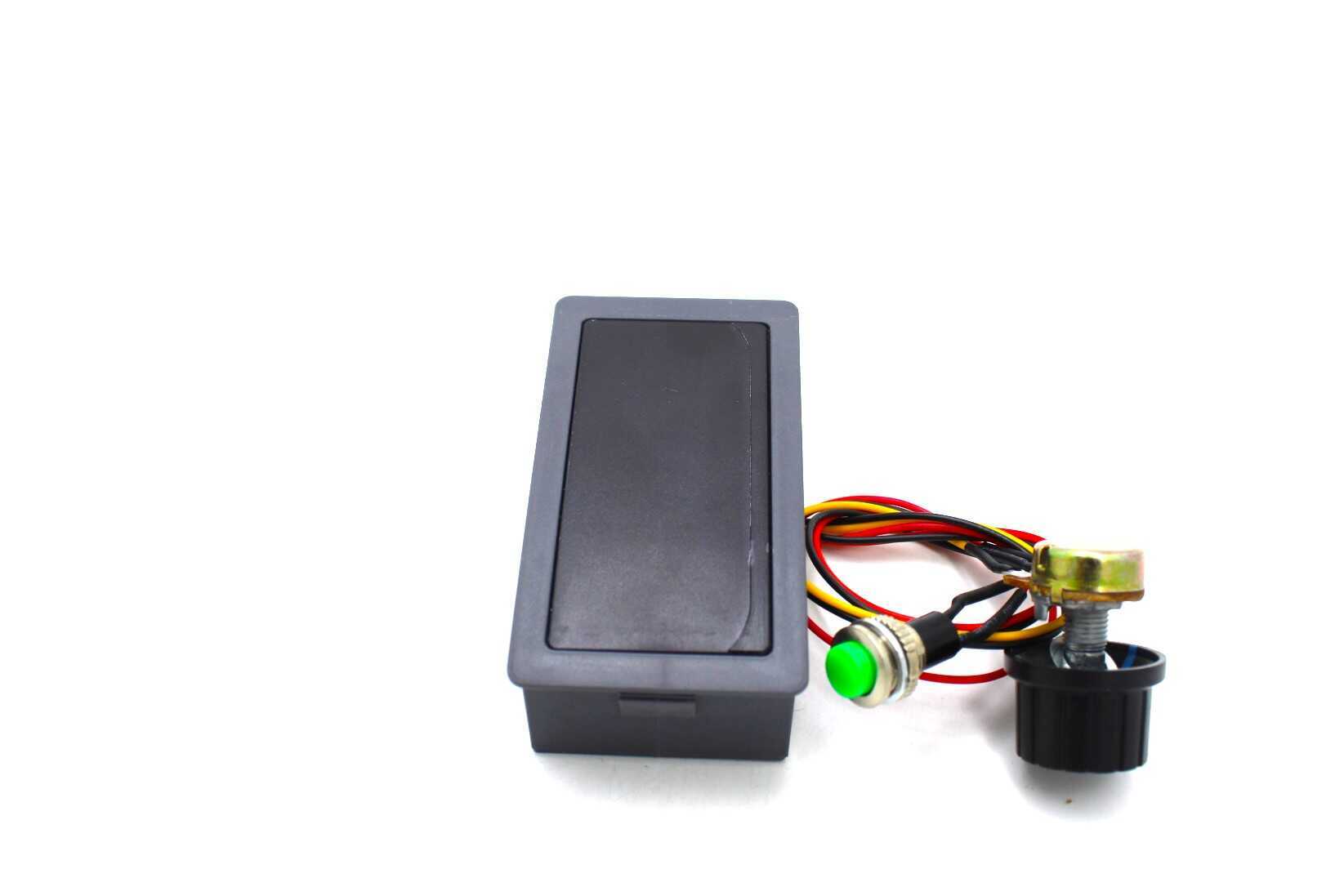

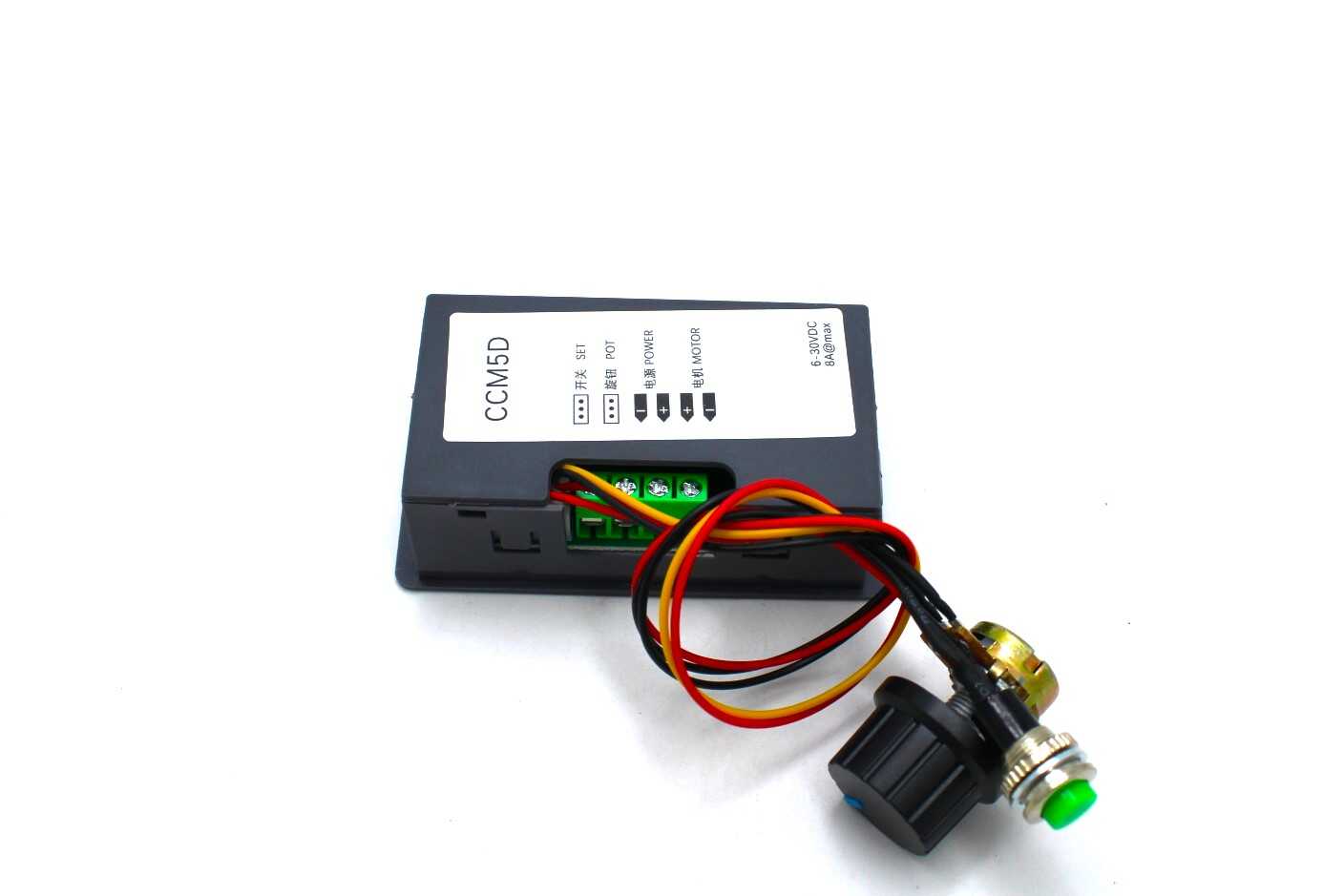

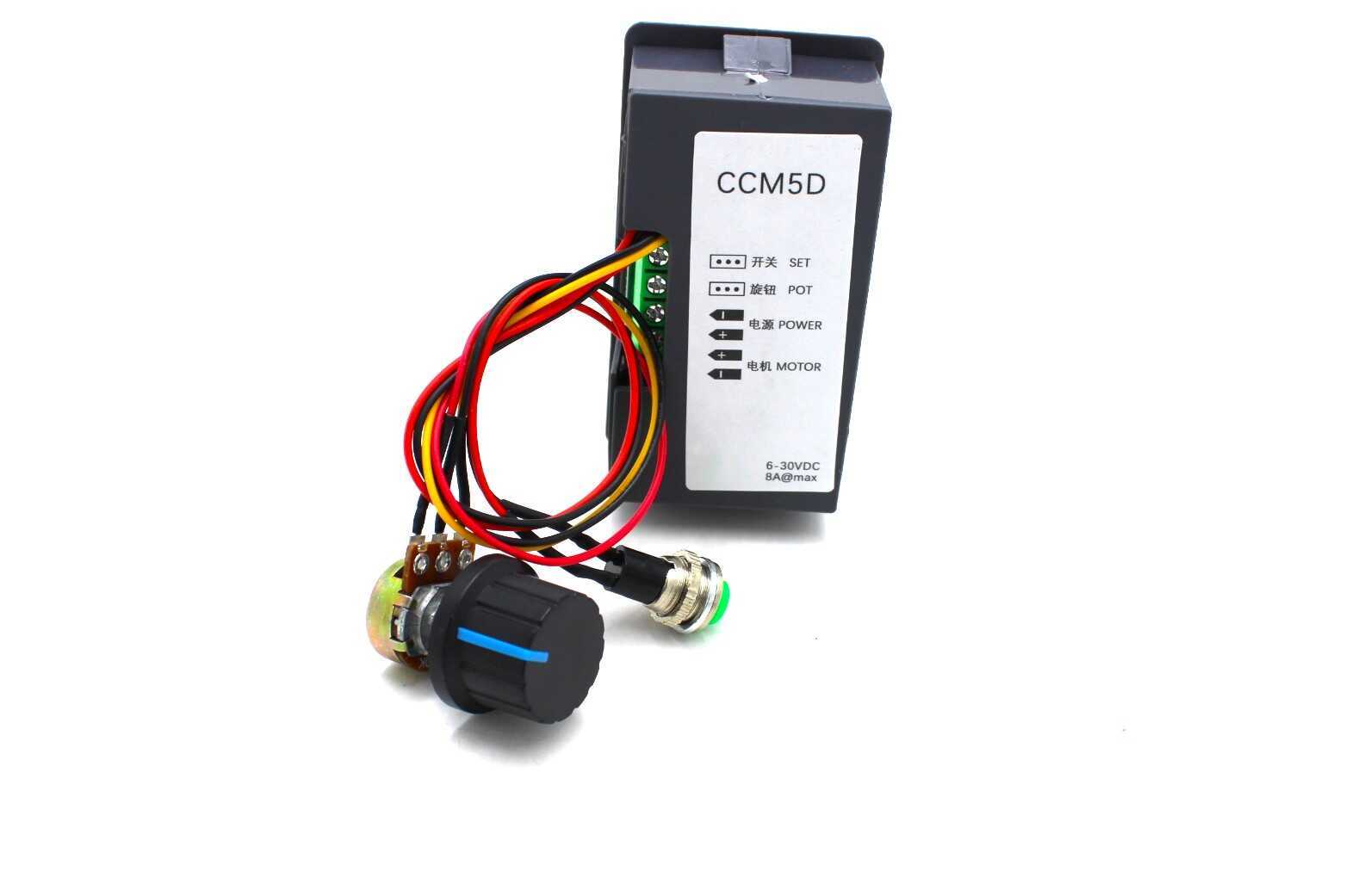

The CCM5D Digital PWM DC Motor Speed Controller With Display is used to control the speed of a DC motor through PWM. This controller comes with a 3-digit 7-segment red display, which shows the duty cycle of the PWM ranging from 0 to 100.
Features:
- Industrial-grade touch buttons: press to enter sleep state, press again to restart work
- DC motor speed control via pulse width modulation (PWM)
- Digital display screen shows 0–100 numerical value, making operation simple and convenient

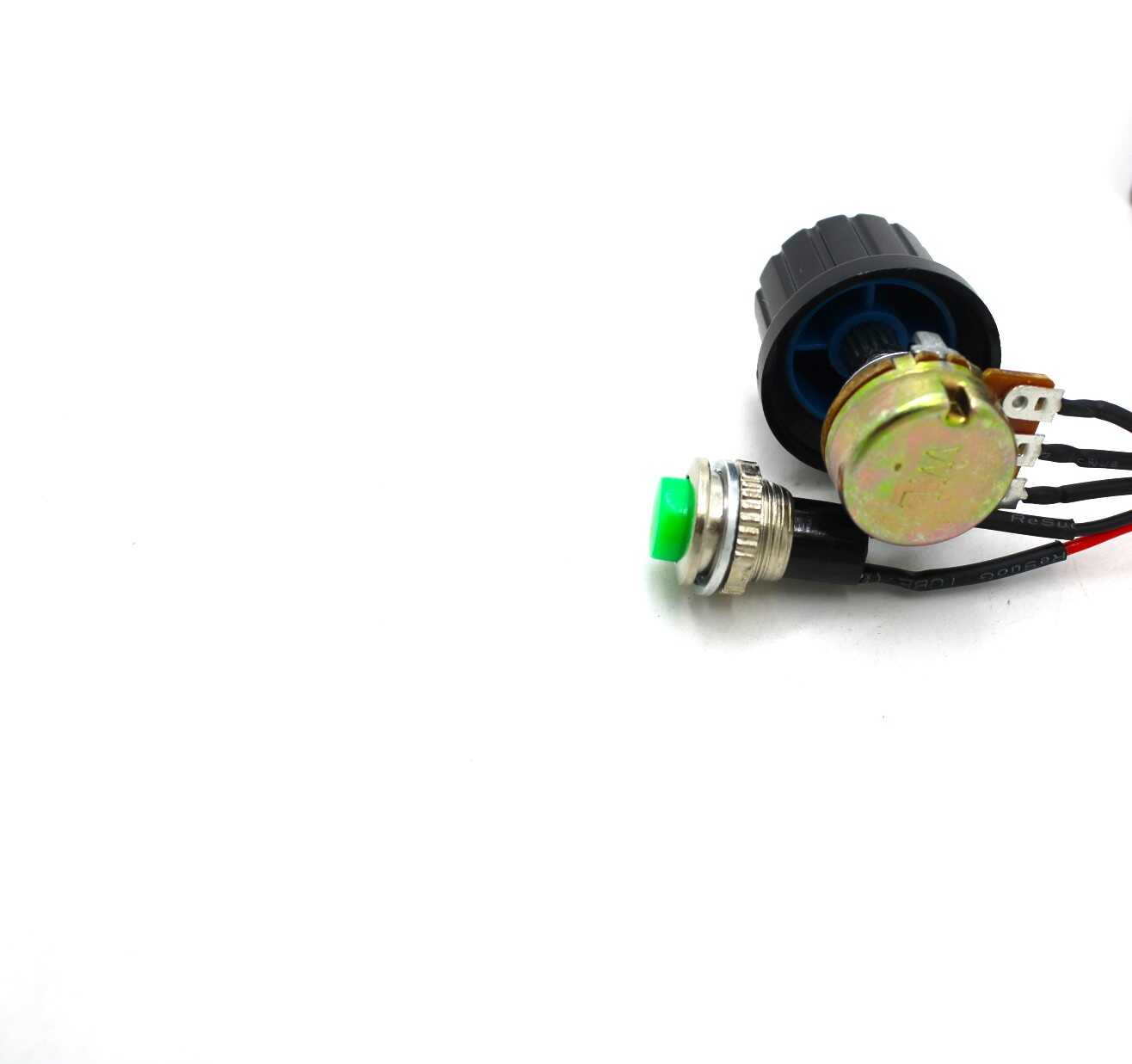

- Knob adjustment: 0–100%, supports step-less speed regulation, facilitating precise speed positioning
- High-quality ABS material for the PWM DC motor speed regulator, ensuring it is sturdy and durable
Specifications:
| Item Type: | PWM Speed Regulator |
|---|---|
| Current Rating (A): | 8 |
| Voltage Rating (V): | 6 to 30 |
| Material: | ABS |
| Operating Voltage (VDC): | 6 ~ 30 |
| Max. Operating Current (mA) | upto 8A |
| PWM frequency | 16khz (Motor is quiet at low speed and full-twisting force at low speed) |
| Speed range(%) | 0%-100% |
| Length (mm): | 79.1 |
| Width (mm): | 40.6 |
| Height (mm): | 26 |
Package Includes:
- 1 x CCM5D Digital PWM DC Motor Speed Controller With Display
Stepper Motor Datasheet Reading: Understanding Phase, Current & Steps
Table of Contents Why Reading the Datasheet Matters Step 1: Identify the Motor Type Step 2: Step Angle...
Read More →
Brushless vs Brushed DC Motor: Which Is Better for Your Project?
The choice between a brushless and a brushed DC motor is one that makers, engineers, and hobbyists face...
Read More →
Haptic Motor (ERM & LRA): Vibration Feedback in Arduino Projects
Haptic feedback is everywhere — your phone buzzes when you get a notification, your game controller rumbles during...
Read More →Technical Specifications
| Model | CCM5D |
|---|---|
| SKU | AI0567 |
| Weight | 0.06 kg |
| Availability | Out of Stock |
Applications & Use Cases
The CCM5D Digital PWM DC Motor Speed Controller With Display is a versatile brushed / brushless dc motor driver used across a wide range of applications including robot motor control, DC motor speed regulation, H-bridge circuits, electric vehicle drives, and conveyor belt control.
Common use cases:
- Bidirectional motor control for a robot
- PWM speed control of a DC motor
- Building a motorized platform
This product is ideal for robotics engineers and motor control enthusiasts.
Technical Tip: L298N is a classic dual H-bridge driver. For higher efficiency, consider MOSFET-based drivers like BTS7960.
