Description:

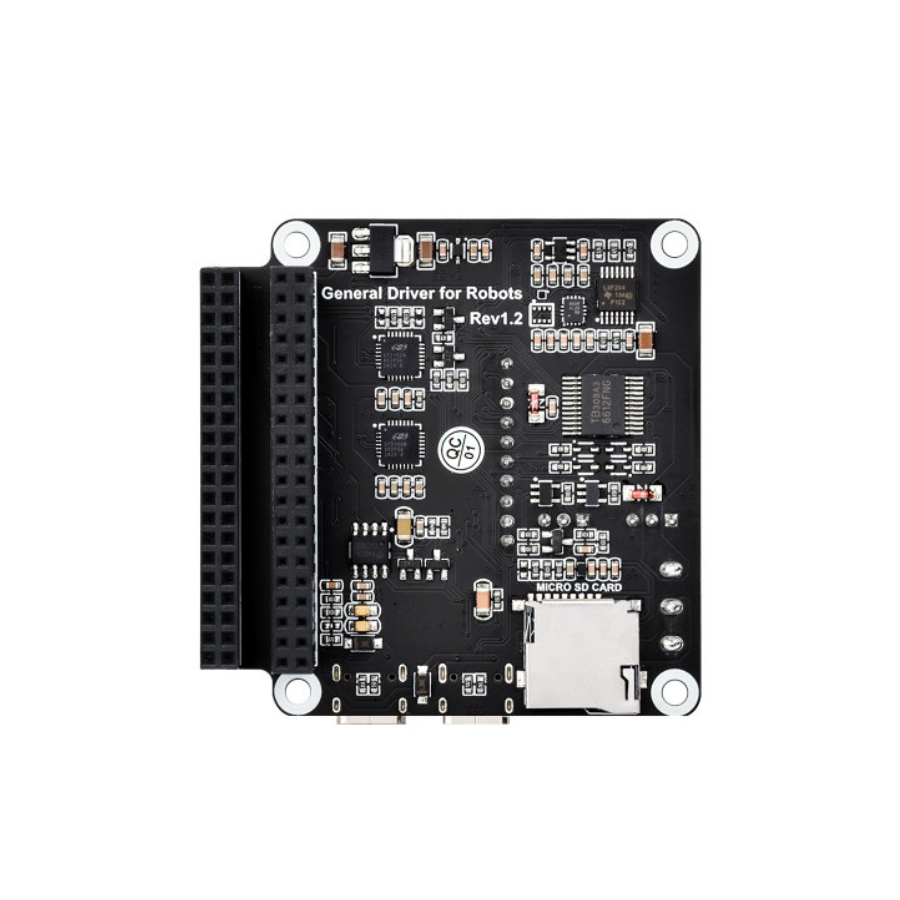

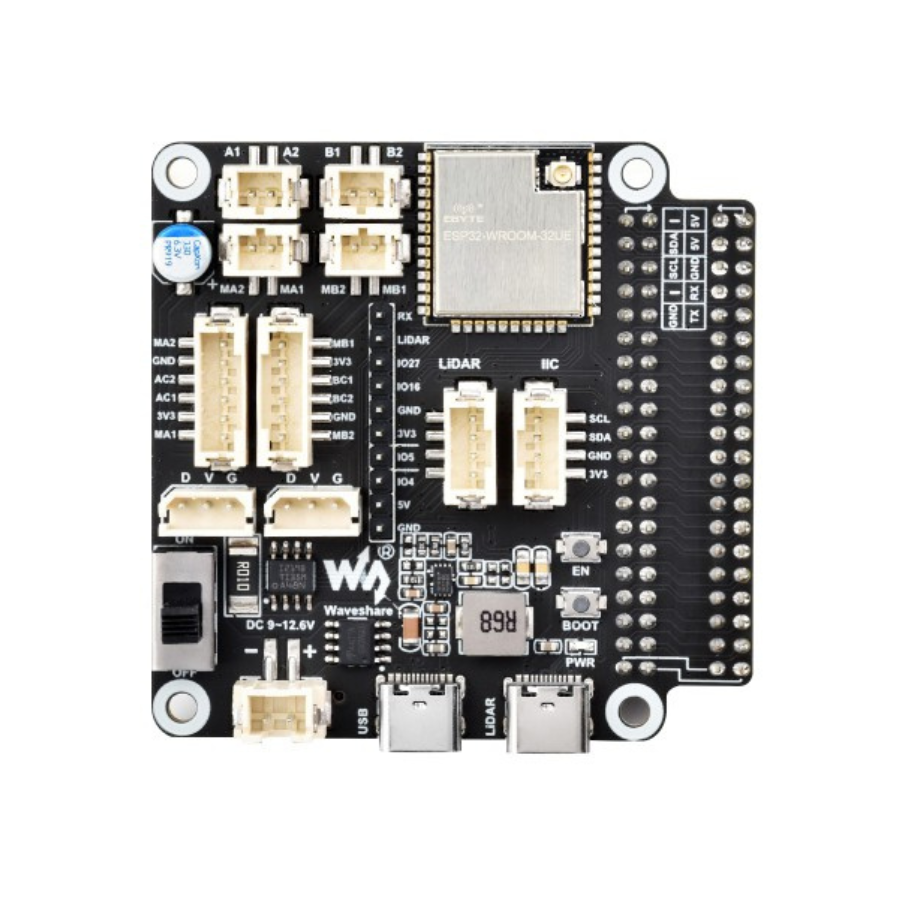

Waveshare General Driver board for Robots, Based on ESP32, multi-functional, supports WIFI, Bluetooth and ESP-NOW communications
Features:
- Based on the ESP32-WROOM-32 module, supports wireless communication such as WIFI, Bluetooth and ESP-NOW
- Onboard motor control interfaces for 2x DC motor with encoder or 4x DC motor (2 groups) without encoder
- Onboard serial bus servos control interfaces for controlling up to 253 ST3215 serial bus servos and obtaining servos feedback
- Onboard 9-axis IMU to obtain attitude and heading information at any time
- Supports 7~13V power input, and can be powered directly by 2S or 3S lithium battery module
- Automatic download circuit for easy uploading programs
- Support input voltage/current monitoring
- Onboard TF card slot
- Onboard Laser Lidar interface and integrated UART to USB function
- I2C interface for connecting peripherals such as OLED, IMU, and other I2C devices
- Adapting Multi-functional extended header for additional functions, such as controlling servos or relays
- Onboard 40PIN GPIO header for connecting and powering the host computer (Raspberry Pi/Jetson Nano, etc), communicating via serial port or I2C
- Provides open-source demos and detailed tutorials for beginners, easy to get started
Specification:
| Part No. | General Driver for Robots |
|---|---|
| Height (mm): | 56 |
| Width (mm): | 75 |
Package Includes:
1 x Waveshare General Driver board for Robots

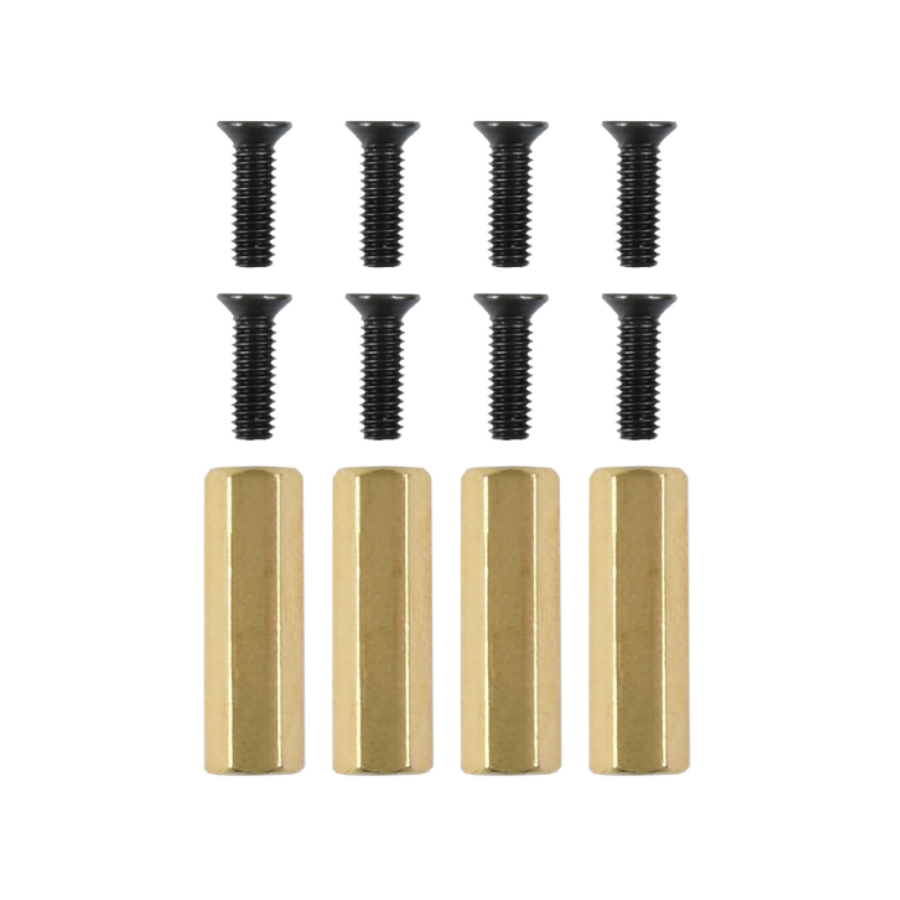

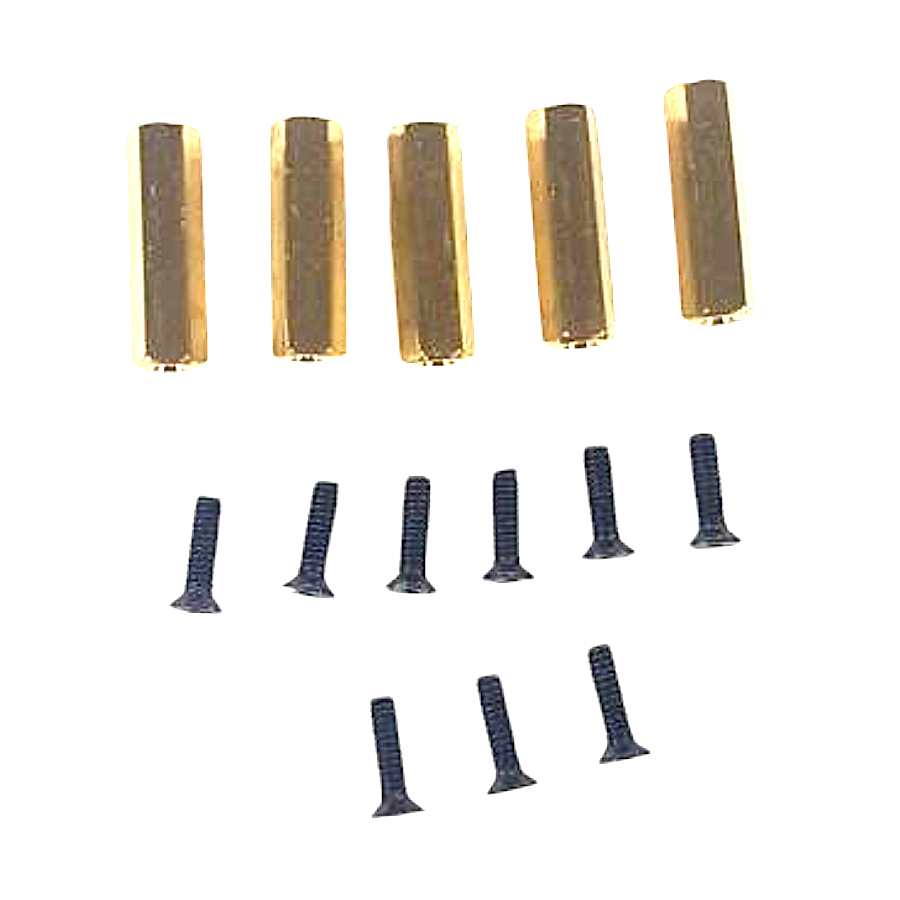

1 x Screws and Stand-off Set
High Speed DC Motor: 12V 300RPM to 10000RPM Buying Guide
Whether you are building a combat robot, an electric go-kart, a drone, or an industrial conveyor system, the...
Read More →
Smart Gate Opener with DC Motor & IR Remote: Arduino Project Guide
A motorised gate opener transforms a mundane entrance into a convenient, automated experience — and building one yourself...
Read More →
Best Stepper Motors for 3D Printing in India: Buying Guide 2026
Choosing the right stepper motor is one of the most impactful decisions you can make when building or...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32 |
| SKU | AI7569 |
| Weight | 0.12 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare General Driver board for Robots, Based on ESP32 is a versatile brushed / brushless dc motor driver used across a wide range of applications including robot motor control, DC motor speed regulation, H-bridge circuits, electric vehicle drives, and conveyor belt control.
Common use cases:
- Bidirectional motor control for a robot
- PWM speed control of a DC motor
- Building a motorized platform
This product is ideal for robotics engineers and motor control enthusiasts.
Technical Tip: L298N is a classic dual H-bridge driver. For higher efficiency, consider MOSFET-based drivers like BTS7960.
