Looking for 1.8 Inch Spi Module? 1.8 Inch SPI 128×160 TFT LCD Display Module With PCB for Arduino is available at Zbotic with fast shipping across India.
Product Description

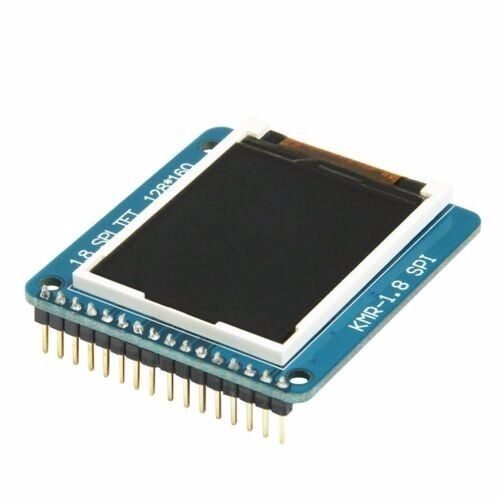

This lovely little 1.8 Inch SPI 128×160 TFT LCD Display Module With PCB for Arduino is the best way to add a small, colorful and bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!
The 1.8 Inch TFT LCD Display Module has 128×160 color pixels. Unlike the low cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display full 18-bit color (262,144 shades!).
And the 1.8 Inch SPI 128×160 TFT LCD Display Module With PCB for Arduino will always come with the same driver chip so there are no worries that your code will not work from one to the other.

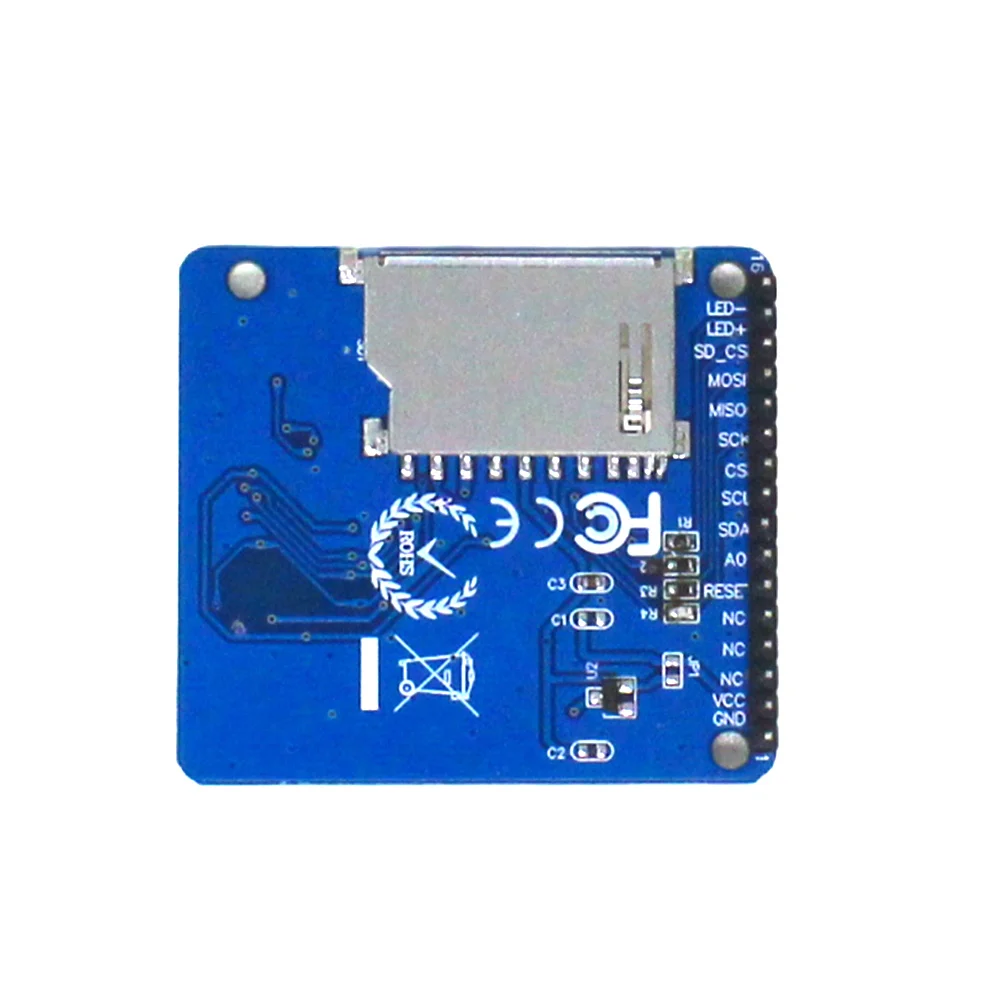

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.
It features a microSD card holder so you can easily load full color bitmaps from a FAT16/FAT32 formatted microSD card.
Features :
- Compatible with the 3.3/5V operation voltage level.
- Dimensions: 56mm(length)*44mm(width)
- It comes with an SD card socket.
- Features Backlight Control Circuit
- SPI Serial bus-only require 4 IO least
- Compatible with QD-UTFT library for Arduino
Package Include:
1 x 1.8-inch SPI 128*160 TFT LCD Display Module.
1.8 Inch SPI 128×160 TFT LCD Display Module With PCB for Overview
The 1.8 Inch SPI 128×160 TFT LCD Display Module with PCB is a compact, full-color screen designed for Arduino and other microcontroller projects. With a built-in ST7735 driver and pixel-addressable frame buffer, it delivers bright, fast-refresh graphics over a simple 4-wire SPI interface.
Key Features of 1.8 Inch SPI 128×160 TFT LCD Display Module With PCB for
- 1.8″ diagonal TFT panel offering vibrant 128×160 pixel resolution
- ST7735 driver IC with onboard frame buffer for smooth animation
- Operates from 3.3V to 5V, compatible with 5V Arduino boards
- 4-wire SPI interface minimizes pin usage on your microcontroller
- PCB breakout with clearly labeled signal pins for MOSI, SCK, CS, DC, RST and VCC/GND
- Fast shipping from Zbotic across India, ensuring quick delivery
Applications and Use Cases
- Displaying sensor readouts (temperature, humidity, pressure) in real time
- Graphical user interfaces for DIY home automation panels
- Portable gaming consoles or retro handheld emulators using Arduino
- Menu-driven control systems for 3D printers or CNC routers
- Visualization of data logs and charts in robotics projects
- Compact status displays on battery-powered wearables or gadgets
How to Use 1.8 Inch SPI 128×160 TFT LCD Display Module With PCB for
Connect VCC to 5V (or 3.3V), GND to ground, then wire MOSI, SCK, CS, DC and RST to your Arduino’s SPI pins. Install an ST7735-compatible library (such as Adafruit’s GFX/ST7735 library), select the correct display orientation in code, and upload your sketch. The onboard frame buffer handles clearing and drawing so you can focus on graphics commands for text, shapes and images.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the display compatible with 5V logic?
Yes. The module’s onboard circuitry accepts 3.3–5V input, allowing direct connection to 5V Arduino boards without additional level shifters.
Which Arduino libraries support this TFT?
You can use popular libraries such as Adafruit_ST7735 and Adafruit_GFX. After wiring the SPI pins, include the library, initialize the screen with your chosen orientation, and call functions like drawPixel(), fillScreen() or print().
Can I power the module from a 3.3V regulator?
Absolutely. If your project runs at 3.3V, connect VCC to a 3.3V regulator. Ensure your SPI lines also operate at 3.3V for reliable communication.
Arduino Oscilloscope: Turn Your Board into a Signal Analyzer
An Arduino oscilloscope DIY project is one of the most educational builds you can undertake as an electronics...
Read More →
Arduino RFID Tutorial: RC522 Module for Access Control
RFID (Radio Frequency Identification) technology powers everything from office access badges to library book tracking and contactless payment...
Read More →
Arduino Multitasking Guide: millis() Instead of delay()
The single biggest step-up in Arduino programming skill is moving from delay() to millis()-based timing. While delay() is...
Read More →Technical Specifications
| Brand | Arduino |
|---|---|
| Display Size | 1.8" |
| Interface / Protocol | SPI |
| Resolution | 128x160 |
| Package Quantity | 160 pcs |
| SKU | AI2327 |
| Weight | 0.00507 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 1.8 Inch SPI 128×160 TFT LCD Display Module With PCB for Arduino is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
