This is the 5inch variant of the 3.5inch TFT Touch Screen Display for Arduino in Display for Arduino. Available at ₹840.16 (₹712.00 + GST) with free shipping across India.
3.5inch TFT Touch Screen Display for Arduino

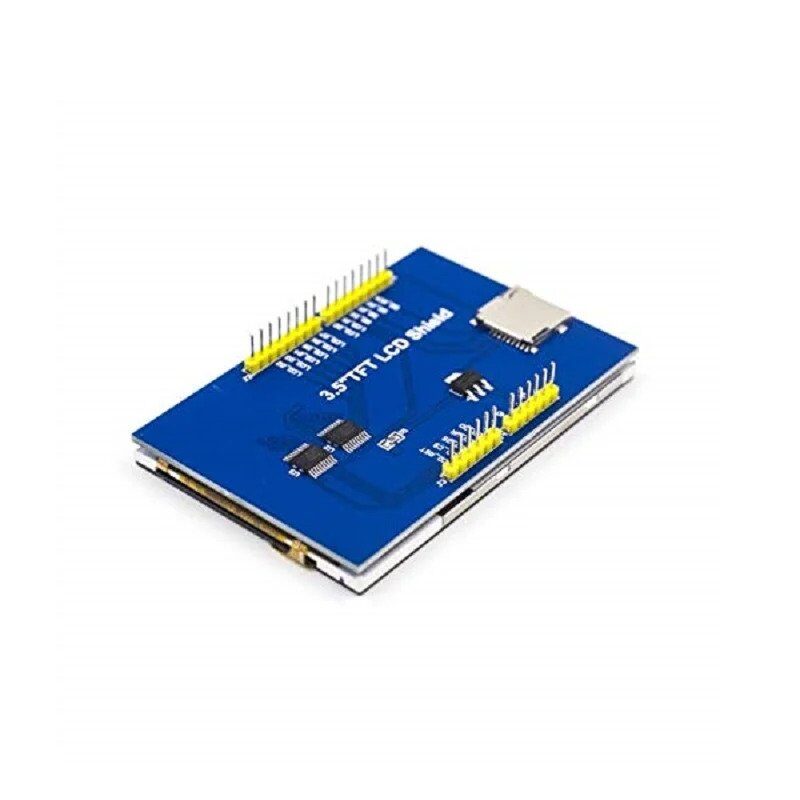

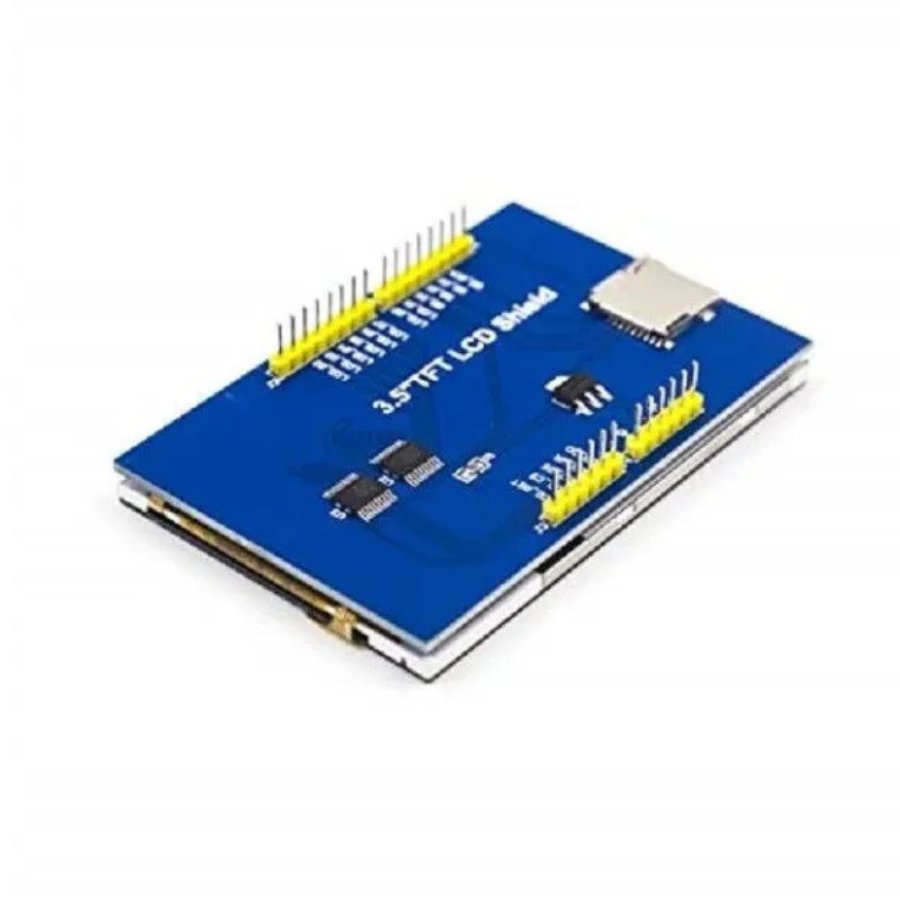

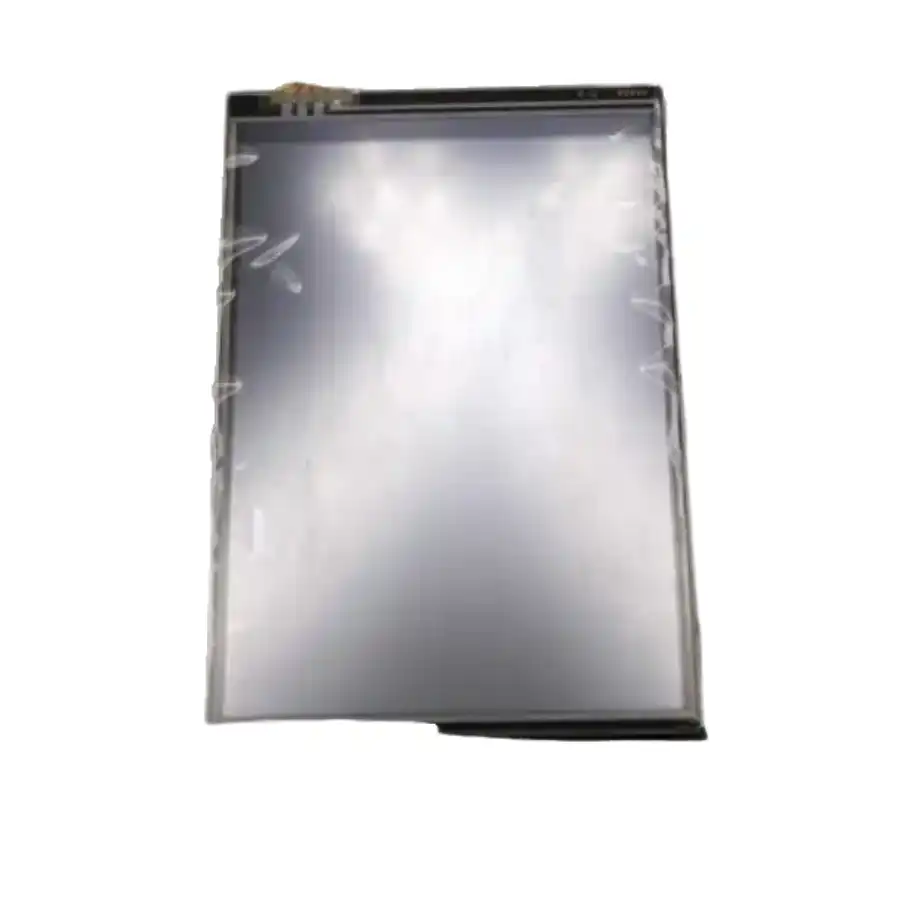

The 3.5 inch TFT LCD Touch Display Shield for Arduino Uno is fully assembled, tested and ready to go. Add the touch display without wiring, no soldering! Simply plug it in and load up a library – you’ll have it running in under 10 minutes! Works best with any classic Arduino ATMEGA328 Board
So spice up your Arduino UNO project with a beautiful large touchscreen display shield with a built-in microSD card connection. This TFT display is big (3.5″ diagonal) bright (4 white-LED backlights) and colorful (18-bit 262,000 different shades)!
The Display comes with 480×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.
Features
- 3.5″ diagonal LCD TFT display, with bright 4 white-LED backlights, default state: on
- It can control the backlight to connect the transistor to a digital pin
- 480×320 Pixels, with colorful and 18-bit, 262,000 different kinds of shade
- 4-wire resistive touchscreen
- 8-bit digital interface, plus 4 control lines
Package Includes
- 1 x 3.5″ inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno
Video
3.5inch TFT Touch Screen Display for Arduino Overview

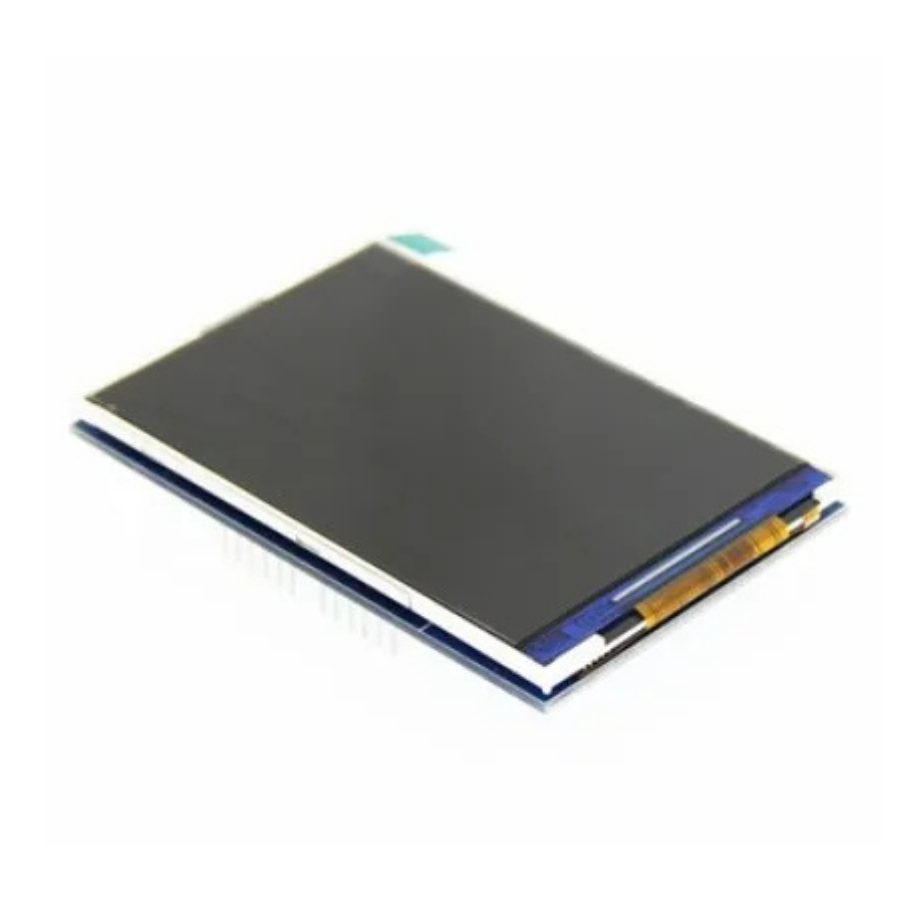

This is a 3.5″ diagonal TFT LCD touch display shield designed for Arduino Uno and compatible ATmega328 boards. It delivers a vibrant 480×320 pixel interface with 18-bit color depth and a built-in 4-wire resistive touch panel for interactive projects.
Key Features of 3.5inch TFT Touch Screen Display for Arduino
- 3.5″ diagonal TFT panel with 480×320 resolution for sharp graphics
- 18-bit color support (262,000 shades) and 4 white-LED backlights for bright visuals

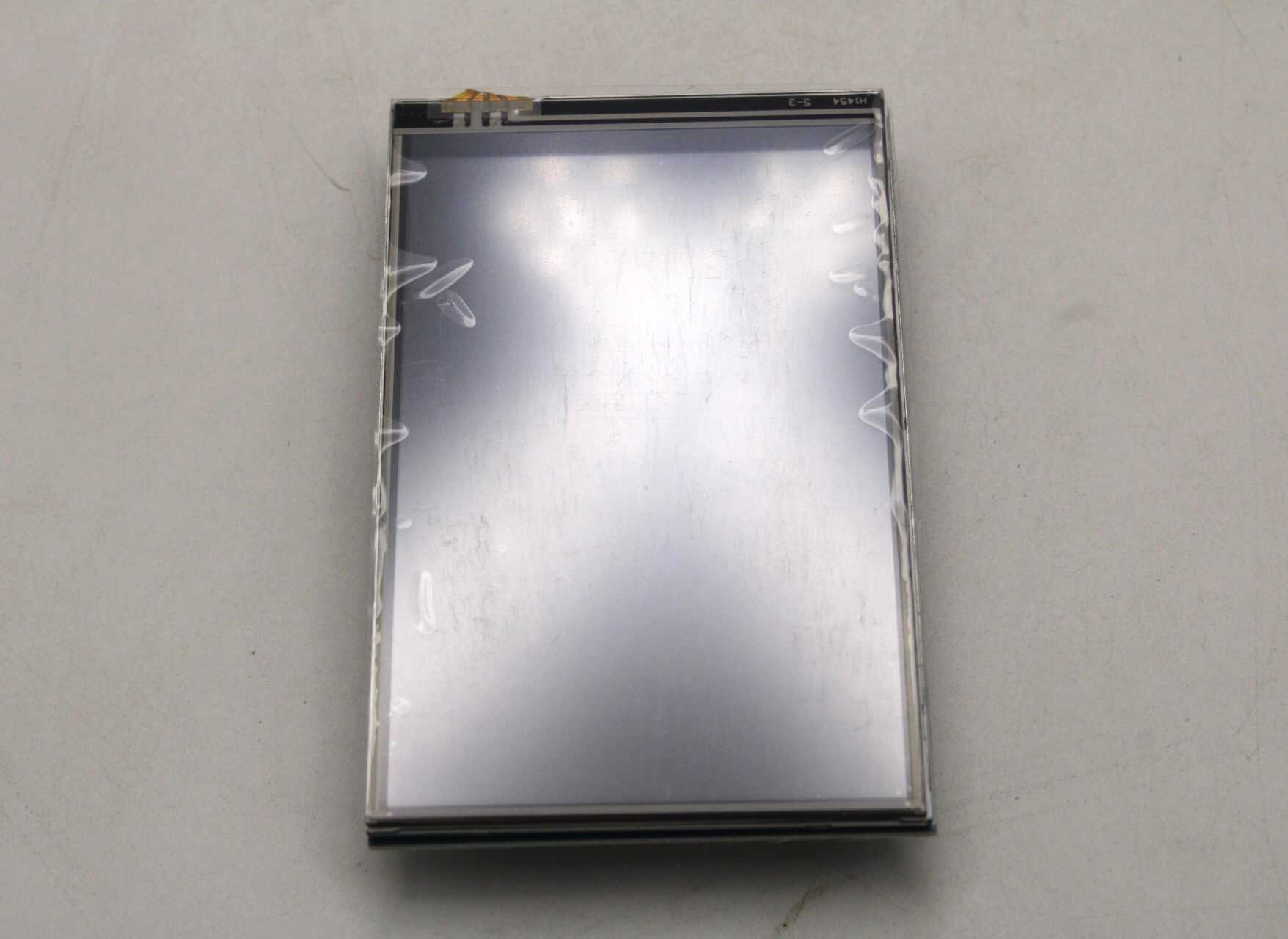

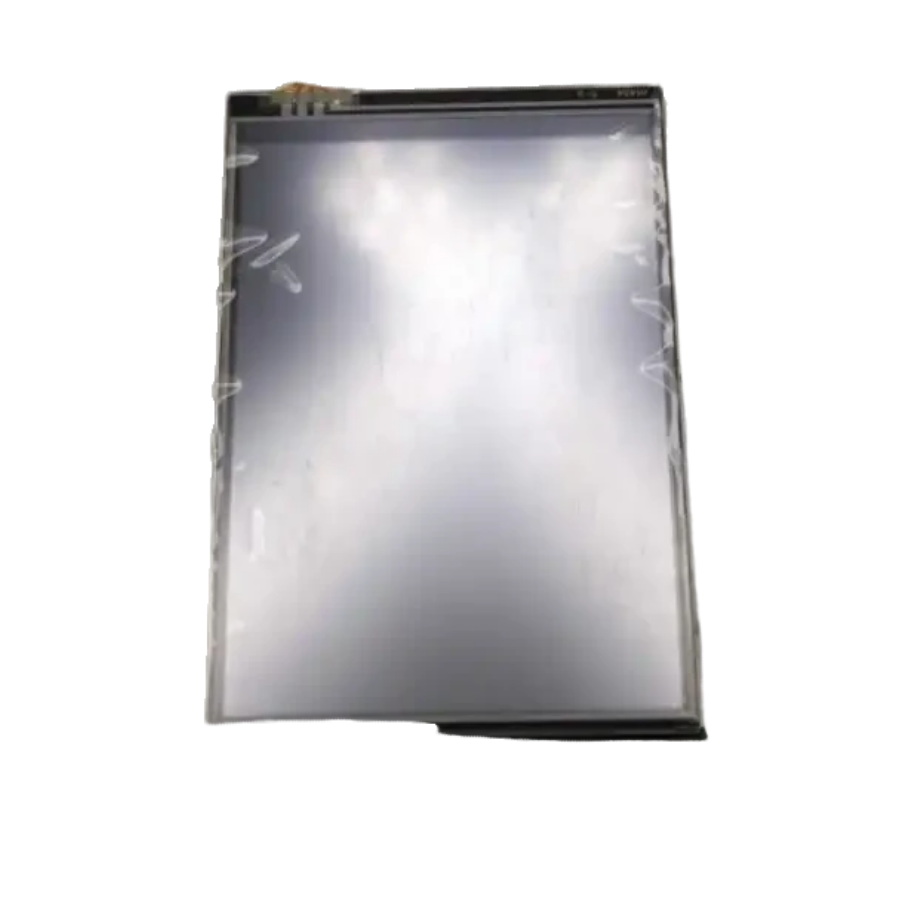

- 4-wire resistive touchscreen for pressure-sensitive input

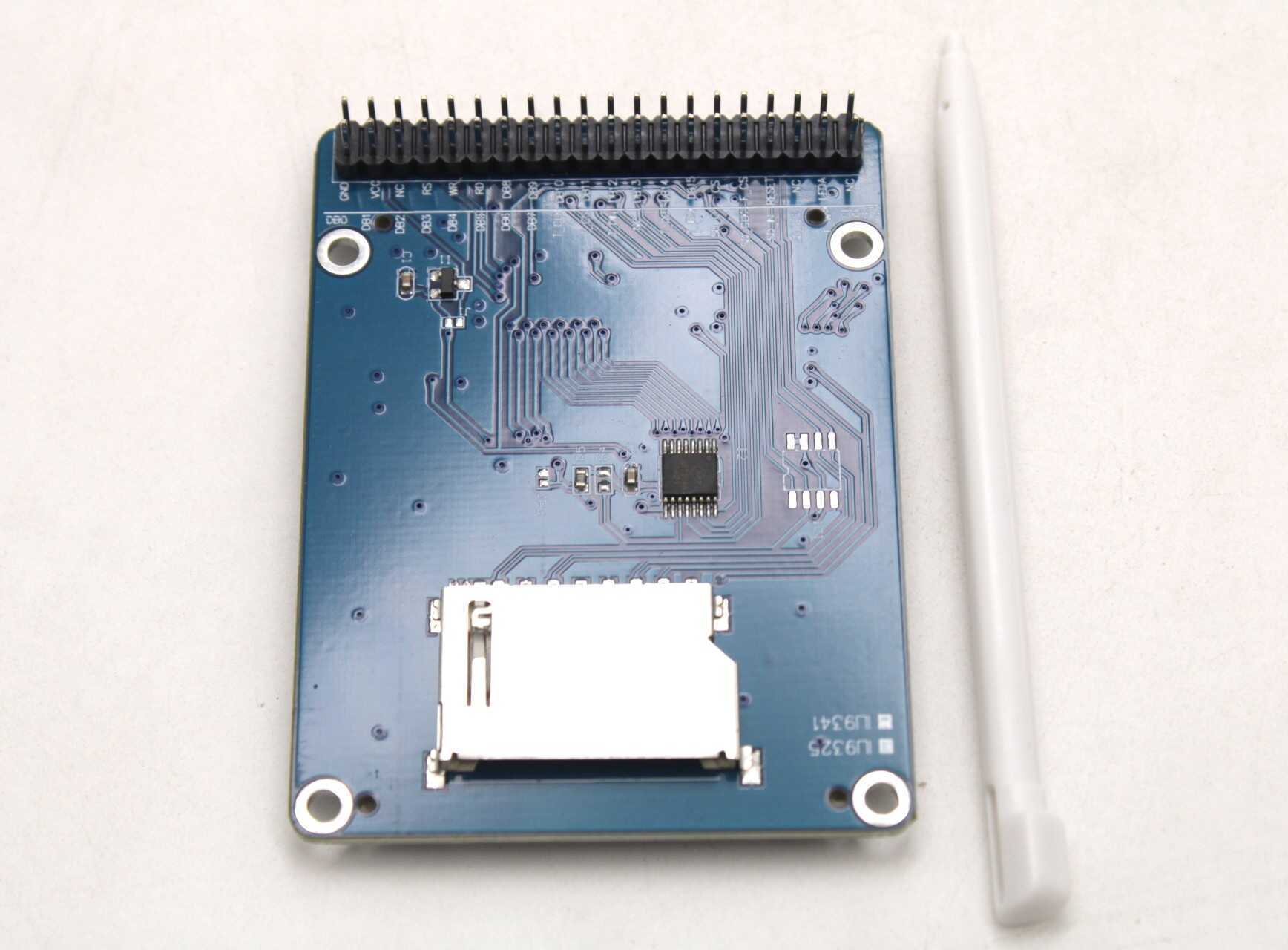

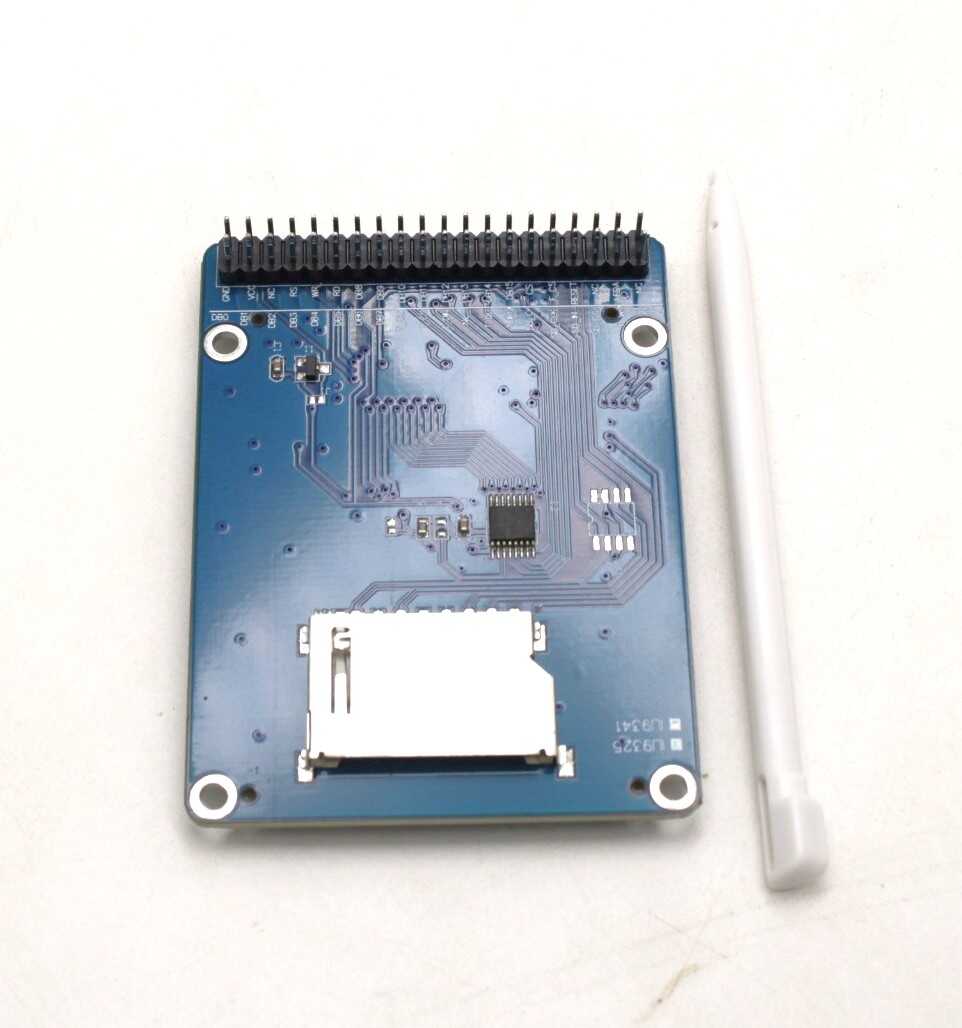

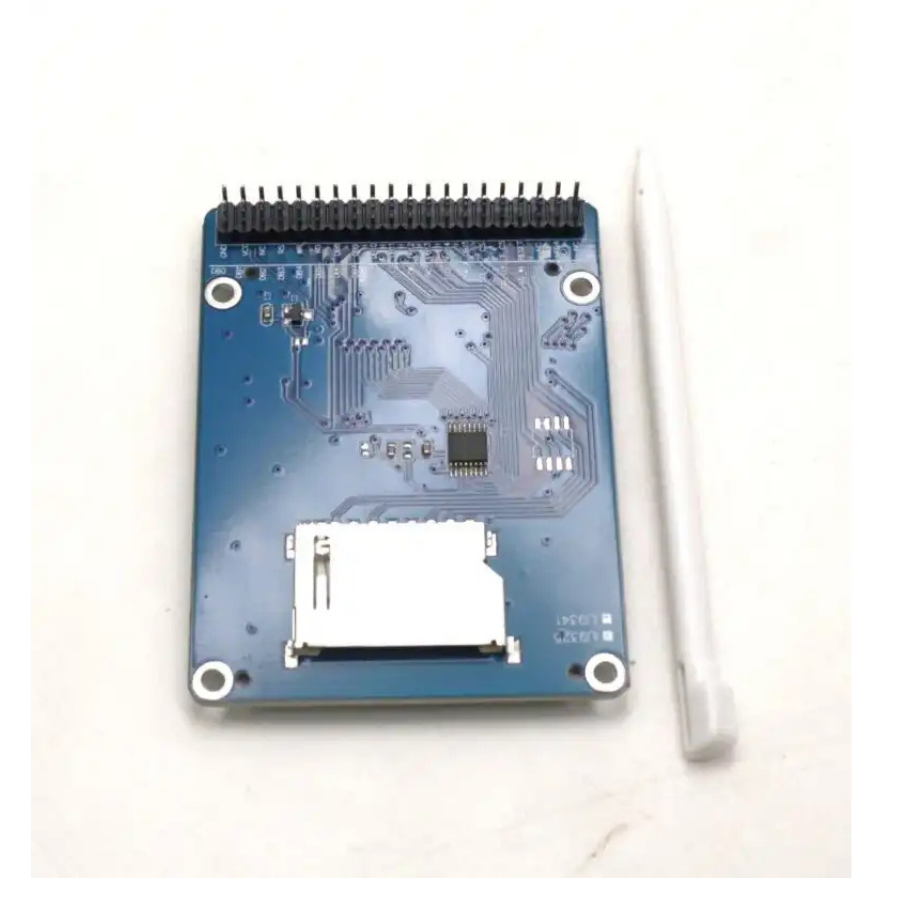

- Built-in microSD card slot for easy data logging and media storage
- Backlight control via a digital pin and transistor for adjustable brightness
- Fast shipping from Zbotic to get your project up and running quickly
Applications and Use Cases
- Interactive user interfaces for home automation prototypes
- Portable game consoles and graphical projects on Arduino Uno
- Data visualization dashboards with real-time sensor readings
- Menu-driven controls for robotics or CNC machines
- Photo viewers or simple video players using microSD card storage
- Touch-based drawing pads and educational electronics demos
How to Use 3.5inch TFT Touch Screen Display for Arduino
To set up, simply plug the shield into your Arduino Uno’s headers. Install the corresponding TFT and touch libraries in the Arduino IDE, upload a sample sketch to initialize the display, and use the provided library functions to draw graphics or read touch coordinates; adjust backlight by wiring the backlight pin to a digital output and toggling it in code.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which Arduino boards are compatible with this 3.5″ TFT shield?
This display is designed to plug directly into the Arduino Uno or any ATmega328-based board with the same header layout. Other boards may require jumper wires or adapters to match pin assignments.
How do I adjust or turn off the backlight?
Connect the backlight (BL) pin through a transistor to one of your digital pins. You can then use digitalWrite() or analogWrite() in your code to toggle or dim the LED backlights.
What libraries are required to run this display?
Install the compatible TFT driver library for your display’s controller along with a resistive touch library in the Arduino IDE. Use the example sketches included in those libraries to verify connectivity and calibrate touch input.
Arduino pH Sensor Interface: Water Quality Monitoring Guide
Whether you are managing a hydroponics system, monitoring a fish pond, testing drinking water, or running a chemistry...
Read More →
Arduino EEPROM Tutorial: Read, Write & Wear Levelling Guide
Every Arduino project eventually faces the same challenge: how do you store data that survives a power cut?...
Read More →
ATtiny13 vs ATtiny85: Which Tiny MCU for Minimal Projects?
When choosing between the ATtiny13 vs ATtiny85 for your next minimal microcontroller project, the decision comes down to...
Read More →Technical Specifications
| Display Size | 3.5" |
|---|---|
| SKU | AI0538 |
| Weight | 0.08 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 3.5inch TFT Touch Screen Display for Arduino is a versatile display for arduino used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
