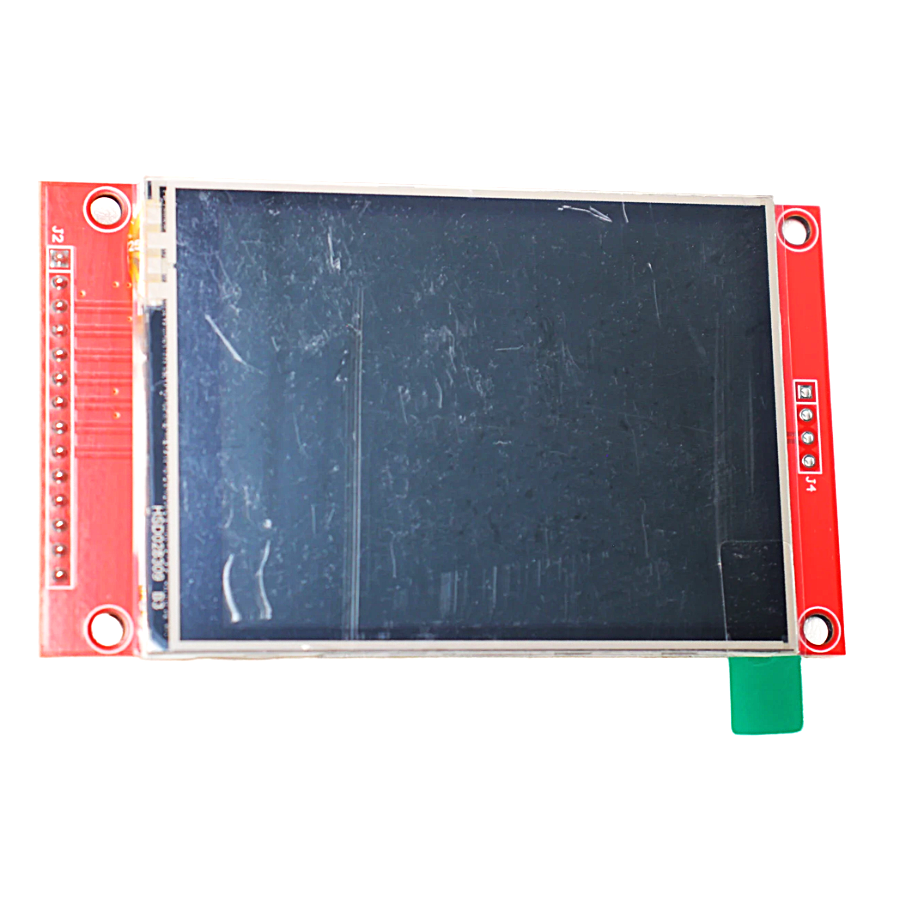

This TFT display is big (2.8″ diagonal) bright and colorful! 240×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display.
As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen. This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller.
The display can be used in two modes: 8-bit and SPI. For 8-bit mode, you’ll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than the 8-bit mode. In addition, 4 pins are required for the touchscreen (2 digital, 2 analogs).

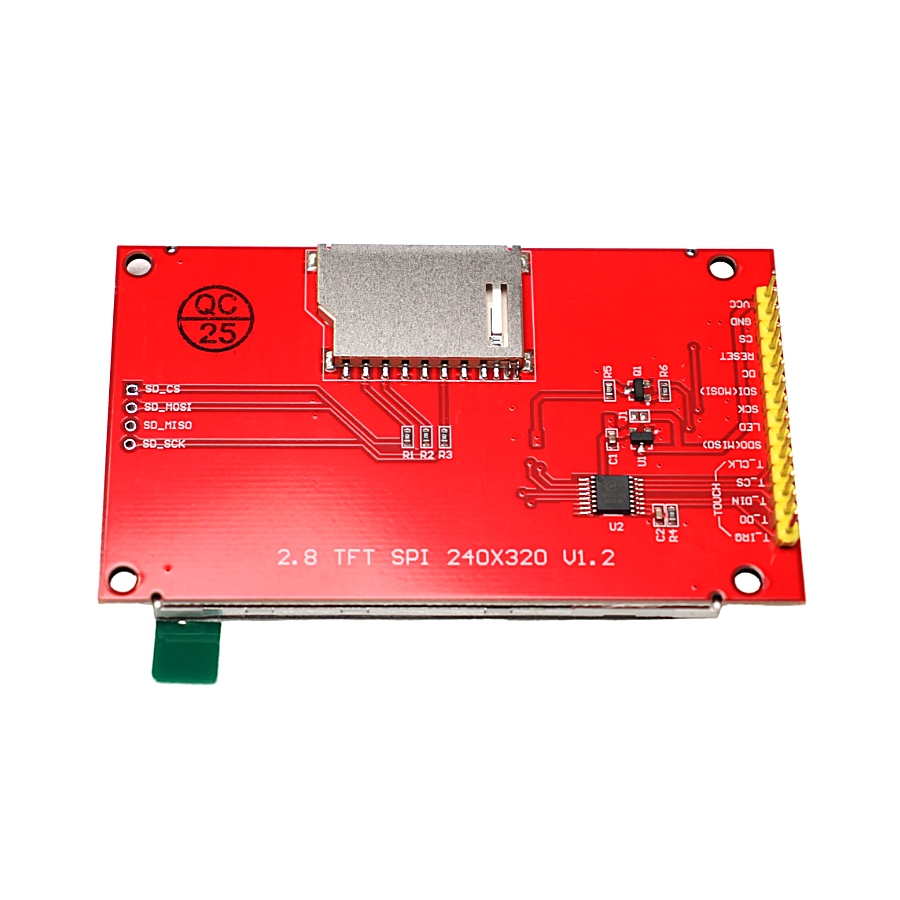

This 2.8 inch SPI Touch Screen Module is wrapped up into an easy-to-use breakout board, with SPI connections on one end and 8-bit on the other. Both are 3-5V compliant with high-speed level shifters so you can use with any microcontroller. If you’re going with SPI mode, you can also take advantage of the onboard MicroSD card socket to display images.
Features :
- It shows the color depth of 262K/65K.
- Need at least 4 IOs from your MCU
- The display has a wide viewing angle.
- Big display with good resolution.
Circuit Diagram:
Package Includes :

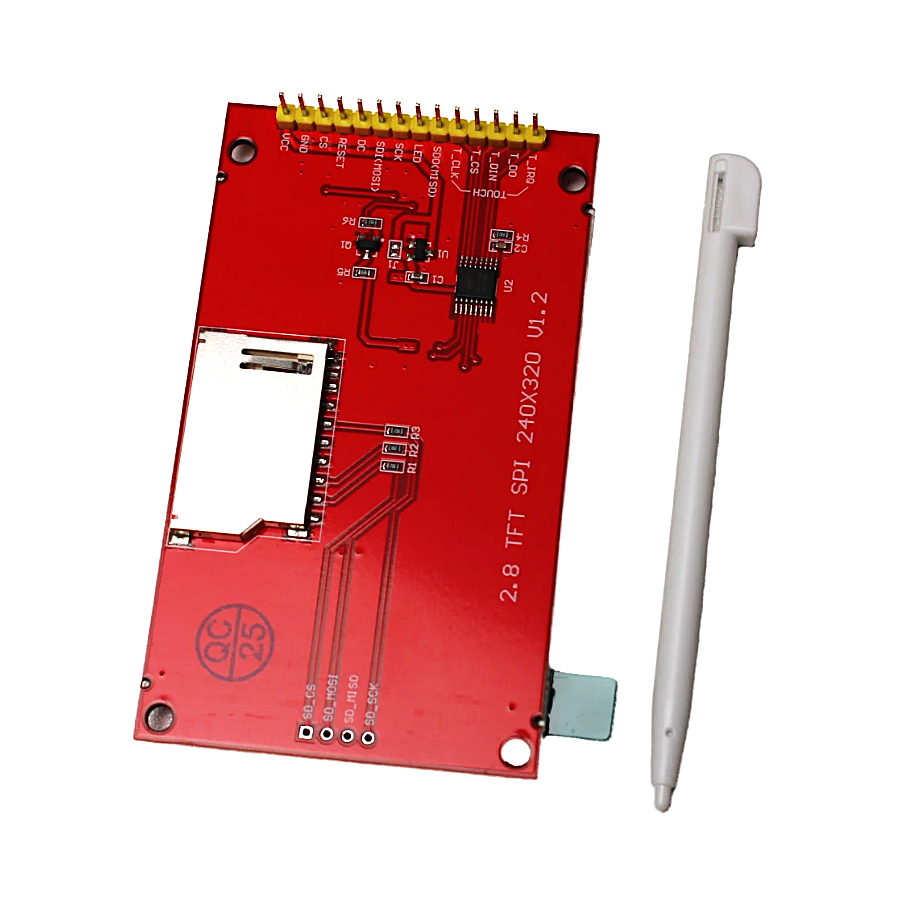

1 x 2.8-inch SPI Touch Screen Module TFT Interface 240 x 320
1 x Stylus Pen
Arduino TFT Display: ST7789 and ILI9341 Graphics Guide
Adding a colour screen to an Arduino project used to require expensive, power-hungry modules. Today, compact Arduino TFT...
Read More →
RTOS for Arduino: FreeRTOS Task Scheduling Tutorial
If you have ever tried to make your Arduino do two things at the same time — say,...
Read More →
Arduino Automatic Street Light with LDR Sensor
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →Technical Specifications
| Display Size | 2.8" |
|---|---|
| Interface / Protocol | SPI |
| SKU | AI2151 |
| Weight | 0.04 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 2.8 inch SPI Touch Screen Module TFT Interface 240*320 is a versatile display for arduino used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
