This is the 525mm variant of the B3950 10K Copper Head NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector with 0.5 Meter cable in Temperature & Humidity Sensor. Available at ₹29.97 (₹25.40 + GST) with free shipping across India.

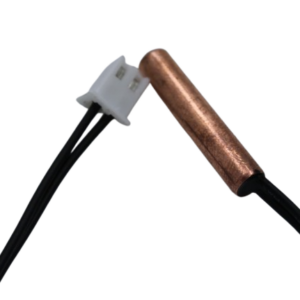

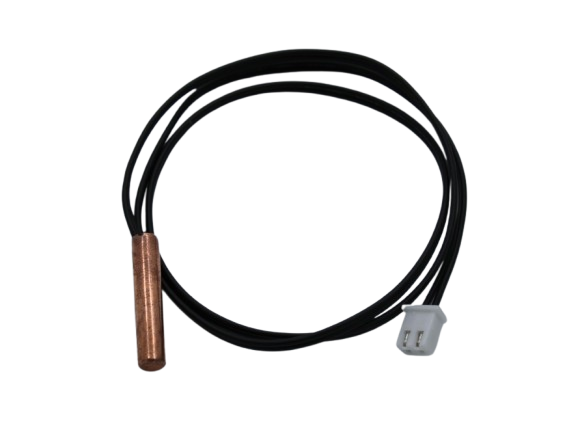

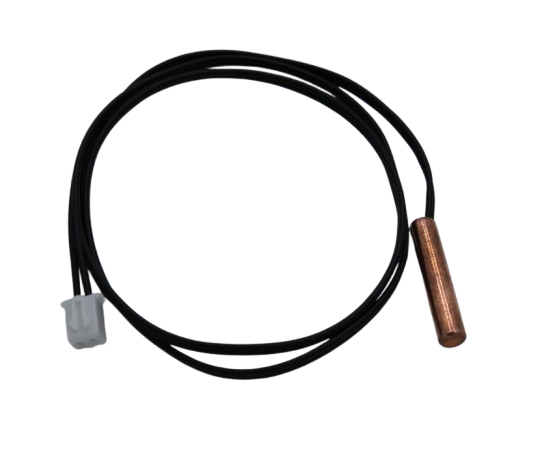

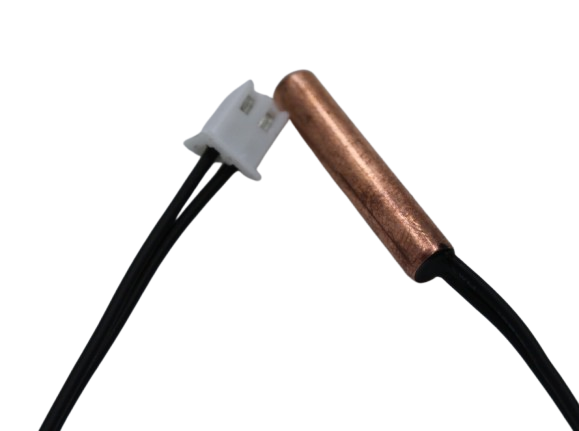

B3950 10K Copper Head NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector with 0.5 Meter Cable
The B3950 10K Copper Head NTC Waterproof High Precision Thermistor Temperature Sensor, measuring 5 x 25mm, is versatile and suitable for various temperature measurement applications.
Featuring a copper tip of 5 x 25mm size and an XH2.54 connector with a 0.5-meter cable, this sensor offers convenience and ease of use. Its Negative Thermal Coefficient (NTC) means that its resistance decreases as temperature rises. However, in practical applications, the relationship between resistance and temperature may not be linear. Therefore, relying on an accurate table of measurements from the accompanying datasheet often proves more reliable than using a linear formula.
Specifications and Features:
Probe sheath material: Copper
Style: B3950 10K
Resistance value: 10K ± 1%
Measurement range: -40°C~150°C
Cable Length: 0.5 Meter
Size of probe: 5 x 25 mm
Output wires: 2
Typical Dissipation Constant: 5mW/ °C
Probe insulation: >100MOhm.
Features:
● High sensitivity, fast response
● Small size, easy to install
● Resistance high precision, consistency interchangeability
● Using double encapsulation process, with good sealing and insulation resistance to mechanical impact, flexural capacity
● Simple and flexible structure, according to the customer set different requirements.
● Good stability, strong overload capacity.
Package Includes:
1 x B3950 10K Copper Head NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector with 0.5 Meter Cable
B3950 10K Copper Head NTC Thermistor Temperature Sensor Overview
The B3950 10K Copper Head NTC Thermistor Temperature Sensor is a high-precision probe designed for accurate temperature monitoring from -20°C to 105°C. Featuring a copper sheath measuring 5×25 mm and a 10 KΩ ±1% resistance characteristic, it’s ideal for integration into controllers and data acquisition systems.
Key Features of B3950 10K Copper Head NTC Thermistor Temperature Sensor
- High-precision NTC element with 10 KΩ ±1% tolerance at 25 °C

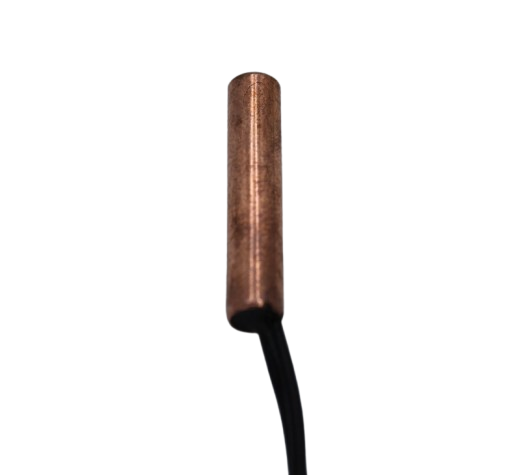

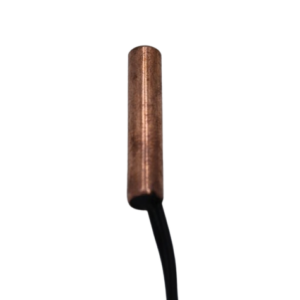

- Copper probe (5×25 mm) ensures fast thermal response and durability
- Measurement range from -20 °C to 105 °C for diverse environments

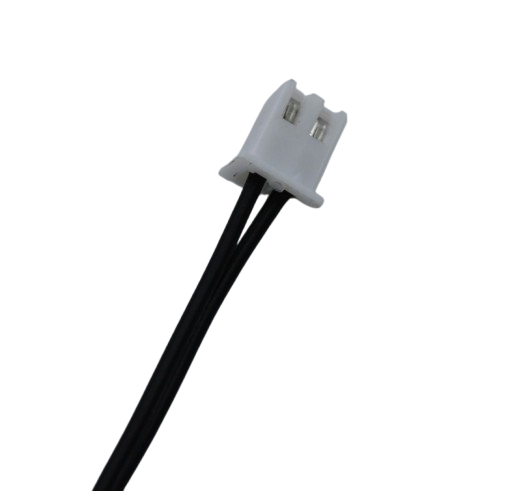

- 0.5 m cable terminated in an XH2.54 connector for plug-and-play setup
- Water-resistant copper head, suitable for damp or wet conditions
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Temperature control in 3D printers and CNC equipment
- Environmental monitoring in aquariums and terrariums
- HVAC system diagnostics and airflow temperature sensing
- Industrial machinery temperature feedback loops
- Home appliance thermoregulation (e.g., ovens, refrigerators)
- Weather stations and outdoor data loggers
How to Use B3950 10K Copper Head NTC Thermistor Temperature Sensor
Connect the XH2.54 plug to the matching header on your controller or ADC module and secure the copper probe in the target environment. Use a pull-up resistor to form a voltage divider, then read the voltage drop and convert it to temperature via the B3950 resistance-to-temperature curve provided in the datasheet. Ensure the probe tip has good thermal contact and avoid mechanical strain on the cable.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the accuracy of this thermistor?
The B3950 sensor offers a resistance tolerance of ±1% at 25 °C, yielding high accuracy when used with the manufacturer’s resistance-to-temperature lookup table.
Is the copper head fully waterproof?
Yes, the copper probe and sealed junction provide water resistance suitable for immersion in non-aggressive liquids. Avoid prolonged high-pressure water exposure.
Can I use this with an Arduino?
Absolutely. Wire the XH2.54 connector to an analog input via a pull-up resistor (e.g., 10 KΩ), then calculate temperature using the B3950 characteristic curve in your Arduino sketch.
