Advanced Auto-Calibrating Line Sensor LSA08

Advanced Auto-Calibrating Line Sensor LSA08

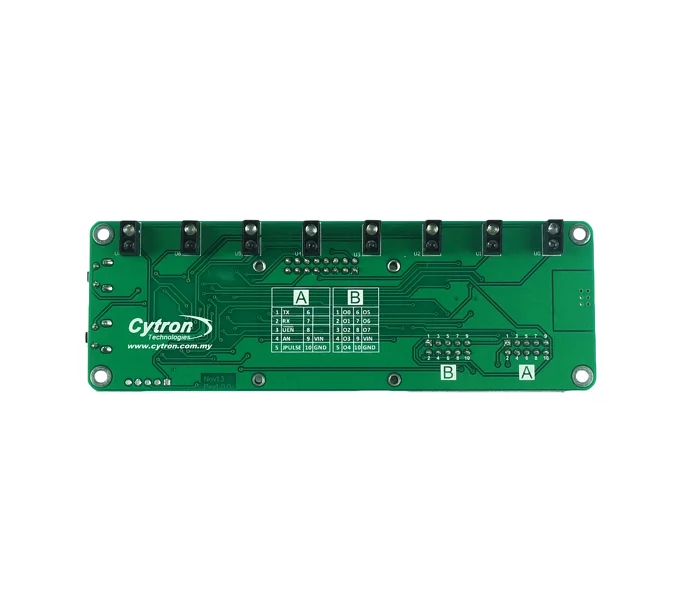

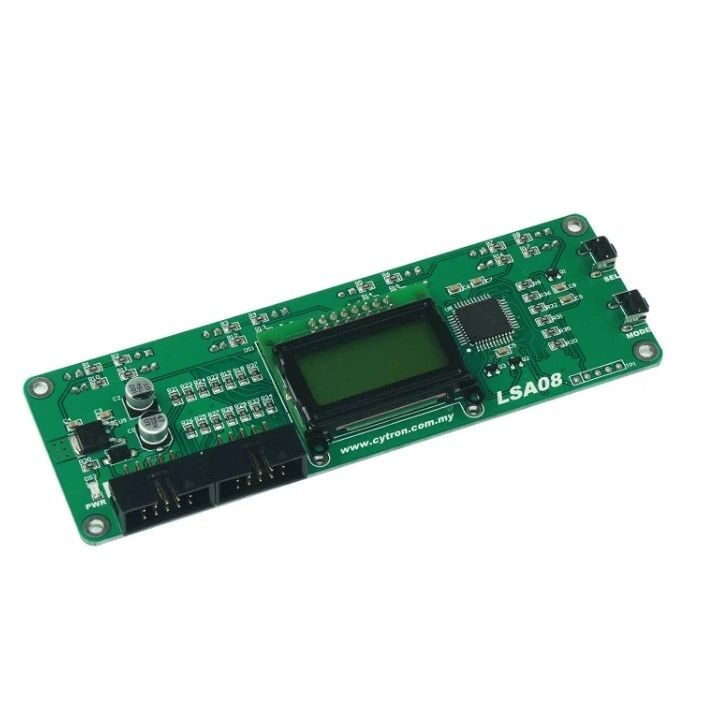

LSA08 (Advance Line Following Sensor Bar) consists of 8 sensors pair. The Advanced Auto-Calibrating Line Sensor LSA08 is typically used for embedded system or robots for line following task. The specially selected wavelength of super bright green LED as the sensor’s transmitter enables LSA08 to operate on various different color surfaces.

LSA08 is capable to operate on the surface with the color of Red, Green, Blue, White, Black, Gray and possibly other colors with the distinct brightness different.

The LSA08 has several different output modes, for the convenience of use for any system. Namely, the digital output port (8 parallel output line), the serial communication port (UART) and the analog output port.

Features:

1. 8 sensor pairs spaced 16mm.
2. 12V input power
3. Onboard Mode and a Select button for instant configuration of LSA08
4. 3 Different output mode (digital output port, UART output port, analog output port)

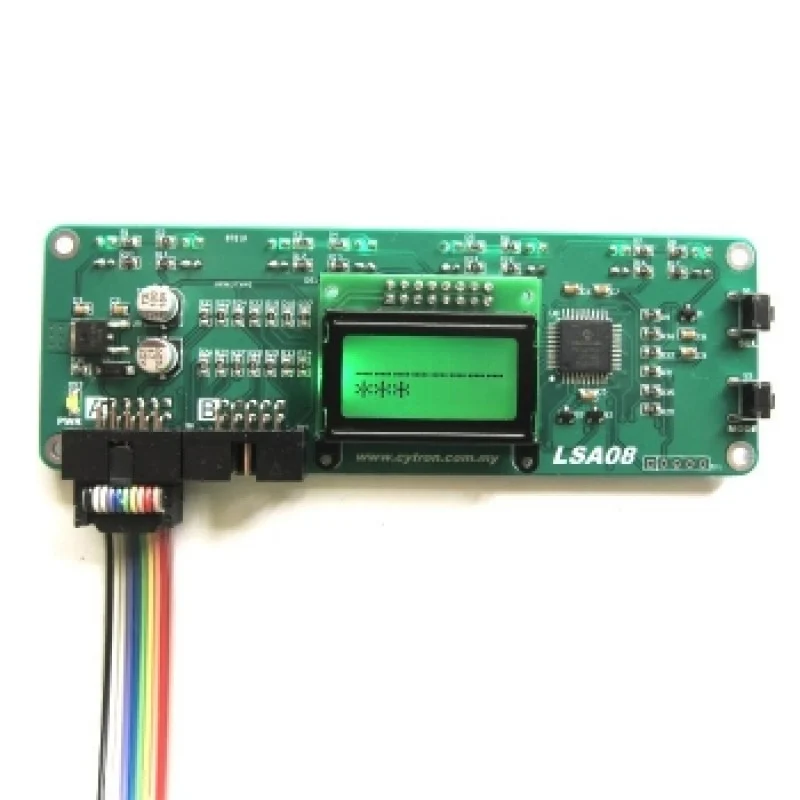

5. LCD display unit showing 8 sensors analog value with bar chart and line position.
6. Simple Auto-Calibration function to the line following surface.
7. Junction Pulse (JPULSE) for detecting junction crossing and junction counting
8. Power polarity protection
9. Low current consumption (typically 26mA)
10. Works on glossy or reflective surface
11. Refresh rate up to 200Hz.

Specification:

Package Includes:

1 x Advanced Auto-Calibrating Line Sensor LSA08

Tutorial:

1. Line-Following Robot Using LSA08 in Serial Mode with PID Controller
2. Line-Following Robot Using LSA08 in Digital Mode
3. LSA08 Line Follower with MC40SE
4. Line-Following Robot Using LSA08 in Serial Mode with Digital Output
5. Line-Following Robot Using LSA08 in Analog Mode
