Product Description:
4 IR Sensor Array Module
Introducing the 4 IR Sensor Array Module, a versatile and reliable sensor system designed for precise detection in various applications. This module features four IR sensor arrays, each equipped with an IR transmitter and an IR receiver.
With an adjustable detection range from 1mm to 20cm, this sensor module offers flexibility to meet diverse proximity requirements. It performs optimally when the distance is closer, ensuring stable operation. Notably, white objects reflect infrared light the farthest, enhancing detection accuracy.
Measuring 42 x 38 x 12mm (L x W x H) for the control panel and 25 x 12 x 12mm (L x W x H) for each sensor, this module boasts a compact design, allowing for seamless integration into various projects.

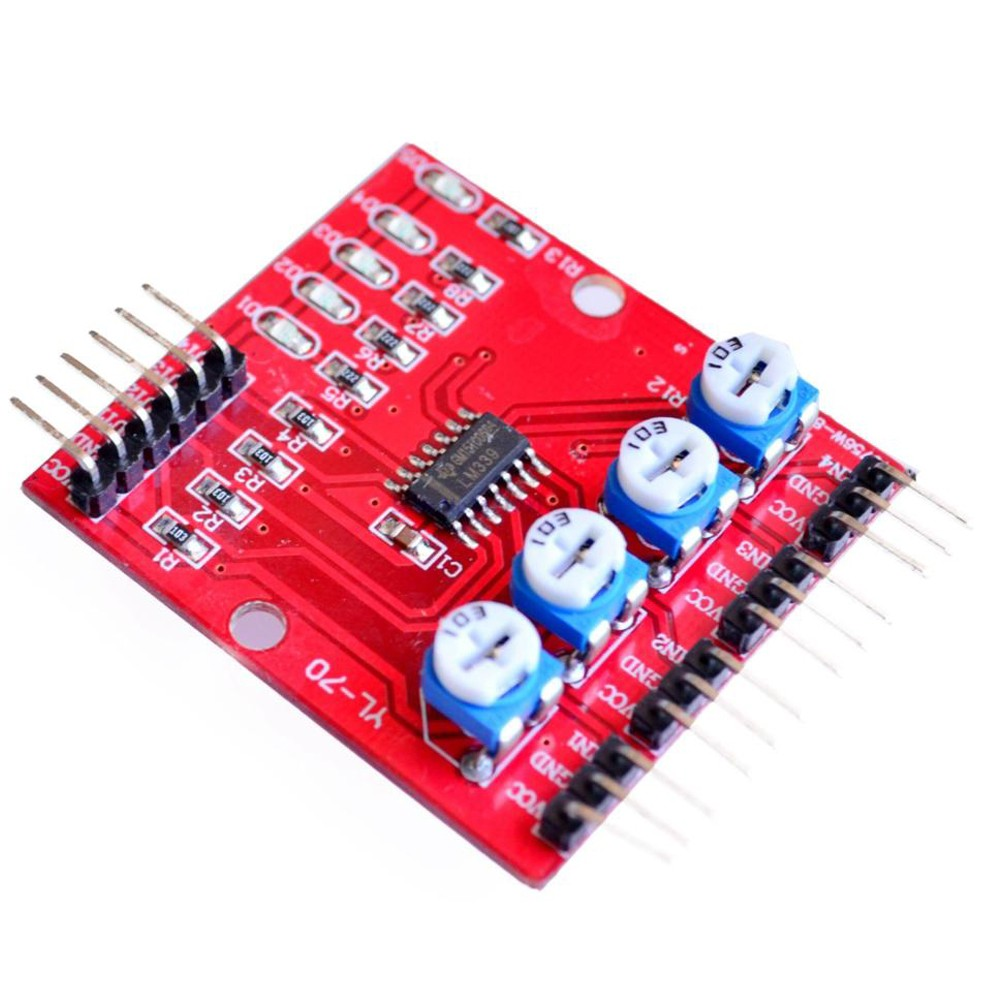

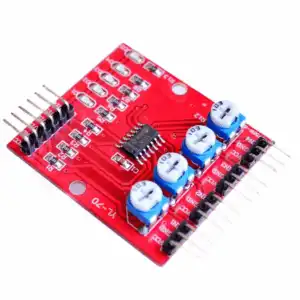

Equipped with a 6-wire interface, including four signal output pins (1234), a positive power pin (+), and a negative power or ground pin (-), this module offers easy connectivity and installation.
The output signal is TTL level, making it compatible with direct connection to I/O microcontrollers. When the sensor detects infrared light reflected back, the red indicator light illuminates, and the output goes low. Conversely, when no infrared light is detected, the indicator light turns off, and the output goes high.
This IR sensor array module is ideal for applications such as robotics, automation, and obstacle detection systems, offering reliable and efficient detection capabilities for a wide range of projects.
Features
- Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
- Size: in the control panel:42 x 38 x 12mm (length x width x height).
- Small forward: 25 x 12 x 12mm (length x width x height).
- Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, – for the negative power is ground)
- The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)
Specifications:
| Working voltage (V) | 3.3 ~ 5 |
|---|---|
| Working current (A) | Above 1A |
| Operating Temperature (℃) | -10 ~ +50 |
| Mounting hole | M3 |
| Detection range | 1mm ~ 60 cm adjustable. |
Package Includes

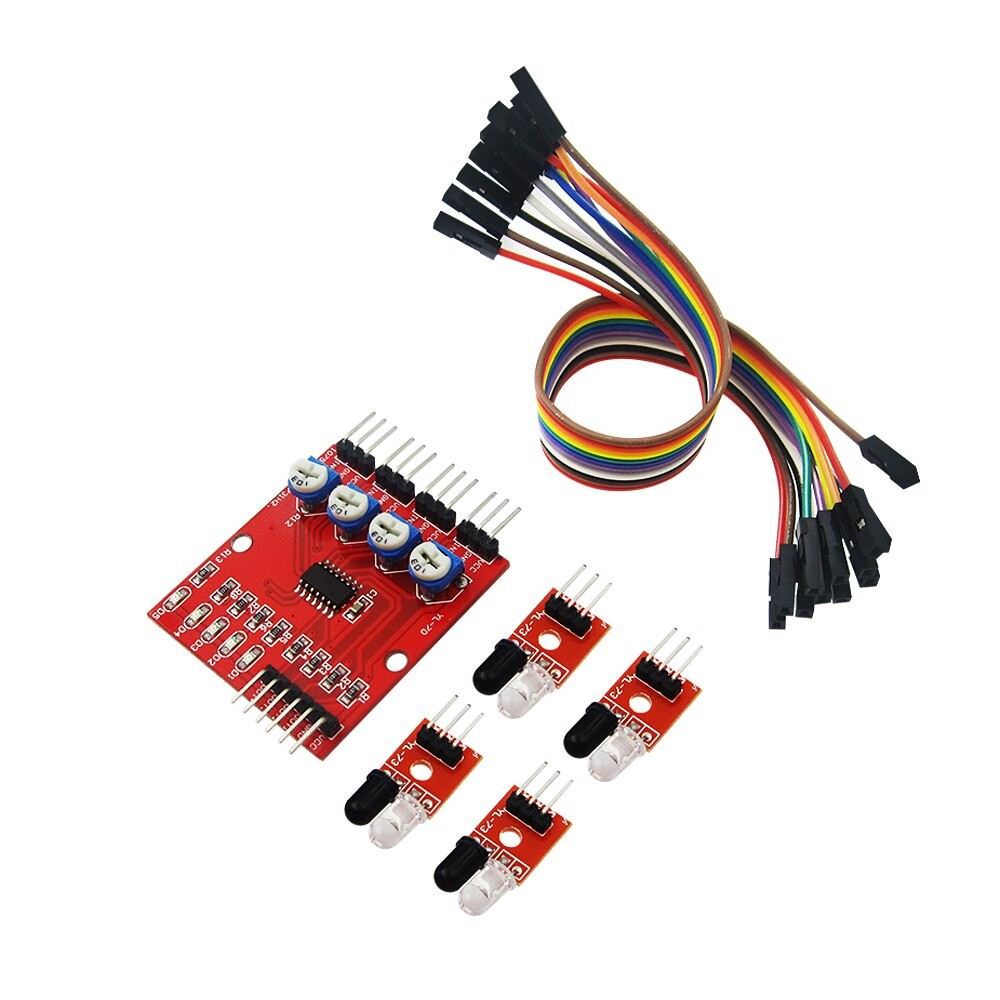

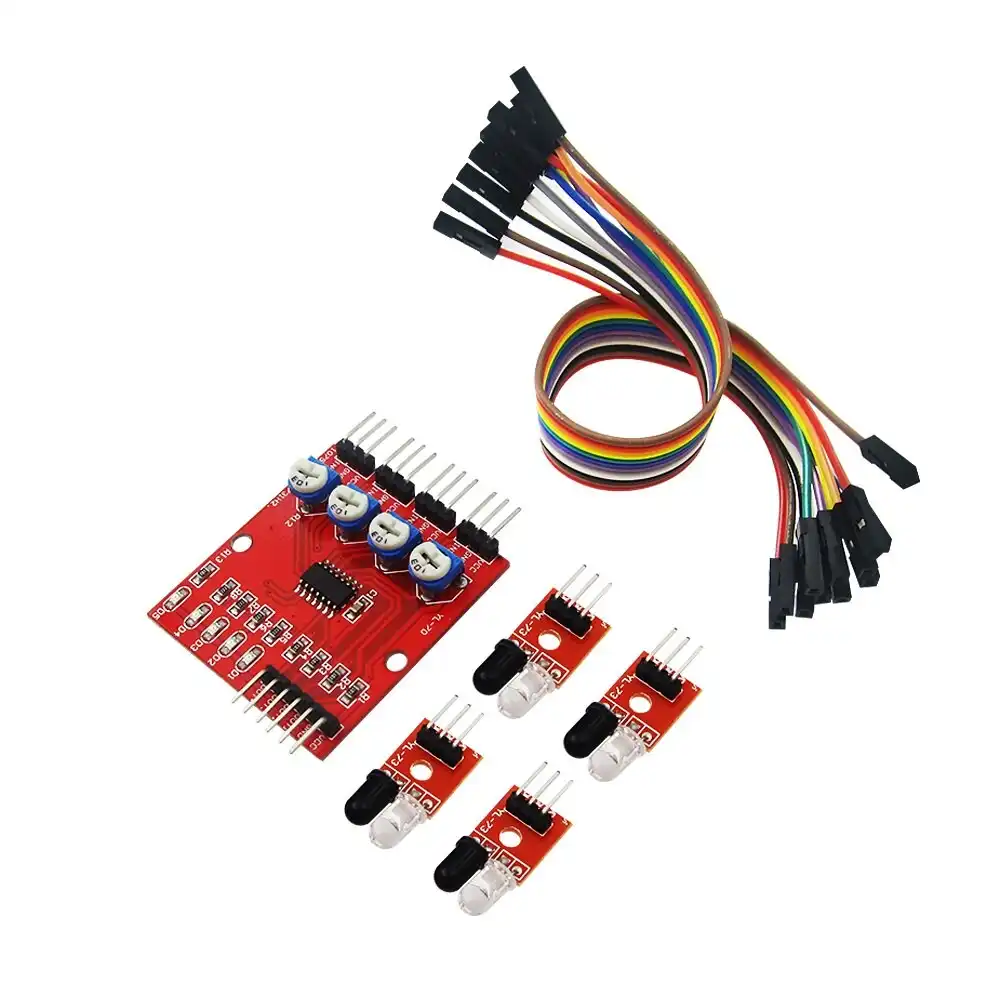

- 1 x 4 IR Sensor Array Module

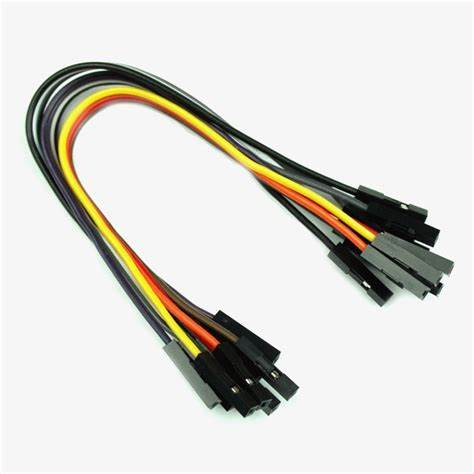

- 12 x female to female Dupont Lines (20 cm long).
Tutorial:-
4 IR Sensor Array Module Overview
The 4 IR Sensor Array Module is a compact board featuring four infrared transmitter-receiver pairs for precise proximity and object detection. Ideal for robotics and automation projects, it delivers stable multi-point sensing that adapts to different surface colors and ambient light conditions.
Key Features of 4 IR Sensor Array Module
- Four independent IR channels for simultaneous multi-point proximity sensing
- On-board sensitivity adjustment lets you fine-tune detection distance and thresholds
- Slim control board and sensor housings enable easy integration into tight spaces
- Stable performance with enhanced reflection from light-colored surfaces
- Secure mounting with standard hole pattern and plug-and-play connectivity
- Genuine module, fast shipping from Zbotic
Applications and Use Cases
- Line-following and maze-solving robots
- Obstacle detection for mobile platforms
- Edge detection on automated guided vehicles (AGVs)
- Object counting on small conveyor setups
- Proximity alarms and safety interlocks
- Surface color or pattern recognition in sorting systems
How to Use 4 IR Sensor Array Module
Mount the module using the provided holes, connect its VCC, GND, and output pins to your microcontroller, and adjust each channel’s sensitivity via the onboard potentiometers. Test with your target surface and fine-tune thresholds until detection is reliable, then integrate the outputs into your control logic for real-time proximity feedback.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I interface this module directly with an Arduino?
Yes. Simply supply 3.3–5 V to VCC and GND, then connect each sensor’s output pin to an Arduino digital or analog input. Adjust the onboard potentiometers to set detection thresholds compatible with your code.
How do I adjust the detection range for different surfaces?
Each channel has its own sensitivity potentiometer. Turn the potentiometer clockwise to increase detection distance or counterclockwise to reduce it. Test against your surface color and adjust until you achieve reliable triggering.
Will this module detect dark or black objects?
Detection is strongest on lighter surfaces, as they reflect more infrared light. Darker objects will register at closer distances—use the sensitivity controls to optimize detection on low-reflectivity materials.
