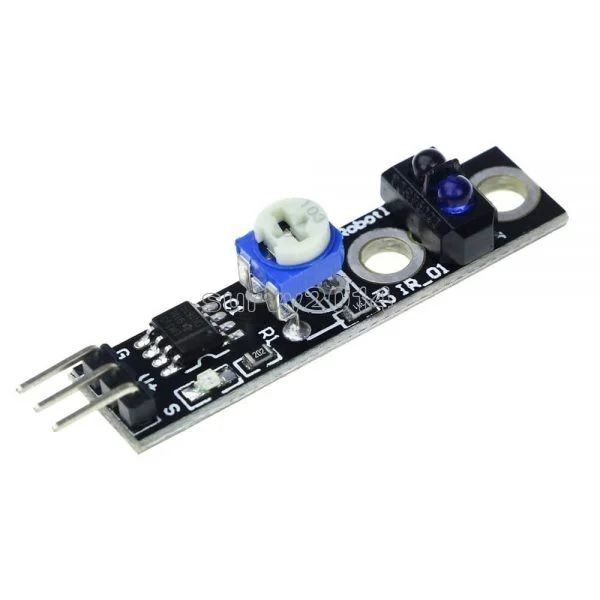

TCRT5000 Single Channel Line Tracking Sensor Module
The TCRT5000 Single Channel Line Tracking Sensor Module serves as an excellent detector for line-following robots, featuring a potentiometer for adjusting sensor sensitivity. It functions as a carrier board for the TCRT5000 reflective optical sensor and is primarily intended for use in line-following robots, though it can also be applied in mini-sumo robots for line control. The module offers a digital output.
The operation of a line follower sensor hinges on the behavior of light. It leverages the contrast between black and white surfaces: white surfaces largely reflect light, while black surfaces absorb it. This principle guides the functionality of the line follower sensor, enabling it to discern and track lines based on these light interactions.
Each phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0 V and VIN (which is typically 5 V) as a function of the reflected IR. The lower output voltage is an indication of greater reflection.
For multichannel or more accurate line sensor, do not forget to check our following category
Line Sensor.
Features
- Working voltage of 5V, the output of the black line low, white line of high output
- Uses Infrared Light to Detect Anti-Interference Ability
- Sensors to adopt TCRT5000 High Sensitivity, Stable Performance
- Exquisite workmanship, with the indicator
- Has a fixed bolt hole for easy installation
Specification:
| Operating Voltage (VDC) | 3.3 ~ 5 |
|---|---|
| Supply Current (A) | ≥ 20mA |
| Optimal Sensing Distance(mm) | 3 |
| Output Format | A Analog and Digital Voltage |
| Length (mm): | 42 |
| Width (mm): | 10 |
| Height (mm): | 10 |
| Weight (g): | 2 |
Package Includes
1 x TCRT5000 Single channel line tracking sensor module.
TCRT5000 Single Channel Line Tracking Sensor Module Overview
The TCRT5000 Single Channel Line Tracking Sensor Module is a compact carrier board featuring the TCRT5000 reflective optical sensor, designed for precise line detection in robotics projects. It delivers a digital output that switches low over dark lines and high over light surfaces, making it ideal for line-following and boundary-control applications.
Key Features of TCRT5000 Single Channel Line Tracking Sensor Module
- Operating voltage: 3–5.5V, compatible with 5V systems
- Supply current ≥ 20mA for reliable infrared emitter performance
- Optimal sensing distance of 3mm for accurate line detection
- Onboard potentiometer to adjust sensitivity to different surface contrasts
- Indicator LED for visual confirmation of detection state
- Fixed bolt hole for easy and secure mounting onto chassis
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Line-following robots navigating black tape tracks on white floors
- Mini-sumo robots detecting and avoiding arena boundaries
- Automated guided vehicles (AGVs) in small-scale warehouse prototypes
- DIY robotics kits requiring single-channel line sensing
- Conveyor belt item position detection in hobbyist setups
- Educational demonstrations of infrared reflective sensing
How to Use TCRT5000 Single Channel Line Tracking Sensor Module

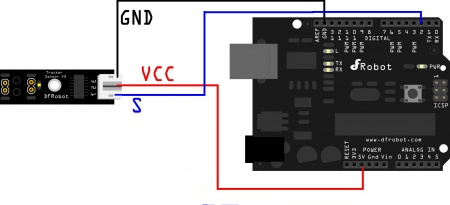

Connect the module’s VCC to a 3–5.5V supply and GND to the common ground. Wire the digital output pin to your microcontroller’s input. Position the sensor about 3mm above the surface and secure it using the bolt hole. Power up the emitter, then adjust the onboard potentiometer until the indicator LED toggles accurately between dark and light areas.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range does this module support?
The TCRT5000 module operates from 3V up to 5.5V, making it compatible with common 5V and 3.3V microcontroller platforms.
How do I adjust the detection sensitivity?
Use the onboard potentiometer to fine-tune the infrared emitter intensity. Turning it clockwise increases sensitivity to reflectivity differences, while counterclockwise lowers it.
What output does the sensor provide for line detection?
This module offers a digital output: it reads LOW when detecting a black (absorptive) surface and HIGH when over a white (reflective) surface, ideal for binary line-following logic.
