This is the 5V variant of the Adafruit Pro Trinket – 5V 16 MHz in IoT Development Boards. Available at ₹1,532.82 (₹1,299.00 + GST) with free shipping across India.
Looking for Adafruit Pro Trinket – 5v? Adafruit Pro Trinket – 5V 16 MHz is available at Zbotic with fast shipping across India.
Trinket’s got a big sister in town – the Pro Trinket 5V! Pro Trinket combines everything you love about Trinket with the familiarity of the common core Arduino chip, the ATmega328. It’s like an Arduino Pro Mini with more pins and USB tossed in, so delicious. Trinket’s a year old now, and while its been great to see tons of tiny projects, sometimes you just need more pins, more FLASH, and more RAM. That’s why we designed Pro Trinket, with 18 GPIO, 2 extra analog inputs, 28K of flash, and 2K of RAM. Like the Trinket, it has onboard USB bootloading support – we opted for a MicroUSB jack this time. We also added Optiboot support, so you can either program your Pro Trinket over USB or with a FTDI cable just like the Pro Mini and friends. The Pro Trinket PCB measures only 1.5″ x 0.7″ x 0.2″ (without headers) but packs much of the same capability as an Arduino UNO. So it’s great once you’ve finished up a prototype on an official Arduino UNO and want to make the project smaller. The Pro Trinket 5V uses the Atmega328P chip, which is the same core chip in the Arduino UNO/Duemilanove/Mini/etc. at the same speed and voltage.
Features:
- ATmega328P onboad chip in QFN package
- 16MHz clock rate, 28K FLASH available
- USB bootloader with a nice LED indicator & headers for an FTDI port for reprogramming
- On-board 5.0V power regulator with 150mA output capability and ultra-low dropout, up to 16V input, reverse-polarity protection, thermal and current-limit protection.
Package Includes:

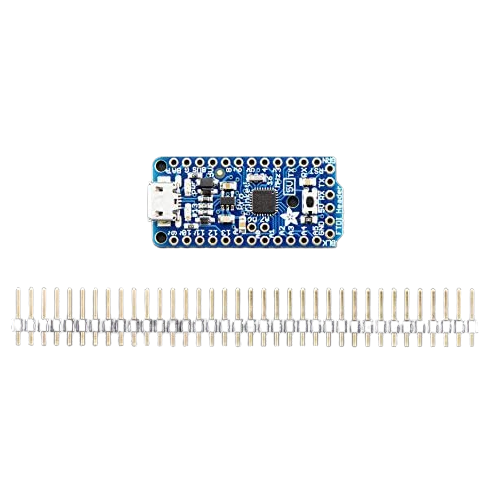

1 x Adafruit Pro Trinket – 5V 16 MHz
Adafruit Pro Trinket – 5V 16 MHz Overview
The Adafruit Pro Trinket – 5V 16 MHz is a compact microcontroller development board based on the ATmega328, offering Arduino compatibility in a smaller form factor. With onboard USB bootloader support and a MicroUSB jack, it’s ideal for embedded projects that need more I/O pins, flash memory, and RAM than the original Trinket.
Key Features of Adafruit Pro Trinket – 5V 16 MHz
- ATmega328 running at 16 MHz with 5 V operating voltage for full Arduino library support
- 18 GPIO pins, including digital I/O and PWM outputs, plus 2 extra analog inputs
- 28 KB of flash memory and 2 KB of SRAM for larger sketches and data buffers
- Onboard Optiboot and USB bootloader via MicroUSB port—no external programmer needed
- Compact 0.7″ × 1.2″ PCB fits into breadboards and custom PCBs
- Genuine Adafruit product with fast shipping across India from Zbotic
Applications and Use Cases
- Driving LED matrices and mood lighting with PWM control
- Collecting sensor data for home automation or environmental monitoring
- Portable robotics controllers for small bots or grabber arms
- Wearable electronics and interactive art installations
- DIY USB devices like custom keyboards or macro pads
- Prototyping breadboard circuits for learning microcontrollers
How to Use Adafruit Pro Trinket – 5V 16 MHz
Connect the Pro Trinket to your computer via MicroUSB, install the Adafruit AVR boards or Pro Trinket package in the Arduino IDE, select “Adafruit Pro Trinket 5V 16 MHz” as the board, and click Upload. Power additional components from the 5 V/GND pins or use an external 5 V supply on the V-in pin, and wire your sensors or actuators to the digital and analog pins.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the Pro Trinket fully compatible with Arduino UNO sketches?
Yes. The Pro Trinket uses the same ATmega328 MCU at 16 MHz and 5 V, so most Arduino UNO code that uses standard libraries will compile and run after selecting the correct board in the IDE.
How do I power external modules from the Pro Trinket?
You can draw up to 500 mA from the 5 V Pin when powered via USB, or supply an external regulated 5 V to the V-in pin to power both the Pro Trinket and connected modules.
Can I use the onboard USB bootloader without additional hardware?
Absolutely. The built-in Optiboot bootloader lets you upload sketches directly over MicroUSB—no AVR ISP or extra programmer is required.
IoT Time-Series Forecasting: Predict Sensor Readings
Table of Contents Time-Series Data in IoT Forecasting Methods Overview ARIMA for Sensor Data Prophet for IoT Predictions...
Read More →
IoT Fleet Management: GPS Tracking for Delivery Vehicles
Table of Contents Introduction and Overview Hardware Components Required GPS Module Integration with ESP32 Cloud Platform Setup Real-Time...
Read More →
IoT Beehive Monitor: Weight, Temperature, and Humidity
Table of Contents Why Monitor Beehives Weight Measurement System Temperature and Humidity Sensing Building the Monitor Data Analysis...
Read More →Technical Specifications
| Brand | Adafruit |
|---|---|
| Operating Voltage | 5V |
| Frequency | 16 MHz |
| SKU | AI1798 |
| Weight | 0.006 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Adafruit Pro Trinket – 5V 16 MHz is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
