Description:

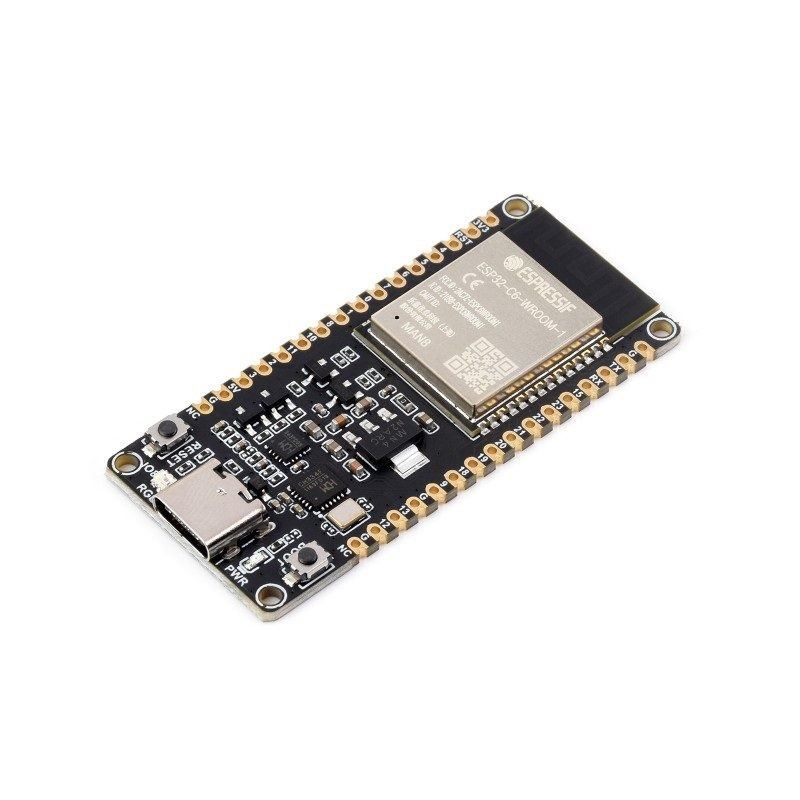

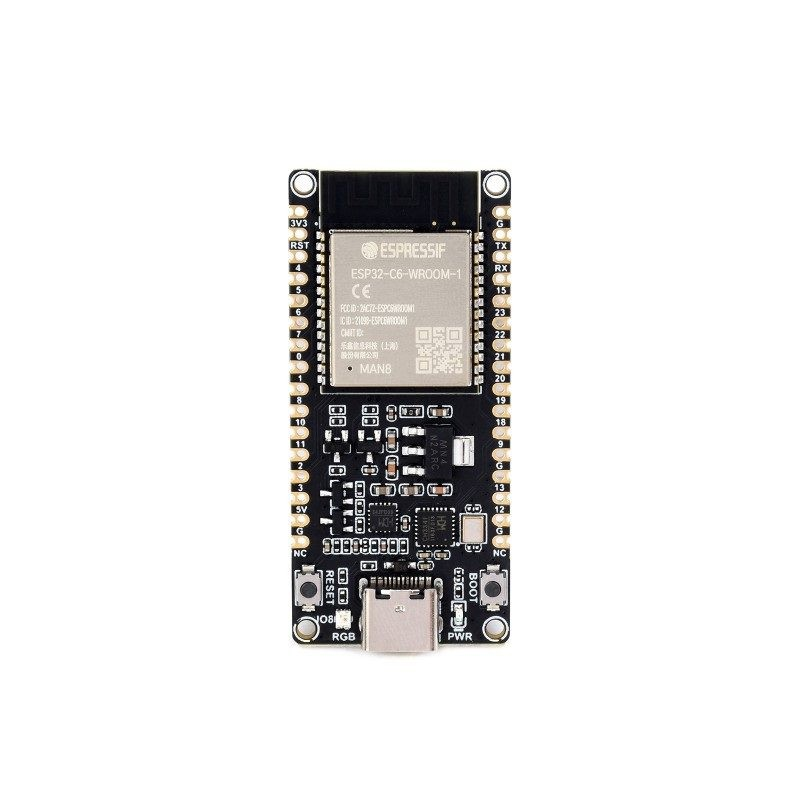

This product is an entry-level RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.
Adopts ESP32-C6-WROOM-1-NX series module, which is equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 8MB Flash; Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, SDIO and other interfaces; Onboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a USB-C port. Compatible with the pinout of the ESP32-C6-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.
Comes with online examples and tutorials for ESP-IDF development environment, so that you can easily and quickly get started and apply it to the products.
Features:
- Adopts ESP32-C6-WROOM-1-NX series module with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 8MB Flash
- Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
- Type-C connector, easier to use
- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
- Rich peripheral interfaces, compatible with the pinout of the ESP32-C6-DevKitC-1 development board, offers strong compatibility and expandability
- Castellated module allows soldering directly to carrier boards
Specification:
| Model: | ESP32 C6 WROOM 1 N8 |
|---|---|
| Flash Memory: | 8 MB |
| Processor Type: | RISC-V 32-bit single-core processor |
| CPU | RISC-V 32-bit Single-Core Processor |
| Processor | RISC-V 32-bit Single-Core |
| SRAM | 400 KB |
| Length (mm): | 55 |
| Width (mm): | 25.36 |
Package Includes:
1 x Waveshare ESP32-C6 Microcontroller WiFi 6 Development Board with ESP32-C6-WROOM-1-N8
MQTT vs HTTP vs CoAP: IoT Protocol Comparison
Table of Contents Understanding IoT Protocols MQTT: The IoT Standard HTTP and REST APIs for IoT CoAP: Lightweight...
Read More →
ESP-NOW Tutorial: Wireless Communication Between ESP32 Boards
ESP-NOW is one of the most underrated features of Espressif's ESP32 and ESP8266 microcontrollers — a lightweight, connection-free...
Read More →
ESP32 HTTPS REST API: Secure Data POST to Cloud Servers
If you are building an IoT project and want to send data securely to a cloud server, mastering...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-C6 |
| Interface / Protocol | WiFi |
| SKU | AI7590 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare ESP32-C6 Microcontroller WiFi 6 Development Board with ESP32-C6-WROOM-1-N8 is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
