This is the 4inch variant of the Waveshare ESP32-S3 4inch Display Development Board, 480×480, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 With Display in IoT Development Boards. Available at ₹4,066.28 (₹3,446.00 + GST) with free shipping across India.
Description:
ESP32-S3-LCD-4 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates 16MB Flash and 8MB PSRAM. Onboard 4inch 480 × 480 LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces to quickly develop the HMI of ESP32-S3, suitable for scenarios such as smart control panel, home gateway, intelligent interactive panel, industrial control, and smart lighting control.
Features:
-
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
-
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
-
Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
-

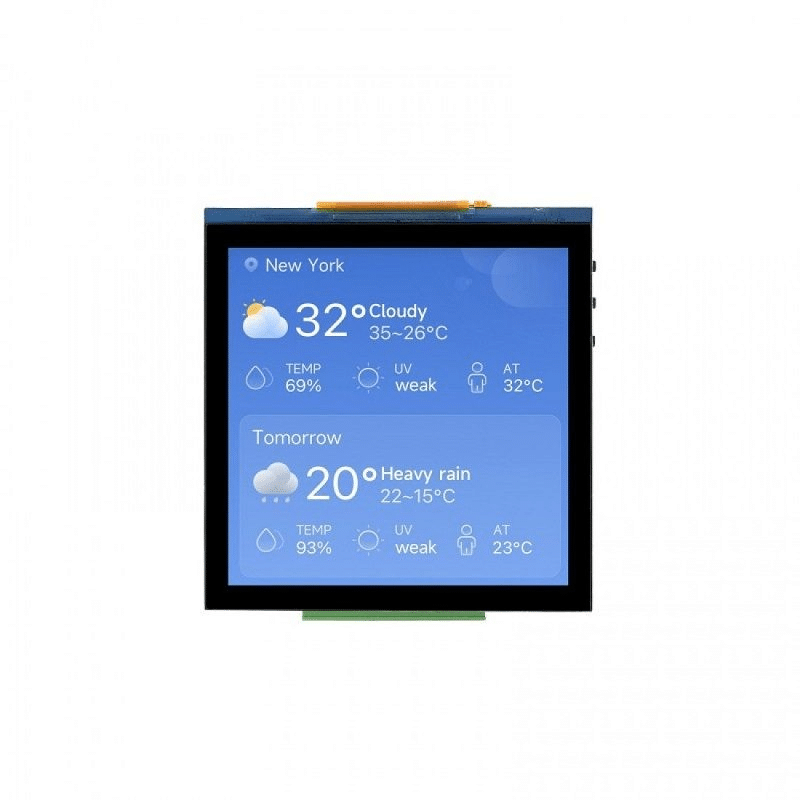

Onboard 4inch LCD display, 480×480 resolution, 65K color
-
Supports capacitive touch control via I2C interface, 5-point touch with interrupt support (for touch version only)
-

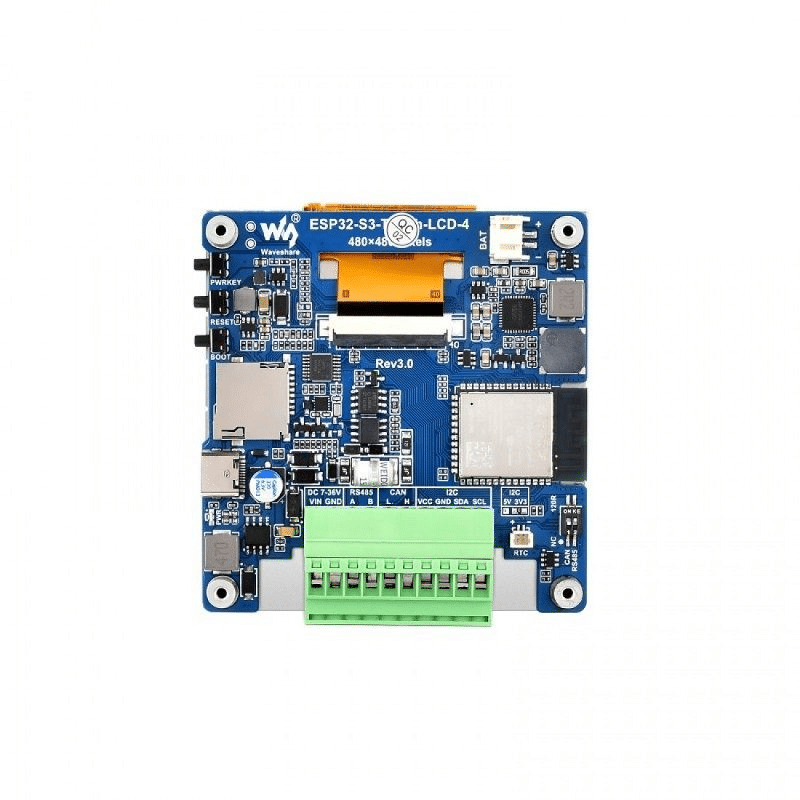

Onboard CAN, RS485, I2C interface and TF card slot, and integrates full-speed USB port
-
Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios
Specification:
| Item Type: | Development Board |
|---|---|
| Model: | Display Development Board |
| Model Name | ESP32 S3 |
| Resolution: | 480×480 |
| Processor Type: | Xtensa 32-bit LX7 dual-core processor |
| RAM Capacity: | 520KB, 8MB |
| Storage | 16MB, 384KB |
| Display Size (Inch): | 4 |
| Interface: | 1 SPI |
| Length (mm): | 75 |
| Width (mm): | 75 |
| Height (mm): | 15 |
Package Includes:
-
1 x ESP32-S3-LCD-4
-
1 x Back wiring 3.5mm pitch 10P pluggable terminal block
-
1 x Bottom wiring 3.5mm pitch 10P pluggable terminal block
IoT Device Provisioning: Zero Touch Setup for Production
IoT device provisioning zero touch setup production is the process of automatically configuring a new IoT device with...
Read More →
IoT Air Quality Network: City-Wide Pollution Monitoring
Table of Contents Air Pollution Crisis in Indian Cities Air Quality Sensors Explained Building an AQI Monitor Node...
Read More →
IoT Parking System: Ultrasonic Space Detection
Table of Contents Smart Parking Problems in India Ultrasonic Space Detection Hardware Setup and Installation Real-Time Occupancy System...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Display Size | 4" |
| Interface / Protocol | WiFi, Bluetooth |
| Frequency | 240MHz |
| Resolution | 480x480 |
| Package Quantity | 7 pcs |
| Color | Blue |
| SKU | AI7680 |
| Weight | 0.1 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare ESP32-S3 4inch Display Development Board, 480×480, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 With Display is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
