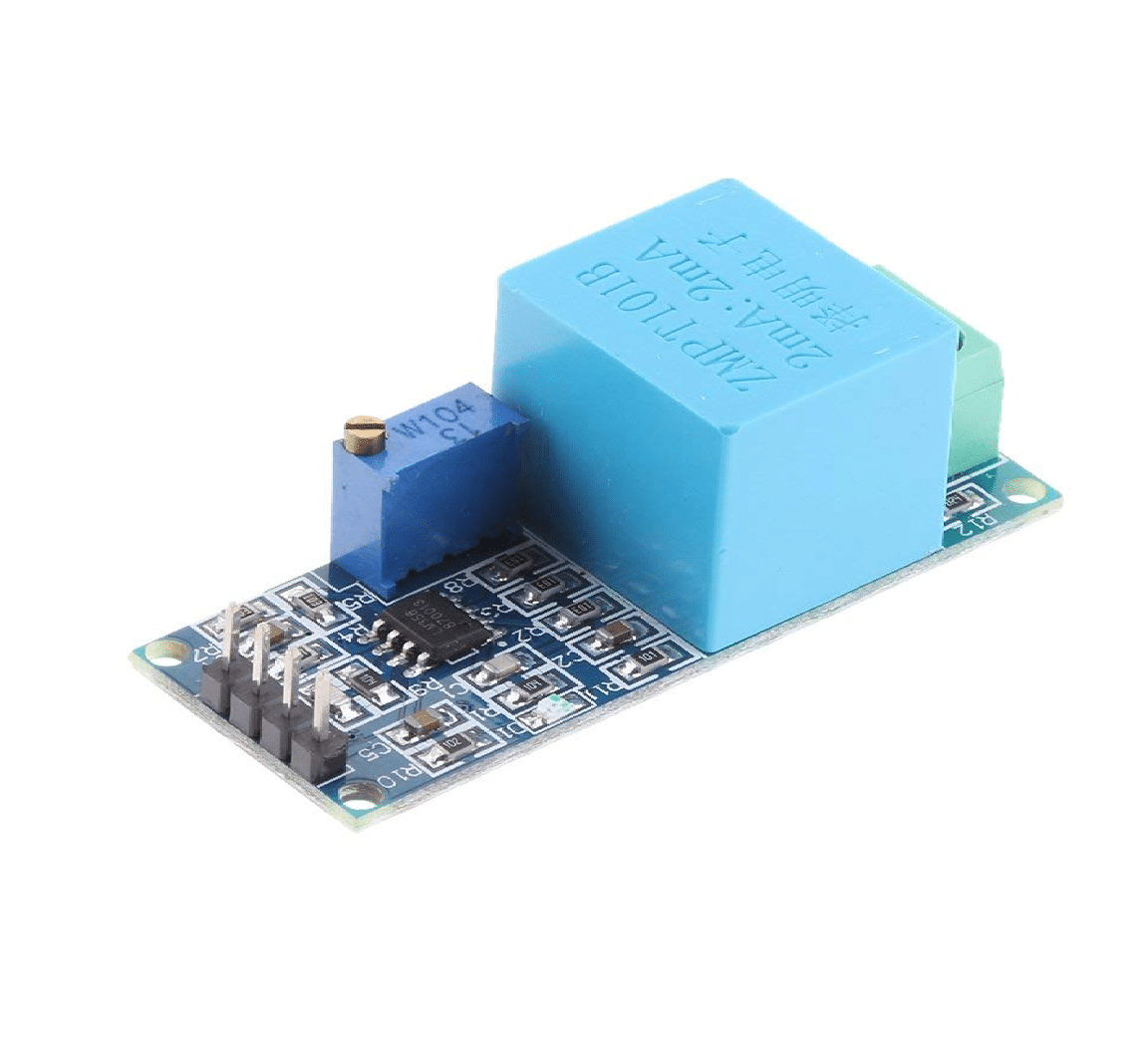

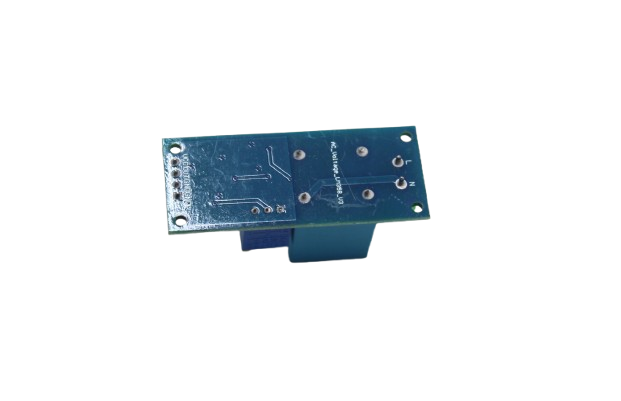

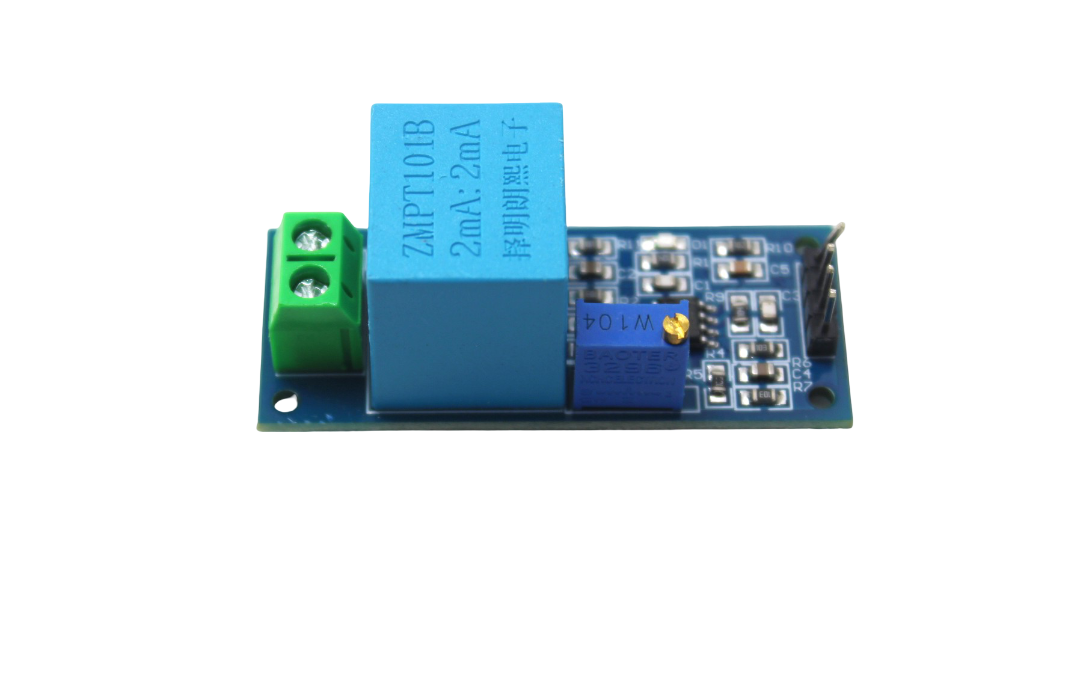

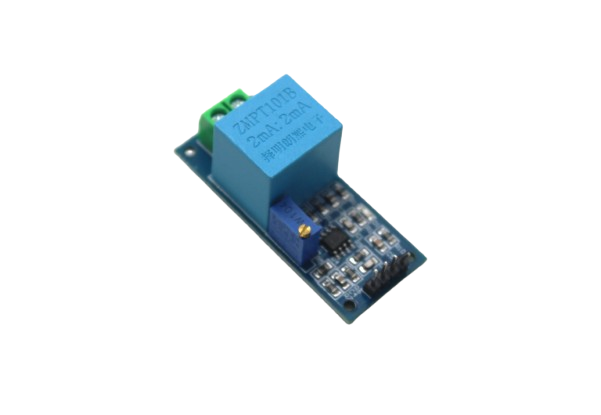

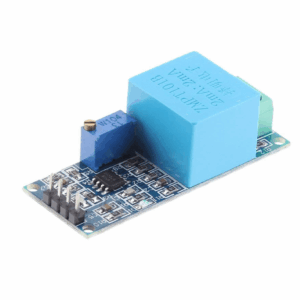

Product Description

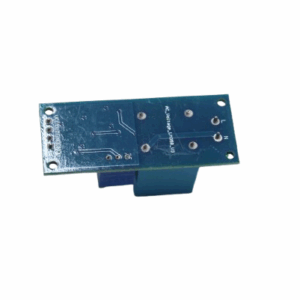

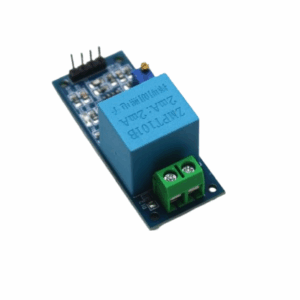

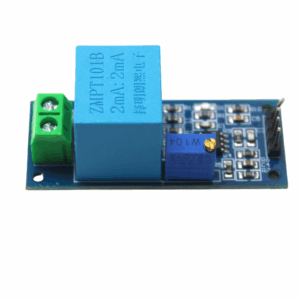

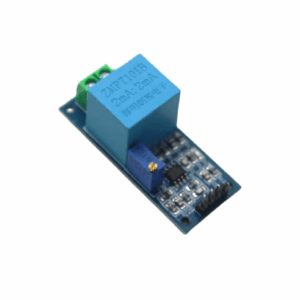

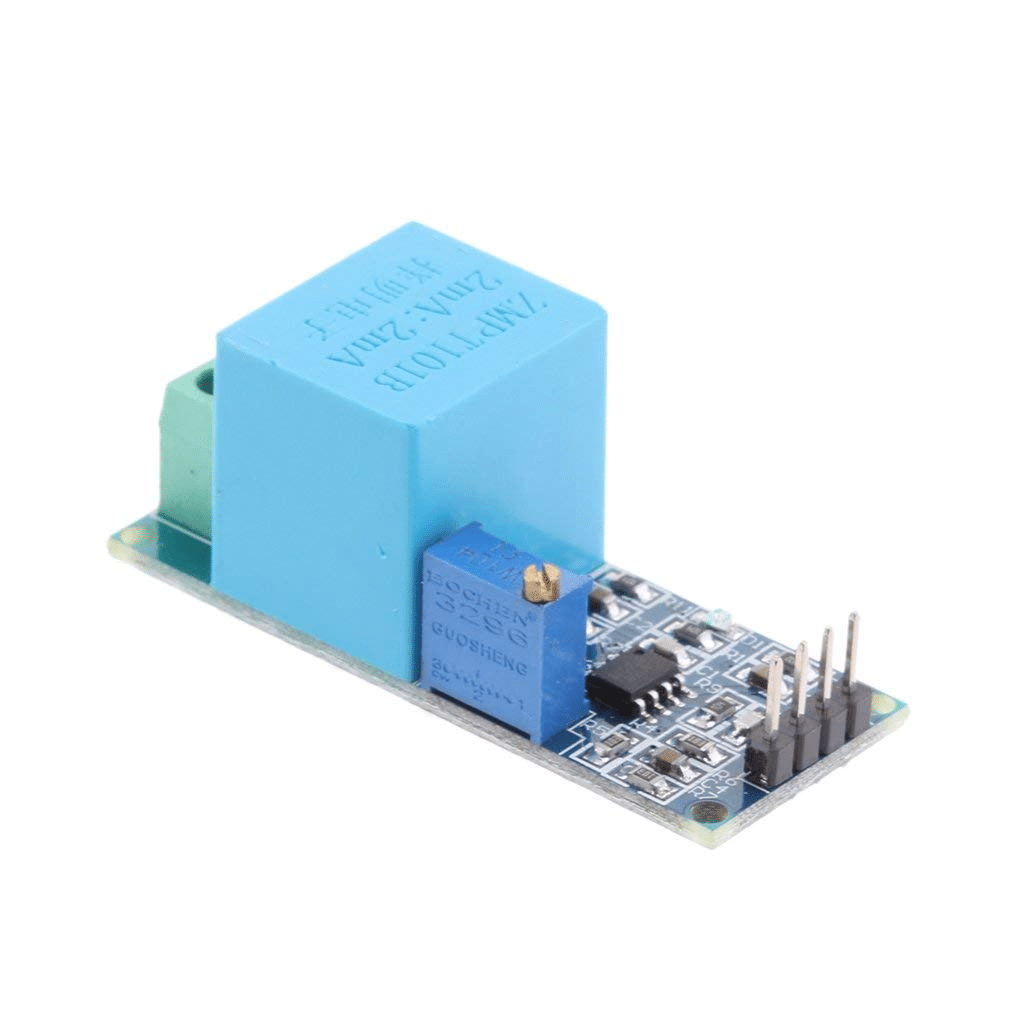

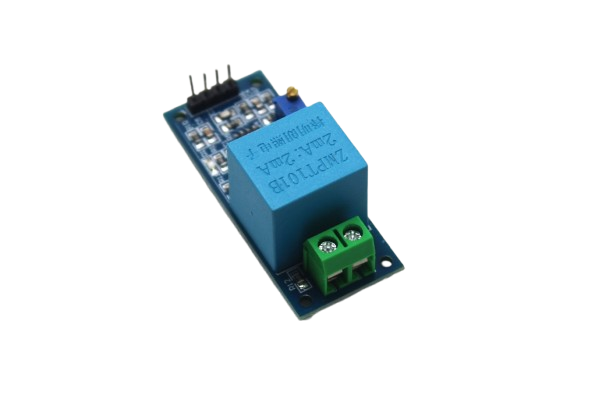

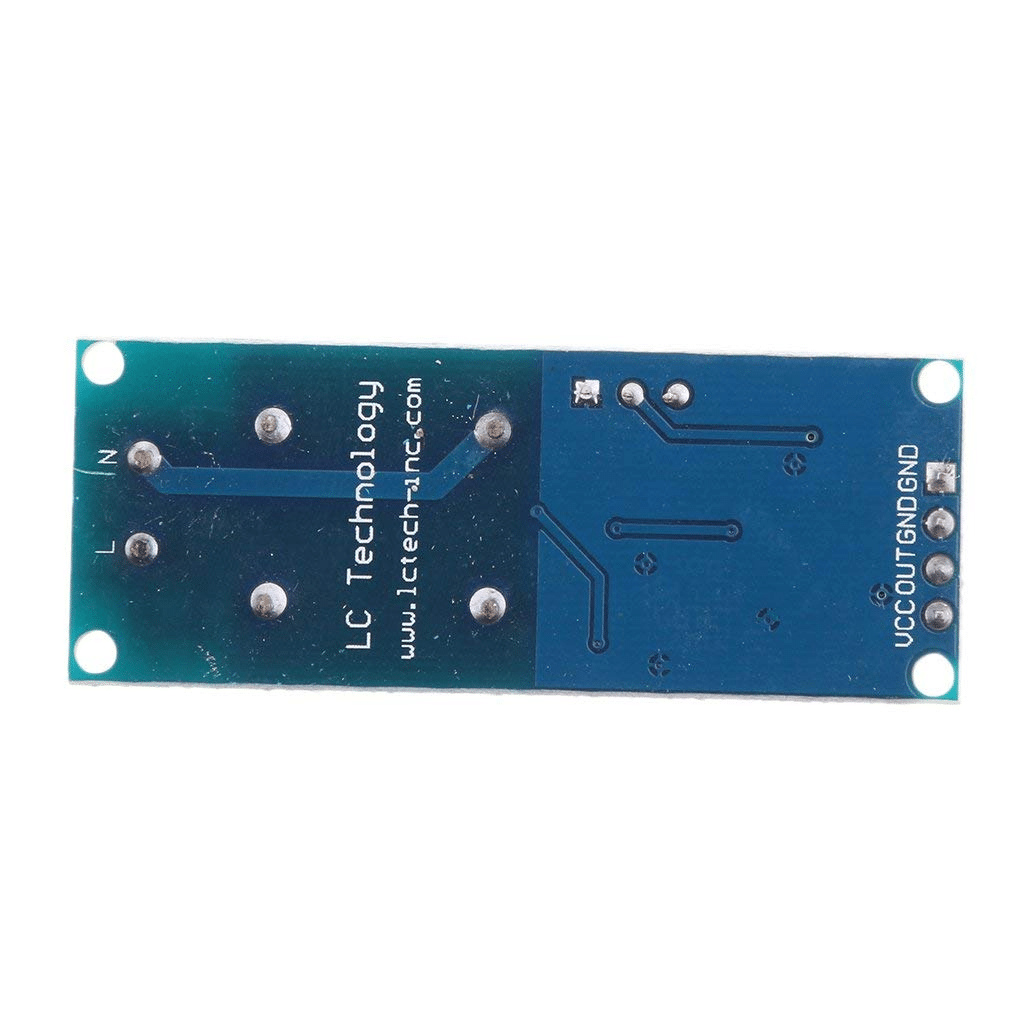

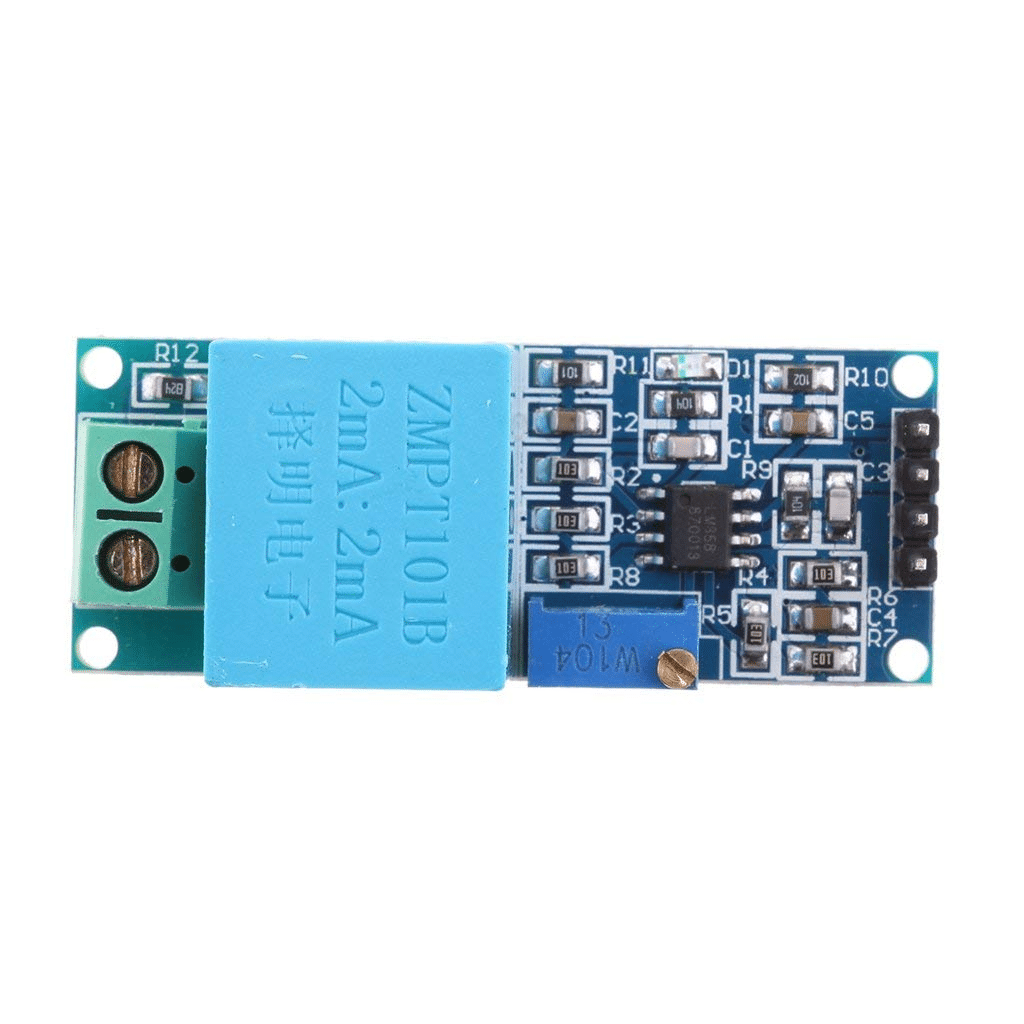

- The ZMPT101B AC Voltage Sensor is optimal for DIY projects requiring precise AC voltage measurement with a voltage transformer. It serves as an ideal component for measuring AC voltage on open-source platforms such as Arduino, ESP8266, or Raspberry Pi. Engineers often rely on it for electrical projects due to its high galvanic isolation, wide range, high accuracy, and consistent performance.
- It features an onboard precision miniature voltage transformer and an active phase AC output voltage transformer module. The module includes a precision op-amp circuit for signal sampling and compensation, ensuring accurate function. Capable of measuring up to 250V AC voltage, its analog output is adjustable. The module is a brand-new, high-quality, and high-performance product.
Features
- Low price
- Small size and lightweight
- Easy PCB mounting
- Good consistency
- Widely acclaimed
Specifications:
| Length(mm) | 50 |
|---|---|
| Width(mm) | 17 |
| Height(mm) | 20 |
| Weight(g) | 21 |
Package Includes
- 1 x AC Voltage Sensor Module ZMPT101B
Encoder Module: Position and Speed Measurement with Arduino
A rotary encoder converts the angular position and rotation speed of a shaft into electrical signals that Arduino...
Read More →
Distance Sensor Comparison: Ultrasonic vs IR vs Laser Ranging
Distance measurement is one of the most common requirements in robotics, automation, IoT, and embedded electronics. Three fundamentally...
Read More →
Capacitive Touch Sensor TTP223: Touch Button Project Build
Table of Contents What Is the TTP223 Capacitive Touch Sensor? How Capacitive Touch Sensing Works TTP223 Pinout and...
Read More →Technical Specifications
| SKU | AI0284 |
|---|---|
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The AC Voltage Sensor Module ZMPT101B (Single Phase) is a versatile sensor modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
