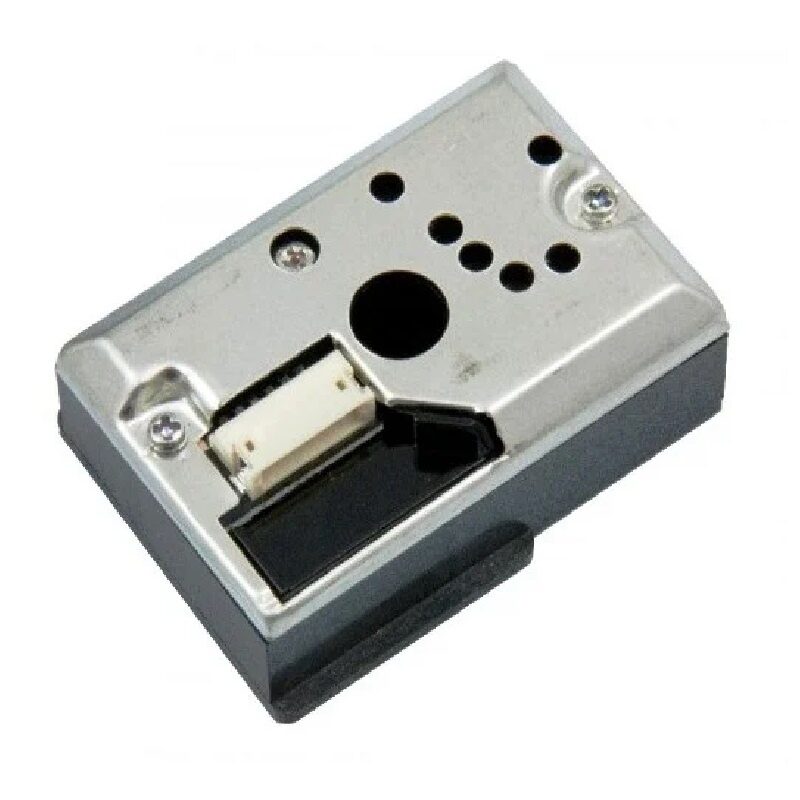

PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor

PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor

The PM2.5 GP2Y1010AU0F Dust, Smoke, and Particle Sensor uses an infrared emitting diode (IRED) and a phototransistor arranged diagonally within the device to detect reflected light from airborne dust particles. It is particularly effective at detecting fine particles, such as cigarette smoke. Additionally, the sensor can differentiate between smoke and household dust by analyzing the pulse pattern of the output voltage.

This module is commonly used in applications such as dust removal systems, air purifiers, smoke detection alarms, dust-sensing robots, fire alarms, and other industrial equipment. It is capable of detecting a variety of airborne particles, including smoke, pollen, spores, and other fine particulates.

Applications:

1. Detecting of dust in the air.
2. Example: Air purifier, Air conditioner, the Air monitor.

Features

Compliant with RoHS directive (2002/95/EC)

Compact, thin package (46.0 × 30.0 × 17.6 mm)

Low consumption current (Icc: MAX. 20 mA)

The presence of dust can be detected by the photometry of only one pulse

Enable to distinguish smoke from house dust

Lead-free and RoHS directive compliant

Specifications:

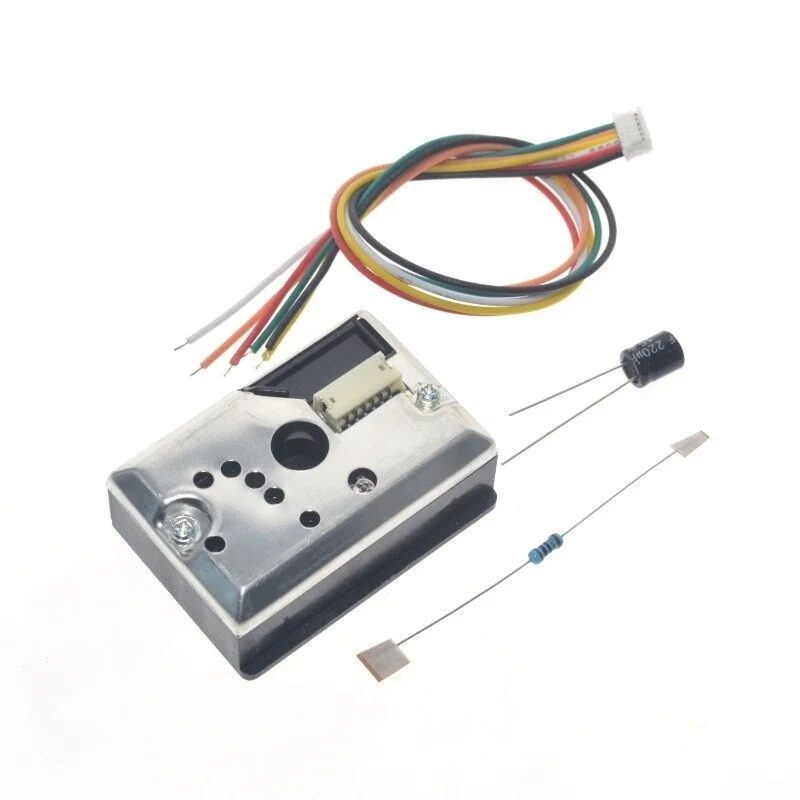

Package Includes

1 x PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor.

1 x Connecting cable.

1x 150 Ω resistor.

1 x 220 μF capacitor.

Datasheet
