This is the Green variant of the Green SN04-P2 PNP DC10-30V Inductive Proximity Sensor Switch NC 3 Line in Sensor Modules. Available at ₹201.78 (₹171.00 + GST) with free shipping across India.

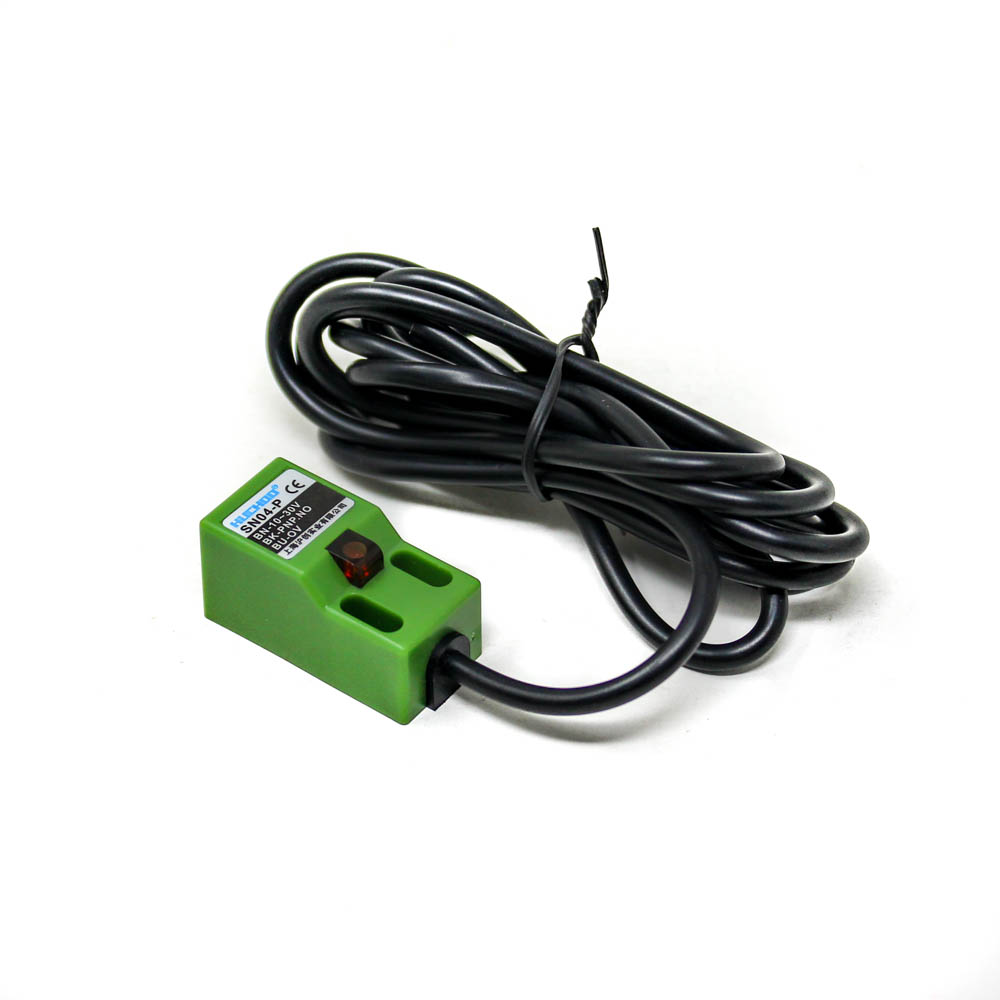

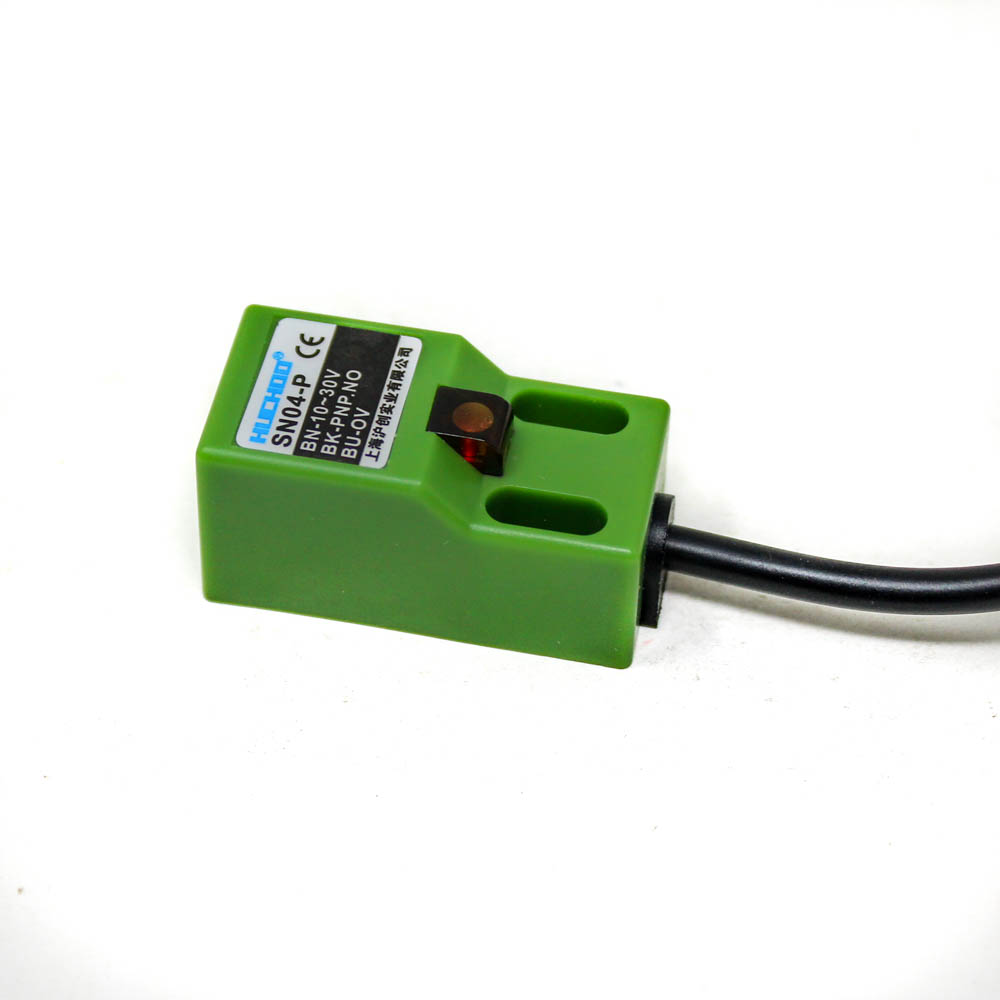

Green SN04-P2 PNP DC10-30V Inductive Proximity Sensor Switch NC 3 Line
Description:
This SN04-P PNP DC10-30V DistanceDetector Proximity Sensor Switch Module will detect the presence of a metallic object within 4mm of the surface of the sensor. The detection distance may vary slightly depending on the shape, size, and type of metal the object is made of. It can detect through thin, non-metallic materials and has an LED indicator that turns on when the device is powered and increases in brightness when an object is detected. Wire Connections:
- Brown wire: 10 ~ 30 VDC (+Ve).
- Blue wire: 0 V (GND).
- Black wire: signal.
Specification:
| Item Type: | Inductive Proximity Sensor |
| Model No. / Name: | SN04-P PNP |
| Model Series: | SN04 |
| Application: | Industrial Automation – Metal Object and Position Detection |
| Housing Size / Thread Size: | Square 18 x 18 mm |
| Sensor Technology/ Type: | Inductive |
| Cable Length | 1.5 meter |
| Sensing Material: | Ferrous & Non-ferrous Metals |
| Sensing Distance: | 5 mm |
| Output Type: | PNP-NO |
| Safety IP Rating | IP67 |
| Operating Voltage (VDC): | 10 to 30 |
| Weight (Kg): | 0.04 kg |
| Length (cm): | 3.6 |
| Width (cm): | 1.8 |
Features:
- Red LED checks the state of the proximity sensor
- High repeated positioning accuracy
- High switching frequency
- Wide voltage range
- Antivibration, dust, water, and oil prevention
- Reverse power protection, short circuit protection, directly connecting with PLC
- It can replace small switches and limit switches.
Package Includes:
1 x Green SN04-P PNP DC10-30V Inductive Proximity Sensor Switch
