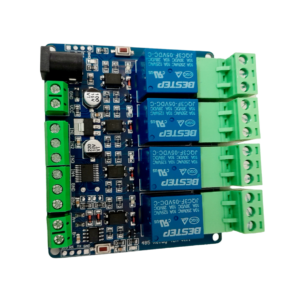

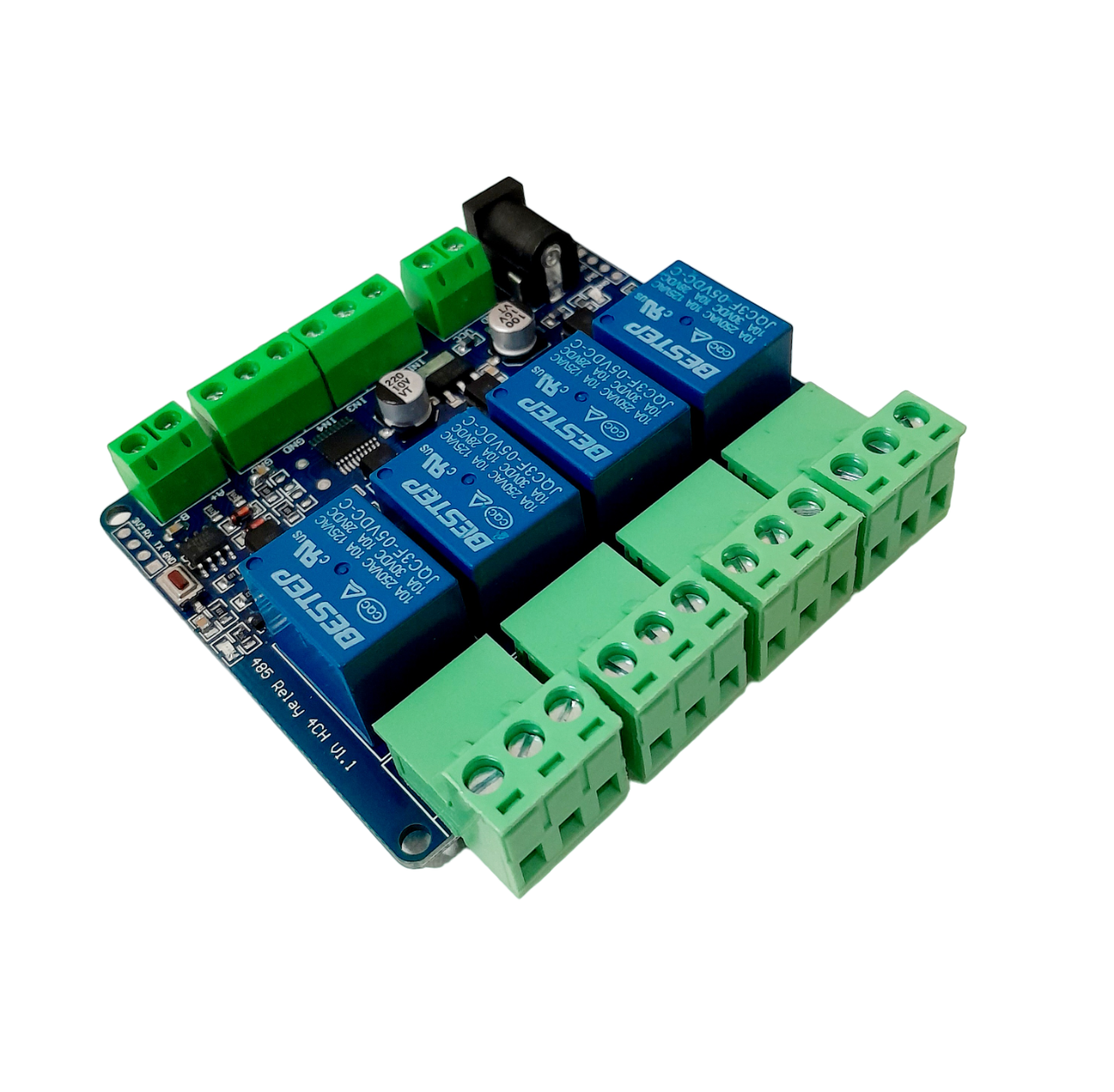

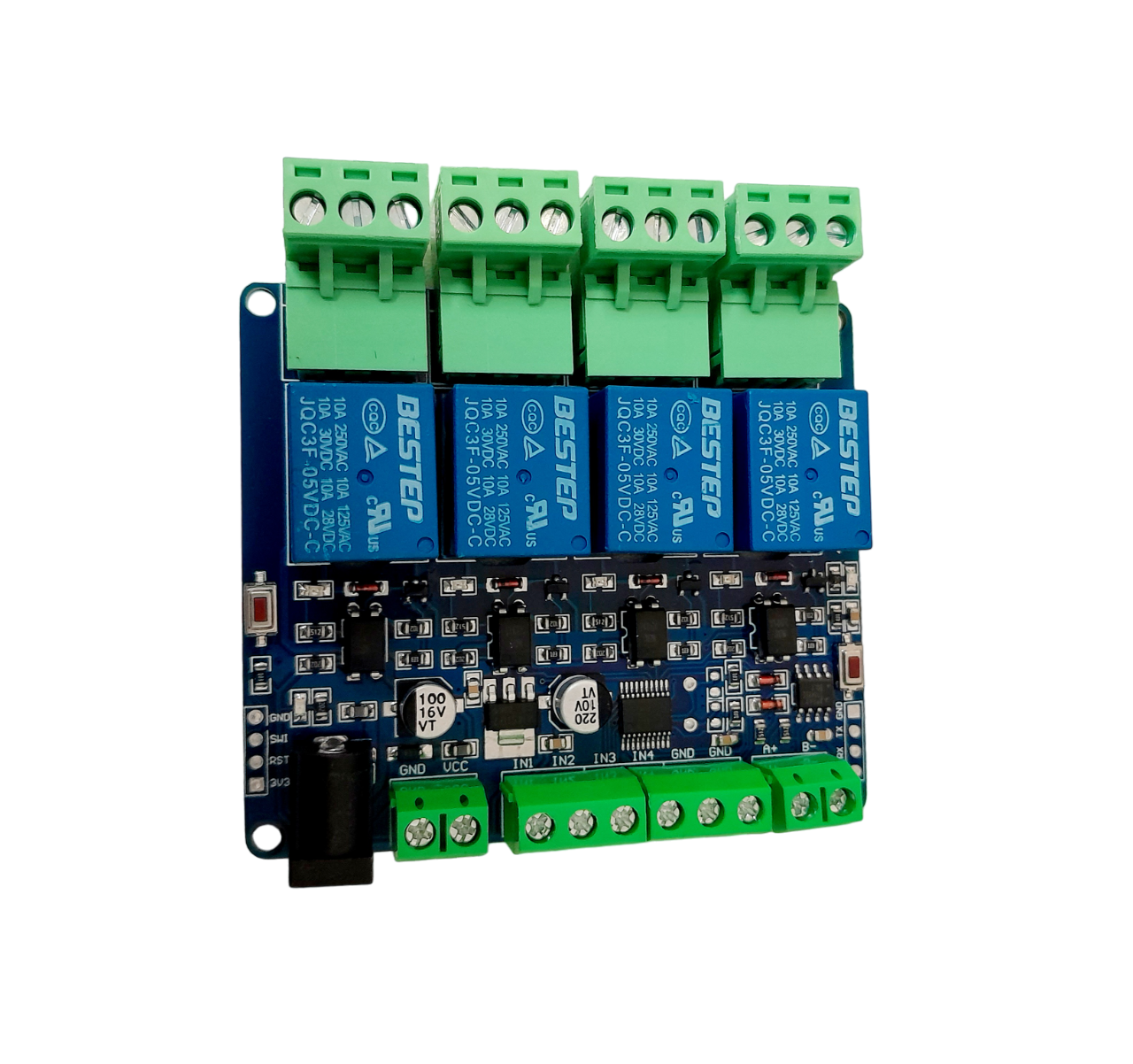

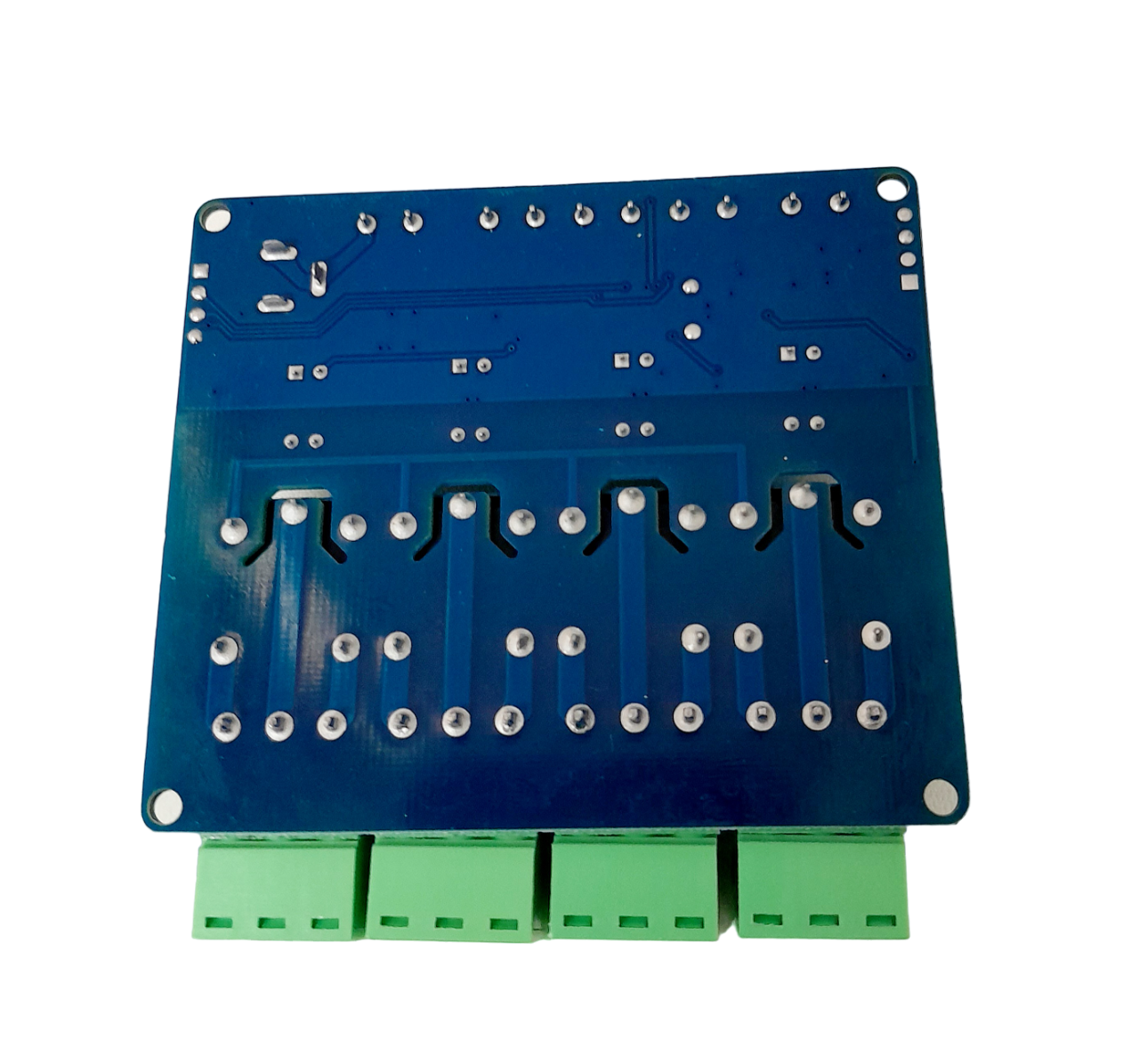

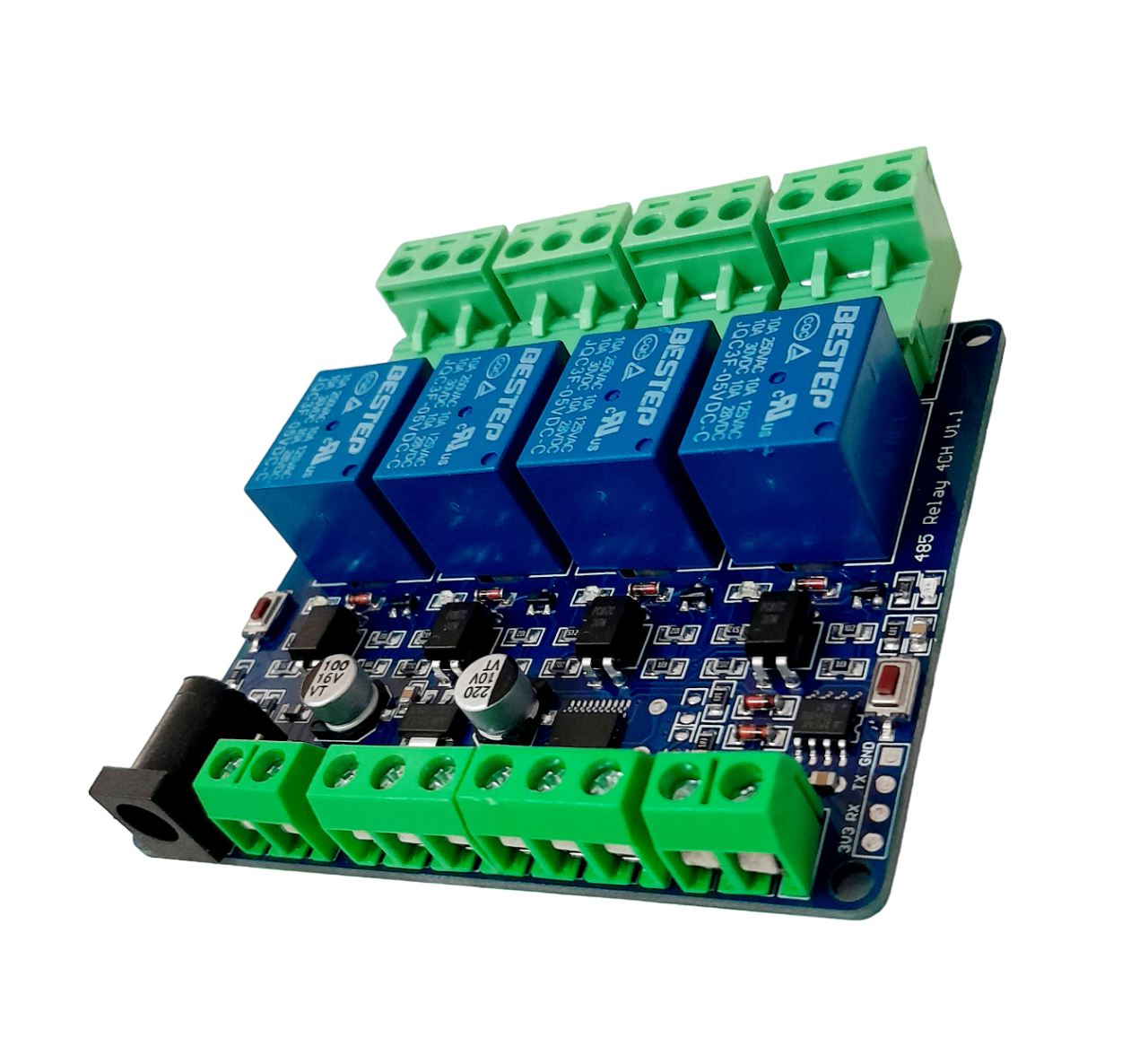

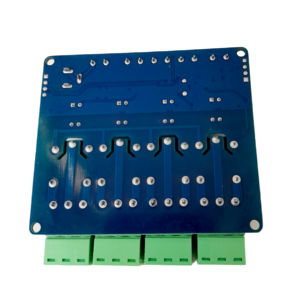

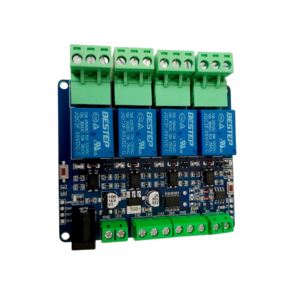

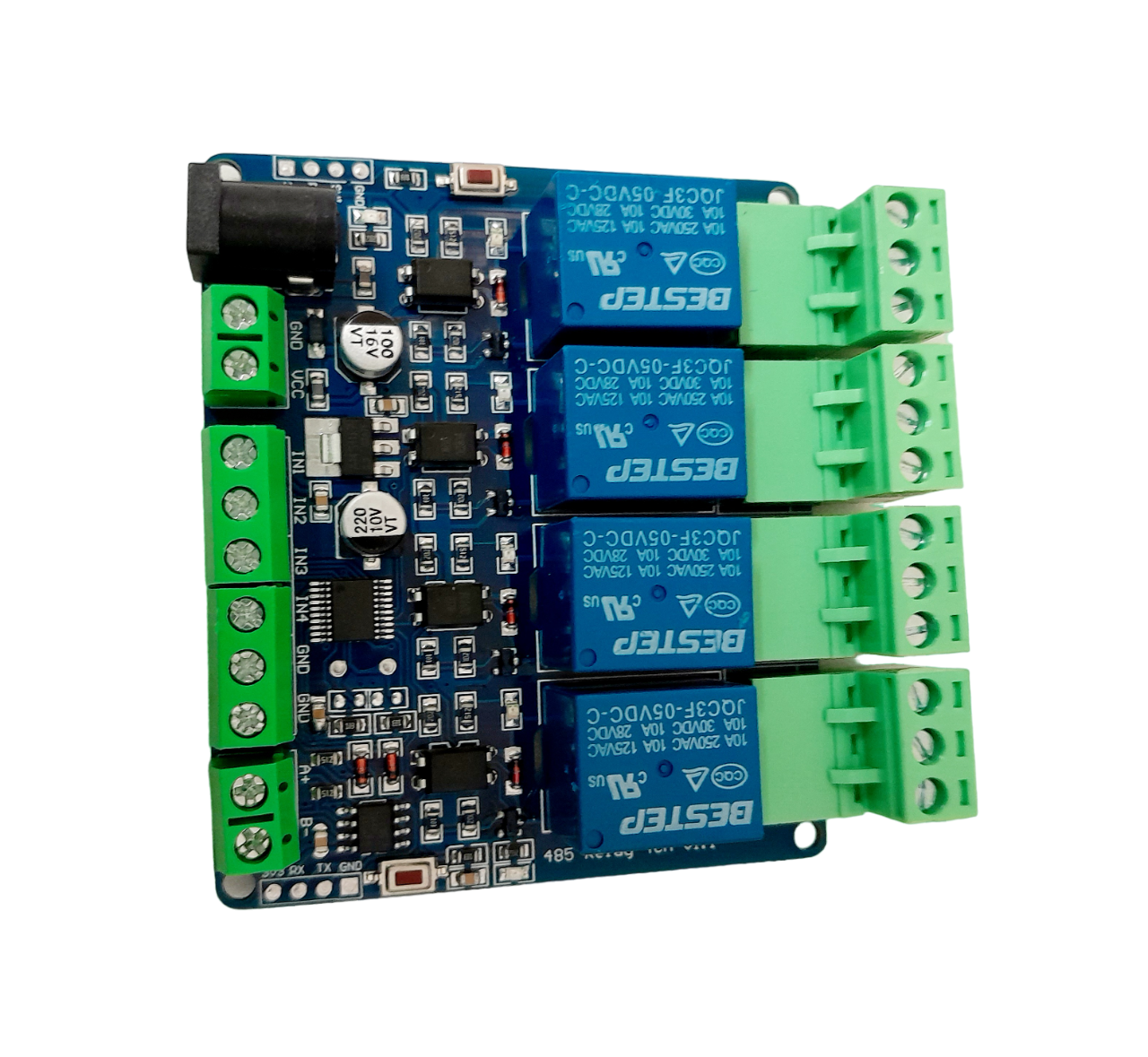

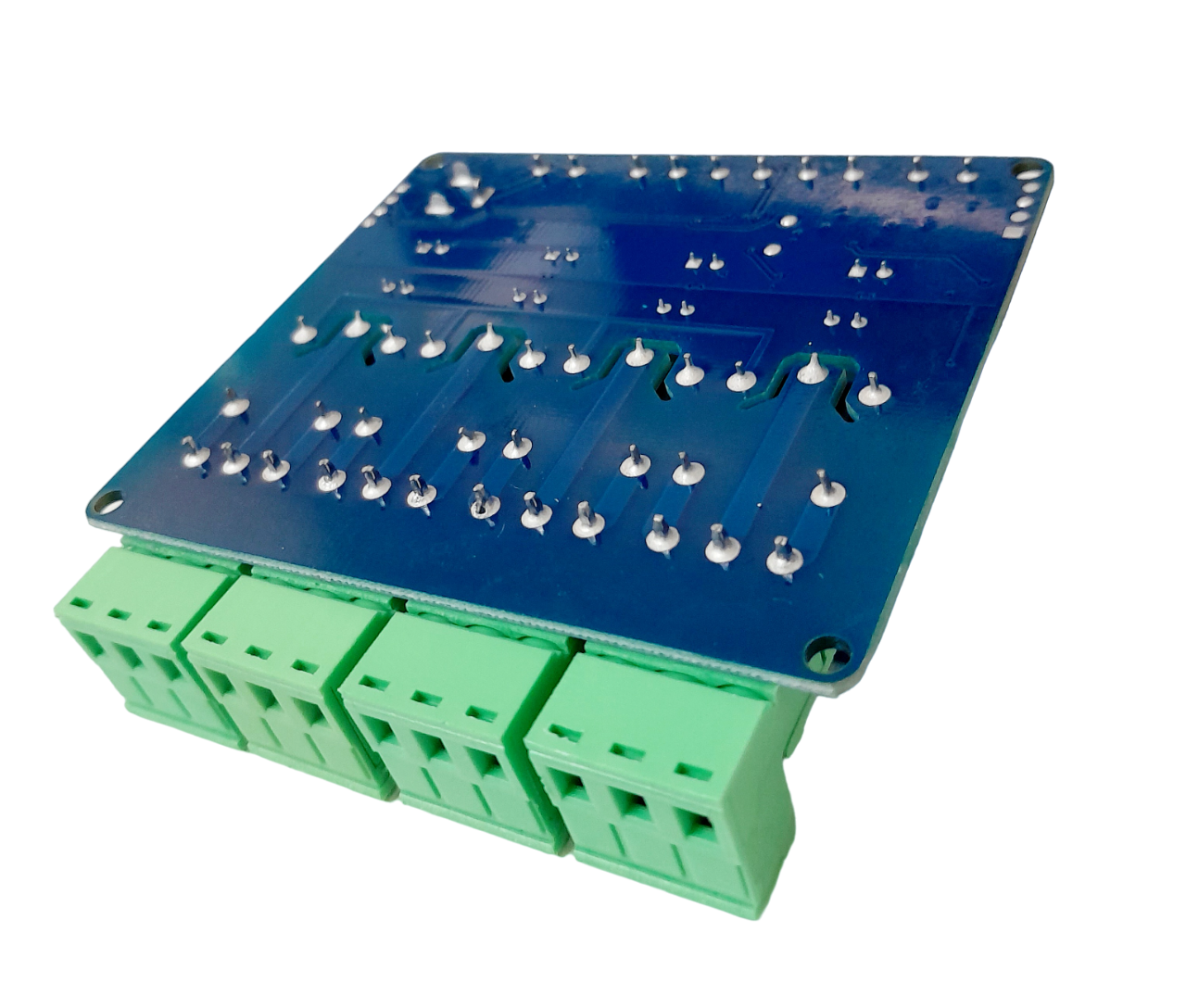

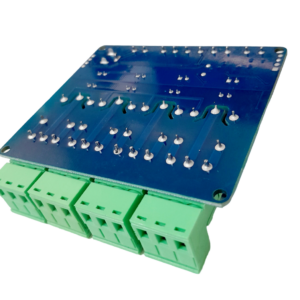

This is the 24V variant of the 7-24V Modbus RTU 4, Channels Relay Module, RS485/TTL Anti-Reverse, Connection in Relay Modules. Available at ₹742.22 (₹629.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
The LC 4-channel Modbus relay module features a reliable 8-bit MCU and an RS485 communication chip, fully supporting the MODBUS RTU protocol over RS485. This module can detect four input signals and control two relay outputs, making it ideal for applications that require digital signal detection or power control. Its robust design ensures stable performance in a variety of automation and control tasks.
Features:
- On-board mature and stable 8bit MCU and MAX485 level conversion chip
- Communication protocol: support standard Modbus RTU protocol
- Communication interface: Support RS485 / TTL UART interface
- Communication baud rate: 4800/9600/19200, default 9600bps, support power saving
- Photocoupler input signal range: DC3.3-30V (This input cannot be used for relay control)
- Output signal: relay switch signal, support manual, flash-off, flash-off mode, the delay base of flash-off / flash-off is 0.1S, the maximum settable flash-off / flash-off time is 0xFFFF * 0.1S = 65535 * 0.1 S = 6553.5S
- Device address: range 1-255, default 255, support power-down save
- Onboard one 5V, 10A / 250V AC 10A / 30V DC relay,
- Continuously attract 100,000 times, with diode leakage protection, short response time
- Onboard relay switch indicator
- Supply voltage: DC7-24V, with input anti-reverse protection
- Board Dimension(L x W x H) mm: 90 x 92 x 20
- Weight: 92gm
Specification:
| On-board Chip | MAX485 |
|---|---|
| Communication Protocol | Modbus RTU protocol |
| Communication Interface | Support RS485 / TTL UART interface |
| Operating Voltage (VDC) | 5VDC |
| No. of Channels | 4 |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 8 × 5 × 3 cm |
Package includes:
1 x 7-24V Modbus RTU 4 Channel Relay Module RS485
IoT Time-Series Forecasting: Predict Sensor Readings
Table of Contents Time-Series Data in IoT Forecasting Methods Overview ARIMA for Sensor Data Prophet for IoT Predictions...
Read More →
ESP32 Wakeup Sources: GPIO, Timer and Touch Triggers for Deep Sleep
Understanding ESP32 wakeup sources for deep sleep is essential for building battery-powered IoT devices that last weeks or...
Read More →
LoRaWAN with ESP32 and TTN: Low Power Wide Area IoT
If you are looking to build long-range, low-power IoT devices, LoRaWAN with ESP32 and TTN (The Things Network)...
Read More →Technical Specifications
| Interface / Protocol | RS485, TTL |
|---|---|
| SKU | AI3328 |
| Weight | 0.11 kg |
| Availability | In Stock |
Applications & Use Cases
The 7-24V Modbus RTU 4, Channels Relay Module, RS485/TTL Anti-Reverse, Connection is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
