This is the 5V variant of the 5V 4 Channel SSR Solid State Relay Module 240V 2A Output with Resistive Fuse in Relay Modules. Available at Original price was: ₹477.90.₹368.16Current price is: ₹368.16. (₹312.00 + GST) with free shipping across India.

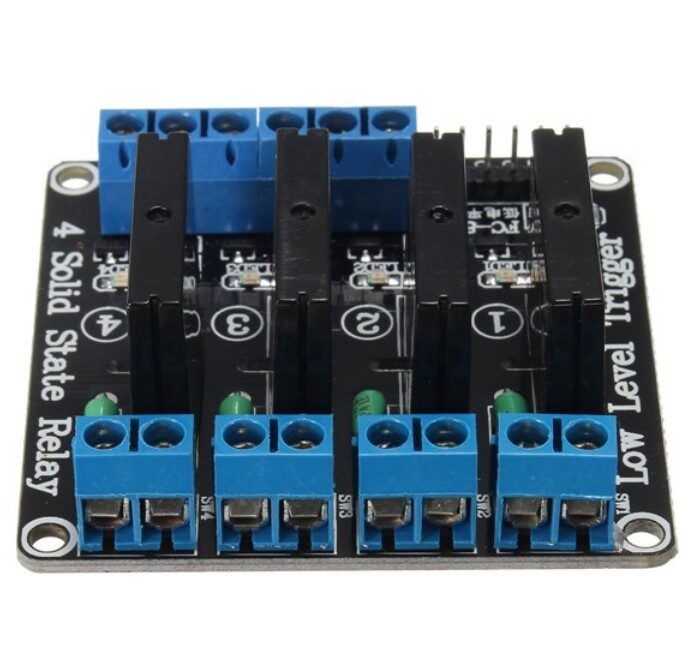

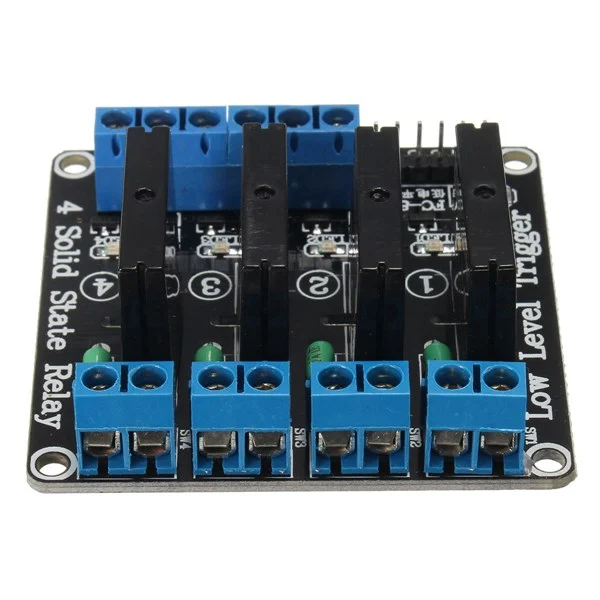

5V 4 Channel SSR Solid State Relay Module 240V 2A Output with Resistive Fuse

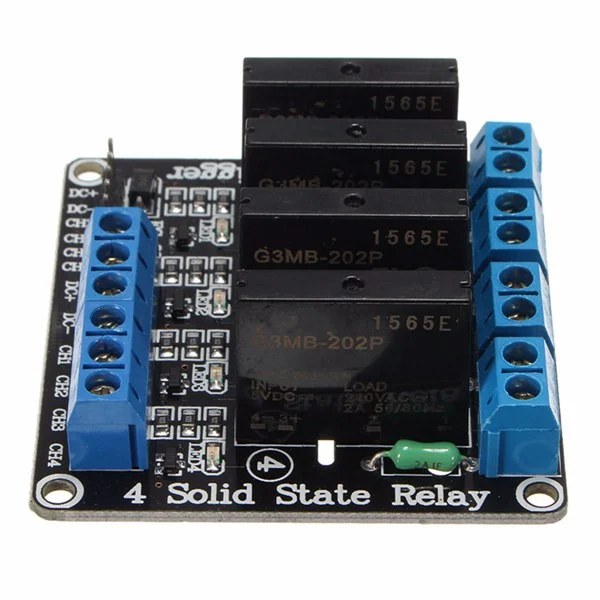

This module contains four Solid State Relays (SSRs) that can control up to 2A at 240VAC each. The SSRs are based on the Omron G3MB model and have built-in resistive fuses. Each SSR has three terminals: NO (Normally Open), COM (Common), and NC (Normally Closed).
A Solid-State Relay works like a mechanical relay, but without noise or wear and tear. It can switch on or off a device by using a digital signal. When the signal is applied, the NC terminal disconnects from the COM terminal, and the NO terminal connects to the COM terminal. The device connected to the SSR will turn on or off depending on how it is wired.
Note: Actual product may

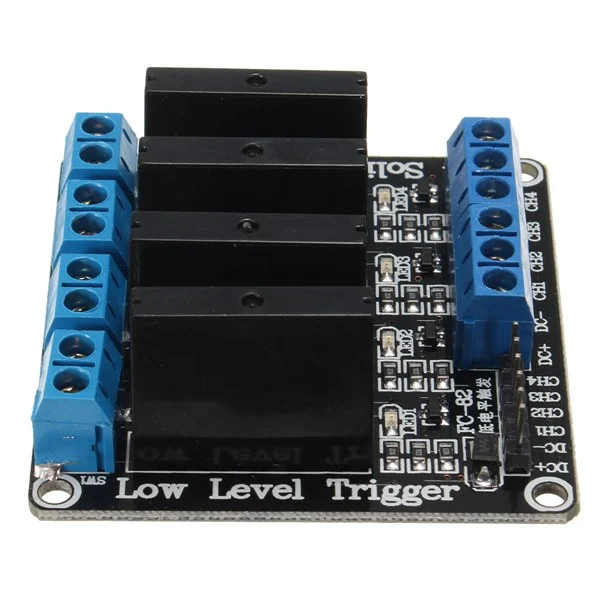

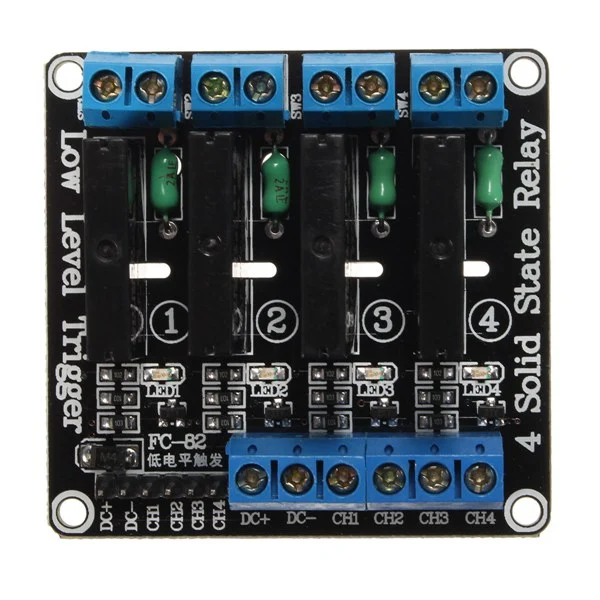

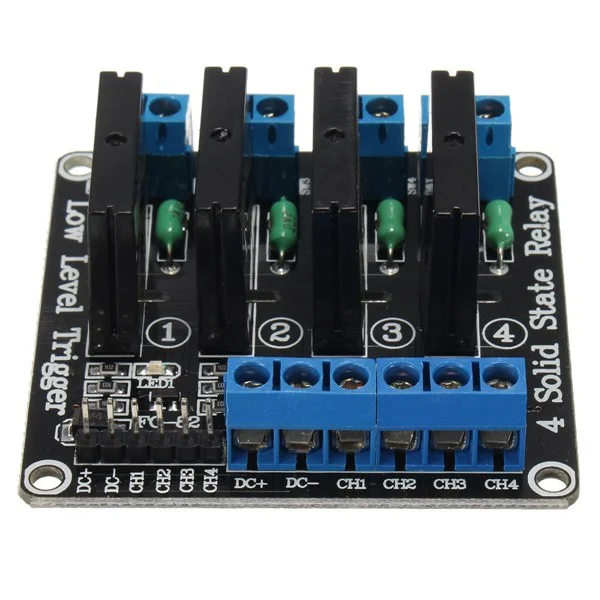

Input parts:
- DC+: connect power positive.
- DC-: connect power negative.
- CH1: relay module signal trigger point (Effective low-level trigger)
- CH2: relay module signal trigger point (Effective low-level trigger)
- CH3: relay module signal trigger point (Effective low-level trigger)
- CH4: relay module signal trigger point (Effective low-level trigger)
Features
- Has been assembled, and the electrical test passed.
- Led indicator for each relay.
- Use it to control various appliances and other equipment with large current.
- It can be controlled directly by Microcontroller.
- Input control signal voltage:
- 0-2.5V status low level, relay OFF.
- 3-5V status high level, relay ON
Specification:
| Trigger Current (mA) | 2 |
|---|---|
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 240@2A |
| Max. Load | 2A @240V AC |
| Length (mm): | 57 |
| Width (mm): | 55 |
| Height (mm): | 25 |
| Weight (g): | 38 |
Package Includes
1 x 5V 4 Channel SSR Solid State Relay Module
ESP32 Bluetooth Classic: SPP Serial Communication Guide
While BLE (Bluetooth Low Energy) gets most of the attention today, ESP32 Bluetooth Classic SPP (Serial Port Profile)...
Read More →
ESP32 Bluetooth Serial: Send Data to Android App (Tutorial)
One of the most practical features of the ESP32 is its built-in Bluetooth Classic support, which includes the...
Read More →
ESP32 SPIFFS and LittleFS: Store Files in Flash Memory
One of the most powerful yet underused features of the ESP32 is its ability to store files directly...
Read More →Technical Specifications
| Voltage Range | 5V - 240V |
|---|---|
| Current Rating | 2A |
| Channels | 4-channel |
| SKU | AI0910 |
| Weight | 0.05 kg |
| Availability | In Stock |
Applications & Use Cases
The 5V 4 Channel SSR Solid State Relay Module 240V 2A Output with Resistive Fuse is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
