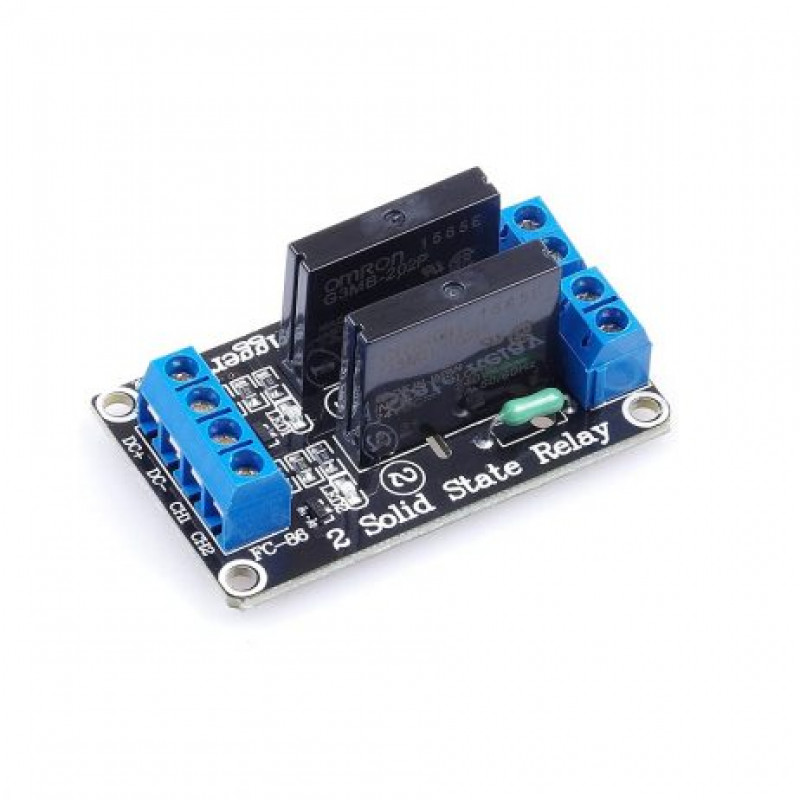

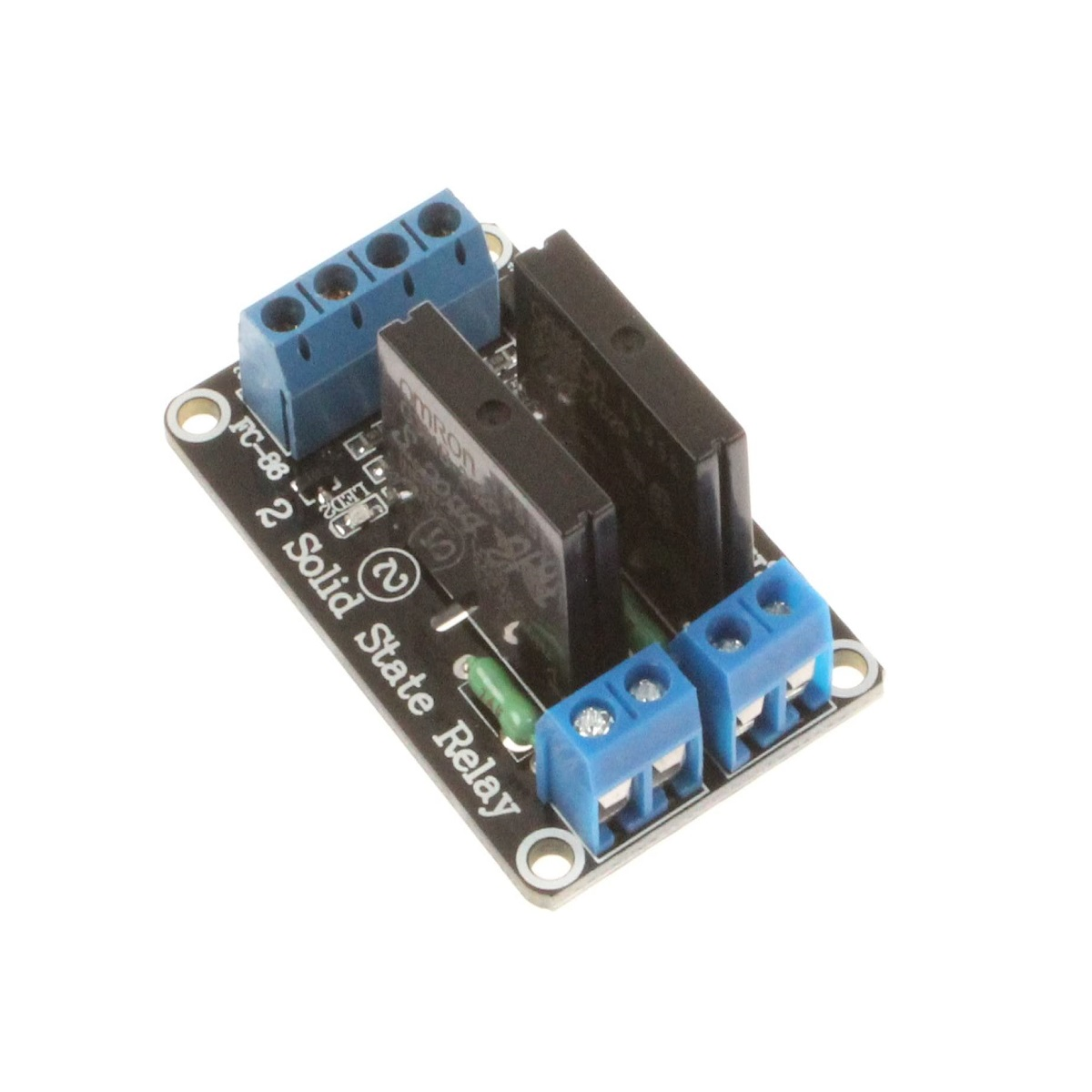

This is the 12V variant of the 2 Channel 12V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse in Relay Modules. Available at Original price was: ₹218.30.₹186.44Current price is: ₹186.44. (₹158.00 + GST) with free shipping across India.
This is a 2 Channel 12V Solid State Relay Module. A solid-state relay (SSR) is just what it sounds like an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from Higher voltage DC control circuitry. They accomplish this by using infrared light as the ‘contact,’ a solid-state relay is really just an IR LED and a photo Triac sealed up into a little box. Solid-state relays have several advantages over mechanical relays.
A Solid-state relay is similar to a mechanic relay where it can be controlled through a digital signal. solid state relay generates no noise and has a much longer lifespan compared to the traditional mechanic relay.
When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.
Input Parts:
- DC+: connected to VCC (Supply power according to relay voltage)
- DC-: connected to GND.
- IN1: CH1 Signal triggering the end of 1-channel relay module (active at the Low level)
- IN2: CH2 Signal triggering the end of 2-channel relay module (active at the Low level)
Features:
- 2-channel 2 AMP Solid State Relay board.
- Control 2 loads of up to 2 amps each at 240 VAC.
- Good for lighting, Holiday displays, etc.
- Has been assembled, and the electrical test passed.
- Led indicator for each relay.
- Use it to control various appliances and other equipment with a large current.
- It can be controlled directly by a Microcontroller.
Specification:
| Part Number | G3MB-202P |
|---|---|
| Power supply | 3-24VDC/160mA |
| Switching Voltage (VAC) | 240@2A |
| Isolation | Phototriac |
| Zero Cross | Yes |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 5 × 4 × 1 cm |
Package Includes:
1 x 2 Channel 12V Relay Module Solid State High-Level SSR DC Control 250V 2A with Resistive Fuse
ESP32 USB HID: Emulate Keyboard and Mouse from Microcontroller
The ability to use ESP32 USB HID keyboard mouse emulation opens up a world of automation possibilities that...
Read More →
ESP32 Hall Effect Sensor: Magnetic Field Detection Guide
Did you know the ESP32 has a built-in hall effect sensor right inside the chip? The ESP32 hall...
Read More →
Tasmota Firmware: Flash Smart Plugs and Sensors for IoT
Flashing Tasmota firmware on smart plugs and IoT sensors is the single most impactful thing you can do...
Read More →Technical Specifications
| Voltage Range | 12V - 250V |
|---|---|
| Current Rating | 2A |
| Channels | 2-channel |
| SKU | AI4139 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The 2 Channel 12V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
