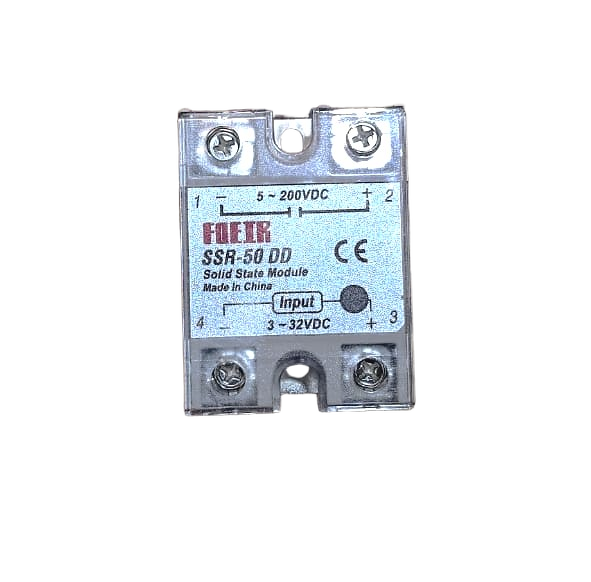

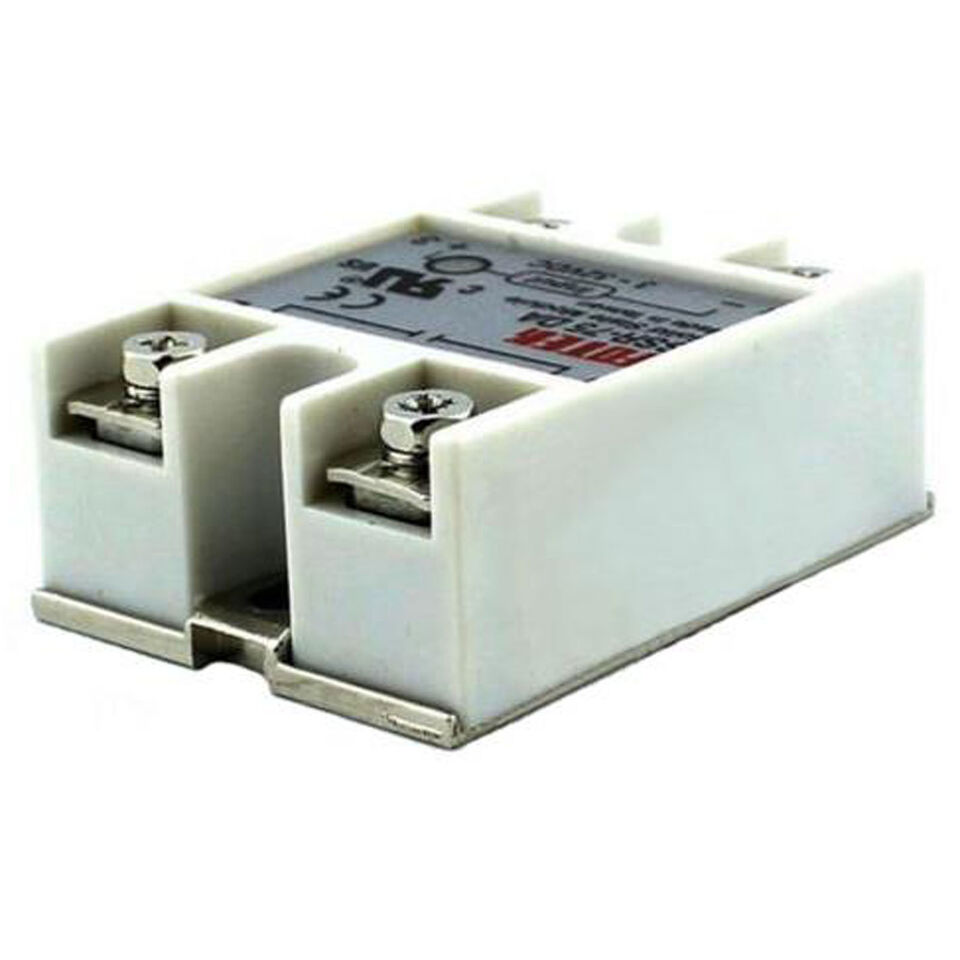

This is the 60V variant of the Fotek 5-60V SSR-50DD Solid State Relay in Relays, Solid State Relays. Available at ₹630.12 (₹534.00 + GST) with free shipping across India.
The DC To DC SSR-50DD Solid State Relay Module (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low-voltage signal which is isolated optically from the load.

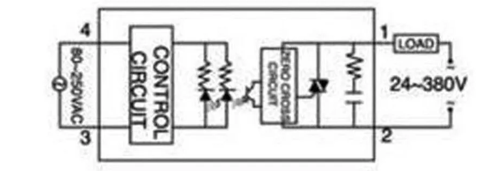

The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity
- Long service life and high reliability
- Reduced electromagnetic interference
- Model: SSR-50 DD.
- Input voltage: 3-32VDC.
- Output voltage: 5-200VDC.
- Output current: 50A.
- One-off Time: 10ms.
- Off leakage Current: 2mA.
Note：DD Means Direct Current Controlled Direct Current
Package Includes:
1 x Fotek 5-60V SSR-50DD Solid State Relay
IOT Based Aquaculture
IoT Based Aquaculture Abstract - Aquaculture, also known as aqua farming, is the farming of aquatic organisms such...
Read More →
ESP32-S3 vs ESP32-S2: AI and USB Features Compared
Espressif's ESP32-S series has expanded rapidly, and two of the most popular members are the ESP32-S2 and ESP32-S3....
Read More →
ESP32 I2C Scanner: Find Unknown Sensor Addresses Fast
Using an ESP32 I2C scanner to find unknown sensor addresses is the fastest way to solve one of...
Read More →Technical Specifications
| Model | SSR-50DD |
|---|---|
| SKU | AI3696 |
| Weight | 0.12 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Fotek 5-60V SSR-50DD Solid State Relay is a versatile solid state relays used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
