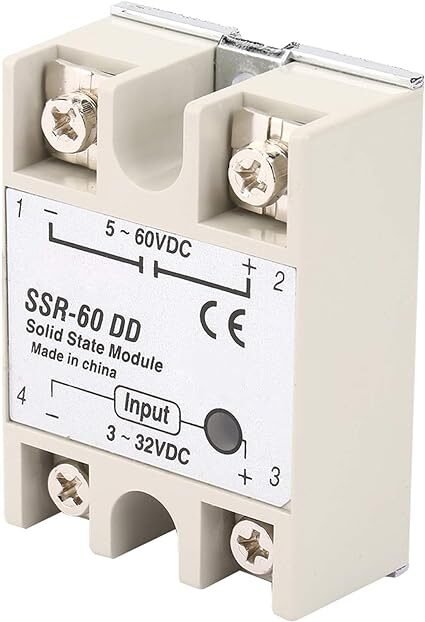

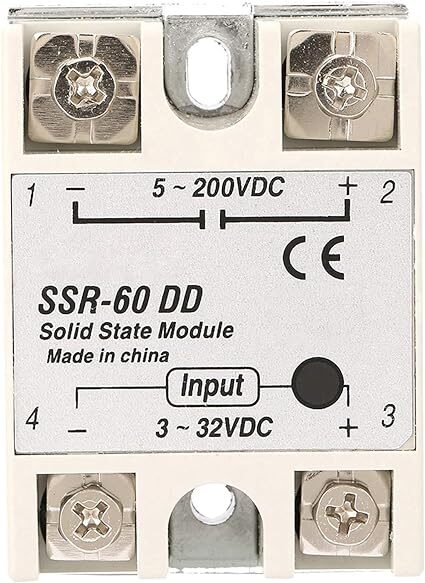

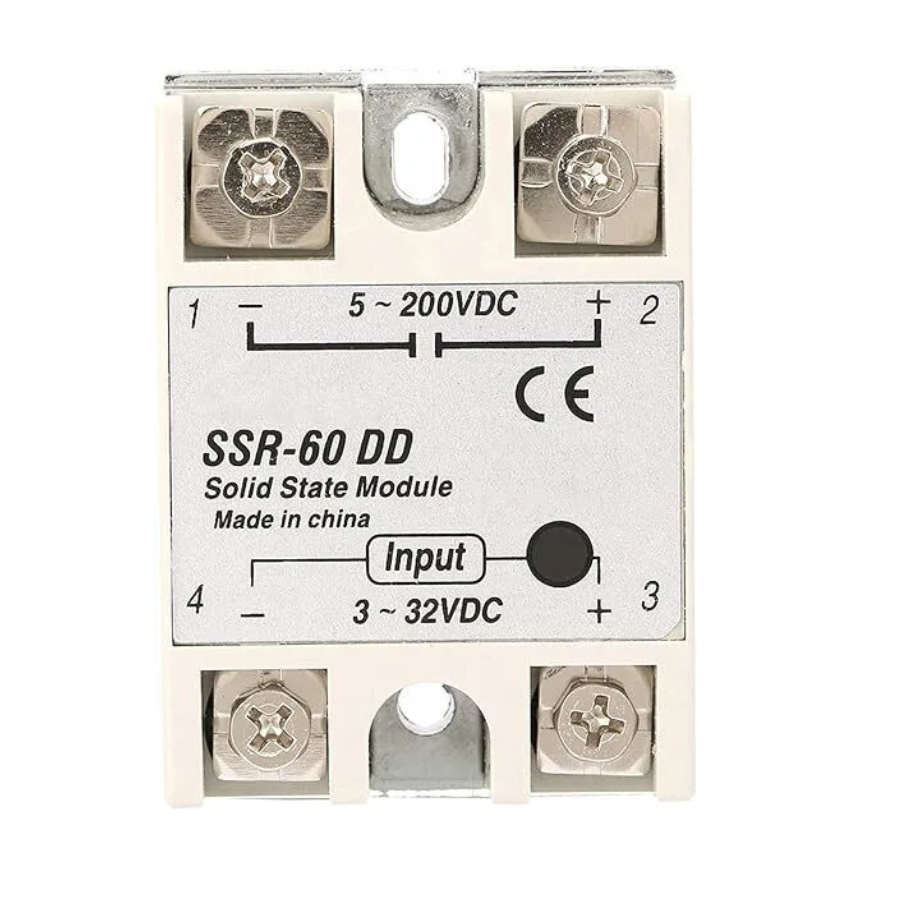

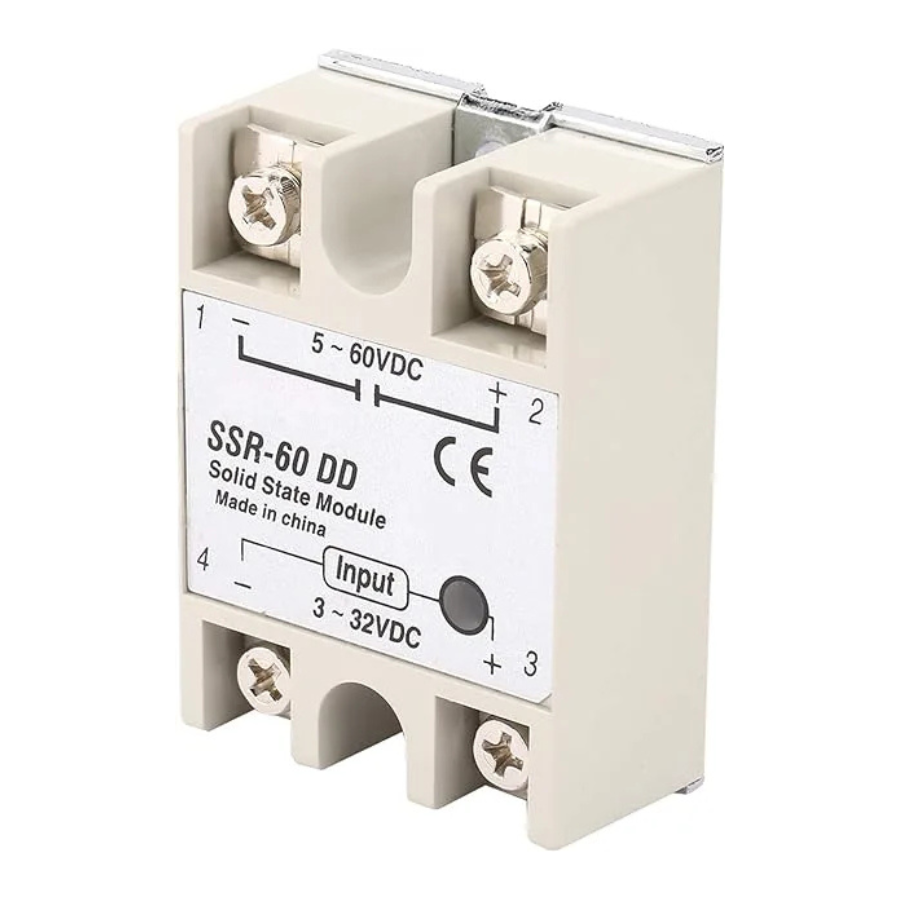

The DC To DC SSR-60DD solid state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low-voltage signal which is isolated optically from the load.
The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity
 specification-
| Dielectric Strength | Over 2.5kVA / 1 min |
|---|---|
| Trigger Voltage (VDC) | 3-32VDC |
| Switching Voltage (VDC) | 5-200 |
| Operating Temperature (°C) | -20 to 85 °C |
| Material | ABS |
| Length (mm) | 45.5 |
| Width (mm) | 62.5 |
| Height (mm) | 24 |
| Weight (gm) | 93 |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 12 × 9 × 2 cm |
Package Includes:
1 x 5-200V SSR-60DD Solid State Relay
