This is the 12V variant of the 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module in Battery Protection Board. Available at ₹51.45 (₹43.60 + GST) with free shipping across India.
Description:
The 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module is designed for a series combination of three 18650 batteries or polymer lithium batteries. It can charge lithium batteries with a rated voltage of:
- 10.8V for polymer batteries
- 11.1V for 18650 or 3.7V batteries
- 12.6V maximum
It can also discharge up to 10A (the maximum current limit for discharge). The module has built-in protection against over-charging, over-discharging, over-current, and short circuit.
Formula Expansion
- 1C battery expansion: 2000mAh capacity equals 2Ah × 1 = 2A upper limit of current
- 3C battery expansion: 2000mAh capacity equals 2Ah × 3 = 6A upper operating current
Note: If the battery gets heated, do not use it, as long-term use in this situation will damage the battery.
Notes:

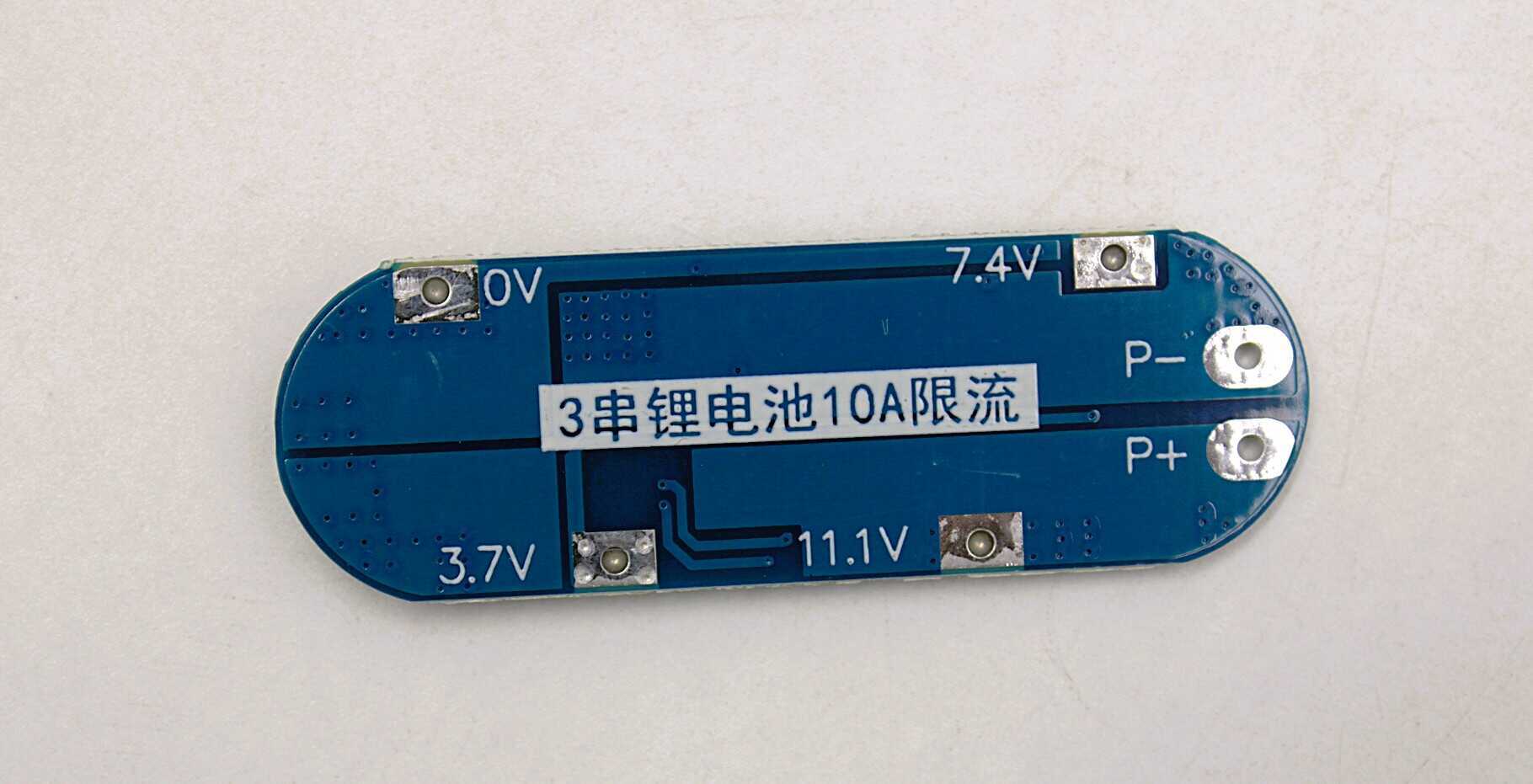

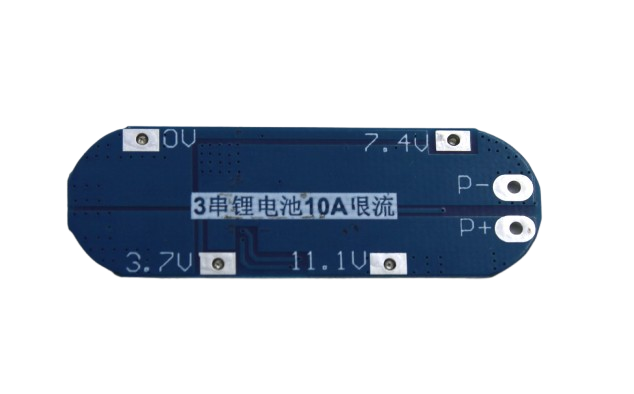

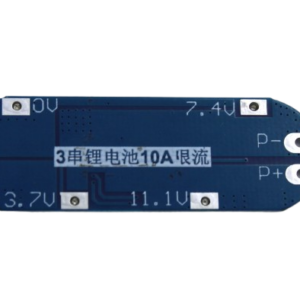

- Strictly follow the drawing wiring: 0 V (B), 3.7 V (B1), 7.4 V (B2), 11.1 V (B+). Do not intentionally short circuit!
- Once the first line is charged, it will have output.
- When connecting three battery groups, ensure the voltage of each battery group is the same. If not, charge each battery separately before using in series. During discharge, the fastest voltage drop identifies the lowest battery group.
Warning:
This protection board is not compatible with:
- Lithium iron phosphate batteries
- Xenon lamps
- Cordless drill batteries
- Electric fishing batteries
- Electric bike batteries
- Children’s car batteries
- 775 (4A) motors
- 1W fish eye LED lights
This protection board can be used as a power source for:
- Rechargeable massager
- LED emergency light
- 12V electronic devices
- Solar street light batteries
- Backup monitor power
- Other similar products

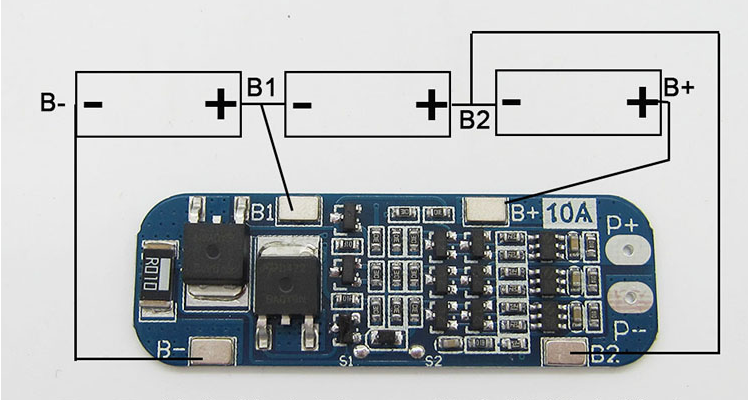

Connection Diagram:
Features:
- Operating current: 6–8A
- Current limit: 10–13A
- Storage condition: -40 to +80℃
- Resting current: less than 30µA
- Effective lifetime: over 30,000 hours
- Internal resistance: less than 100mΩ
- Short-circuit protection: included
- Self-recovery delay
Specification:
| Battery | 3 Cell |
|---|---|
| Overcharge detection voltage (V) | 4.25 ± 0.025 |
| Over-discharge detection voltage (V) | 2.50 ± 0.08 |
| Over current Protection (A) | 13 |
| Working current (A) | 8 |
| Operating Temperature (°C) | -40 ~ +50 |

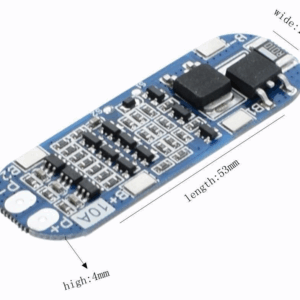

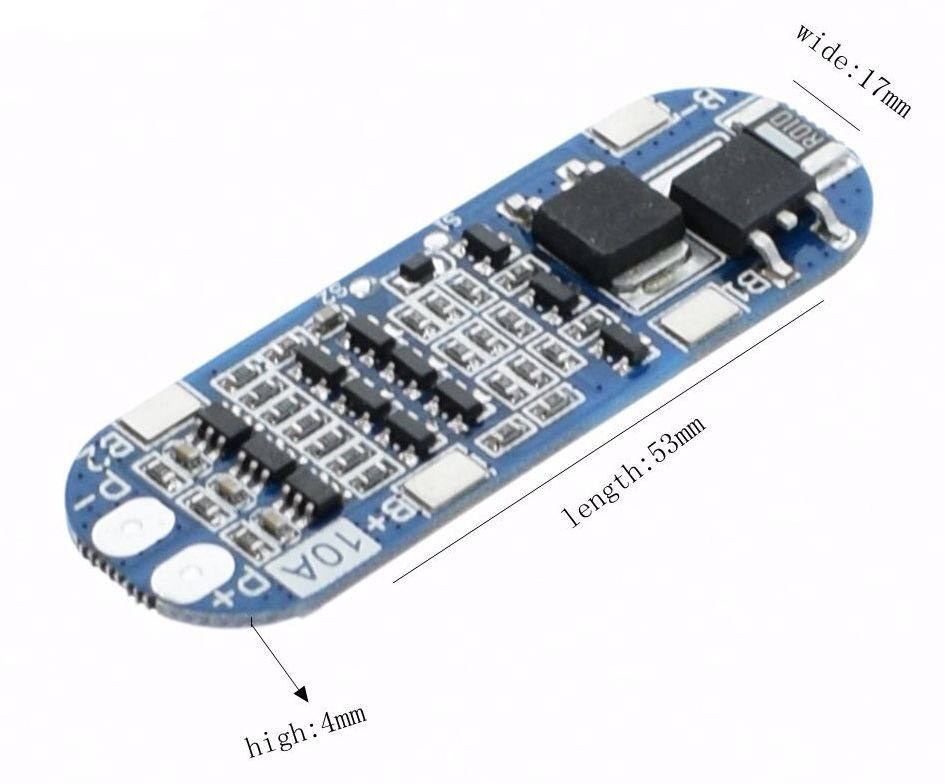

| Length (mm): | 54 |
| Width (mm) | 17.5 |
| Height (mm) | 4 |
Package Includes:
- 1 x 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module
LiPo Battery Connector Types: XT60 vs T-Plug vs JST Compared
Choosing the wrong connector for your LiPo battery can mean anything from a loose connection that wastes energy...
Read More →
USB to DC Barrel Power: Build a 12V Boost from a Power Bank
USB to DC Barrel Power: Build a 12V Boost from a Power Bank Imagine being able to power...
Read More →
Solar Power for ESP32: MPPT and Battery Charging Circuit
Powering a remote ESP32 project with solar energy is one of the most satisfying challenges in the maker...
Read More →Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Current Rating | 10A |
| Cell Configuration | 3S |
| SKU | AI0566 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
