This is the 12V variant of the 3S 12V 25A 18650 Lithium Battery Protection Board in Battery Protection Board. Available at ₹99.12 (₹84.00 + GST) with free shipping across India.

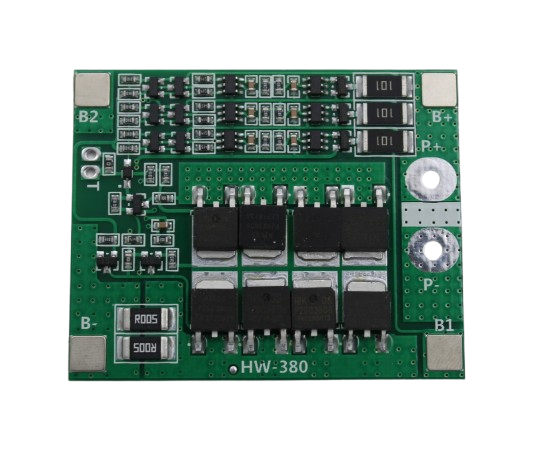

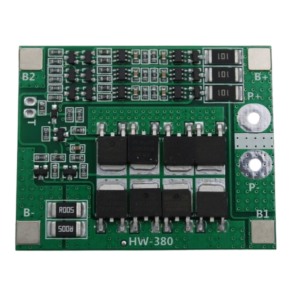

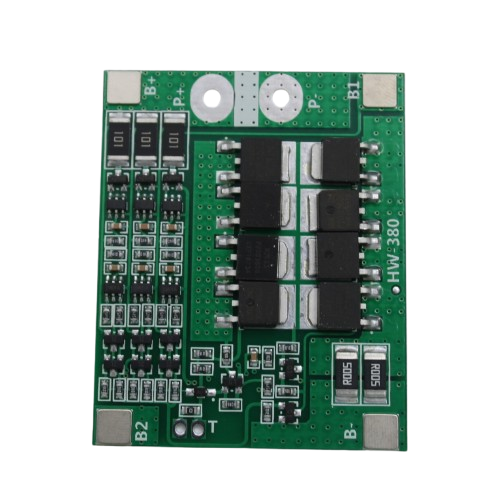

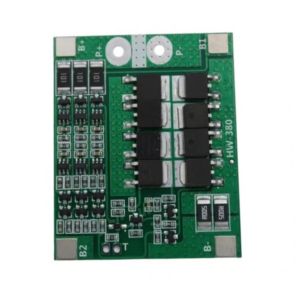

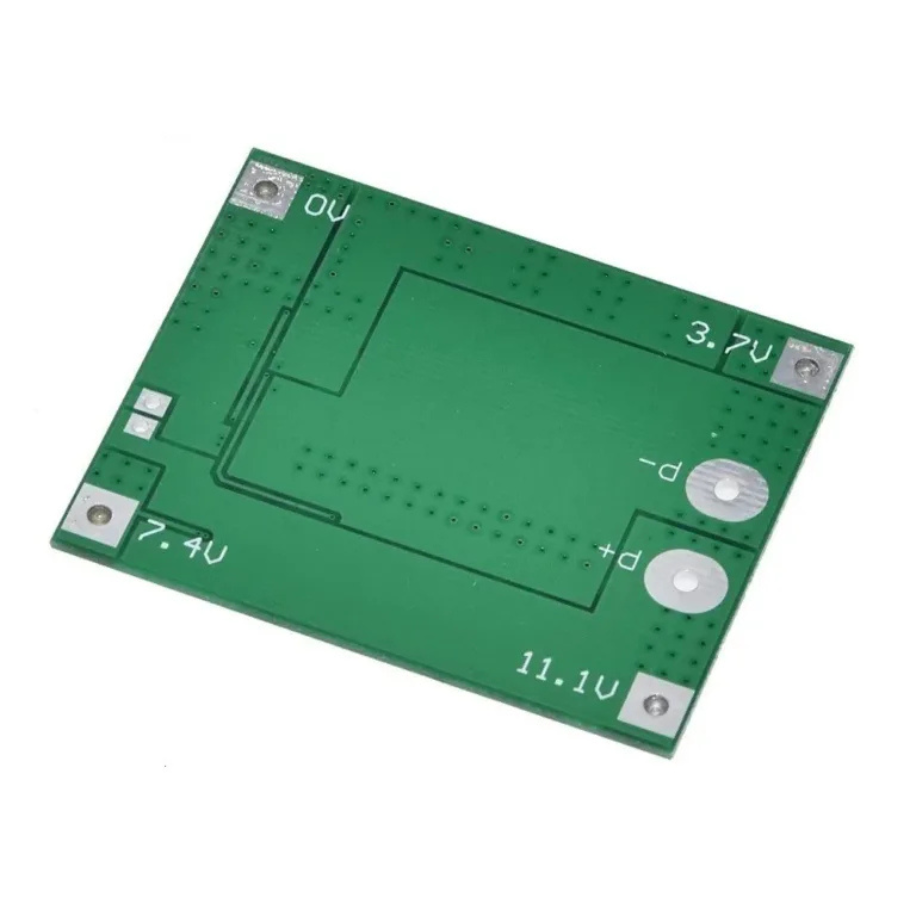

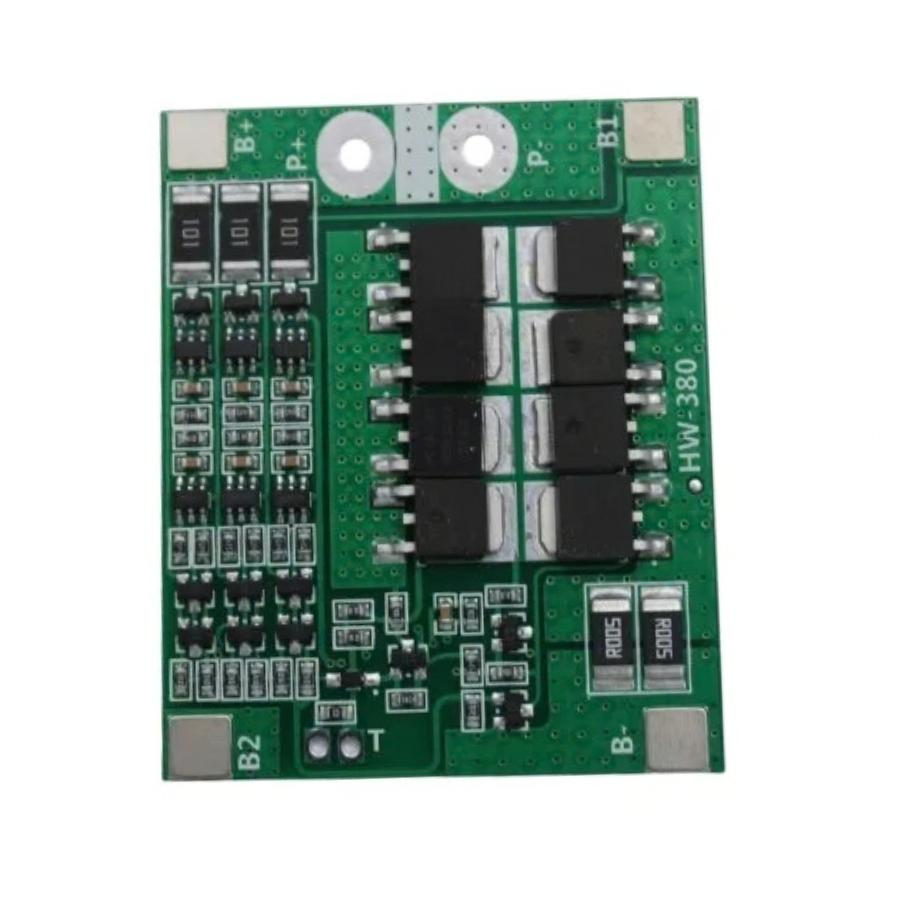

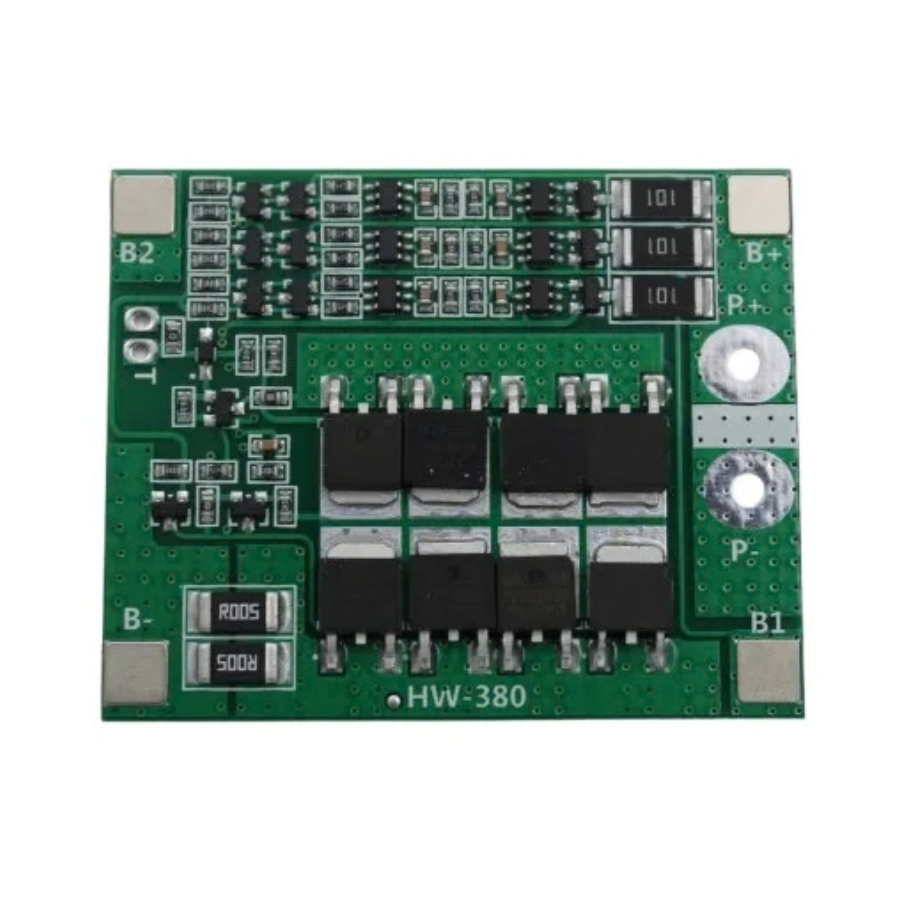

3S 12V 25A 18650 Lithium Battery Protection Board
Introducing the 3S 12V 25A 18650 Lithium Battery Protection Board, a reliable solution for safeguarding your lithium battery packs. This protection board ensures safe and efficient operation by offering balanced circuitry and comprehensive protection against overcharge, over-discharge, over-current, and short circuits.
Please Note:
- The protection board cannot be used with iron lithium polymer batteries or certain machinery and vehicle batteries.
- Suitable for a variety of applications within rated power, including electric drills, motors, inverters, LED lamps, and more.
Features:
- Integrated Protection Functions: Overcharge, over-discharge, over-current, and short circuit protection ensure the safety and longevity of your battery pack.
- Balanced Circuit: The board includes a balanced circuit to maintain consistent cell voltages and optimize battery performance.
- Wide Application Range: Suitable for various products within rated power, including electric drills, small power inverters, LED lamps, and more.
- High Current Handling: Rated for a maximum current of 25A, with an instantaneous current capability of 35-40A.
- Robust Construction: With an effective life of over 30,000 hours and internal resistance less than 100m ohm, this protection board offers long-term reliability.
- Compact Design: Compact and lightweight design allows for easy integration into battery packs and electronic devices.
Specifications:
| Specification | Details |
|---|---|
| Overcharge Voltage Range | 4.25-4.35V ± 0.05V |
| Over Discharge Voltage Range | 2.3-2.7V ± 0.05V |
| Operating Current | 0 – 25A |
| Instantaneous Current | 35 – 40A |
| Operating Temperature | -40°C to +50°C |
| Storage Condition | -40°C to +80°C |
| Quiescent Current | Less than 30μA |
| Balance Current | About 40 – 50mA |
| Effective Life | More than 30000 hours |
| Internal Resistance | Less than 100m ohm |
| Short-Circuit Protection | Protection with delayed self-recovery |
Ensure the safety and reliability of your lithium battery packs with the 3S 12V 25A 18650 Lithium Battery Protection Board. Perfect for DIY enthusiasts, hobbyists, and electronic enthusiasts alike.
Package Includes
1 x 3S 12V 18650 lithium battery protection board.
USB Power Bank Circuit: Build with TP4056, MT3608 & 18650
USB Power Bank Circuit: Build with TP4056, MT3608 & 18650 A USB power bank circuit DIY is one...
Read More →
Power Distribution Board: Clean Wiring for Projects
Table of ContentsWhat Is a Power Distribution Board Designing for Multiple Voltages PCB Layout Best Practices Using Terminal...
Read More →
Two Wire vs Four Wire Power: Kelvin Sensing Explained
Two Wire vs Four Wire Power: Kelvin Sensing Explained Imagine you are measuring the internal resistance of a...
Read More →Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Current Rating | 25A |
| Cell Configuration | 3S |
| SKU | AI1045 |
| Weight | 0.020001 kg |
| Availability | In Stock |
Applications & Use Cases
The 3S 12V 25A 18650 Lithium Battery Protection Board is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
