This is the White variant of the 5S 100A LiFePO4 Battery Balance Charging BMS Battery Protection Board-white in Battery Protection Board. Available at Original price was: ₹296.18.₹266.68Current price is: ₹266.68. (₹226.00 + GST) with free shipping across India.
5S 100A LiFePO4 Battery Balance Charging BMS Battery Protection Board-white

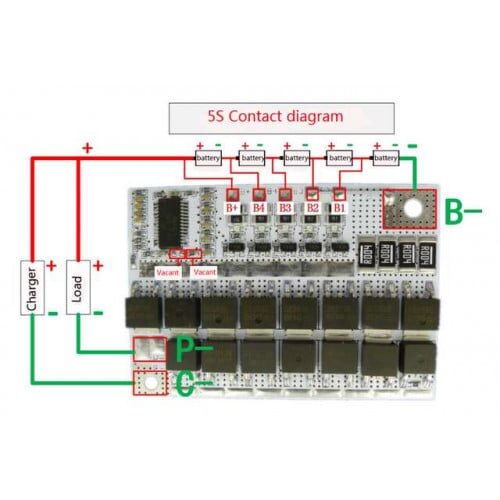

This 5S lithium battery protection board is versatile and compatible with various battery types and configurations. Equipped with a high-quality chip, it offers reliable protection against disconnection, over-current, over-discharge, overcharge, and imbalance. The board supports both “same port” and “different port” modes to accommodate different current requirements.

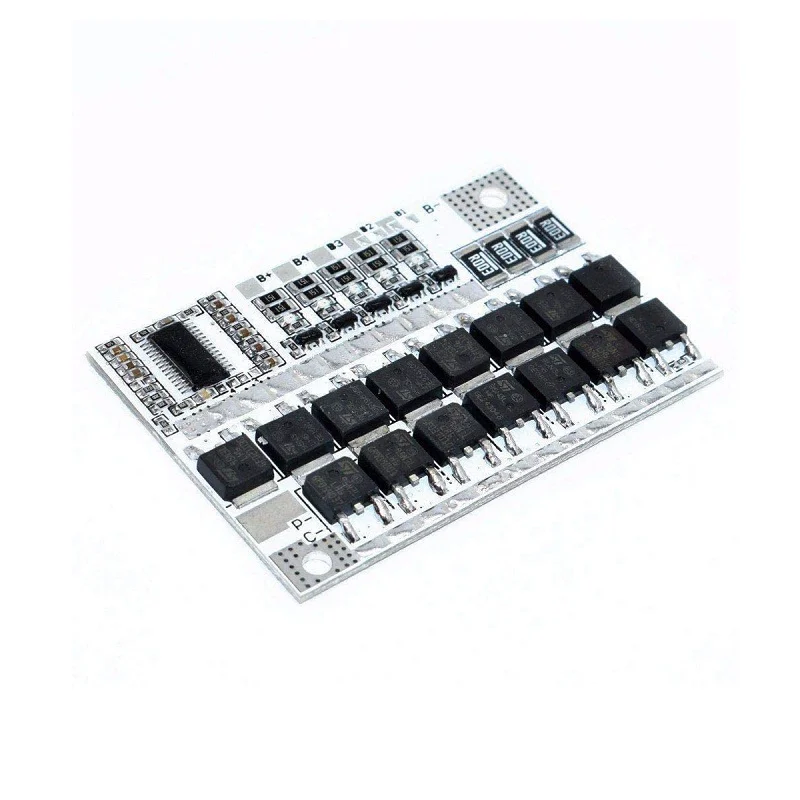

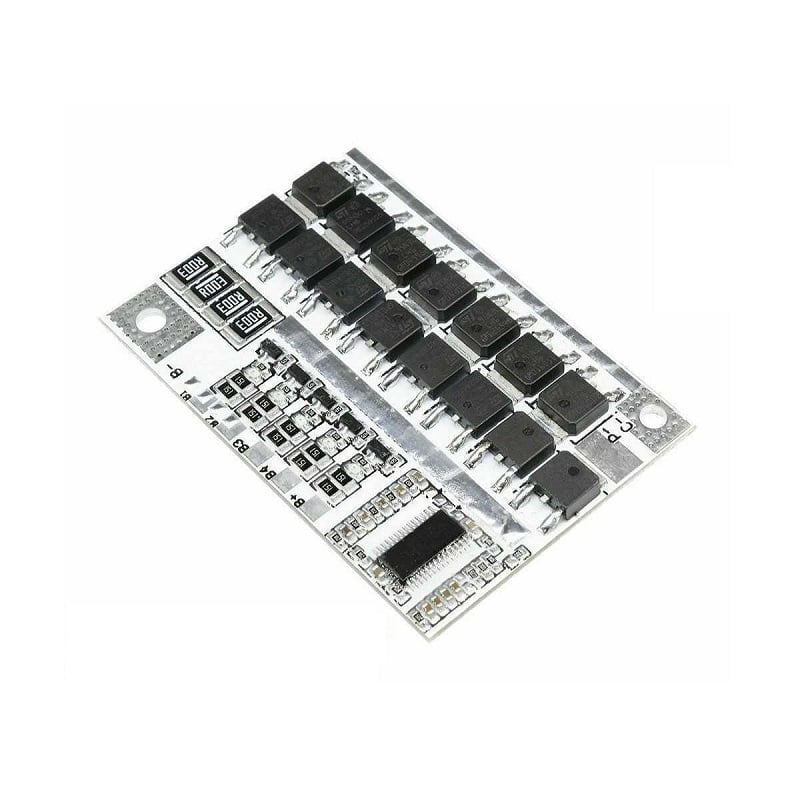

It features 15 high-power, ultra-low resistance MOSFETs—eight for discharge and seven for charging. In “same port” mode, the board can handle both discharge and charge currents up to 60A. In “different port” mode, it supports a discharge current of 80A and a charge current of 60A. This protection board is compatible with LMO, ternary lithium, LCO (3.7V), and other lithium-based battery packs.
Features:
- Over charge protective current:100A
- Over discharge protective current:100A
- Over-discharge protect delay : 0.5-1.5S
- Temperature protection: Yes, have a Temperature control interface.
- Disconnect protect: Yes
- Shortage protect: Yes
- Shortage delay: 100-600 uS
- Shortage protects recover mode: Offload release.
- balance function: yes
Specification:
| For Li-Po LiMnO Protect Parameter | 3.6V/3.7V |
|---|---|
| Single-cell battery overcharge protect voltage | 4.21-4.29 V |
| Single-cell battery overcharge protects recover voltage: | 4.14-4.24 V |
| Overcharge protect delay | 1.5-2.5S |
| Single cell battery over-discharge protect voltage | 2.72-2.88 V |
| Single cell battery over-discharge protect recover voltage | 2.9-3.1 V |
| Over charge protective current | 100A |
| Over discharge protective current | 100A |
| Over-discharge protect delay | 0.5-1.5S |
| Temperature protection | Yes, have a Temperature control interface. |
| Disconnect protect | Yes |
| Shortage delay | 100-600 uS |
| Contact discharge current | 80A |
| Syncline discharge current | 60A |
| Charging current | 60A |
| Ampere balance (Current) | 60MA |
| Shipping Weight | 0.015 kg |

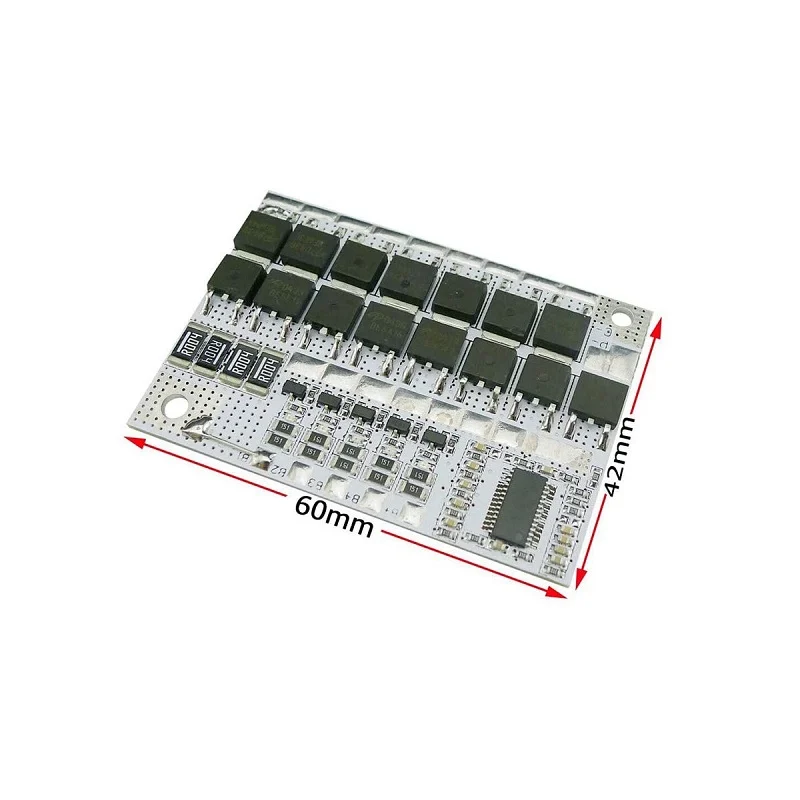

| Shipping Dimensions | 8 × 7 × 1 cm |
Package Includes:
1 x White 5S 100A LiFePO4 Lithium Battery Protection PCB Board
Thermoelectric Harvester: Power from Waste Heat
A thermoelectric harvester converts temperature differences into electrical energy using the Seebeck effect, enabling power generation from waste...
Read More →
XL6009 Boost Converter: Adjustable Output Voltage Guide
XL6009 Boost Converter: Adjustable Output Voltage Guide The XL6009 boost converter module is one of the most popular...
Read More →
Power Consumption Calculator: Estimate Battery Life
Table of ContentsMeasuring Power Consumption Calculating Battery Life Sleep Modes and Their Impact Using INA219 for Measurement Common...
Read More →Technical Specifications
| Current Rating | 100A |
|---|---|
| Cell Configuration | 5S |
| Color | White |
| SKU | AI3336 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The 5S 100A LiFePO4 Battery Balance Charging BMS Battery Protection Board-white is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
