This is the 5V variant of the 5V Step-Up Power Module Lithium Battery Charging Protection Board in Battery Protection Board. Available at ₹25.25 (₹21.40 + GST) with free shipping across India.

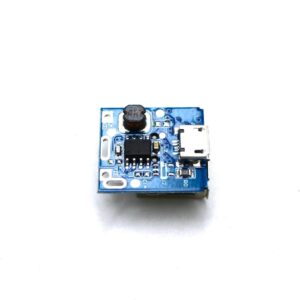

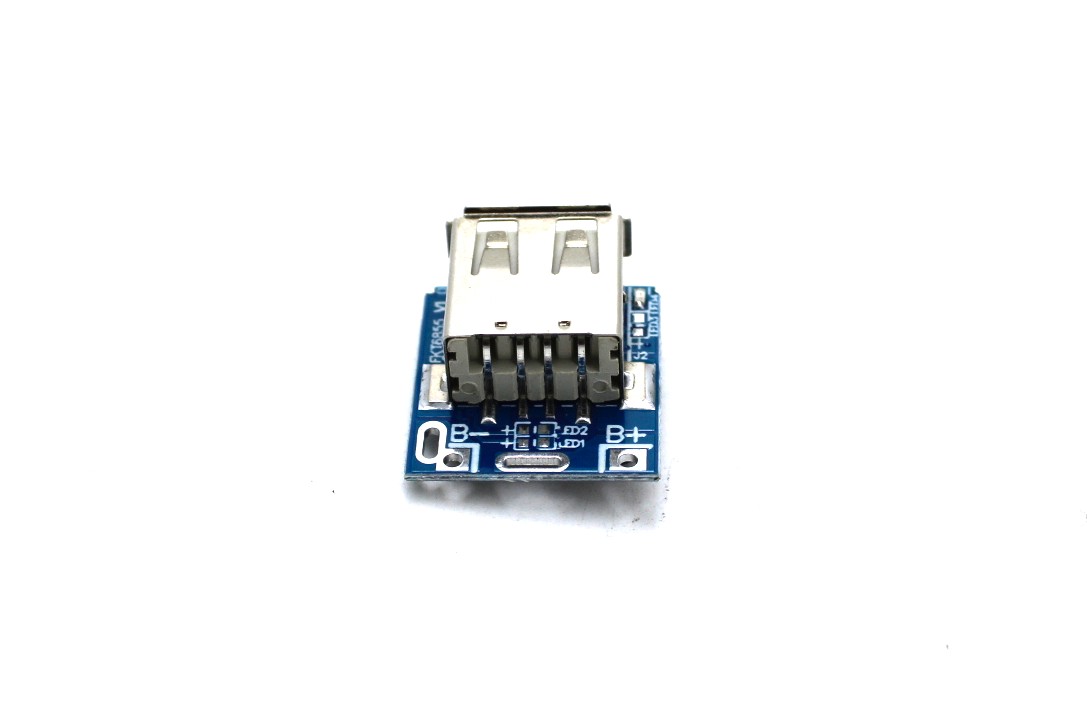

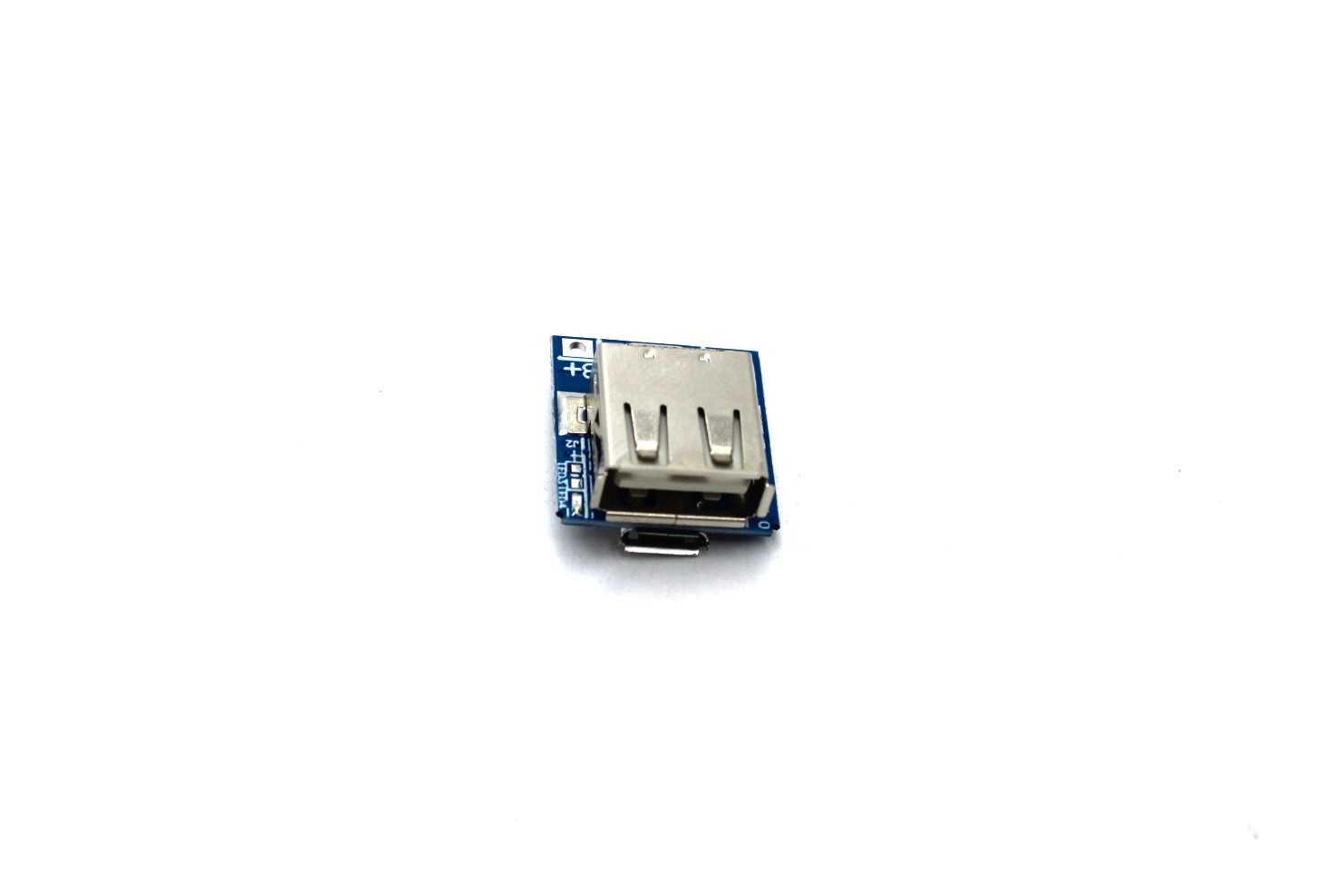

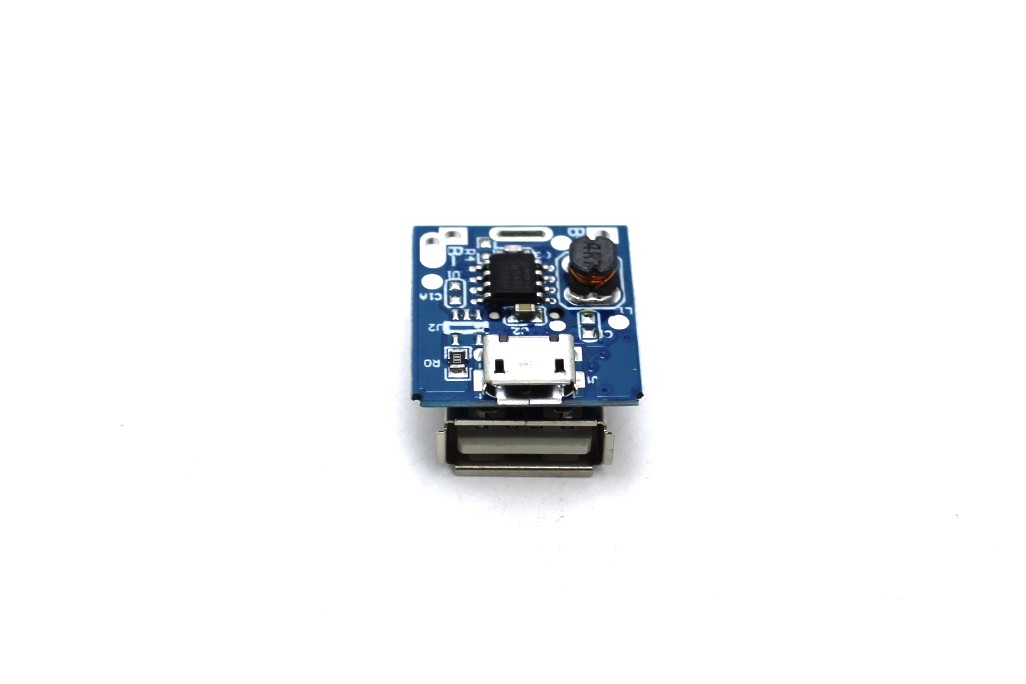

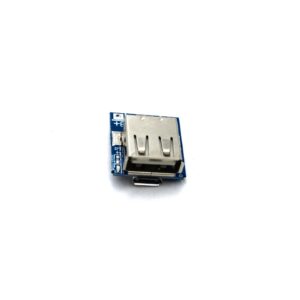

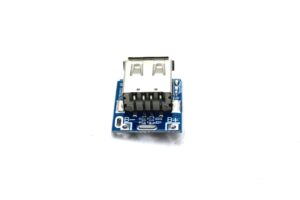

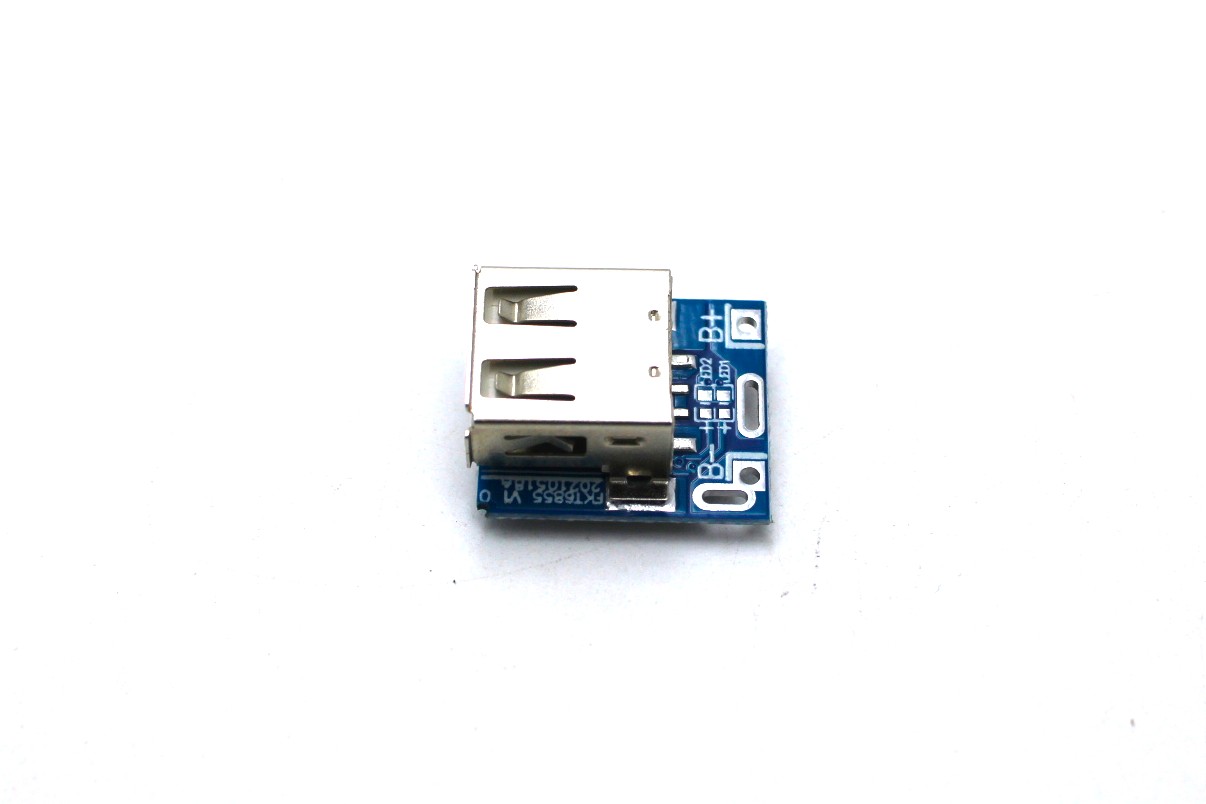

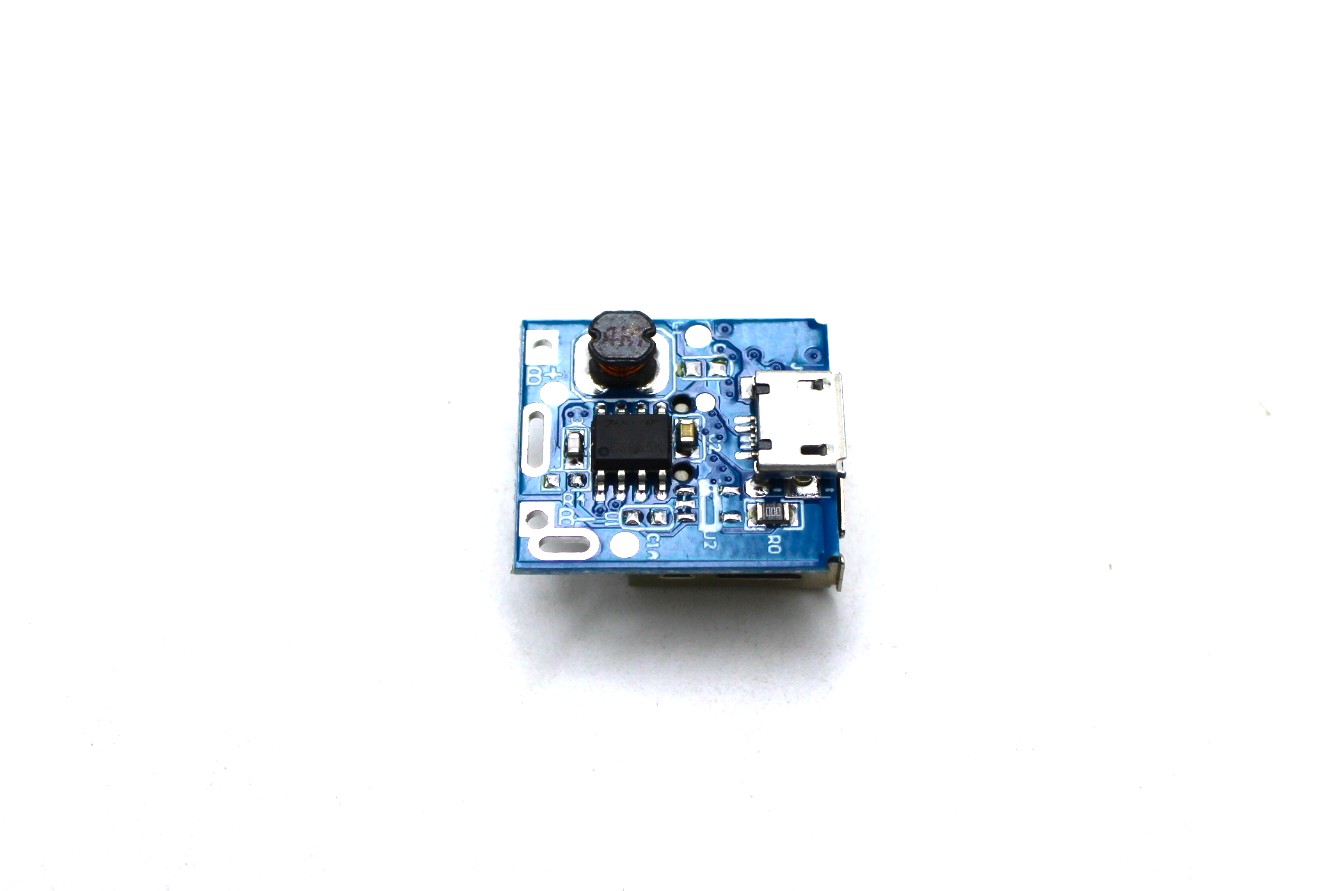

5V Step-Up Power Module Lithium Battery Charging Protection Board
5V Step-Up Power Module for Lithium Battery Charging Protection Board with USB for DIY Chargers. The 134N3P Lithium Battery Charging Protection Board features a boost converter and an LED display, making it ideal for DIY charging applications. This high-quality USB solution includes an affordable display port video card and integrated circuits for enhanced functionality.
Features
- BAT Discharging Stop Voltage: 2.9V.
- Discharging Efficiency:85%(input 3.7V output 5V/1A).
- Charging and discharging indication.
- Internally installed charging and discharging power MOS.
- Preset 4.2V charging voltage, precision ±1%.
- Max 8uA standby current.
- Integration charging management and discharging management.
- Intelligent temperature control and overtemperature protection.
- Integration output overvoltage protection, short circuit protection, overload protection.
- Integration overcharging and over-discharging protection.
- Support trickle mode and zero voltage charging.
- When charging: red light flashing.
- Fully charged: Red light glows for a long time.
Specification:
| Width (mm): | 18.6 |
|---|---|
| Height (mm): | 12 |
| Weight (g): | 11,3 |
Note: Product may vary in terms of design.
Package Includes
1 x 5V Step-Up Power Module Lithium Battery Charging Protection Board.
LiPo Battery Puffing: Causes, Danger Signs & Safe Disposal
LiPo Battery Puffing: Causes, Danger Signs & Safe Disposal If you've been flying drones, driving RC cars, or...
Read More →
Solar Battery Charger: MPPT Controller with Arduino
Table of ContentsMPPT vs PWM Charging How MPPT Works CN3791 MPPT Charger Module Arduino MPPT Controller Project Solar...
Read More →
Solar Battery Backup System: 12V 100Ah LiFePO4 DIY Guide India
Building a solar battery backup system LiFePO4 India DIY project has never been more practical. With electricity tariffs...
Read More →Technical Specifications
| Operating Voltage | 5V |
|---|---|
| SKU | AI0013 |
| Weight | 0.00195 kg |
| Availability | In Stock |
Applications & Use Cases
The 5V Step-Up Power Module Lithium Battery Charging Protection Board is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
