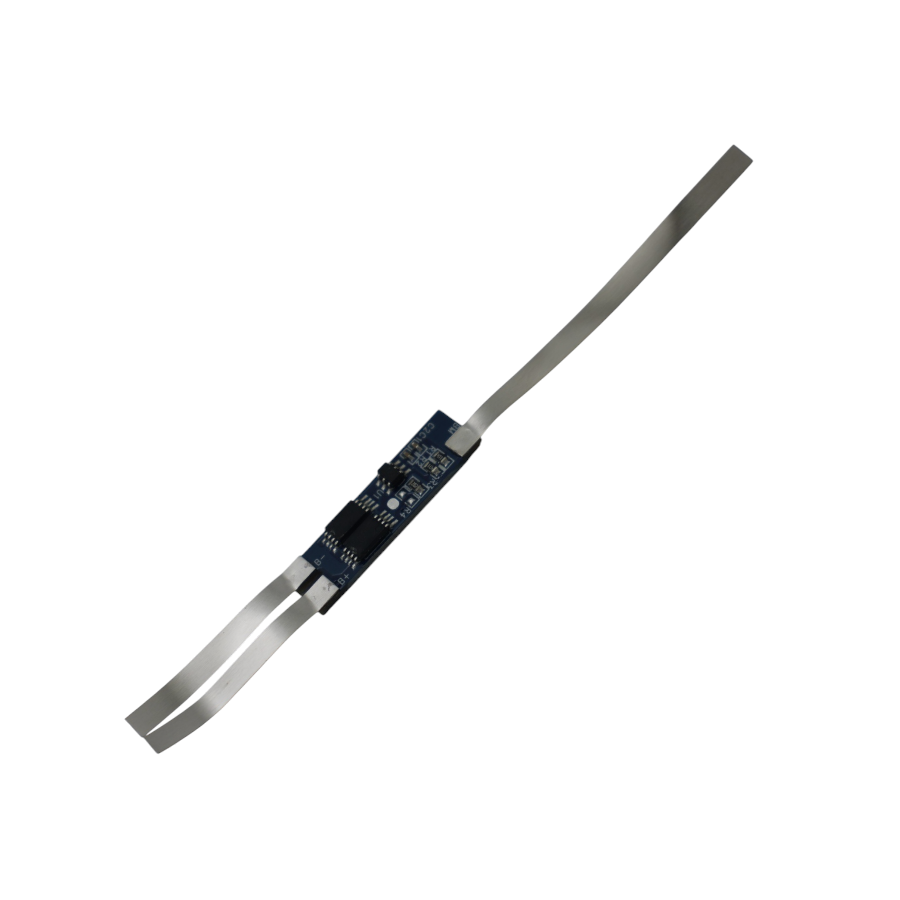

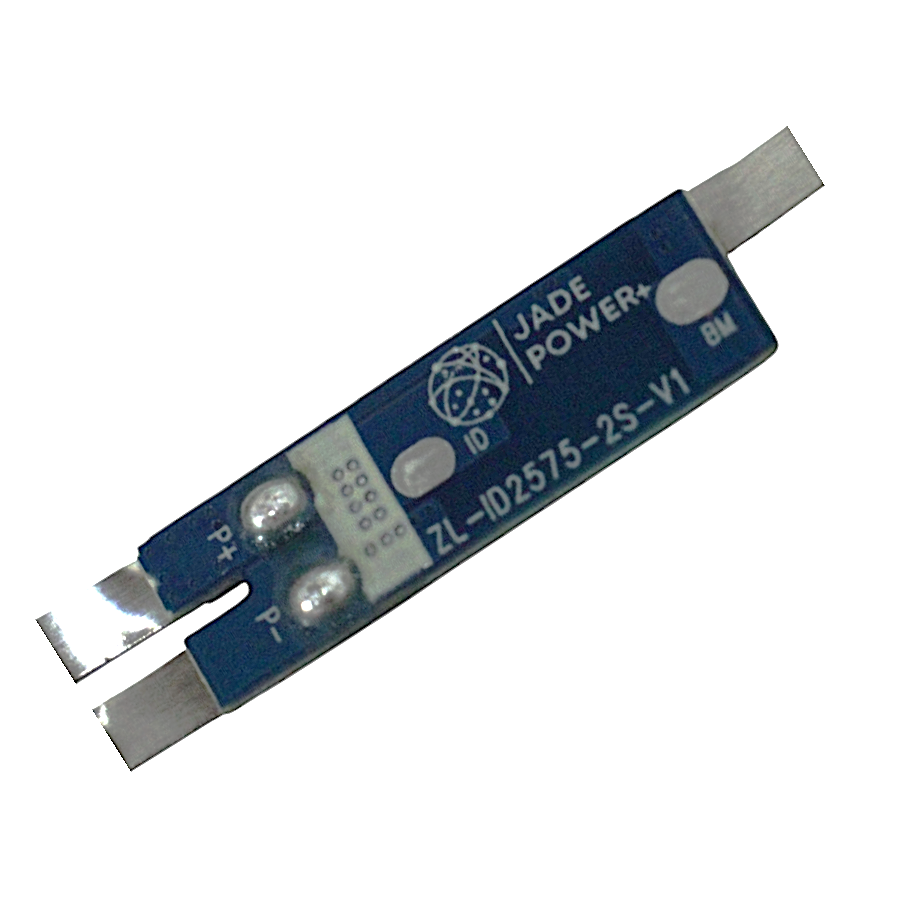

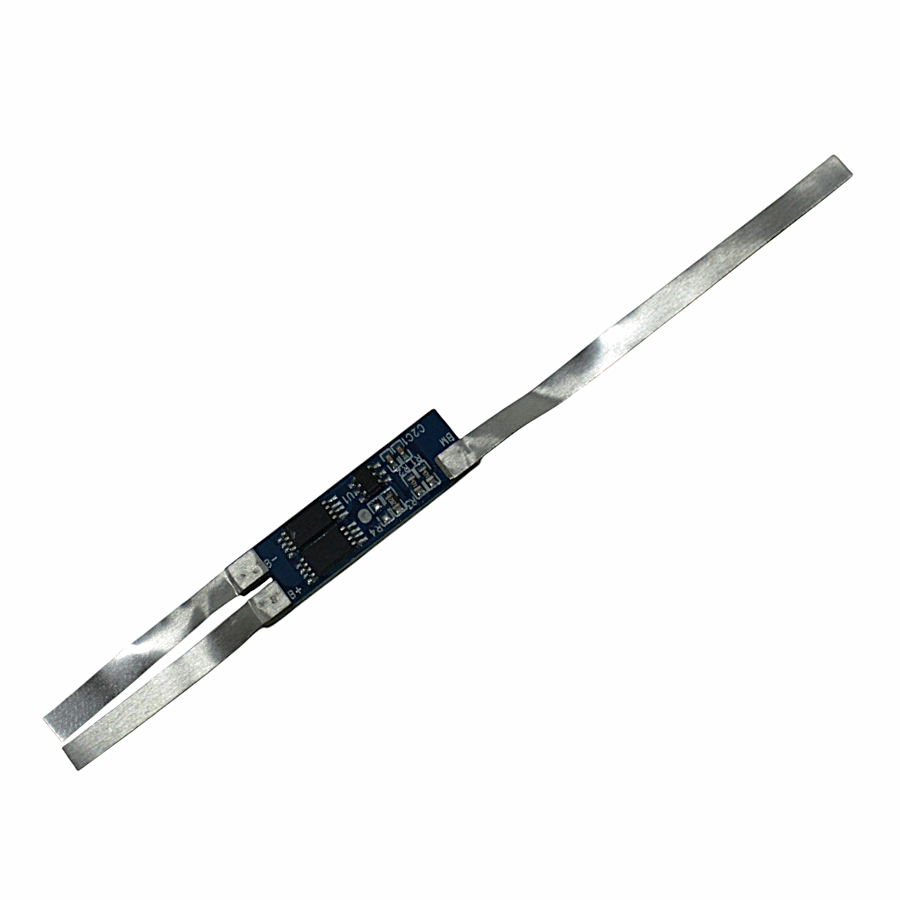

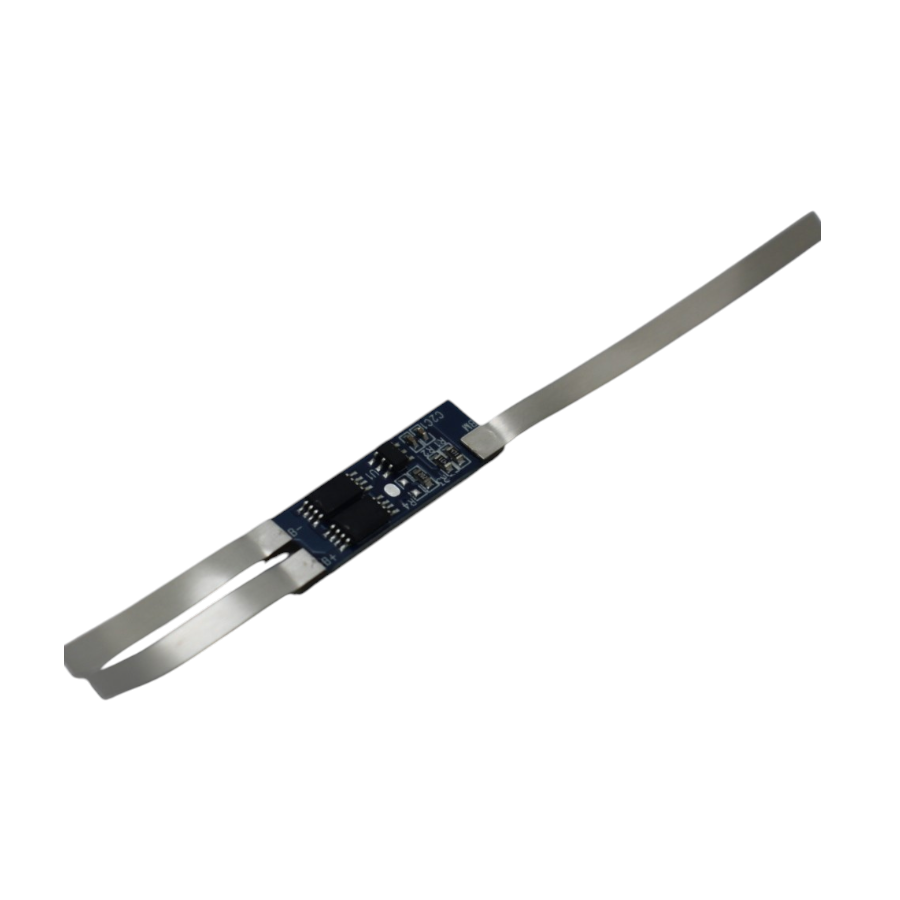

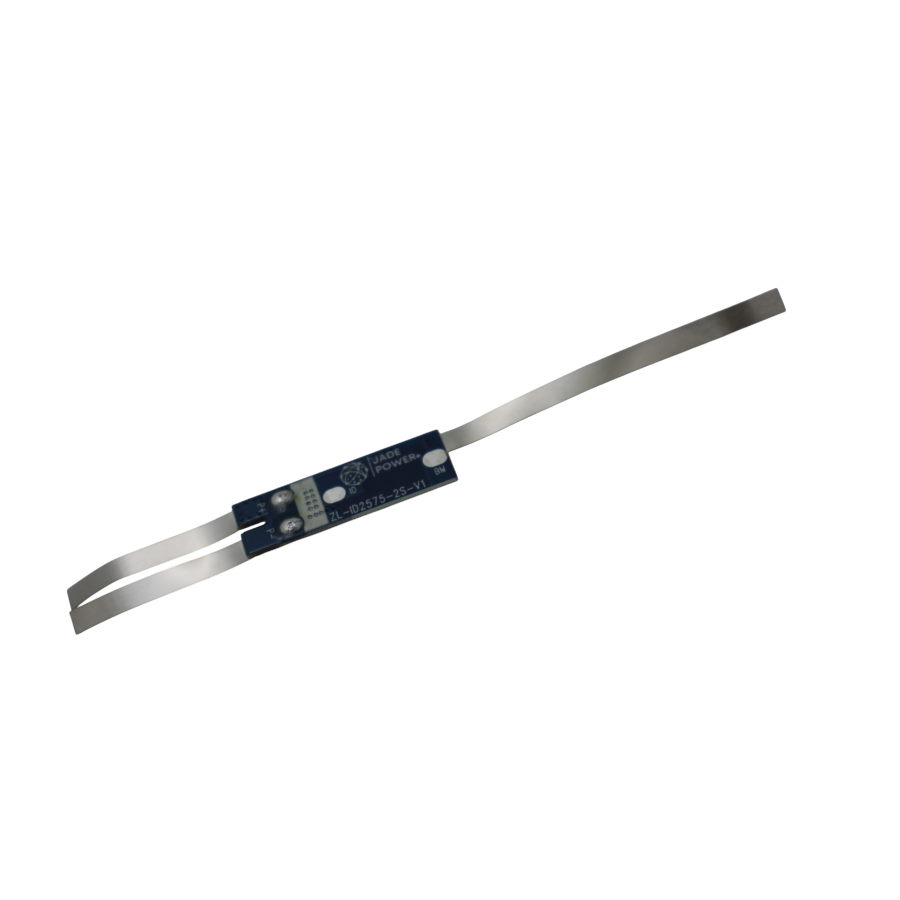

Airfly 2S 4A BMS 18% NIMC (Made In India)
Description:
The Airfly 2S 4A NMC BMS Hardware Module with Nickel Strip is a Battery Management System (BMS) designed for 2-series (2S) Nickel Manganese Cobalt (NMC) battery packs. This BMS supports a 4A continuous discharge current, making it ideal for low-to-medium power applications such as small electric vehicles (EVs), power banks, solar energy storage systems, and battery-powered devices that require a compact and efficient power management solution. The module incorporates vital protection features to ensure the safe and optimal operation of the battery pack. These protections include overcharge protection, over-discharge protection, overcurrent protection, short-circuit protection, and over-temperature protection. These safeguards prevent damage to the battery cells from excessive voltage, current, or temperature fluctuations, helping to maintain battery health and longevity. This BMS module also includes nickel strips, which are used for cell interconnection. The nickel strips ensure proper current distribution across the two cells in the 2S battery pack, helping to achieve balanced charging and discharging. This cell balancing is critical to optimize battery performance and to avoid the issues of cell imbalance, which could lead to reduced battery efficiency and lifespan.
Features:-
- Compact & Lightweight Design
- Overcharge Protection
- Over-discharge Protection
- Overcurrent & Short-Circuit Protection
Specification:-
- Charging Voltage: DC:8.4-9.0V CC/CV
- Max continuous charging current: 4A
- Over charge detection voltage: 4.25±0.05V
- Over discharge detection voltage: 2.9±0.1V
- Over current detection current: 0.2±0.02V
- Operating Temperature: -45°C to +65°C
- Storage Temperature: -45°C to +85°C
- Model No.(7fd9
Package Includes:
1x Airfly 2S 4A BMS 18% NIMC (Made In India)
Battery Tab Nickel Strip: Width and Thickness Selection
The battery tab nickel strip is the critical conductor that connects individual cells in a battery pack. Choosing...
Read More →
Zener Diode Regulator: Simple Voltage Reference Circuit
Table of ContentsHow Zener Diodes Work Designing a Zener Voltage Regulator Zener vs LDO vs Buck Converter Practical...
Read More →
3.7V vs 7.4V vs 11.1V LiPo: Choosing the Right Voltage
Choosing the correct LiPo battery voltage is one of the most important decisions when building any RC vehicle,...
Read More →Technical Specifications
| Brand | Airfly |
|---|---|
| Current Rating | 4A |
| Cell Configuration | 2S |
| SKU | AI8203 |
| Weight | 0.05 kg |
| Availability | In Stock |
Applications & Use Cases
The Airfly 2S 4A BMS 18% NIMC (Made In India) is a versatile batteries, chargers and accessories used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Airfly product sourced from authorized channels
