CNHL MiniStar 350mAh 7.4V 2S 70C Lipo Battery with JST

CNHL MiniStar 350mAh 7.4V 2S 70C Lipo Battery with JST

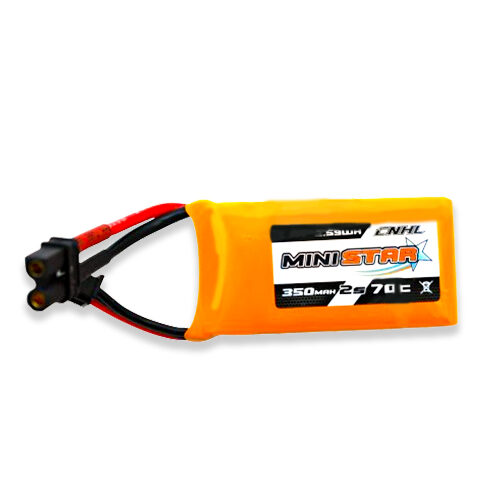

The CNHL MiniStar 350mAh 7.4V 2S 70C LiPo battery with JST plug is a compact and high-performance battery designed for smaller RC applications. Here’s an overview of its specifications:

• Capacity: 350mAh (milliampere-hour) indicates the amount of charge the battery can hold. While smaller in capacity compared to larger batteries, it’s well-suited for compact or lightweight RC models where space is limited.
• Voltage: 7.4V (volts) refers to the nominal voltage of the battery. This battery pack consists of 2 cells, each having a nominal voltage of 3.7V. When connected in series, they sum up to 7.4V.
• Discharge Rate (C-Rating): 70C indicates the discharge rate of the battery. The “C” rating represents the maximum continuous discharge rate relative to the capacity of the battery. In this case, it can provide a continuous discharge rate of up to 70 times its capacity (350mAh), which is 24.5A (amps). This high C-rating indicates the battery’s ability to deliver high bursts of current, making it suitable for demanding maneuvers in small RC models.
• Plug Type: JST plug is a smaller connector commonly used in smaller RC applications. It’s lightweight and compact, fitting well in tight spaces.

Overall, the CNHL MiniStar 350mAh 7.4V 2S 70C LiPo battery with JST plug is optimized for smaller RC models where compact size and high performance are priorities. As with any LiPo battery, it’s essential to use it within its specified limits, follow proper charging and storage practices, and ensure safety precautions are taken to prevent damage or accidents.

Specifications:

• Capacity: 350mAh
• Voltage: 7.4V /2-Cell / 2S1P
• Discharge Rate: 70C Continual / 140C Burst
• Charge Rate: 5C Max
• Size(1-5mm difference): 12.5X25X48mm
• Approx Weight(±5g) : 27g

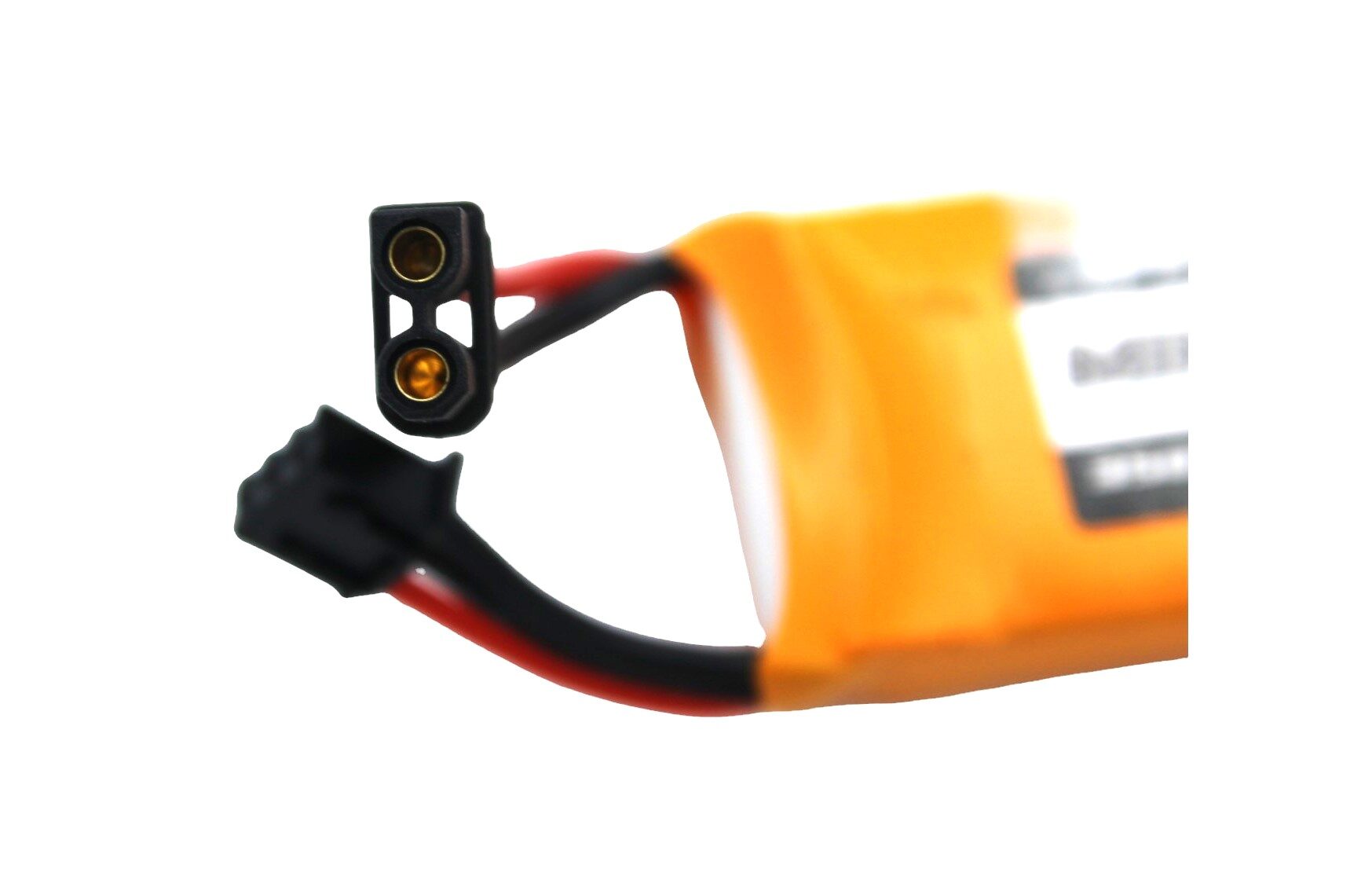

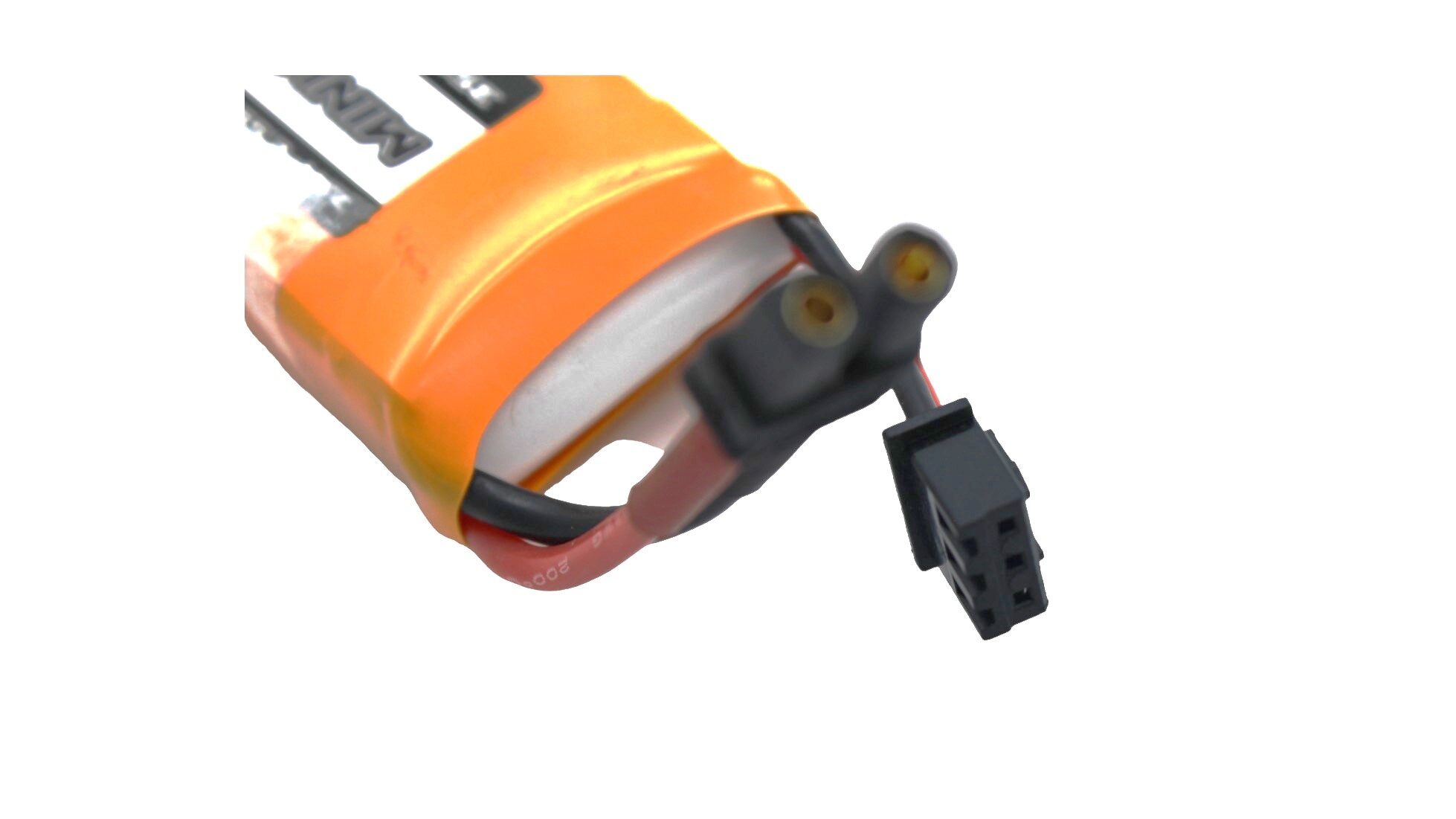

• Output Connector: XT30U
• Balance Connector: JST / XH
• Wire (AWG): 18#

Packages include:

1 X CNHL MiniStar 350mAh 7.4V 2S 70C Lipo Battery with JST
