This is the 250V variant of the 80-250V SSR-10AA Solid State Relay in Solid State Relays. Available at ₹264.32 (₹224.00 + GST) with free shipping across India.

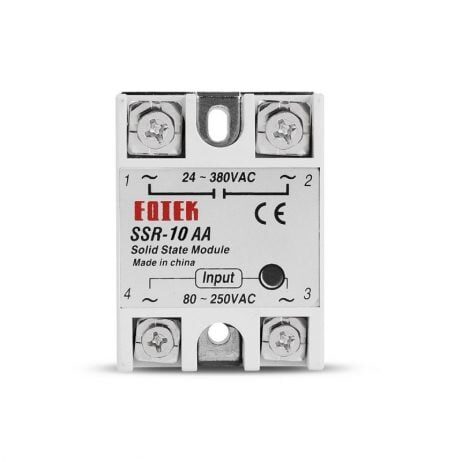

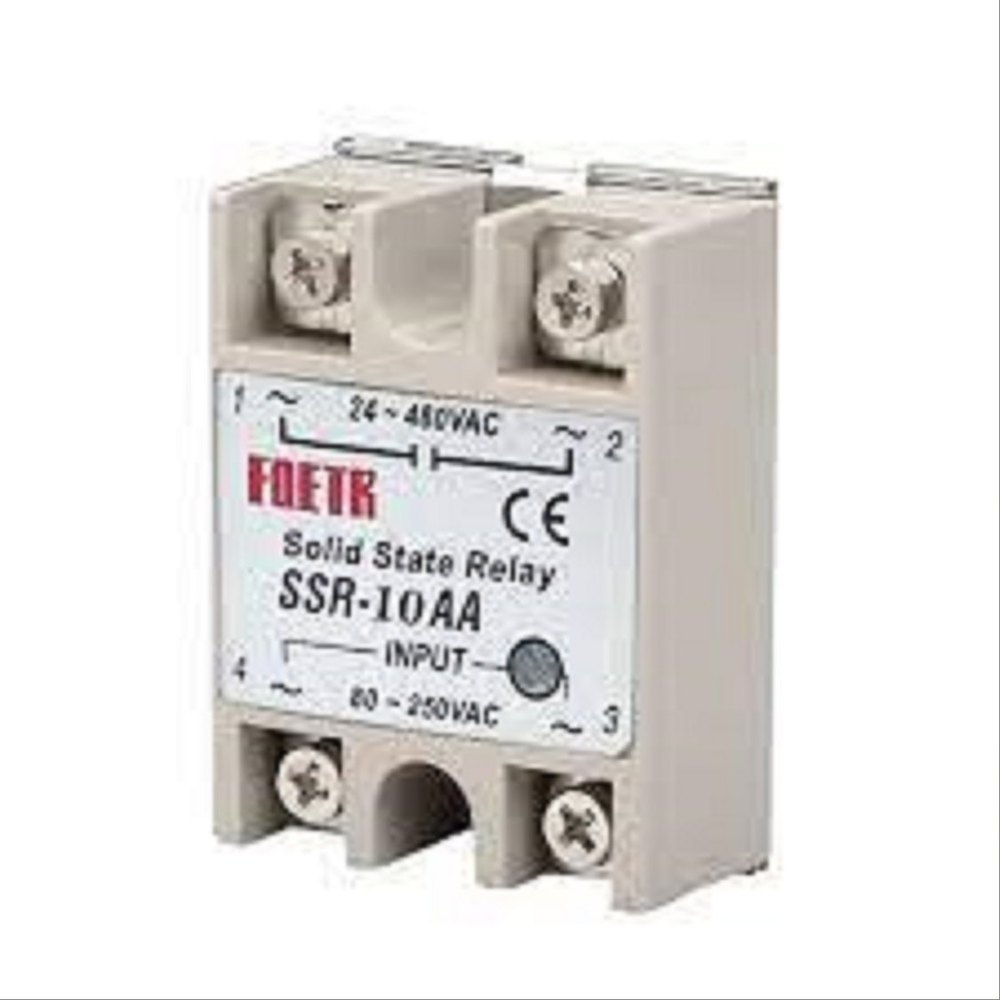

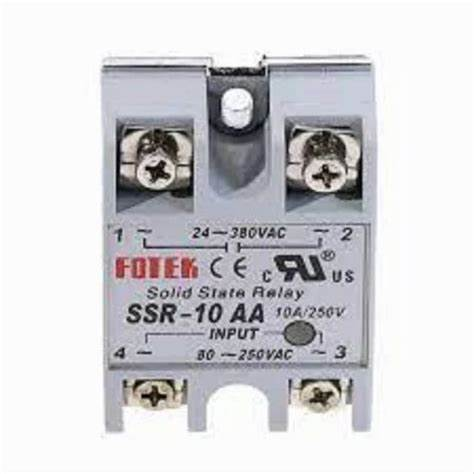

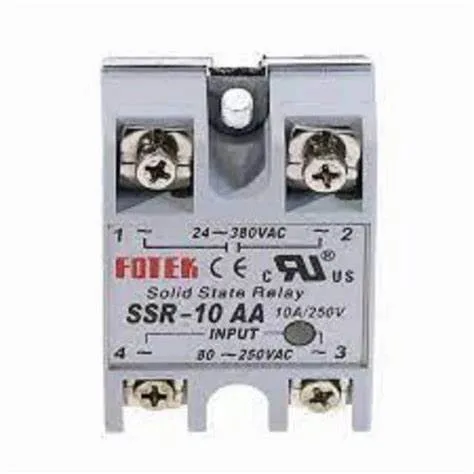

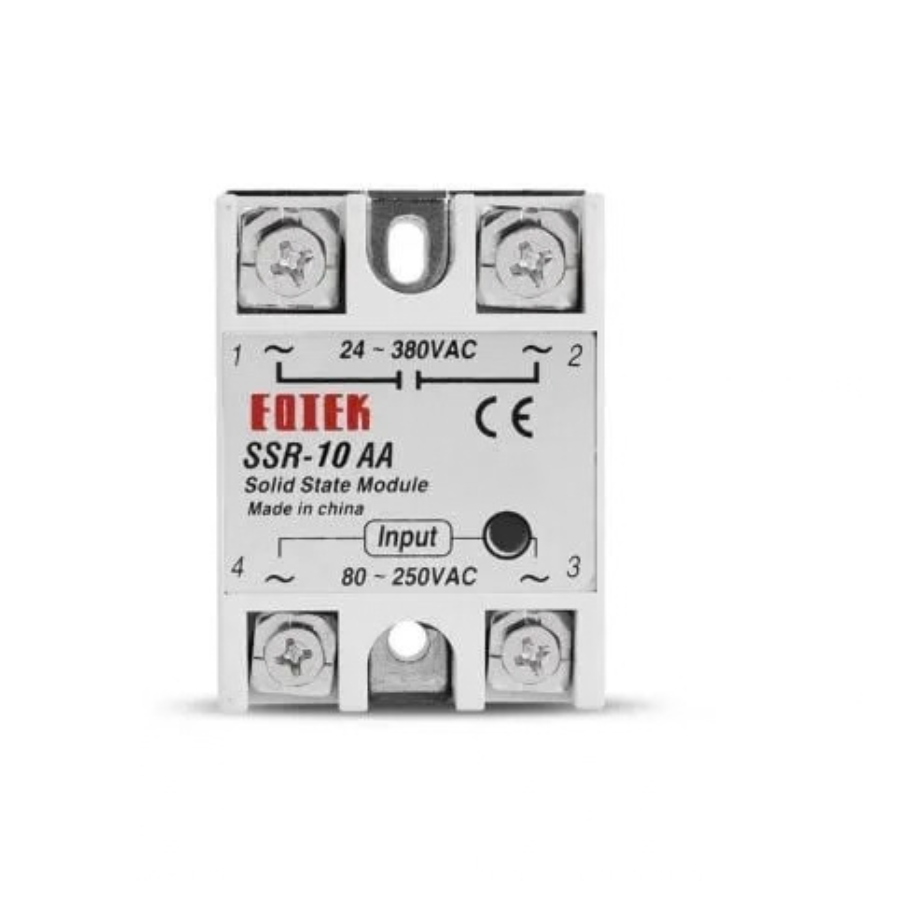

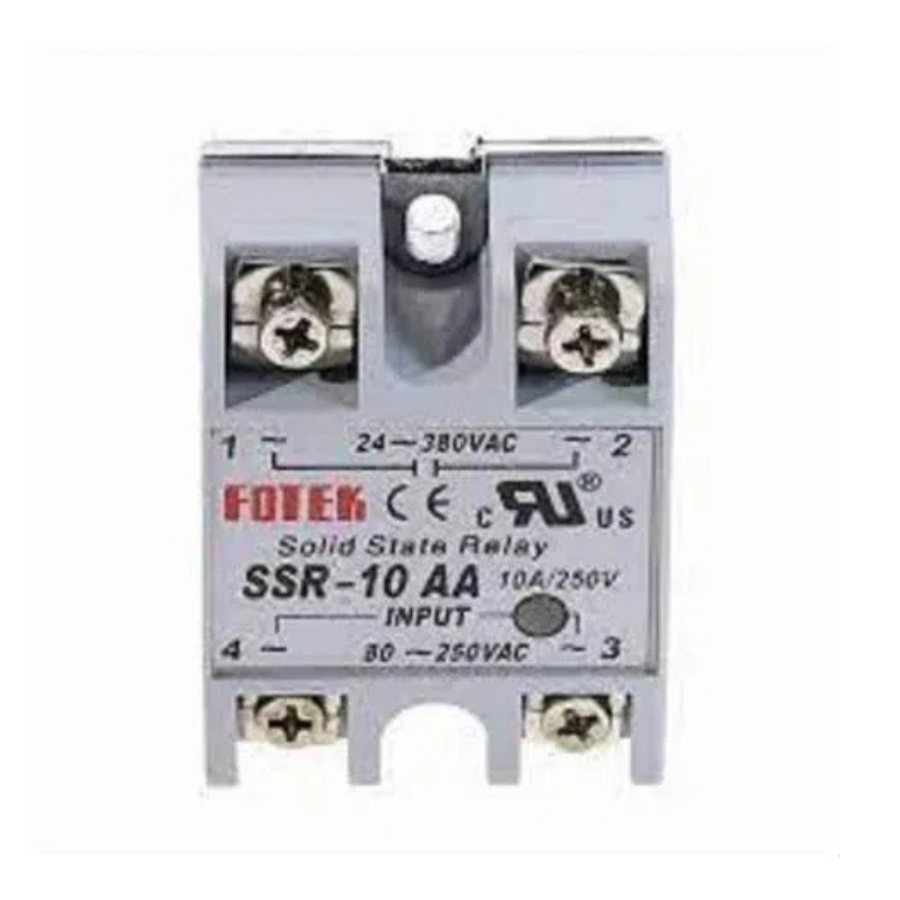

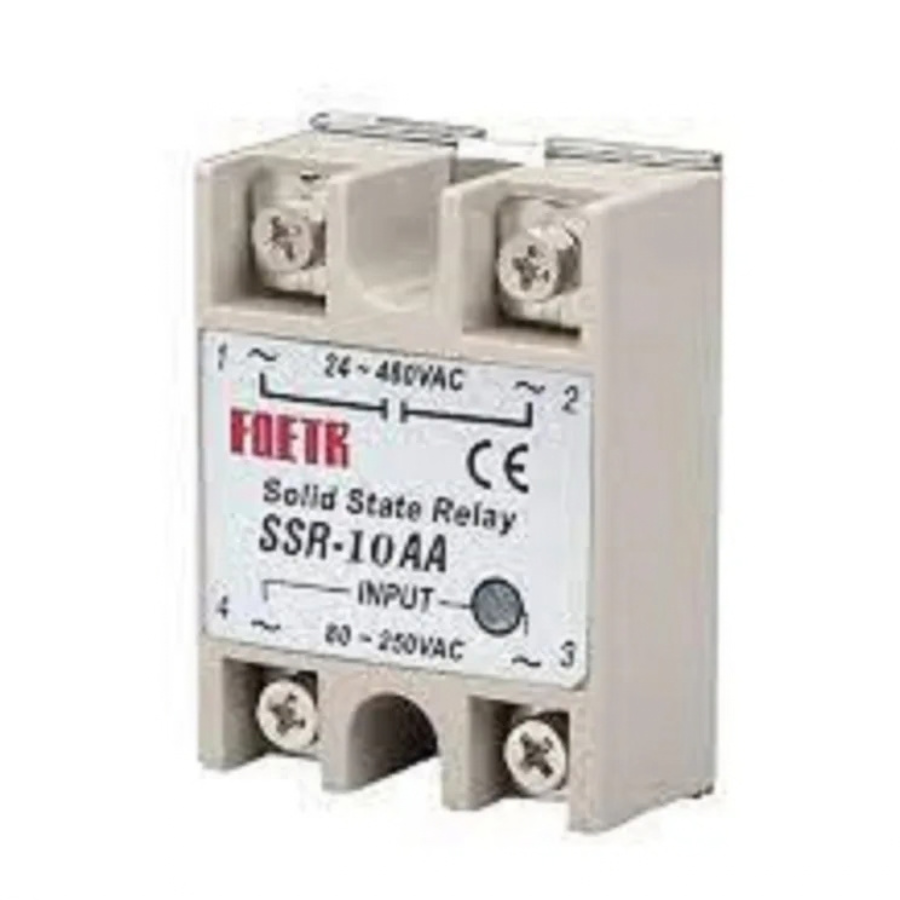

80-250V SSR-10AA Solid State Relay
The 80-250V SSR-10AA Solid State Relay is a reliable electronic switch designed for controlling AC loads within the voltage range of 80V to 250V. This solid-state relay (SSR) offers efficient and precise switching without any moving parts, unlike traditional electromechanical relays.
Features:
- Solid State Design: Utilizes solid-state technology, ensuring durability and reliability over time.
- Wide Voltage Range: Compatible with AC voltage inputs ranging from 80V to 250V, providing versatility for various applications.
- 10A Current Rating: Capable of handling current loads of up to 10A, making it suitable for medium-power applications.
- Zero Cross Trigger Control: Employs a zero-cross trigger control method, enhancing efficiency and reducing switching noise.
- Photo-coupled Design: Utilizes a photo-coupled design for optimal signal isolation and control, ensuring safety and reliability.
- Screw Terminals: Equipped with screw terminals for easy connection, facilitating installation and maintenance.
- Compact Size: Features a compact and space-saving design, suitable for applications with limited space.
- Protection Cover: Includes a protective cover to shield the terminals from dust, debris, and accidental contact.
Applications:
- Industrial automation
- Heating and cooling systems
- Lighting control
- Motor control
- Power distribution
- Home appliances
The 80-250V SSR-10AA Solid State Relay is an ideal choice for applications requiring reliable and efficient AC load switching in a compact and versatile package.
Specifications:
| Product Type | Solid State Relay |
|---|---|
| Rated Load Current (mA) | 10A |
| Dielectric Strength | Over 2.5kVA / 1 min |
| Trigger Voltage (VAC) | 80-250 |
| Switching Voltage (VAC) | 24-380@25A |
| Operating Temperature Range (C) | -20 to 85 |
| Material: | ABS |
| Length (mm): | 45.5 |
| Width (mm): | 62.5 |
| Height (mm): | 24 |
| Weight (g): | 93 |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 12 × 9 × 1 cm |
Package Includes:
1 x 80-250V SSR-10AA Solid State Relay
