This is the 5V variant of the Hi-Link 1D0505 DC-DC Step-Down Module Power Supply 5V to 5V2 in Buck Converter. Available at ₹109.74 (₹93.00 + GST) with free shipping across India.
Looking for 5v Module? Hi-Link 1D0505 DC-DC Step-Down Module Power Supply 5V to 5V2 is available at Zbotic with fast shipping across India.
Product Description

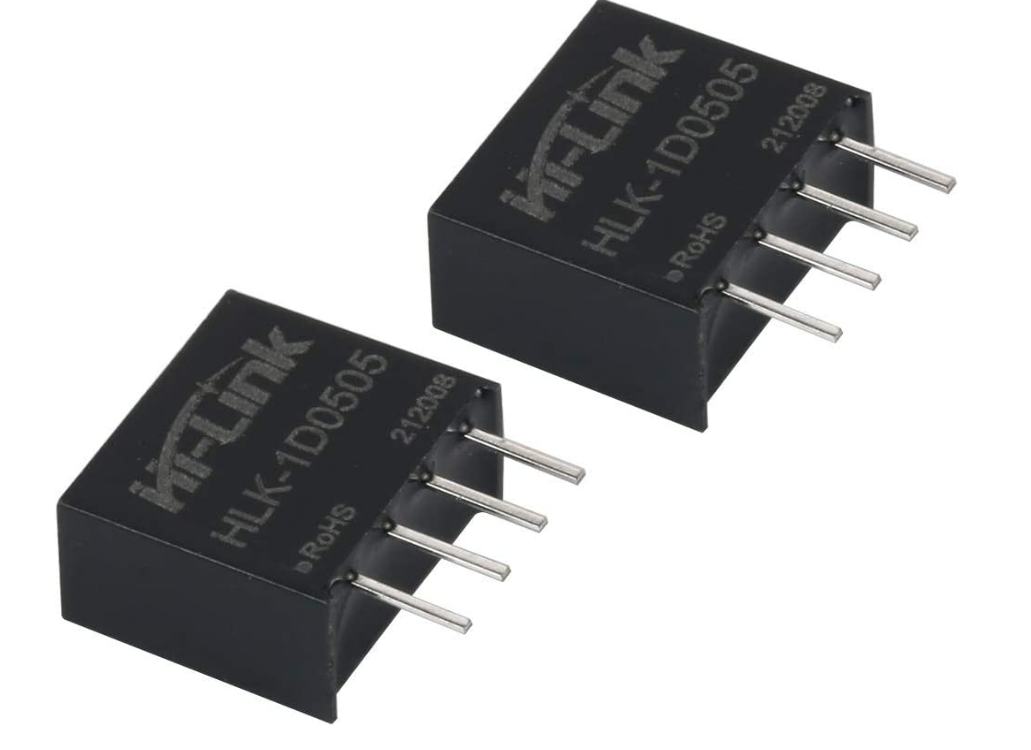

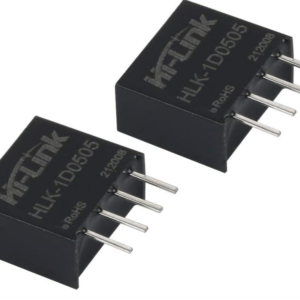

HI-Link HLK-1D0505 5V to 5V 1W 200mA DC-DC Isolation Switching Power Supply Module Voltage Stabilizing Small SPI 80% Transfer Intelligent Household Switch Converter. 1W DC / DC series products provide small size, high efficiency, tiny power, constant voltage, input isolation and unregulated, single-output module power supply; this series of products is specially designed to generate a group of input power isolation in the on-board power system Designed for voltage applications.
Features
1. Constant voltage input, isolated unregulated single output, 1W
2. Conversion efficiency 80% (Typ)
3. Isolation between input and output is required (isolation voltage 1500VDC or less)
4. Output short circuit protection
5. The voltage of the input power supply is relatively stable (voltage change range ± 10% Vin)
6. Operating temperature range: -40 ~ + 85 Degree
7. Low requirements for output voltage stability
8. Small SIP package
9. International standard pins, PCB board in-line installation
10. High reliability, long life design, long continuous working time MTBF?3.5 million hours (3500000Hrs)
Environmental Conditions
Hi-Link 1D0505 DC-DC Step-Down Module Power Supply 5V to 5V2 Overview

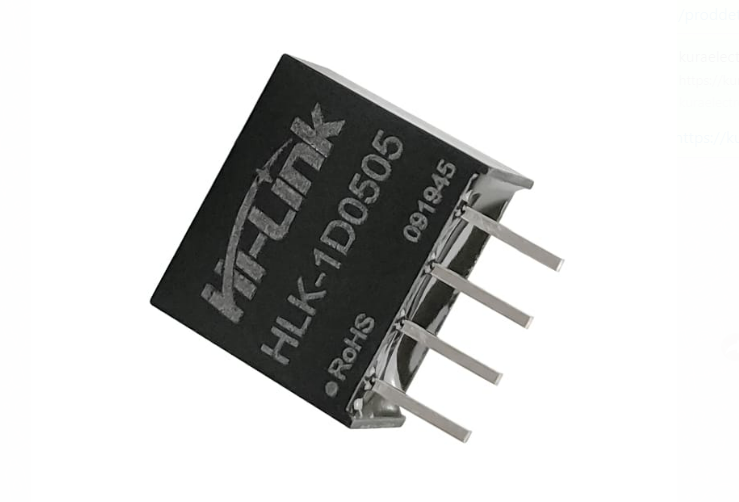

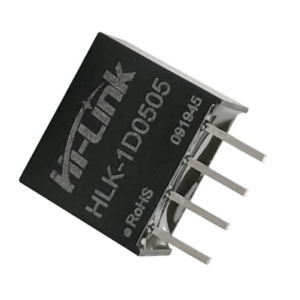

The Hi-Link 1D0505 is a compact 1W DC-DC isolation converter that takes a 5V input and provides an isolated 5V output at up to 200mA. Designed for on-board voltage stabilization, it delivers reliable power in industrial, instrumentation, and embedded applications.
Key Features of Hi-Link 1D0505 DC-DC Step-Down Module Power Supply 5V to 5V2
- Input 5V DC to isolated 5V DC output, 1W power rating
- Maximum output current 200mA for low-power loads
- Typical conversion efficiency of 80%
- Galvanic isolation between input and output for ground-loop prevention
- Wide operating temperature range: –40°C to +85°C, 5–95% RH
- Small footprint, natural cooling, no heatsink required
- Genuine Hi-Link module with fast shipping from Zbotic
Applications and Use Cases
- Isolated power supply for microcontroller and logic circuits
- On-board isolation in data acquisition and instrumentation systems
- Powering communication modules while preventing ground loops
- Embedded control panels and intelligent switch converters
- Voltage stabilization in sensor interfaces and low-power devices
How to Use Hi-Link 1D0505 DC-DC Step-Down Module Power Supply 5V to 5V2
Mount the module on your PCB and route the 5V DC input and ground to the designated pins. Connect the isolated 5V output to your load. Ensure adequate PCB clearance for natural airflow and operate within the specified temperature and humidity ranges for optimal performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum load current for the Hi-Link 1D0505?
You can draw up to 200mA at 5V output (1W) under normal operating conditions.
Does this module require a heat sink?
No — the Hi-Link 1D0505 uses natural cooling and operates from –40°C to +85°C without additional thermal management.
Is the input and output isolated?
Yes, the module provides galvanic isolation between the 5V input and 5V output, making it ideal for on-board isolation in complex circuits.
Technical Specifications
| Brand | Hi-Link |
|---|---|
| Operating Voltage | 5V |
| SKU | AI0703 |
| Weight | 0.0285 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link 1D0505 DC-DC Step-Down Module Power Supply 5V to 5V2 is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Hi-Link product sourced from authorized channels
