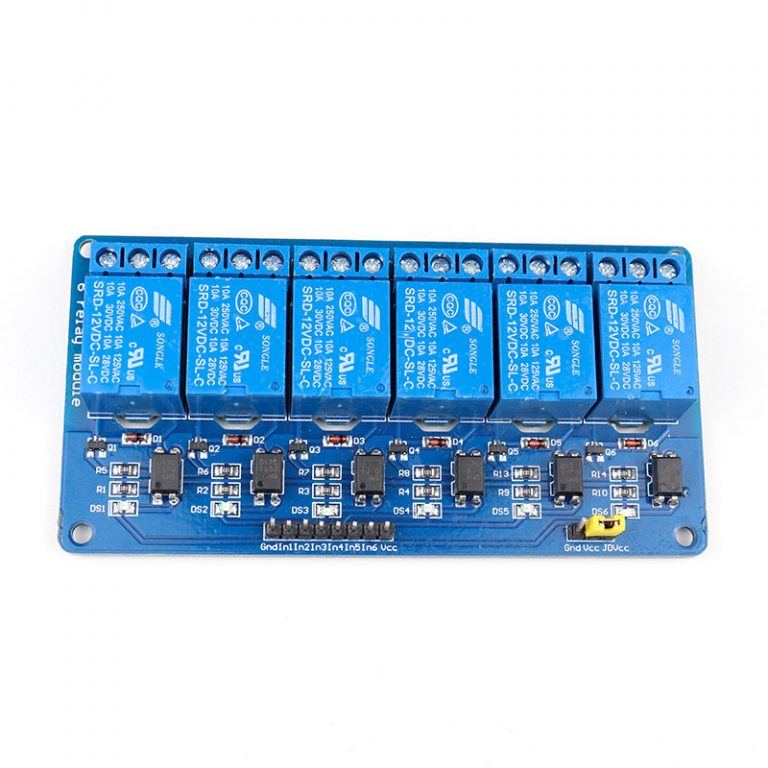

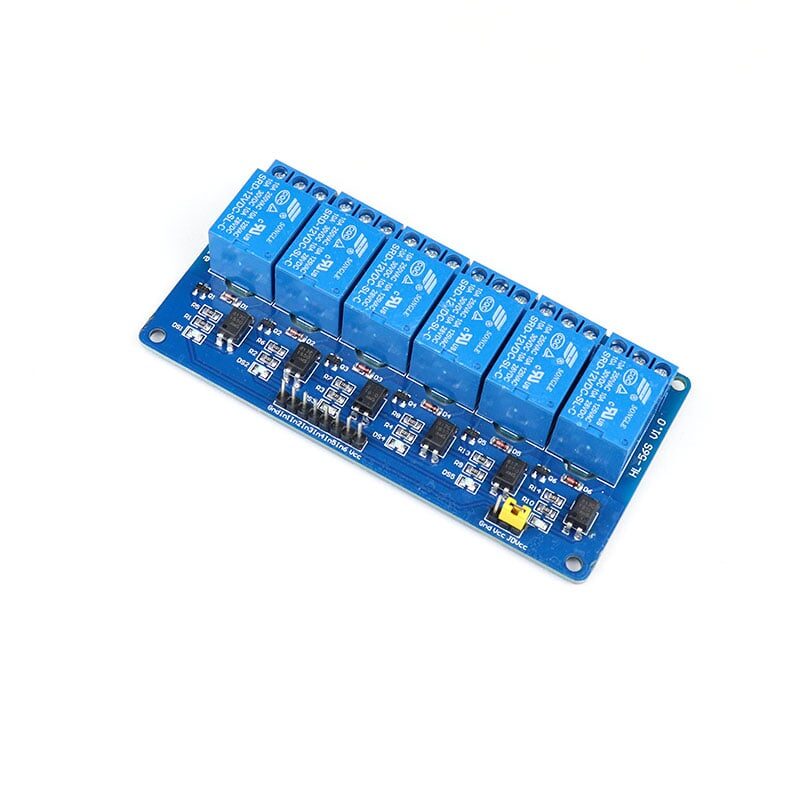

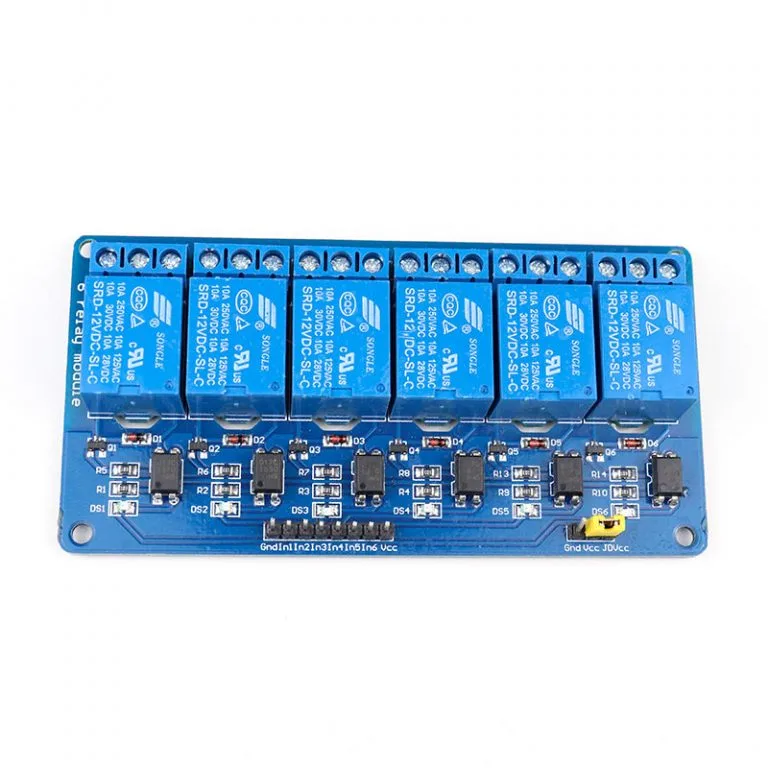

12V 6 Channel with Light Coupling Relay Module
The 6-Channel Relay Module with light coupling operates at 12V and ensures safety compliance with isolation grooves separating control and load areas, along with optical coupling isolation modules.
Its reliable triggering mechanism and stable performance are supported by a double FR–4 circuit board design and high-end SMT processes. The module features clear power and relay operation indicators for user convenience.
Wiring is simplified with accessible relay terminals (C, NC, NO) through screw terminals.
Moreover, the inputs of the 8-channel 12V Relay Module are isolated, safeguarding delicate control circuitry from potential damage.
Compatible with a wide array of microcontrollers such as Arduino, AVR, PIC, and ARM, this module offers versatility and ease of integration.
By employing high-voltage relays, the risk of relay overheating is mitigated, as these relays regulate current consumption in accordance with voltage ratings, ensuring reliable operation.
Module interface:
The positive (according to the relay voltage VCC: connect power supply)
GND: connect power negative.
IN1: relay module (effective) high-level trigger signal trigger end
IN2: relay module (effective) high-level trigger signal trigger end
IN3: relay module (effective) high-level trigger signal trigger end
IN4: relay module (effective) high-level trigger signal trigger end
IN5: relay module (effective) high-level trigger signal trigger end
IN6: relay module (effective) high-level trigger signal trigger end
IN7: relay module (effective) high-level trigger signal trigger end
IN8: relay module (effective) high-level trigger signal trigger end
Meaning of High level and Low-level
- High-level trigger refers to using the anode voltage at the VCC connection way of a trigger and triggers the end when the trigger side has a positive voltage or to trigger voltage when the relay is off.
- Low-level trigger refers to using the negative voltage at the GND connection way of a trigger and triggers the end when the trigger side has 0 v low voltage or voltage to can trigger, the relay is off.
Features:
- It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
- High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection.
- A freewheeling diode to protect your microcontroller.
- Input Signal Pin connected to Burg stick for easy accessibility.
- LED status indicators to indicate the relay ON/OFF status.
- Mounting holes provided
- Signal input with a high-level signal, the common and often start conduction.
- The relay can directly control all kinds of equipment and load.
- One often opened a normally closed contact.
- Blue KF301 terminal line more convenient.
- It is also able to control various appliances and other types of equipment with a large current.
- Red working status indicator lights are conducive to safe use. Widely used for all MCU control, industrial sector, PLC control, smart home control.
Specification:
| Trigger Voltage (VDC) | 12 |
|---|---|
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (°C): | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | – 65 to 125 |
| Length (mm): | 104 |
| Width (mm): | 53 |
| Height (mm): | 17 |
| Weight (g): | 80 |
Package Includes:
1 x 12V 6 Channel with Light Coupling Relay Module
