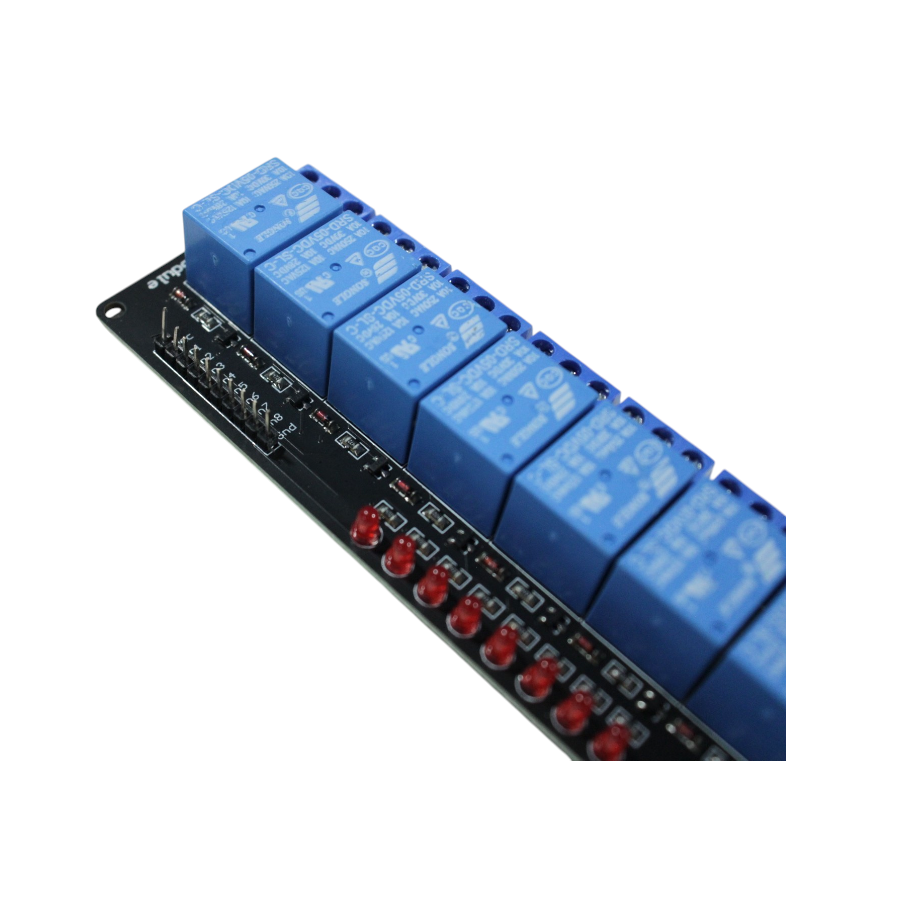

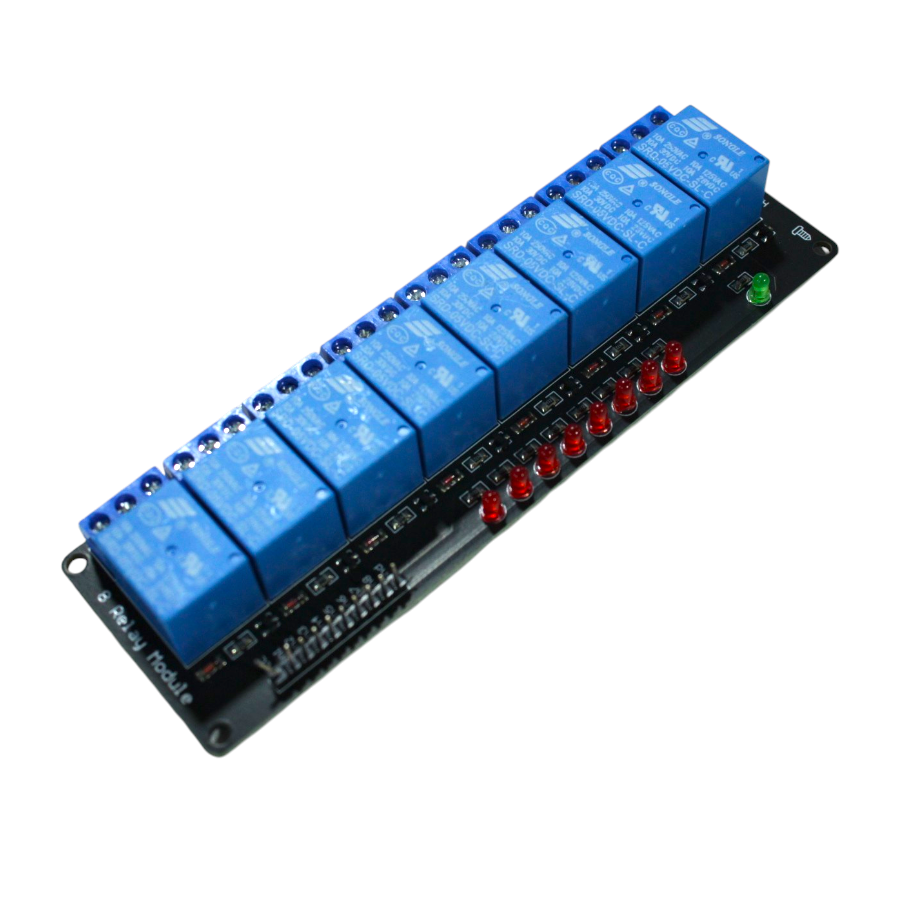

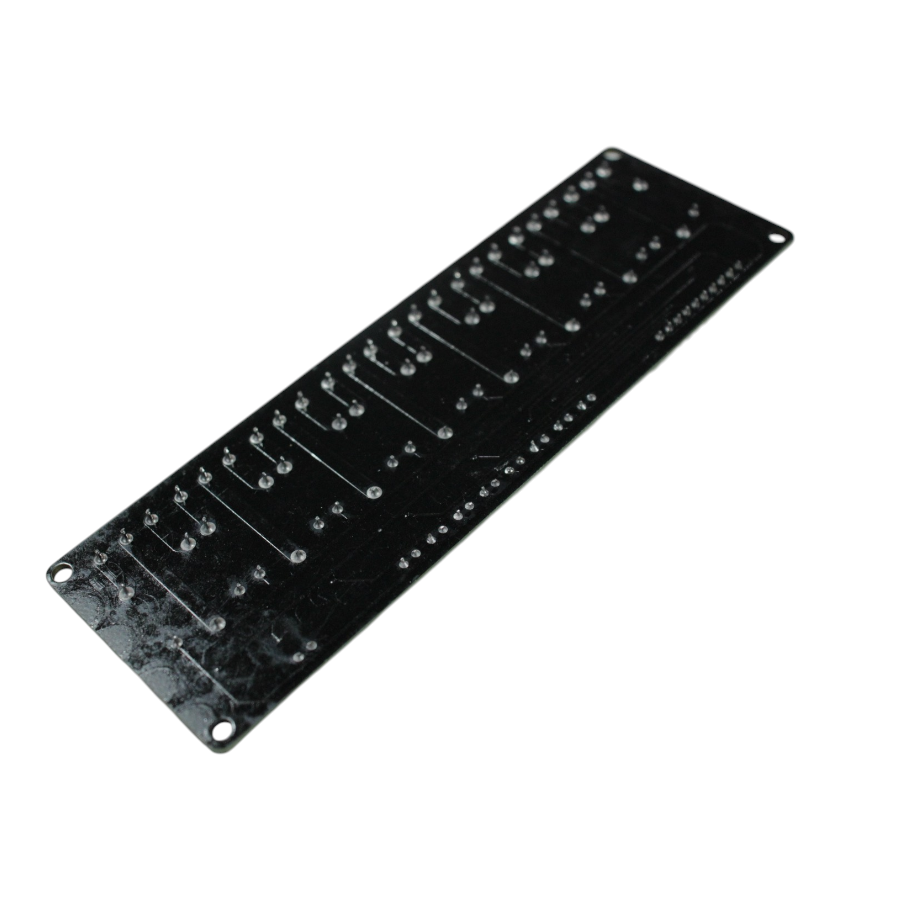

5V 8 Channel Relay Module
This 8-channel relay board operates on a 5V power supply, enabling direct control of 240V appliances from various microcontrollers and control systems. It’s an excellent solution for switching devices such as lights, fans, and more.

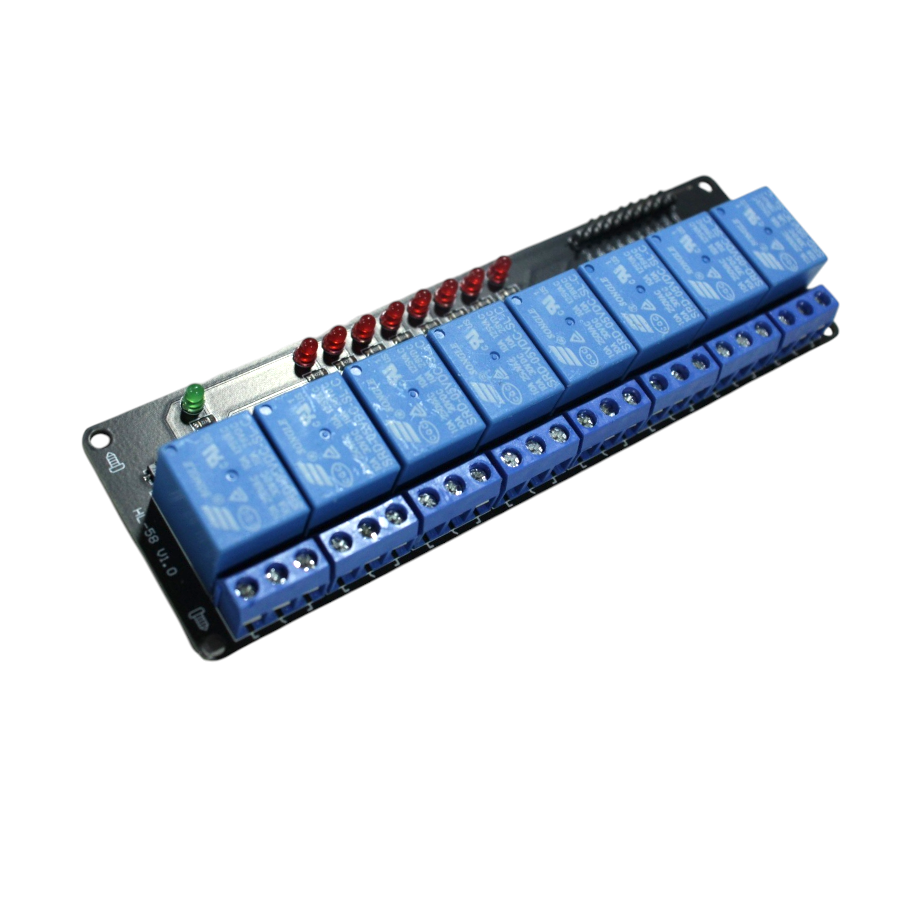

Equipped with high-quality relays, each capable of handling a maximum load of 10A at 120V AC, 7A at 240V AC, or 7A at 24V DC, this board ensures reliable performance. The relays feature three connection points—Common (C), Normally Open (NO), and Normally Closed (NC)—accessible via 3-pin screw terminals for easy connection and disconnection.
For added convenience during operation and troubleshooting, the board includes power indication LEDs and relay status LEDs. Additionally, power input and relay control signals are easily accessible through header pins, enhancing usability and integration with various control systems.
FeaturesÂ
- Power supply and relay instructions, lit, the disconnect is off.
- The input signal, signal, common Terminal and start conducting.
- Useful for appliance control.
- DC or AC signal, control, you can control the 220V AC load.
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil.
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- Power supply indicator and Control indicator lamp
- The module is compliant with international safety standards, control and load areas isolation trenches.
Specification:
| Operating Voltage (VDC) | 5 |
|---|---|
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Length (mm): | 140 |
| Width (mm): | 58 |
| Height (mm): | 18 |
| Weight (g): | 108 |
Package Includes
1 x 8 Channel Isolated 5V 10A Relay Module
