This is the 12V variant of the 12V 5050 RGB LED Strip Controller box with 24 Key IR Remote Control in RGB LED Strips and Drivers. Available at Original price was: ₹178.18.₹113.28Current price is: ₹113.28. (₹96.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION

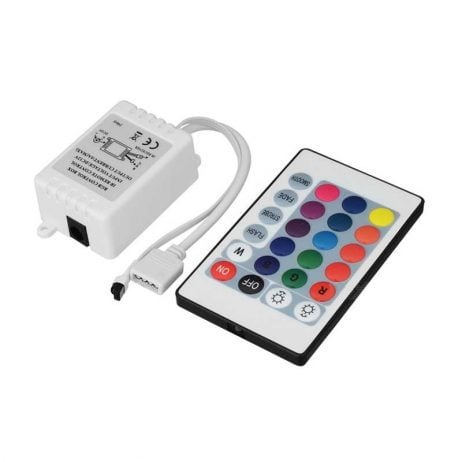

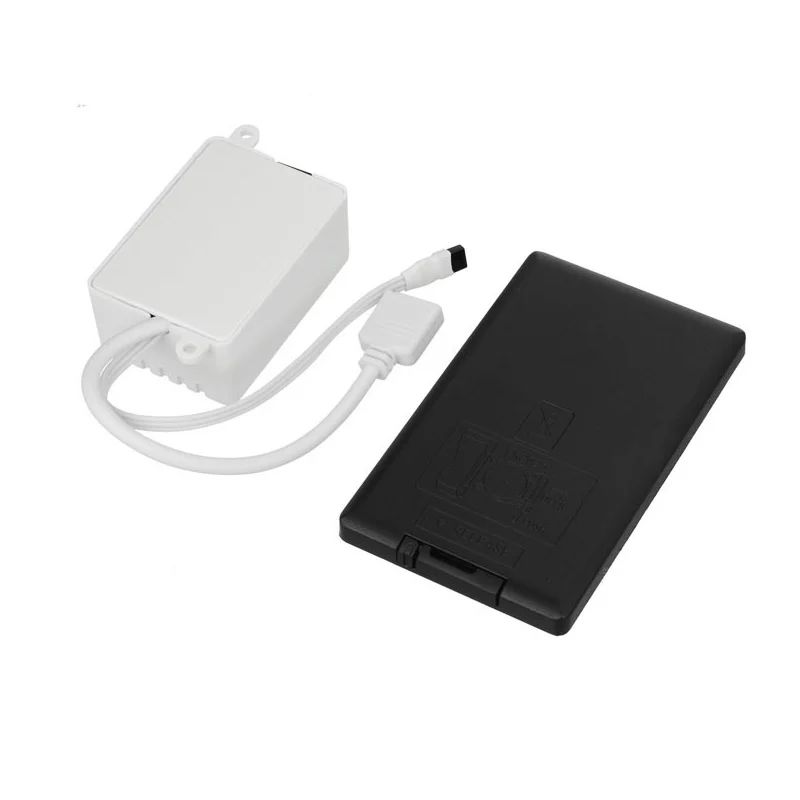

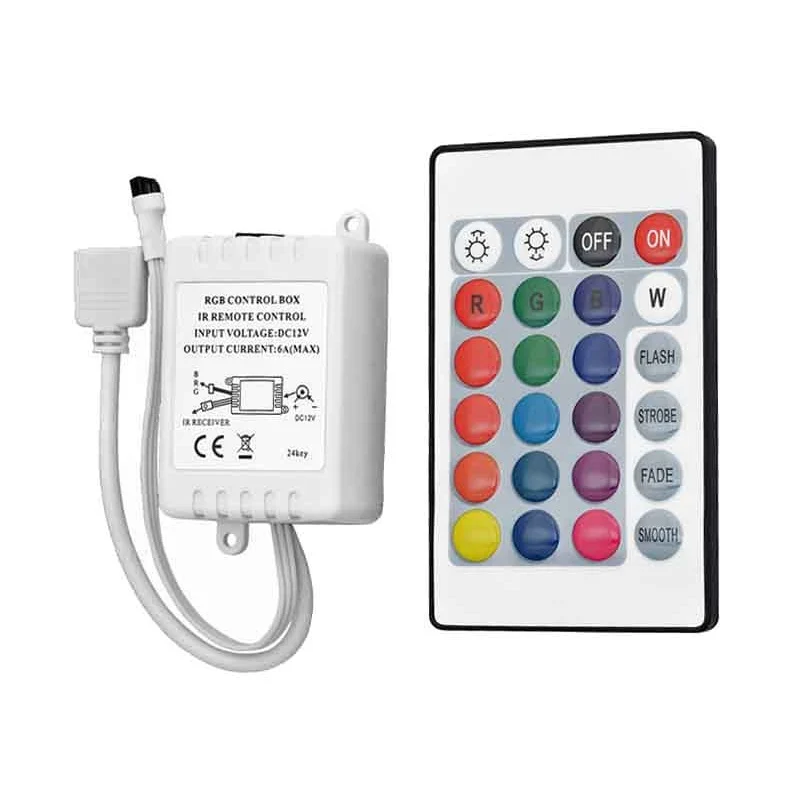

The RGB LED Strip Controller is a 12V 5050 RGB controller box that comes with a 24-key IR remote, providing everything you need right out of the box.

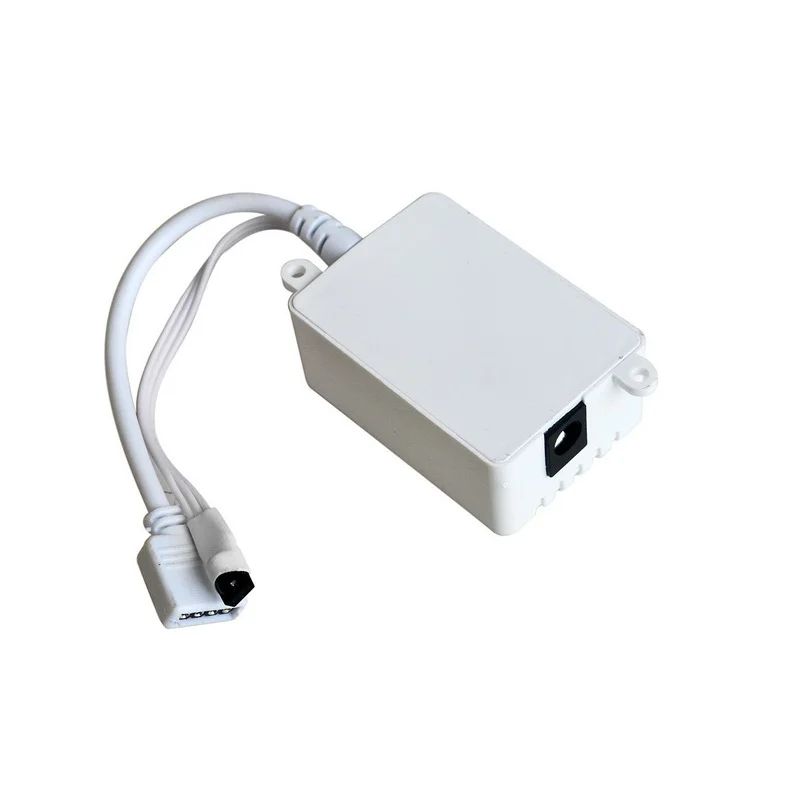

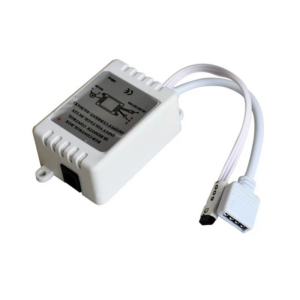

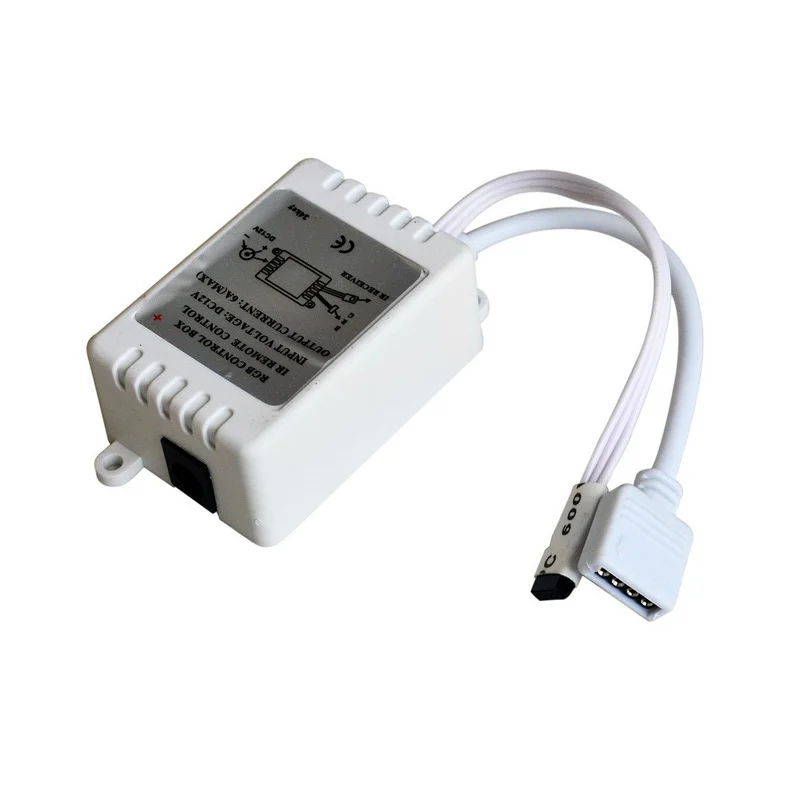

This controller operates on a 12V DC power supply via a 5mm female DC input port. On the output side, it features a 4-pin female connector, allowing you to easily connect it directly to an RGB strip. The controller also includes an IR receiver with a flexible probe, which can be adjusted to suit your setup or concealed for a cleaner look in decorative arrangements.
With a maximum current capacity of 6A, this controller can easily power up to 5 meters of RGB strip. The included 42-key IR remote offers a wide range of functions, including various lighting patterns, brightness adjustments, blink frequency control, and convenient ON/OFF functions.

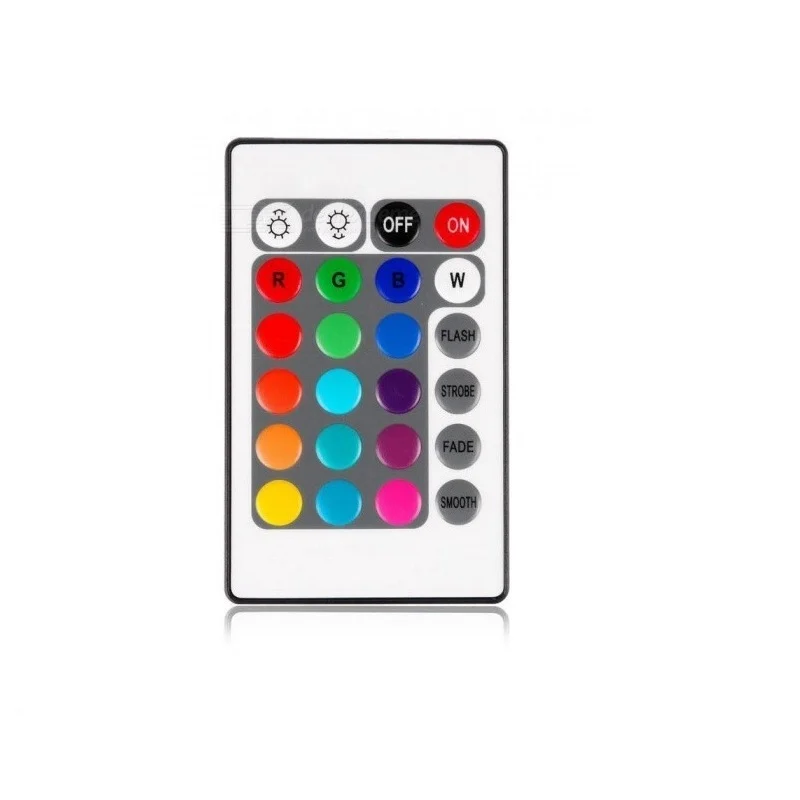

Button use:
R: Color change to Red
G: Color change to Green
B: Color change to Blue
W: Color change to White
Use: 12V 5050 RGB SMD LED strip lights
Note: Length of Strip depends upon the adapter you use to power the box. For 1-meter strip, 12V 2A Power supply is needed.
Features:
- Plug and Play Easy to connect
- Flexible IR Receiver Probe
- Multi-Function IR Remote control
- 16 colors, 5 light pattern: Static/Flash/Strobe/Fade-change/RGB Smooth-change.
- 16-classes Static Mode Dim Control
- 16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change.
- Connecting mode: common anode
- Material: plastic
- Output: Three CMOS Drain-open Output
Specification:
| Supply voltage | DC 12V |
|---|---|
| Output current | 2 A each colour (6A max) |
| Connecting Mode | Common Anode |
| Output | Three CMOS Drain-open Output |
| Number Of buttons | 44 |
| Working Temperature | -20℃-60℃ |
| Color | White |
| Box Dimensions L x W x H (mm) | 50 x 35 x 23 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 7 × 5 × 3 cm |
Package Includes:
1 x 12V 5050 RGB LED Strip Controller box

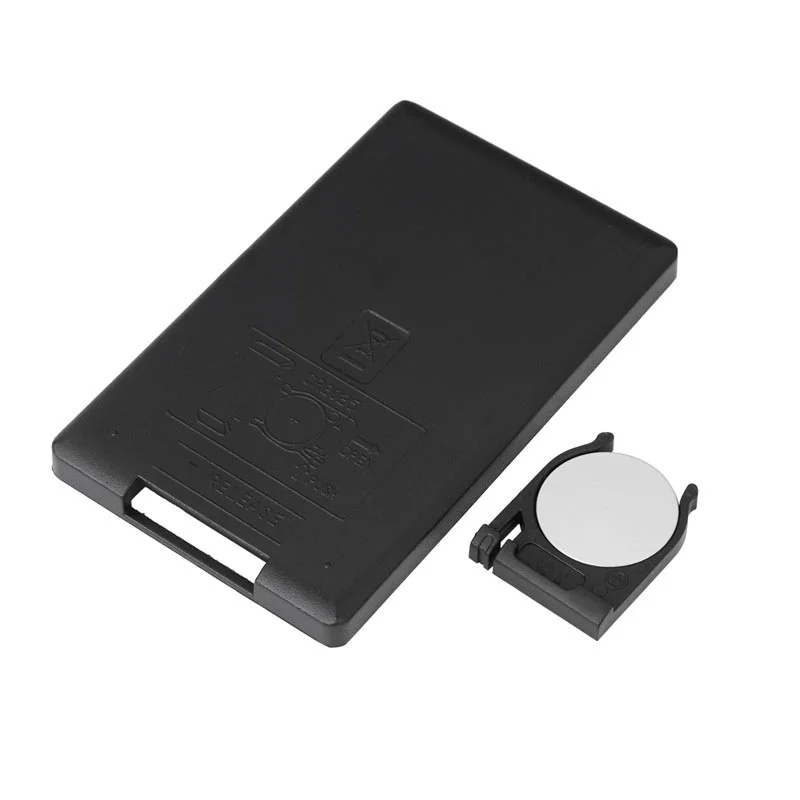

1 x 24 Key IR Remote Control (Battery Included)
